Viscount I
Viscount I 4-Ball Hydraulic Pump, SST, 1000cc Open Wet Cup Lower, NPT, Ultralife™ Rod/Cylinder
Part Number: 17E240

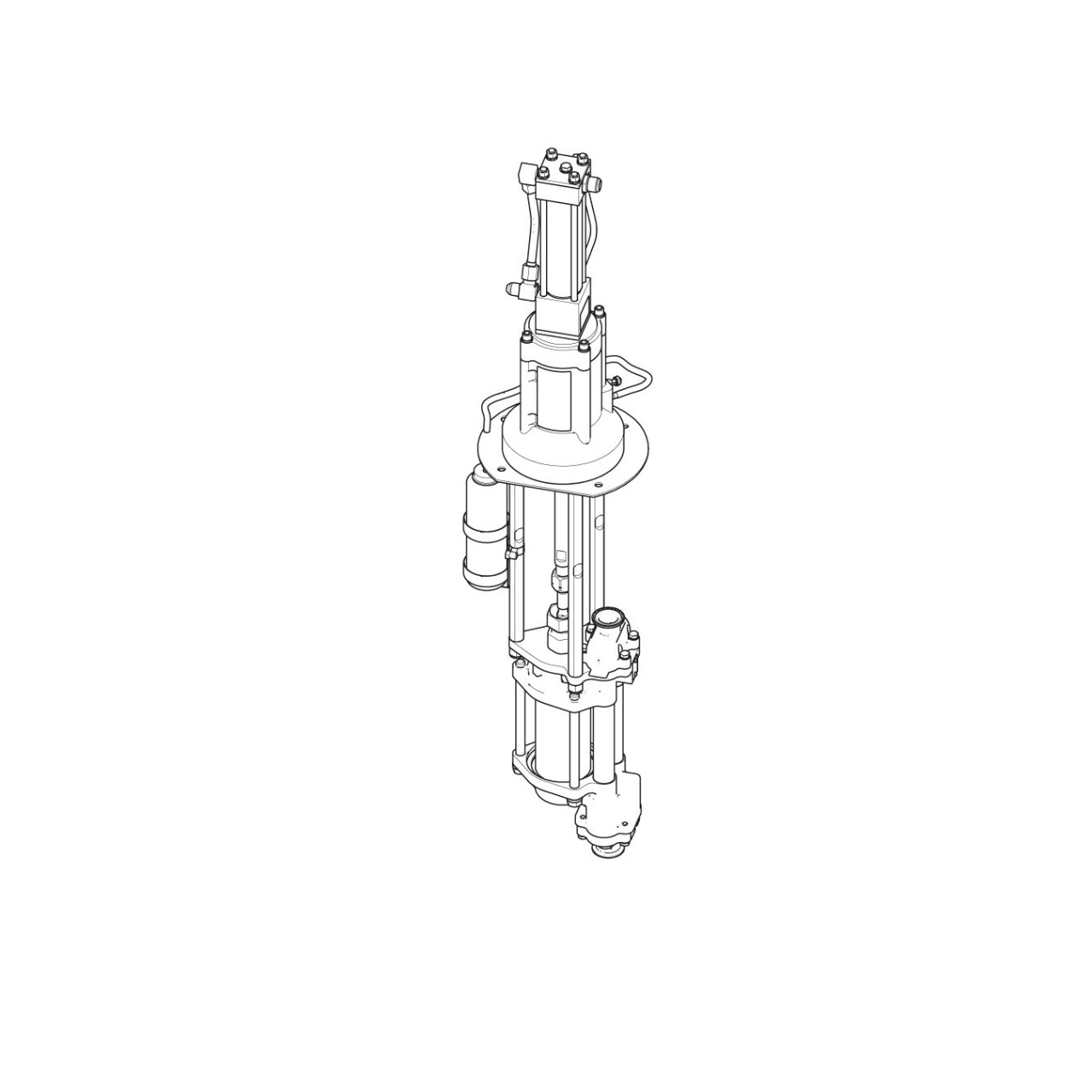

Image is for illustrative purposes only.
Viscount I
Viscount I 4-Ball Hydraulic Pump, SST, 1000cc Open Wet Cup Lower, NPT, Ultralife™ Rod/Cylinder
Part Number: 17E240
Graco's Viscount 4-Ball pumps are up to three times more efficient than comparable compressed air systems. Provides high volume output at lower cycle rates and produces low-shear output for metallic or water-borne paint circulation. The simplified lower design means fewer parts and fast, easy repair...
More Info
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Graco's Viscount 4-Ball pumps are up to three times more efficient than comparable compressed air systems. Provides high volume output at lower cycle rates and produces low-shear output for metallic or water-borne paint circulation. The simplified lower design means fewer parts and fast, easy repairs for low cost of ownership.
- Hydraulic-powered pumps for low pressure, high volume circulation of finishing materials
- Produces low-shear output for metallic or water-borne paint circulation
- Flushes easily and offers quick colour changes
Specifications & Documents
Technical Specifications
Convert to Imperial| Application | Circulation |
|---|---|
| Compatible Material | CARC, High Solids, Metallics, Solvent-borne, Stains, Topcoats, Varnish, Water-borne, Xirallic |
| Fluid Inlet Size (in) | 1-1/2 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 1-1/2 |
| Fluid Outlet Thread Type | NPT |
| Fluid Section Type | Open Wet Cup |
| Material | Stainless Steel |
| Maximum Continuous Cycle Rate (cpm) | 20 |
| Maximum Flow Rate (gpm) | 16.9 |
| Maximum Hydraulic Fluid Inlet Pressure (psi) | 1500 |
| Maximum Intermittent Cycle Rate (cpm) | 60 |
| Maximum Operating Temperature (°F) | 150 |
| Maximum Working Pressure (MPa) | 1.6 |
| Maximum Working Pressure (psi) | 225 |
| Model | Viscount |
| Portable | Non-Portable |
| Series | I |
| Type | Hydraulic Piston Pump |
| Wetted Material | Stainless Steel |
| Application | Circulation |
| Compatible Material | CARC, High Solids, Metallics, Solvent-borne, Stains, Topcoats, Varnish, Water-borne, Xirallic |
| Fluid Inlet Size (cm) | 3.81 |
| Fluid Inlet Size (in) | 1-1/2 |
| Fluid Inlet Size (mm) | 38.1 |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (cm) | 3.81 |
| Fluid Outlet Size (in) | 1-1/2 |
| Fluid Outlet Size (mm) | 38.1 |
| Fluid Outlet Thread Type | NPT |
| Fluid Section Type | Open Wet Cup |
| Material | Stainless Steel |
| Maximum Continuous Cycle Rate (cpm) | 20 |
| Maximum Flow Rate (gpm) | 16.9 |
| Maximum Flow Rate (l/min) | 63.97 |
| Maximum Hydraulic Fluid Inlet Pressure (bar) | 103 |
| Maximum Hydraulic Fluid Inlet Pressure (kPa) | 10300 |
| Maximum Hydraulic Fluid Inlet Pressure (psi) | 1500 |
| Maximum Intermittent Cycle Rate (cpm) | 60 |
| Maximum Operating Temperature (°C) | 66 |
| Maximum Working Pressure (MPa) | 1.6 |
| Maximum Working Pressure (bar) | 16 |
| Maximum Working Pressure (kPa) | 1600 |
| Maximum Working Pressure (psi) | 225 |
| Model | Viscount |
| Portable | Non-Portable |
| Series | I |
| Type | Hydraulic Piston Pump |
| Wetted Material | Stainless Steel |
Product Manuals
406864D, Throat Seal Upgrade Kits 24F063 and 24F064, Instructions/Parts, English
(322 KB)
(English Only)
CAD Drawings
17E230-3D-EN.zip
(4 MB)
