SD 20
SD™ 20, Grease, 10 mm (3/8 in.) Inlet, Bare Reel (10 mm X 15 m (3/8 in. X 50 ft.) Capacity), NPT, Overhead Mount, Black
Part Number: HPH5DD

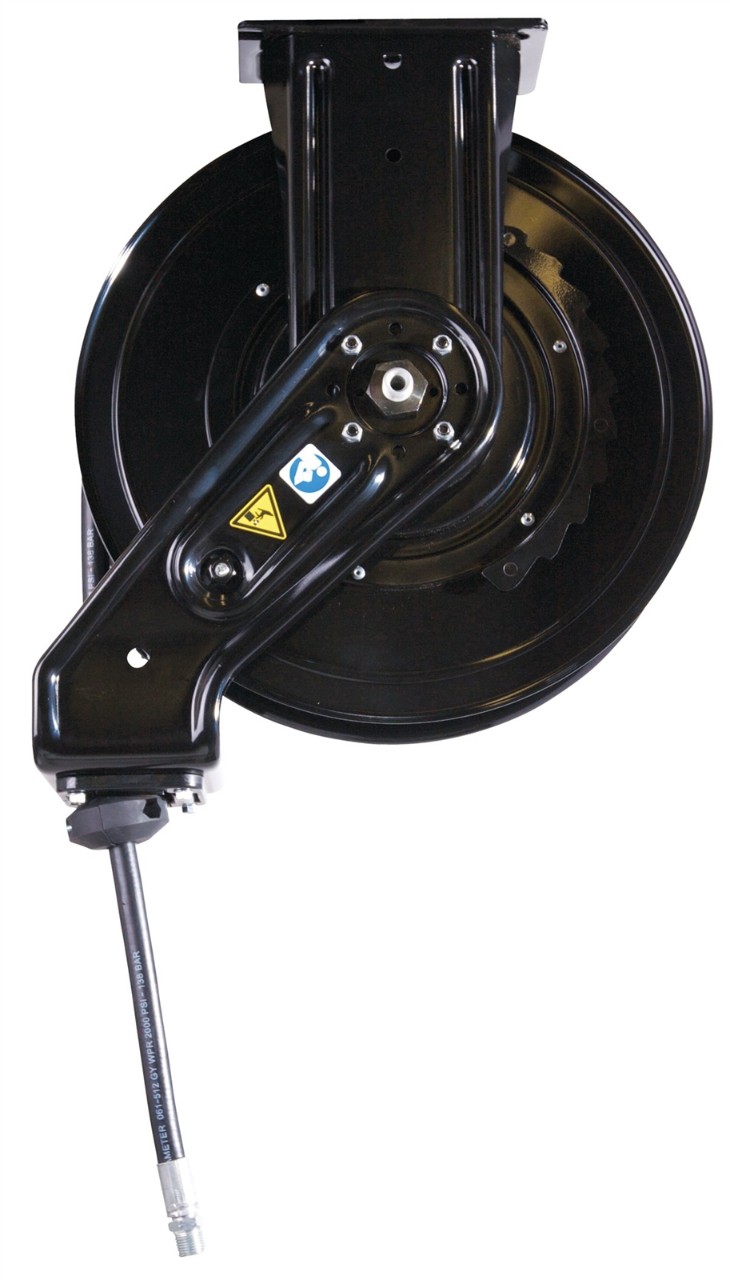

Image is for illustrative purposes only.
Image is for illustrative purposes only.
SD 20
SD™ 20, Grease, 10 mm (3/8 in.) Inlet, Bare Reel (10 mm X 15 m (3/8 in. X 50 ft.) Capacity), NPT, Overhead Mount, Black
Part Number: HPH5DD
The SD line of hose reels feature Graco durability, performance and value built into every reel. With its durable metal spool and rigid pedestal frame, the compact SD Series is ideal for indoor and moderate outdoor exposure.
Questions About this Product?
If you're not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
The SD line of hose reels feature Graco durability, performance and value built into every reel. With its durable metal spool and rigid pedestal frame, the compact SD Series is ideal for indoor and moderate outdoor exposure.
With its durable metal spool and rigid pedestal frame, the compact SD Series is ideal for indoor and moderate outdoor use in car dealerships, fleet maintenance, public works garages and light-utility service trucks.
- Full-Flow Swivel – Maximise material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Adjustable Arm – Easily change the arm position for your application
- Large Hose Capacity with Small Profile – Compact pedestal and spool fits into tight spaces and can accommodate 10.7-19.8 metre (35-65 foot) hose (NPT air/water) capacity for a wide variety of applications
- Durable Finish – Baked-on enamel finish protects reel from corrosion
Specifications & Documents
Technical Specifications
Convert to Imperial| Application | Grease |
|---|---|
| Bare Reel | 1 |
| Colour | Black |
| Dry Weight (lb) | 52 |
| Frame Type | Single Pedestal |
| Hose Inside Diameter (in) | 3/8 |
| Hose Length (ft) | 50 |
| Hose Reel Type | Bare Reel |
| Inlet Size (in) | 3/8 |
| Inlet Thread Gender | Male |
| Inlet Thread Type | NPSM |
| Maximum Temperature (°F) | 200 |
| Maximum Working Pressure (psi) | 5000 |
| Minimum Temperature (°F) | -40 |
| Model | SD |
| Mount Location | Overhead Mount |
| Outlet Size (in) | 1/4 |
| Outlet Thread Gender | Male |
| Overall Height (in) | 21.8 |
| Overall Length (in) | 19.2 |
| Overall Width (in) | 7 |
| Recommended Environment | Indoor, Outdoor |
| Recommended Fluid Type | Grease |
| Reel Thread Type | NPT |
| Series | 20 |
| Type | Spring-Rewind Reel |
| Wetted Parts | Zinc-Plated Steel, Polyurethane, Steel |
| Application | Grease |
| Bare Reel | 1 |
| Colour | Black |
| Frame Type | Single Pedestal |
| Hose Inside Diameter (mm) | 9.525 |
| Hose Length (m) | 15 |
| Hose Reel Type | Bare Reel |
| Inlet Size (mm) | 9.525 |
| Inlet Thread Gender | Male |
| Inlet Thread Type | NPSM |
| Maximum Temperature (°C) | 93 |
| Minimum Temperature (°C) | -40 |
| Model | SD |
| Mount Location | Overhead Mount |
| Outlet Size (mm) | 6.35 |
| Outlet Thread Gender | Male |
| Overall Height (mm) | 554 |
| Overall Length (mm) | 487 |
| Overall Width (mm) | 177 |
| Recommended Environment | Indoor, Outdoor |
| Recommended Fluid Type | Grease |
| Reel Thread Type | NPT |
| Series | 20 |
| Type | Spring-Rewind Reel |
| Wetted Parts | Zinc-Plated Steel, Polyurethane, Steel |
