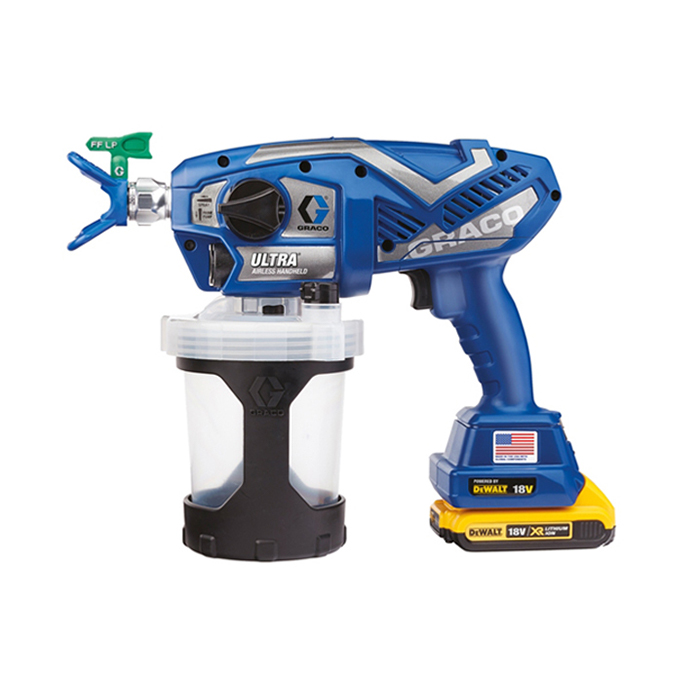

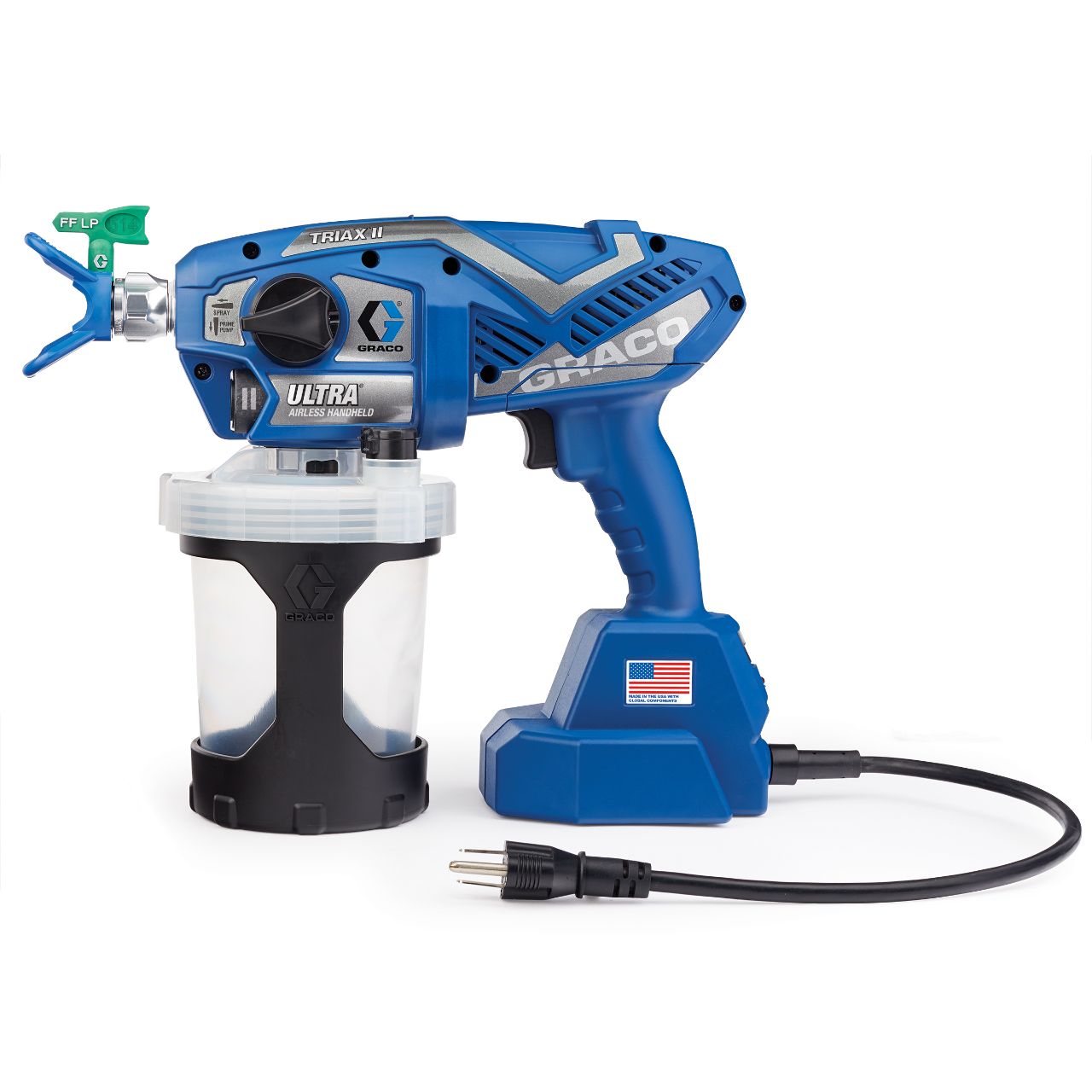

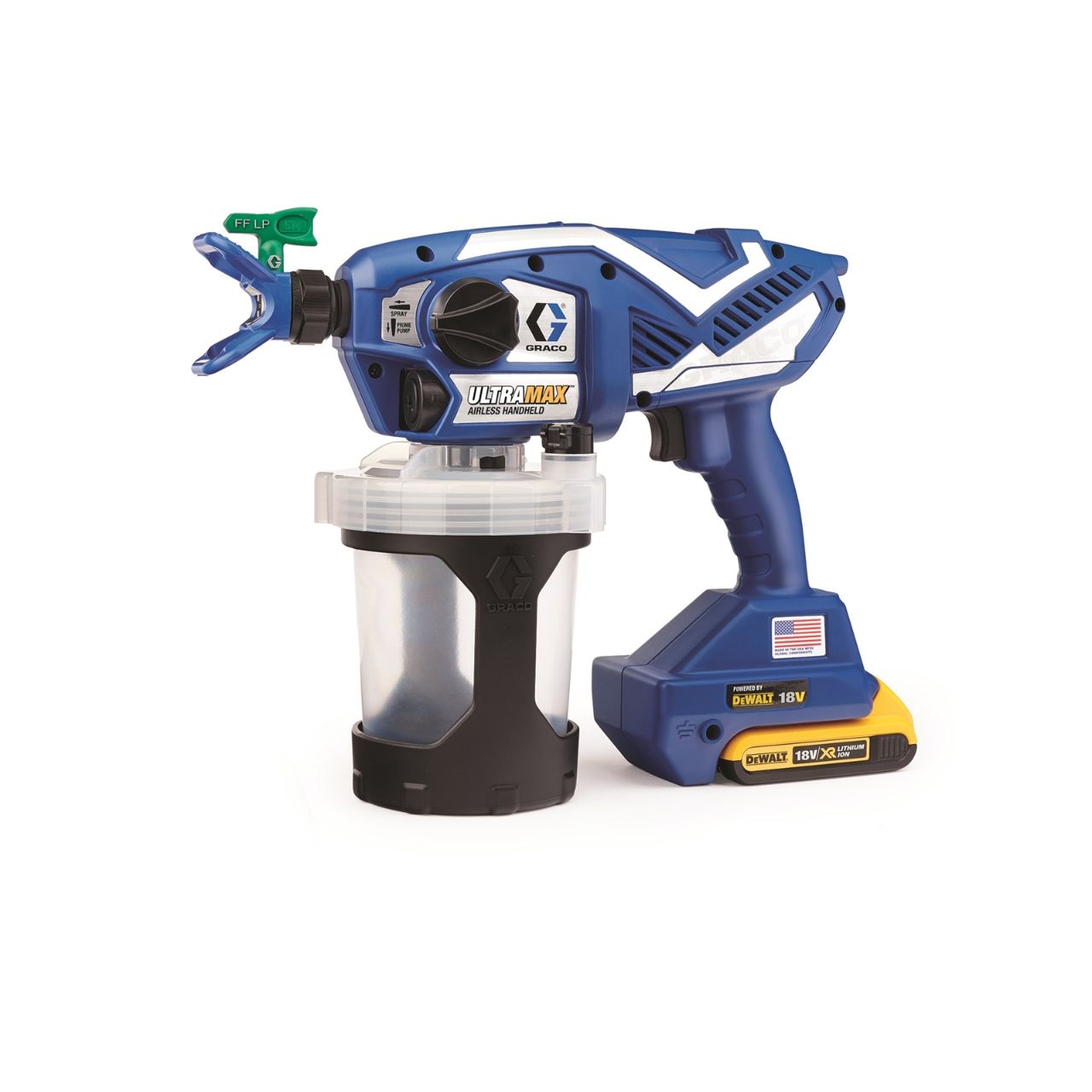

Ultra HandHeld
FASTEST WAY TO FINISH SMALL JOBS, PROVEN BY PROS
PERFECT AIRLESS FINISH AT ANY SPEED, SMOOTH & EVEN WITHOUT THINNING
RELIABILITY DELIVERED - EVERY JOB, EVERY TIME
AVAILABLE IN 3 MODELS
| _ | Ultra Corded | Ultra Cordless | UltraMAX Cordless |
| Model Number | 17m362 | 17N221 | 17N225 |
| Compatible Materials* | |||
| Water-Based | ✓ | ✓ | ✓ |
| Mineral Spirits | ✓ | ✓ | ✓ |
| Flammable | _ | _ | ✓ |
| Hot Solvents | _ | _ | ✓ |
| Features | |||
| Pressure Control | ✓ | ✓ | ✓ |
| Pressure Range | 500 - 2000 psi | 500 - 2000 psi | 500 - 2000 psi |
| Tip Type Supported | RAC X FF LP | RAC X FF LP | RAC X FF LP |
| Tip Size Supported | .008 - .016 in | .008 - .016 in | .008 - .016 in |
| Power Source | Corded | Battery | Battery |
| Fully Repairable | ✓ | ✓ | ✓ |
| ProConnect System | ✓ | ✓ | ✓ |
| Includes | |||
| RAC X FF LP Tip(s) | RAC X FF LP 514 | RAC X FF LP 514 | RAC X FF LP 514 & RAC X FF LP 210 |
| 32 oz FlexLiner Bags | 4 | 4 | 6 |
| Batteries | _ | 2 - DEWALT 18v Max Compact 2.0 ah XR Lithium Ion | 2 - DEWALT 18v Max Compact 2.0 ah XR Lithium Ion |
| Filter Mesh | 60 Mesh | 60 Mesh | 60 & 100 Mesh |
| Storage Bag | ✓ | ✓ | ✓ |
*Ultra sprayers spray most materials that can be cleaned with water or mineral spirits. Refer to the operation manual for more details.
Video
Features
RAC X FF LP Tip
RAC X FF LP Tip
- Provides superior finish at low pressure
- Works on all Graco Airless Sprayers - everything from handhelds to large airless
- Large range of sizes available to meet the job requirements
- Reverse-A-Clean (RAC) SwitchTips deliver exceptional spraying results and make cleaning tip clogs simple
Triax II Triple Piston Pump
Triax II Triple Piston Pump
Unmatched Performance
- Harder and more wear resistant carbide piston and sleeve
- 3X more gallons pumped before service
Reliable Startup
- No inlet check valve to get stuck
- Automatic Outlet Ball Knocker
Perfect Airless Finish
- Smooth and even at any hand speed
- No Thinning
- Single Coat Coverage
FlexLiner System
FlexLiner System
Disposable liners eliminate cleanup time
Easy Setup
- Fill 32 oz. FlexLiner Bag with material and attach to the handheld
- Squeeze out any remaining air
- Spray
Easy Cleanup
- Fill FlexLiner Bag with cleaning fluid like PumpArmor
- Shake sprayer
- Spray into a bucket
No suction tube to clean
Toss or reuse FlexLiner Bag, it's your choice
ProConnect Pump Replacement System
ProConnect Pump Replacement System
On-The-Job Pump Replacement System
One Tool Replacement - Replace the pump in 3 steps using only a screwdriver
- Remove Phillips screws and door
- Remove and replace pump
- Reinstall door and screws
ProControl II Pressure Control with SmartControl
ProControl II Pressure Control with SmartControl
- Adjust motor speed to spray at virtually any speed that the job demands - hear it working
- More control allows users to spray at the speed they choose - a professional finish, fast or slow
- Precision pressure control that delivers a consistent spray fan without pressure fluctuations
Powered by DEWALT
Powered by DEWALT
- GUARANTEED TOUGH
- Proven quality, contractor recognized battery manufacturer
- 3-LED fuel gauge system allows immediate feedback on state of charge
- Lightweight design and 30% faster charge time (35 minutes)
- Each cordless machine comes standard with 2 batteries
- Compatible with any DEWALT 18V Lithium Ion battery
- Spray up to 3,8 liter (1 gallon) with each charge thanks to the DEWALT 18V Lithium Ion system
