QuikPak
集成式密封圈维修系统

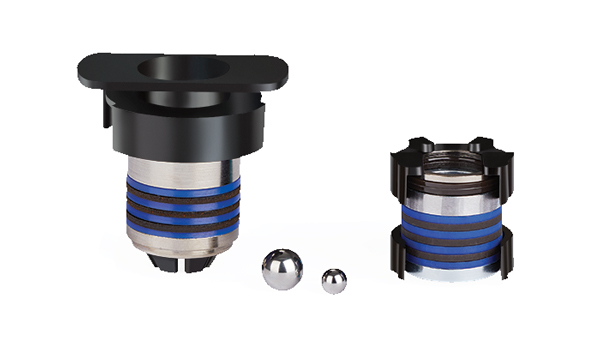

QUIKPAK集成式预涂油密封圈 确保每次均可正确安装，减少停机时间
全新方式
旧有方式
可用于Ultra Max II 695/795/1095, GMAX II 3900/5900/7900, TexSpray Mark IV/V/X, and TexSpray 5900/7900 HD 喷涂机.
更换只需几分钟

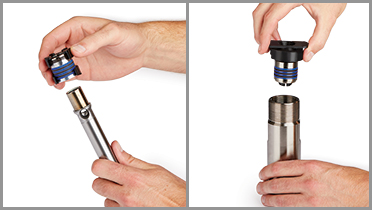

1. 插入预涂油密封组件

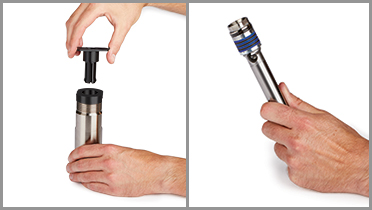

2. 拆除一次性支架

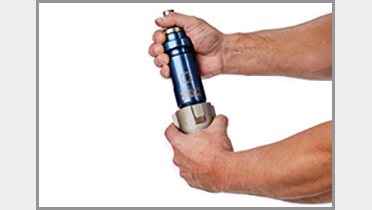

3. 安装泵体
订购信息
喷涂机型号 |
替换泵 |
维修套件 |
|

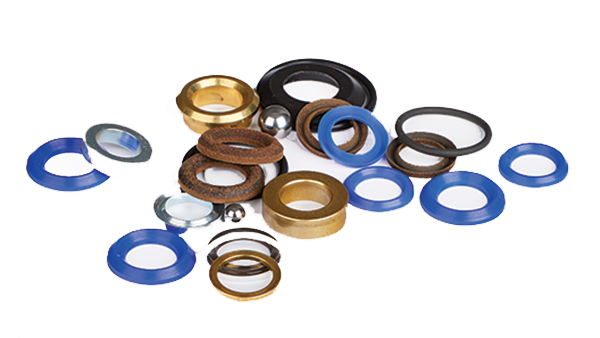

标准套件 |
QUIKPAK套件 |
||
| Ultra Max II 695, 795 Standard Series / GMAX II 3900 Standard Series | 16Y598 | 248212 | 17H838 |
| Ultra Max II 695, 795 ProContractor Series / GMAX II 3900 Lo-Boy and ProContractor Series | 16X414 | 248212 | 17H838 |
| Ultra Max II 1095 Standard Series / GMAX II 5900 Standard Series | 16Y706 | 248213 | 17H839 |
| Ultra Max II 1095 ProContractor Series / GMAX II 5900 Lo-Boy and ProContractor Series | 16X419 | 248213 | 17H839 |
| GMAX II 7900 Standard Series | 16X423 | 248123 | 17H840 |
| GMAX II 7900 Lo-Boy and ProContractor Series | 16X426 | 249123 | 17H840 |
| TexSpray Mark IV Standard Series | 17H828 | 24V063 | 17H845 |
| TexSpray Mark V Standard Series / TexSpray 5900 HD Standard Series | 17H829 | 249189 | 17H846 |
| TexSpray Mark V ProContractor Series / TexSpray 5900 HD ProContractor Series | 16X421 | 249189 | 17H846 |
| TexSpray Mark VII Standard Series | 17H830 | 24M830 | 17H847 |
| TexSpray Mark VII ProContractor Series | 16Y602 | 24M830 | 17H847 |
| TexSpray Mark X™ Standard Series | 17H831 | 17A578 | 17H848 |
| TexSpray Mark X ProContractor Series / TexSpray 7900 HD ProContractor Series | 16X427 | 17A578 | 17H852 |
| TexSpray 7900 HD Standard Series | 16X425 | 17A578 | 17H852 |
