Merkur ES

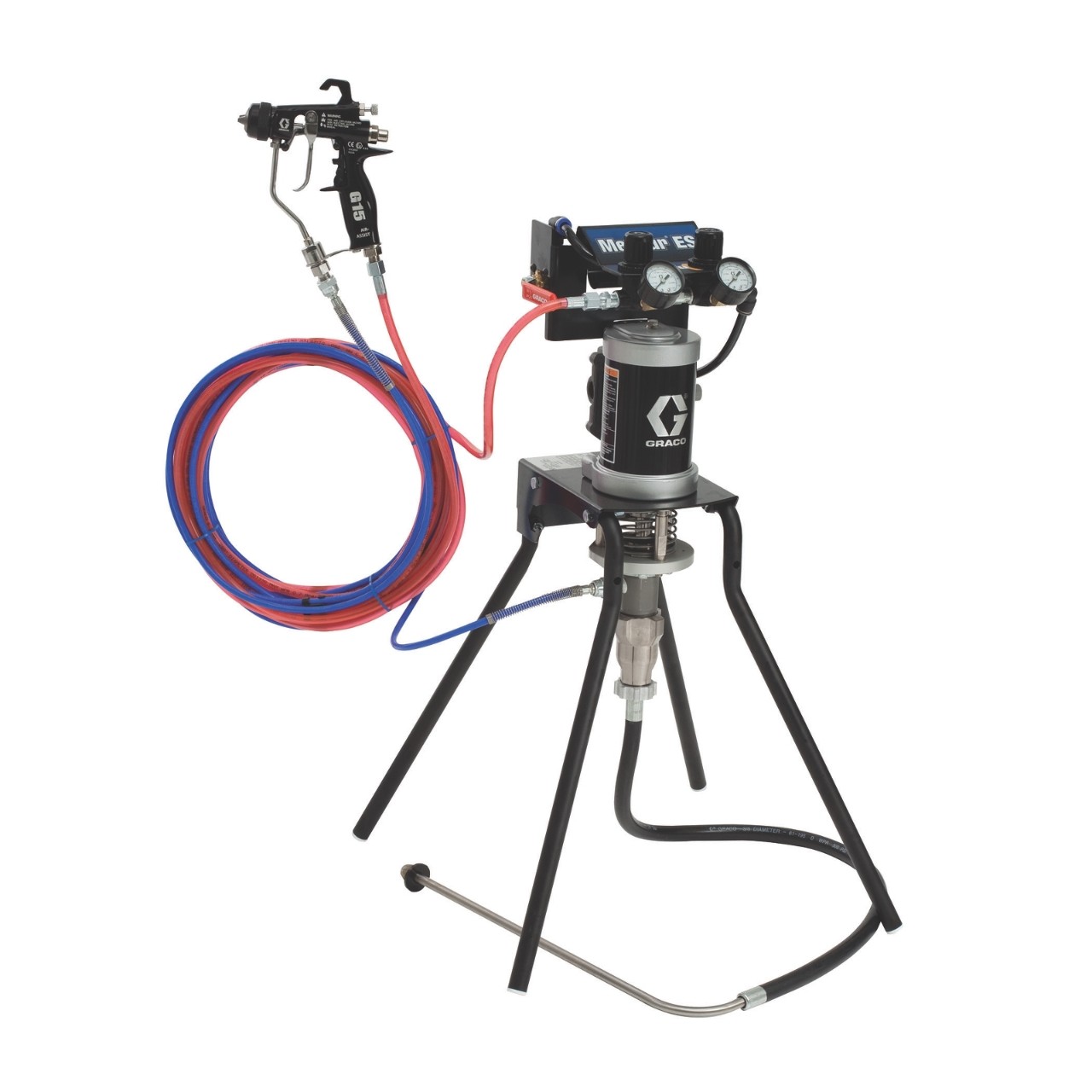

15:1 Merkur ES Air Assisted Package, 1.5 lpm (0.4 gpm) fluid flow, standard mount, with G15 gun, suction hose and plated steel
24F151
Merkur ES
15:1 Merkur ES Air Assisted Package, 1.5 lpm (0.4 gpm) fluid flow, standard mount, with G15 gun, suction hose and plated steel
24F151
The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.
Features
Product Brochure
The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.
Low-volume fine finish spray applications
- Quick flush system requires less than 1 minute to flush
- 45% less material needed to fill the system than leading competitors
- Delivers a superior, consistent spray finish
- Low profile spray package makes it easy to transport
- Easily set and monitor air control. Also fitted with an integrated carrying handle for transport
- Air motor provides consistent finishes with smooth, rapid changeover
- Suction hose and strainer leave less material in the supply container
- Lightweight, flexible 1/8 in fluid hose reduces material and solvent usage
Specifications & Documents
Technical Specifications
Convert to Imperial| Convertible | Non-Convertible |
|---|---|
| Fluid Outlet Size (in) | 1/4 |
| Fluid Outlet Thread Type | NPSM |
| Gun Included | 1 |
| Gun Model | G15 |
| Gun Type | Air-Assisted |
| Gun technology | Air-Assisted |
| Hose Inlet Diameter (in) | 0.125 |
| Includes | G15 Gun, Suction Hose, Stand Mount |
| Maximum Hose Length (ft) | 25 |
| Maximum Sound Pressure Level (dB(A)) | 76.5 |
| Maximum Tip Size (in) | 0.019 |
| Maximum Working Pressure (MPa) | 10.3 |
| Maximum Working Pressure (psi) | 1500 |
| Model | Merkur |
| Motor Type | Pneumatic |
| Mount Type | Stand Mount |
| Number of Guns | 1 |
| Power Source | Air |
| Pressure Type | High Pressure |
| Product Type | Spray Package |
| Pump Sleeve Material | Carbon Steel |
| Pump Type | Pneumatic piston pump |
| Series | ES |
| Spray Type | Air-Assisted |
| Standards Met | ATEX, CE |
| Type | Air-Assisted Airless Sprayer |
| Weight (lb) | 23 |
| Wetted Material | Stainless Steel, Nickel-Plated Carbon Steel, Tungsten Carbide, PTFE, Acetal, Leather, UHMWPE, Engineered Plastic, Nylon, Fluoroelastomer, Polyethylene |
| Convertible | Non-Convertible |
| Fluid Outlet Size (cm) | 0.635 |
| Fluid Outlet Size (mm) | 6.35 |
| Fluid Outlet Thread Type | NPSM |
| Gun Included | 1 |
| Gun Model | G15 |
| Gun Type | Air-Assisted |
| Gun technology | Air-Assisted |
| Hose Inlet Diameter (cm) | 0.3175 |
| Hose Inlet Diameter (mm) | 3 |
| Includes | G15 Gun, Suction Hose, Stand Mount |
| Maximum Hose Length (m) | 7.6 |
| Maximum Sound Pressure Level (dB(A)) | 76.5 |
| Maximum Tip Size (cm) | 0.0483 |
| Maximum Tip Size (mm) | 0.4826 |
| Maximum Working Pressure (MPa) | 10.3 |
| Maximum Working Pressure (bar) | 103 |
| Maximum Working Pressure (kPa) | 10300 |
| Model | Merkur |
| Motor Type | Pneumatic |
| Mount Type | Stand Mount |
| Number of Guns | 1 |
| Power Source | Air |
| Pressure Type | High Pressure |
| Product Type | Spray Package |
| Pump Sleeve Material | Carbon Steel |
| Pump Type | Pneumatic piston pump |
| Series | ES |
| Spray Type | Air-Assisted |
| Standards Met | ATEX, CE |
| Type | Air-Assisted Airless Sprayer |
| Weight (kg) | 10.4 |
| Wetted Material | Stainless Steel, Nickel-Plated Carbon Steel, Tungsten Carbide, PTFE, Acetal, Leather, UHMWPE, Engineered Plastic, Nylon, Fluoroelastomer, Polyethylene |
Repair Parts
| Part No. | Description |
|---|---|
| 24G701 | Complete Plated Steel Pump Replacement Kit for Merkur ES Packages |
| 24G693 | Complete 63.5 mm (2.5 in) Merkur ES Air Motor Repair Kit |
| 24A360 | Air Valve End Cap Kit, Standard, for systems with no DataTrak or with DataTrak with Cycle Count |
| 24A535 | Air Valve Seal Kit, for Air Valve Models 24A351 and 24A353 |
| 24F161 | Airless to Air-Assisted Conversion Kit |
| 17A493 | Hopper Kit, 2 Litres (0.5 gal), attaches to wall or stand mount |
| 24C853 | G15 Air-Assist Carbide Gun for low to medium-viscosity materials |
| 24A537 | Air Valve Repair Kit, for Air Valve Models 24A351 and 24A353 |
| 24F160 | Standard Push-on Strainer Kit |
| 24H665 | Alternate U-Cup Pump Packing Kit (UHMWPE) for Merkur ES Packages |
| 17B208 | Hopper O-Ring Kit |
| 256426 | Package of 10 strainers for Kits 24F149 and 256420 |
| 17C166 | Bungee cord for attaching hopper lid |
