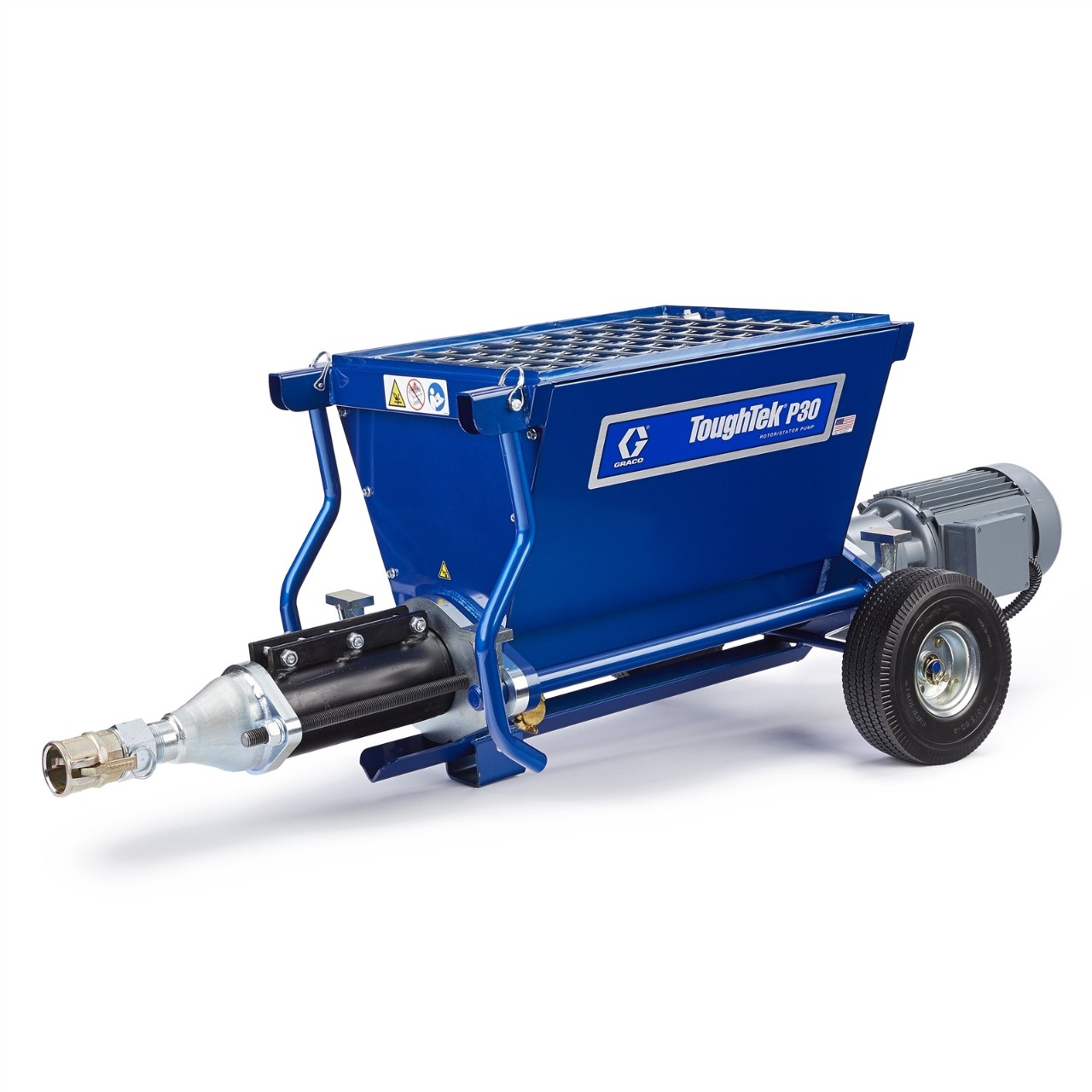

ToughTek P30
ToughTek P30 Bare Rotor Stator Pump System, 230V, 1Ph, 50/60Hz
25M031
ToughTek P30
ToughTek P30 Bare Rotor Stator Pump System, 230V, 1Ph, 50/60Hz
25M031
No matter what type of mortar you’re pumping, the ToughTek P30 Mortar Pump provides long-lasting durability and rugged performance – and handles a wide range of mortar materials. Its compact design and light weight make it easy to transport and use on the jobsite. Reduce manual labour and start pump...
More InfoFeatures
Product Brochure
No matter what type of mortar you’re pumping, the ToughTek P30 Mortar Pump provides long-lasting durability and rugged performance – and handles a wide range of mortar materials. Its compact design and light weight make it easy to transport and use on the jobsite. Reduce manual labour and start pumping with the P30 Mortar Pump instead.
Built for mid-range mortar applications
- Easy to use, easy to move
- Variable pump output lets you adjust material flow
- Optional remote control operation
- Flow rate: 38 lpm (10 gpm)
- Output (underlayment): 200 bags per hour (based on 22.6 kg/50 lb bags)
- Pumping distance: 100 feet + (30 m)
- Pumping height: 18 m (60 ft)
- Reversible pump direction
- Hopper capacity: 60.6 L (16 Gal)
- Power requirements: 230V, 30A, 1-ph
Specifications & Documents
Technical Specifications
Convert to Imperial| Compatible Material | Repair Mortar, Stucco, EIFS, Self-Leveling Underlayment, Cementitious Fireproofing |
|---|---|
| Fluid Outlet Size (in) | 1.5 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | NPT |
| Maximum Flow Rate (GPM) | 16.6 |
| Maximum Working Pressure (MPa) | 2.1 |
| Maximum Working Pressure (psi) | 300 |
| Motor Type | Electric |
| Overall Height (ft) | 2.0 |
| Overall Height (in) | 24 |
| Overall Length (ft) | 5.33 |
| Overall Length (in) | 64 |
| Overall Width (ft) | 2.08 |
| Overall Width (in) | 25 |
| Power Rating (HP) | 5.4 |
| Power Rating (W) | 4026.8 |
| Power Rating (kW) | 4.03 |
| Type | Electric Rotor Stator Pump |
| Weight (lb) | 300 |
| Wetted Parts | Tool Steel, Painted Steel, Plated Steel, PORON |
| Compatible Material | Repair Mortar, Stucco, EIFS, Self-Leveling Underlayment, Cementitious Fireproofing |
| Fluid Outlet Size (cm) | 3.81 |
| Fluid Outlet Size (mm) | 38.1 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | NPT |
| Maximum Working Pressure (MPa) | 2.1 |
| Maximum Working Pressure (bar) | 20.7 |
| Maximum Working Pressure (kPa) | 2070 |
| Motor Type | Electric |
| Overall Height (cm) | 60.96 |
| Overall Height (m) | 0.61 |
| Overall Height (mm) | 609.6 |
| Overall Length (cm) | 163 |
| Overall Length (m) | 1.63 |
| Overall Length (mm) | 1626 |
| Overall Width (cm) | 63.50 |
| Overall Width (m) | 0.64 |
| Overall Width (mm) | 635.00 |
| Power Rating (HP) | 5.4 |
| Power Rating (W) | 4026.8 |
| Power Rating (kW) | 4.03 |
| Type | Electric Rotor Stator Pump |
| Weight (kg) | 136.1 |
| Wetted Parts | Tool Steel, Painted Steel, Plated Steel, PORON |
Product Manuals
