SaniForce 2150

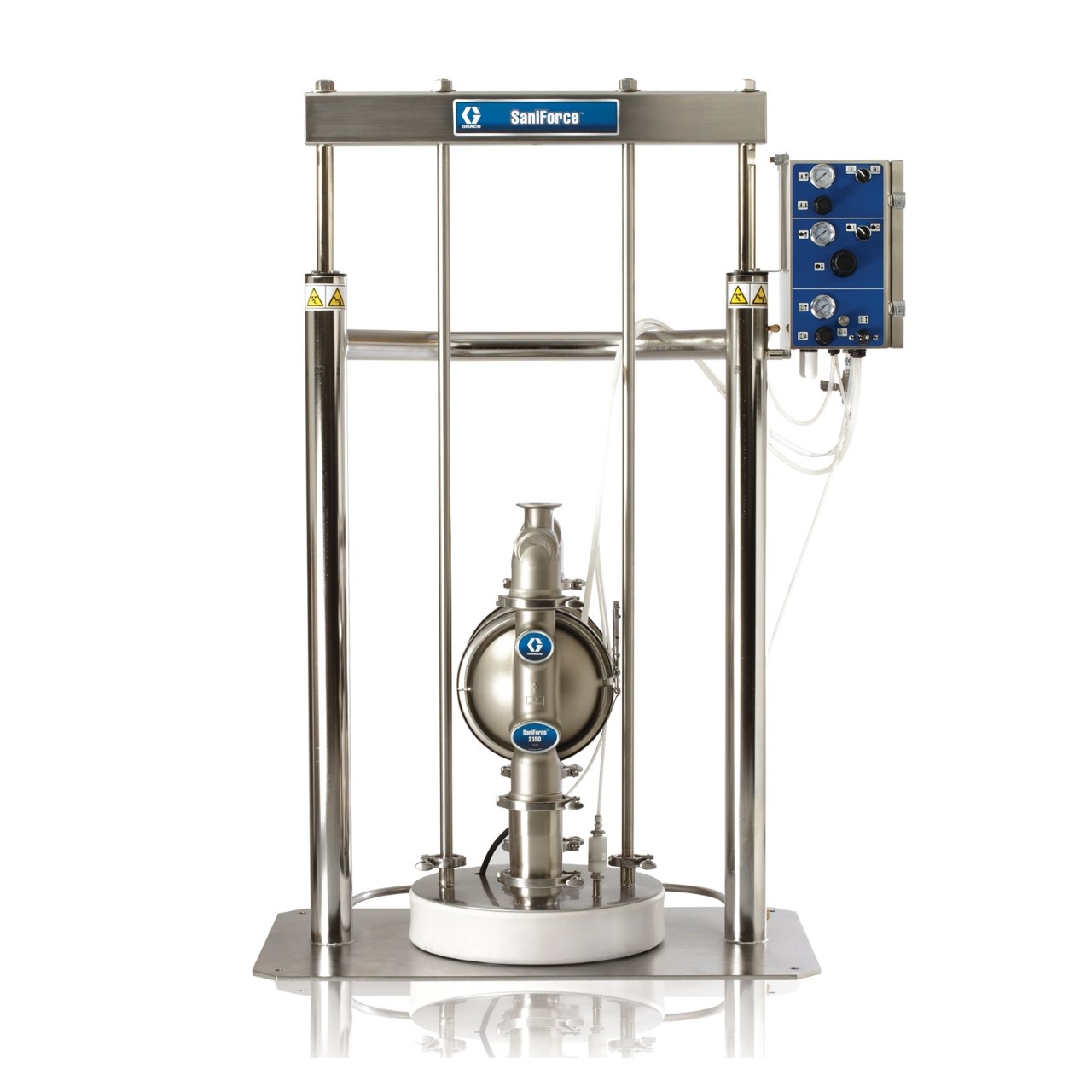

SaniForce 2150 Stainless Steel Drum Unloader Ball Pump Package with Enclosed Stainless Steel Controls & Overmoulded Diaphragm
Part Number: 24G543
SaniForce 2150
SaniForce 2150 Stainless Steel Drum Unloader Ball Pump Package with Enclosed Stainless Steel Controls & Overmoulded Diaphragm
Part Number: 24G543
Standard with an inflatable ram plate seal, the SaniForce 2150 Sanitary Drum Unloader allows for a quick replacement of the empty container and delivers up to a 99% evacuation rate, without diluting the material.
Features
Standard with an inflatable ram plate seal, the SaniForce 2150 Sanitary Drum Unloader allows for a quick replacement of the empty container and delivers up to a 99% evacuation rate, without diluting the material.
Quick Knockdown Pump for Sanitary Applications
SaniForce 2150 Sanitary Drum Unloader
- Sanitary flange clamps for quick disassembly
- Sanitary shot-blasted wetted sections
- Fluid contact areas are all FDA-compliant and meet CFR Title 21
- Available with enclosed or exposed controls
- Evacuate barely flowable products from their original 208 litre (55 gallon) containers without diluting the material
- Suitable to pump products such as: tomato paste, light peanut butter, icing, frostings, heavier ointments and lotions
Wiper seal
- FDA-compliant neoprene inflatable ram plate seal
- Faster change-out of empty containers
- Evacuate up to 99% of your material from containers
- Liner guard prevents bags from entering pump
Specifications & Documents
Technical Specifications
Convert to Imperial| Compatible Drum Height (in) | 40.75 |
|---|---|
| Compatible Drum Inside Diameter (in) | 24 |
| Control Panel Material | Stainless Steel |
| Control Panel Type | Enclosed |
| Finish/Coating | Stainless Steel |
| Frame Material | Stainless Steel |
| Material Container Volume (gal) | 52.8 |
| Maximum Air Inlet Pressure (psi) | 120 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Height (ft) | 9 |
| Maximum Height (in) | 108 |
| Maximum Viscosity (cP) | 100000 |
| Maximum Working Pressure (MPa) | 0.8 |
| Maximum Working Pressure (psi) | 120 |
| Minimum Height (ft) | 5.66 |
| Minimum Height (in) | 67.92 |
| Model | SaniForce |
| Overall Depth (in) | 25 |
| Overall Width (in) | 42 |
| Pump Type | Ball |
| Ram Material | Stainless Steel |
| Series | 2150 |
| Type | Drum Unloader |
| Weight (lb) | 464 |
| Wetted Material | Neoprene, Stainless Steel, Buna-N, Polypropylene, Santoprene, Fluoroelastomer, EPDM, CR, Polychloroprene, PTFE |
| Compatible Drum Height (cm) | 103.505 |
| Compatible Drum Height (in) | 40.75 |
| Compatible Drum Height (mm) | 1035.05 |
| Compatible Drum Inside Diameter (cm) | 60.96 |
| Compatible Drum Inside Diameter (in) | 24 |
| Compatible Drum Inside Diameter (mm) | 609.6 |
| Control Panel Material | Stainless Steel |
| Control Panel Type | Enclosed |
| Finish/Coating | Stainless Steel |
| Frame Material | Stainless Steel |
| Material Container Volume (l) | 200 |
| Maximum Air Inlet Pressure (bar) | 8.27 |
| Maximum Air Inlet Pressure (kPa) | 827 |
| Maximum Air Inlet Pressure (kg/cm²) | 8.44 |
| Maximum Air Inlet Pressure (psi) | 120 |
| Maximum Flow Rate (L/min) | 227.1 |
| Maximum Fluid Pressure (bar) | 8.2 |
| Maximum Fluid Pressure (kPa) | 820 |
| Maximum Fluid Pressure (psi) | 120 |
| Maximum Height (cm) | 274.32 |
| Maximum Height (m) | 2.75 |
| Maximum Height (mm) | 2743 |
| Maximum Viscosity (cP) | 100000 |
| Maximum Working Pressure (MPa) | 0.8 |
| Maximum Working Pressure (bar) | 8.2 |
| Maximum Working Pressure (kPa) | 820 |
| Maximum Working Pressure (psi) | 120 |
| Minimum Height (cm) | 172.52 |
| Minimum Height (m) | 1.73 |
| Minimum Height (mm) | 1725.1680 |
| Model | SaniForce |
| Overall Depth (cm) | 63.5 |
| Overall Depth (mm) | 635 |
| Overall Width (cm) | 106.7 |
| Overall Width (mm) | 1067 |
| Pump Type | Ball |
| Ram Material | Stainless Steel |
| Series | 2150 |
| Type | Drum Unloader |
| Weight (kg) | 210.5 |
| Wetted Material | Neoprene, Stainless Steel, Buna-N, Polypropylene, Santoprene, Fluoroelastomer, EPDM, CR, Polychloroprene, PTFE |
