InvisiPac HM25c

InvisiPac HM25c Hot Melt Delivery System with Pattern Controller, 4 Channel, 400-480V 3P

Part Number: 25C721

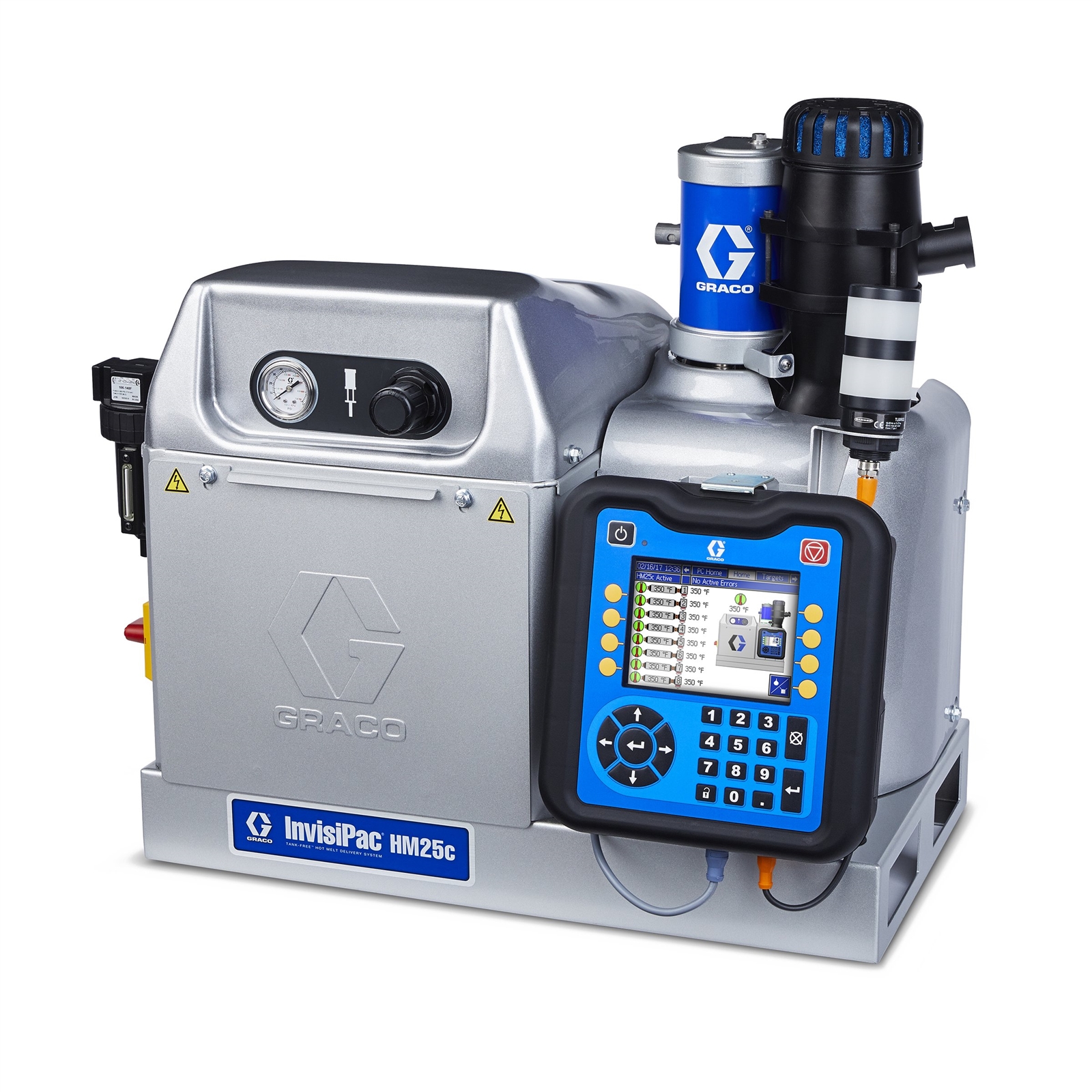

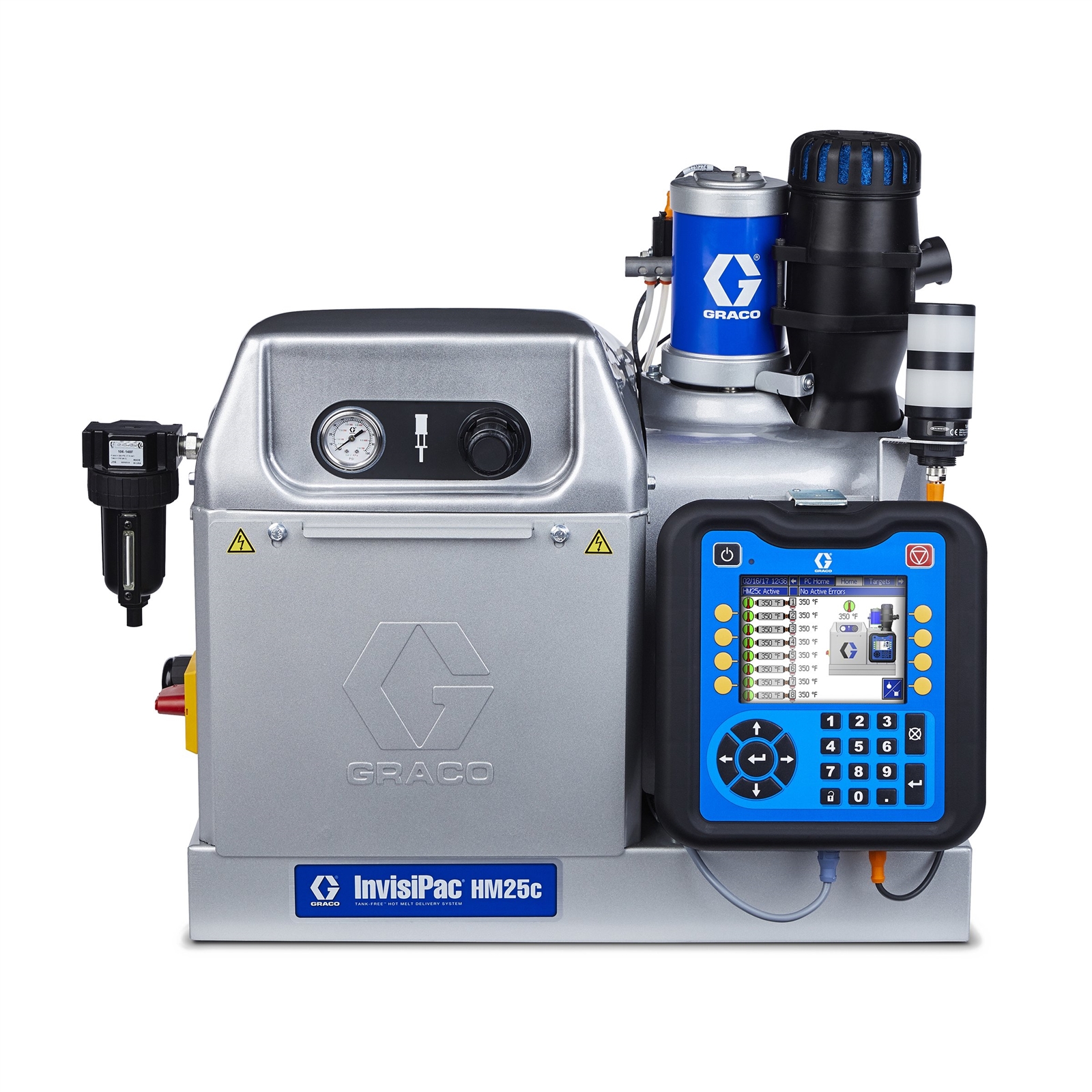

product image product image

InvisiPac HM25c

InvisiPac HM25c Hot Melt Delivery System with Pattern Controller, 4 Channel, 400-480V 3P

Part Number: 25C721

Proven adhesive savings, unmatched reliability. Unlike traditional tanks and many "tankless" systems, the proprietary melt-on-demand technology of the InvisiPac system keeps a steady flow of adhesive feeding in, melting quickly and dispensing immediately. You save on adhesive and costs incurred with... More Info
Questions about this product?

Evaluating our products and need advice
before you buy?

Contact Us

Features

Proven adhesive savings, unmatched reliability. Unlike traditional tanks and many "tankless" systems, the proprietary melt-on-demand technology of the InvisiPac system keeps a steady flow of adhesive feeding in, melting quickly and dispensing immediately. You save on adhesive and costs incurred with unscheduled maintenance downtime. With the InvisiPac system's robust reporting capabilities, you have the data to make smart decisions about your line that can improve efficiency, decrease costs, minimize downtime and improve productivity.
  • Better Performance No plugged nozzles No char-filled tanks Quick, 10-minute startup Improved operator safety High performance with lasting component
  • Greater Cost Savings Consistent adhesive viscosity No degraded material Little to no waste Better dispensing control Use any adhesive you choose

Specifications & Documents

Technical Specifications

Convert to Imperial
Air Inlet Size (in) 1/4
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Bonding
Applicator Type Automatic
Channels 4
Component Type Single Component
Footprint (in) 25.4 x 16.5 x 26.3
Frequency (Hz) 50/60
Gun Activation Automatic
Maximum Air Inlet Pressure (psi) 100
Maximum Fluid Temperature (°F) 400
Maximum Hose Length (ft) 30
Maximum Working Pressure (MPa) 8.3
Maximum Working Pressure (psi) 1200
Maximum flow rate (lb/hr) 96
Melt rate (lb/hr) 25
Model InvisiPac
Overall Depth (in) 16.5
Overall Height (in) 52.5
Overall Width (in) 25.4
Pattern Controller Yes
Power Source Electric
Power Type Electric
Pump Pneumatic piston, 12:1
Series HM25c
Time to Temperature Less than 10 minutes
Transformer Yes
Type Dispensing System
Voltage (V ac) 400-480
Weight (lb) 160
Wetted Material Aluminium, PTFE, Stainless Steel, Brass, Chrome, Zinc Plating, Carbon Steel, Carbide, Chemically Resistant O-Rings
Air Inlet Size (cm) 0.635
Air Inlet Size (in) 1/4
Air Inlet Size (mm) 6.35
Air Inlet Thread Gender Female
Air Inlet Thread Type NPT
Application Bonding
Applicator Type Automatic
Channels 4
Component Type Single Component
Footprint (in) 25.4 x 16.5 x 26.3
Frequency (Hz) 50/60
Gun Activation Automatic
Maximum Air Inlet Pressure (bar) 7
Maximum Air Inlet Pressure (kPa) 70.0000
Maximum Air Inlet Pressure (psi) 100
Maximum Fluid Temperature (°C) 204
Maximum Hose Length (m) 9.14
Maximum Working Pressure (MPa) 8.3
Maximum Working Pressure (bar) 83
Maximum Working Pressure (kPa) 8300
Maximum Working Pressure (psi) 1200
Maximum flow rate (kg/hr) 43.5
Melt rate (kg/hr) 11.3
Model InvisiPac
Overall Depth (cm) 41.9
Overall Depth (mm) 419
Overall Height (cm) 133.4
Overall Height (mm) 1334
Overall Width (cm) 64.5
Overall Width (mm) 645
Pattern Controller Yes
Power Source Electric
Power Type Electric
Pump Pneumatic piston, 12:1
Series HM25c
Time to Temperature Less than 10 minutes
Transformer Yes
Type Dispensing System
Voltage (V ac) 400-480
Weight (kg) 73
Wetted Material Aluminium, PTFE, Stainless Steel, Brass, Chrome, Zinc Plating, Carbon Steel, Carbide, Chemically Resistant O-Rings
