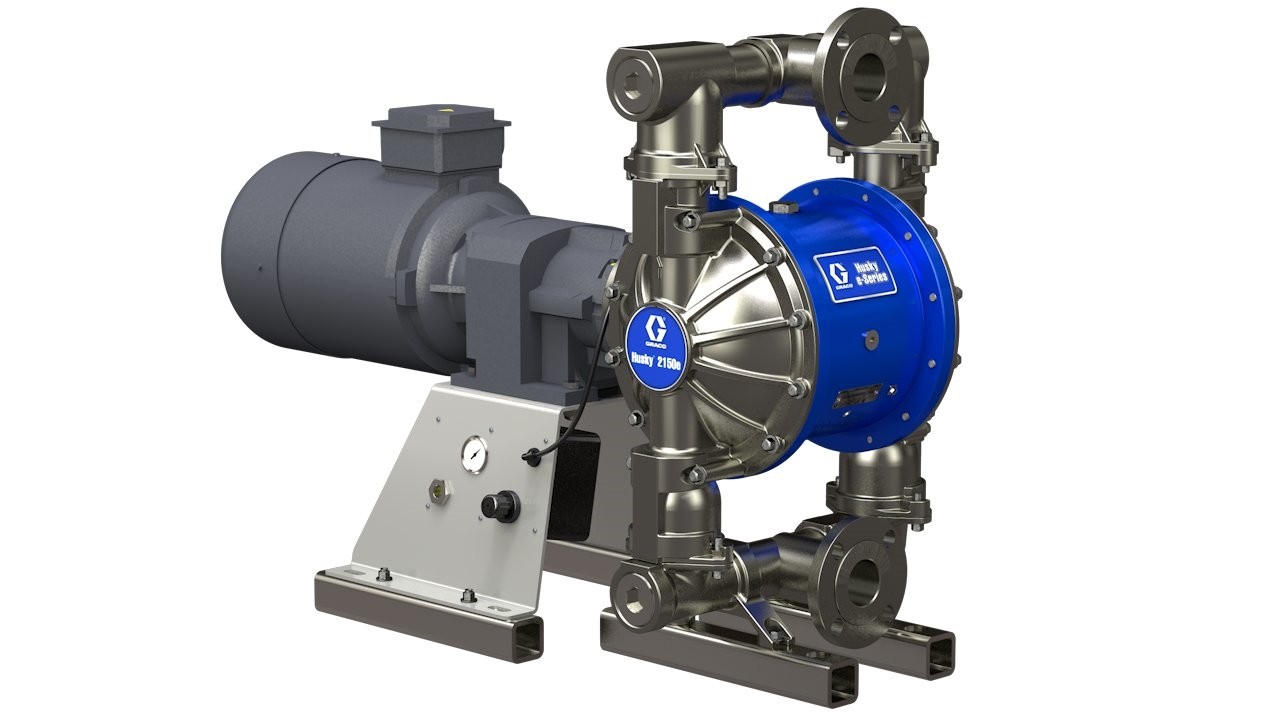

Husky 2150e
Husky 2150e 2 in. (51 mm) SS electric diaphragm pump; 7.5 hp AC motor, no CMPSR, a central port flange, AL centre, SS seat, PT ball, PT diaphragm
Part Number: 657023
Husky 2150e
Husky 2150e 2 in. (51 mm) SS electric diaphragm pump; 7.5 hp AC motor, no CMPSR, a central port flange, AL centre, SS seat, PT ball, PT diaphragm
Part Number: 657023
High energy costs coupled with air diaphragm pumps powered by compressors have a huge negative impact on your profitability. The impact on operating costs is even larger when running high flow pumps. The Graco Husky 2150e electric diaphragm pump will reduce energy consumption by up to 80%. In additi...
More Info
Features
Product Brochure
High energy costs coupled with air diaphragm pumps powered by compressors have a huge negative impact on your profitability. The impact on operating costs is even larger when running high flow pumps. The Graco Husky 2150e electric diaphragm pump will reduce energy consumption by up to 80%. In addition to energy costs savings, Graco’s durable diaphragm pumps reduce maintenance costs and plant downtime.
- The energy-efficient electric drive - reduces energy consumption by up to 80% compared to traditional air-operated diaphragm pumps.
- Stall Under Pressure - prevent pump failures from clogged lines or closed valves
- A seal-less diaphragm pump design - eliminates leaking and failures due to run-dry pump conditions
- Low pulsation and smooth flow - consistent material quality
- Durable component materials - transfer slurries and abrasives with no pump damage
- Favourite diaphragm pump features - gentle on shear sensitive materials, runs dry, self-primes
Specifications & Documents
Technical Specifications
Convert to Imperial| Air Inlet Size (in) | 0.375 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Ball Material | PTFE |
| Centre Section Material | Aluminium |
| Connection Type | Flange |
| Diaphragm Material | PTFE/Polychl 2-piece |
| Diaphragm compatible material | PTFE |
| Fluid Inlet Size (in) | 2 |
| Fluid Inlet Thread Type | Flange |
| Fluid Outlet Size (in) | 2 |
| Fluid Outlet Thread Type | Flange |
| Fluid Section Material | Stainless Steel |
| Manifold Configuration | Centre Port |
| Manifold O-Ring Material | PTFE |
| Material | Stainless Steel |
| Maximum Air Pressure (MPa) | 0.69 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Amperage (A) | 19.5/9.75A |
| Maximum Cycle Rate (CPM) | 160 |
| Maximum Flow Rate (GPM) | 100 |
| Maximum Fluid Pressure (MPa) | 0.69 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Motor Speed (RPM) | 1800 |
| Maximum Operating Temperature (°F) | 220 |
| Maximum Solid Size (in) | 0.25 |
| Minimum Operating Temperature (°F) | 40 |
| Model | Husky |
| Motor Type | AC |
| Overall Height (in) | 26.3 |
| Power Rating (HP) | 7.5 |
| Power Source | Electric |
| Seat Material | Stainless Steel |
| Series | 2150e |
| Standards Met | CE |
| Type | Electric Diaphragm Pump |
| Voltage (V ac) | 230/460V |
| Weight (lb) | 342 |
| Air Inlet Size (in) | 0.375 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Ball Material | PTFE |
| Centre Section Material | Aluminium |
| Connection Type | Flange |
| Diaphragm Material | PTFE/Polychl 2-piece |
| Diaphragm compatible material | PTFE |
| Fluid Inlet Size (cm) | 5 |
| Fluid Inlet Size (in) | 2 |
| Fluid Inlet Size (mm) | 50 |
| Fluid Inlet Thread Type | Flange |
| Fluid Outlet Size (cm) | 5 |
| Fluid Outlet Size (in) | 2 |
| Fluid Outlet Size (mm) | 50 |
| Fluid Outlet Thread Type | Flange |
| Fluid Section Material | Stainless Steel |
| Manifold Configuration | Centre Port |
| Manifold O-Ring Material | PTFE |
| Material | Stainless Steel |
| Maximum Air Pressure (MPa) | 0.69 |
| Maximum Air Pressure (psi) | 100 |
| Maximum Amperage (A) | 19.5/9.75A |
| Maximum Cycle Rate (CPM) | 160 |
| Maximum Flow Rate (GPM) | 100 |
| Maximum Flow Rate (L/min) | 0.00 |
| Maximum Fluid Pressure (MPa) | 0.69 |
| Maximum Fluid Pressure (psi) | 100 |
| Maximum Motor Speed (RPM) | 1800 |
| Maximum Operating Temperature (°C) | 104.44 |
| Maximum Solid Size (cm) | 0.64 |
| Maximum Solid Size (mm) | 6.35 |
| Minimum Operating Temperature (°C) | 4.44 |
| Model | Husky |
| Motor Type | AC |
| Power Source | Electric |
| Seat Material | Stainless Steel |
| Series | 2150e |
| Standards Met | CE |
| Type | Electric Diaphragm Pump |
| Voltage (V ac) | 230/460V |
