Husky 3300e
The Husky 3300e 3" SS electric diaphragm pump; -- no motor, no CMPSR, end port BSP, AL centre, SS seat, PT ball, PT diaphragm
Part Number: 659816

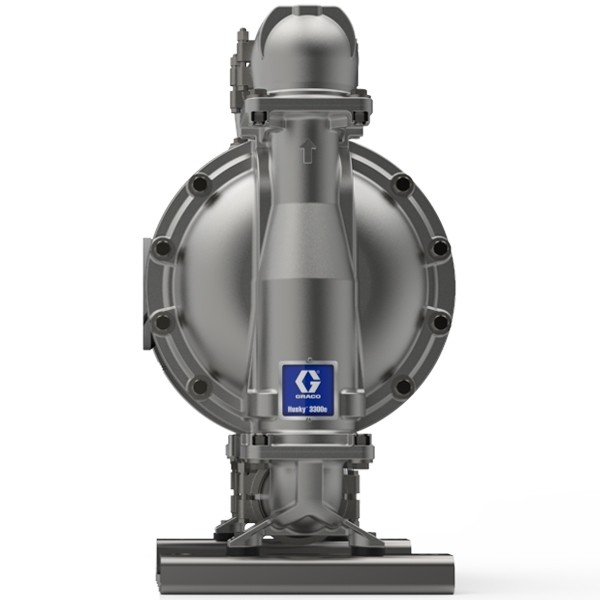

Image is for illustrative purposes only.
Husky 3300e
The Husky 3300e 3" SS electric diaphragm pump; -- no motor, no CMPSR, end port BSP, AL centre, SS seat, PT ball, PT diaphragm
Part Number: 659816
Tackle tough transfer jobs. Graco's proven quality and leading technology
will keep you pumping longer. Husky EODD
pumps are on the cutting edge of pump
technology, giving you a large decrease in
operating costs and more control over your
process.
Product is Discontinued
Replacement Product Not Available
Features
Tackle tough transfer jobs. Graco's proven quality and leading technology
will keep you pumping longer. Husky EODD
pumps are on the cutting edge of pump
technology, giving you a large decrease in
operating costs and more control over your
process.
Typical applications include chemicals, paint, oil & gas, in-plant water and wastewater, and mine dewatering
- Flow rates up to 378 lpm (100 gpm)
- An up to 80% reduction in energy usage compared to air diaphragm pumps
- Pump replaceables last up to 5x longer compared to other brands
- Transfer solids, slurries, and abrasives without damaging the pump or shearing your material
- Low pulsation without the need for costly dampeners
- Near 0 dB in-plant noise pollution
- Accurately meter fluid with VFD controls (sold separately)
- No expensive, wear sensitive mechanical seals
- Runs dry, self primes, and stalls under pressure

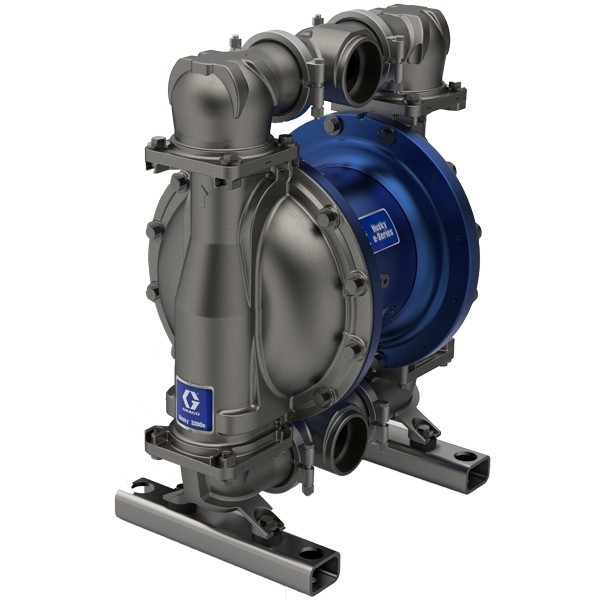

Image is for illustrative purposes only.
Specifications & Documents
Technical Specifications
Convert to Imperial| Air Inlet Size (in) | 0.375 |
|---|---|
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | PTFE |
| Centre Section Material | Aluminium |
| Connection Type | Flange |
| Diaphragm Material | PTFE/Polychl 2-piece |
| Diaphragm compatible material | PTFE |
| Fluid Inlet Size (in) | 3 |
| Fluid Inlet Thread Type | Flange |
| Fluid Outlet Size (in) | 3 |
| Fluid Outlet Thread Type | Flange |
| Fluid Section Material | Stainless Steel |
| Manifold Configuration | Centre Port |
| Manifold O-Ring Material | PTFE |
| Material | Stainless Steel |
| Maximum Air Pressure (MPa) | 0.55 |
| Maximum Air Pressure (psi) | 80 |
| Maximum Amperage (A) | 19.5/9.75A |
| Maximum Cycle Rate (CPM) | 185 |
| Maximum Flow Rate (GPD) | 1.2 |
| Maximum Flow Rate (GPM) | 220 |
| Maximum Fluid Pressure (MPa) | 0.55 |
| Maximum Fluid Pressure (psi) | 80 |
| Maximum Motor Speed (RPM) | 1800 |
| Maximum Operating Temperature (°F) | 220 |
| Maximum Solid Size (in) | 0.5 |
| Maximum Working Pressure (psi) | 80 |
| Minimum Amperage (A) | 0 |
| Minimum Operating Temperature (°F) | 40 |
| Model | Husky |
| Motor Type | AC |
| Overall Height (in) | 26.3 |
| Power Rating (HP) | 7.5 |
| Power Source | Electric |
| Seat Material | Stainless Steel |
| Series | 3300e |
| Standards Met | CE |
| Type | Electric Diaphragm Pump |
| Voltage (V ac) | 230/460V |
| Voltage (V dc) | 0 |
| Weight (lb) | 547 |
| Wetted Material | Stainless Steel, Santoprene, PTFE |
| Air Inlet Size (in) | 0.375 |
| Air Inlet Thread Gender | Female |
| Air Inlet Thread Type | NPT |
| Application | Industrial |
| Ball Material | PTFE |
| Centre Section Material | Aluminium |
| Connection Type | Flange |
| Diaphragm Material | PTFE/Polychl 2-piece |
| Diaphragm compatible material | PTFE |
| Fluid Inlet Size (cm) | 7.6 |
| Fluid Inlet Size (in) | 3 |
| Fluid Inlet Size (mm) | 76.2 |
| Fluid Inlet Thread Type | Flange |
| Fluid Outlet Size (cm) | 7.6 |
| Fluid Outlet Size (in) | 3 |
| Fluid Outlet Size (mm) | 76.2 |
| Fluid Outlet Thread Type | Flange |
| Fluid Section Material | Stainless Steel |
| Manifold Configuration | Centre Port |
| Manifold O-Ring Material | PTFE |
| Material | Stainless Steel |
| Maximum Air Pressure (MPa) | 0.55 |
| Maximum Air Pressure (bar) | 5.52 |
| Maximum Air Pressure (kPa) | 552 |
| Maximum Air Pressure (psi) | 80 |
| Maximum Amperage (A) | 19.5/9.75A |
| Maximum Cycle Rate (CPM) | 185 |
| Maximum Flow Rate (L/min) | 833 |
| Maximum Fluid Pressure (MPa) | 0.55 |
| Maximum Fluid Pressure (bar) | 5.52 |
| Maximum Fluid Pressure (kPa) | 552 |
| Maximum Fluid Pressure (psi) | 80 |
| Maximum Motor Speed (RPM) | 1800 |
| Maximum Operating Temperature (°C) | 104.44 |
| Maximum Solid Size (cm) | 1.27 |
| Maximum Solid Size (mm) | 12.7 |
| Maximum Working Pressure (psi) | 80 |
| Minimum Amperage (A) | 0 |
| Minimum Operating Temperature (°C) | 4.44 |
| Model | Husky |
| Motor Type | AC |
| Power Source | Electric |
| Seat Material | Stainless Steel |
| Series | 3300e |
| Standards Met | CE |
| Type | Electric Diaphragm Pump |
| Voltage (V ac) | 230/460V |
| Voltage (V dc) | 0 |
| Wetted Material | Stainless Steel, Santoprene, PTFE |
