GMAX II 5900

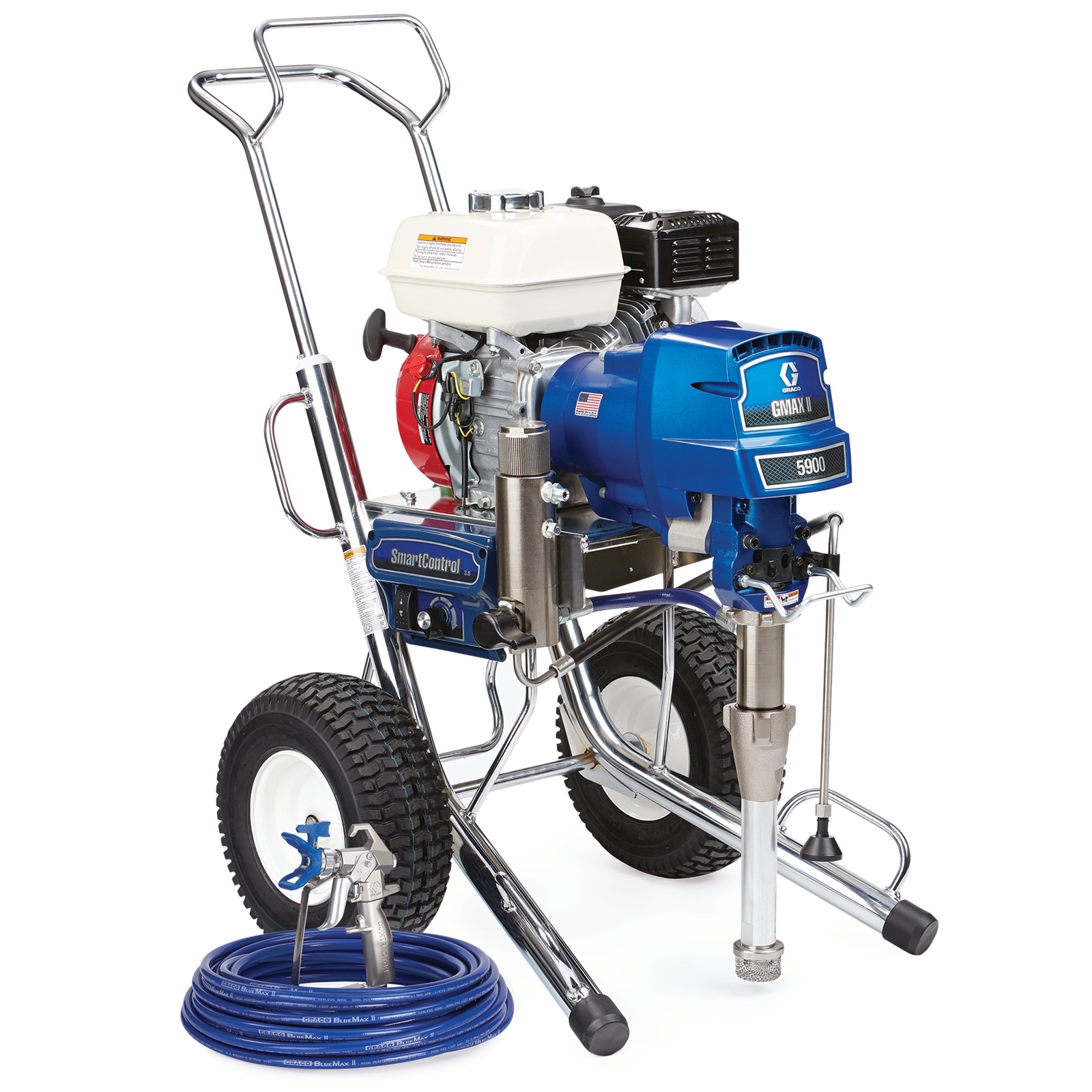

GMAX II 5900 Standard Series Gas Airless Sprayer, Hi-Boy

16W869

16W869_GMAX_II_5900_Standard_HiBoy_Main

GMAX II 5900

GMAX II 5900 Standard Series Gas Airless Sprayer, Hi-Boy

16W869

With a 160 cc Honda engine and the ability to spray up to 1.6 gallons per minute, the GMAX II 5900 is the industry standard for the professional contractor who sprays a wide variety of coatings on residential, commercial, and industrial jobs.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
With a 160 cc Honda engine and the ability to spray up to 1.6 gallons per minute, the GMAX II 5900 is the industry standard for the professional contractor who sprays a wide variety of coatings on residential, commercial, and industrial jobs.
  • Endurance Chromex Piston Pump
    • Lasts 2X Longer than the next leading brand
    • QuikChange pump design allows you to swap the pump easily on the job
    • Faster cleaning with the QuikAccess intake foot valve
  • SmartControl 3.0
    • Consistent spray fan & pressure control
    • Lowest dead band at any pressure
    • Ideal for low overspray applications
  • Precision Advantage Drive
    • The longest lasting drive
    • Hardened steel gears provide extremely quiet operation
    • Lifetime Warranty
  • Easy Out Pump Filter
    • Easy maintenance & less clogging
    • Exclusive inside-out filter design won't collapse to ensure a quality finish
    • Vertical design for less mess
  • Heavy-Duty Prime Valve
    • Maintenance-free design withstands high-pressure dumping
  • Durable Cart Design
    • Rugged and easy-to-maneuver
    • Thick chrome over steel and pneumatic wheels for tough jobsite conditions
    • Retractable handle doubles as coiled hose storage


  • Honda® Engines
    • Reliable, powerful & easy-to-start
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
    • Contractor Preferred
  • Jobsite Ready
    • Includes Contractor Gun, RAC X SwitchTip, and 50 ft (15 m) of BlueMax II hose
16W869_GMAX_II_5900_Standard_HiBoy_Main

Specifications

Technical Specifications

Convert to Metric
Compatible Material Acrylics, Dry Fall, Drywall Mud, Elastomer, Gypsum, Paint, Primer
Compatible Replacement Pump 16Y706
Convertible Non-Convertible
Engine Brand Honda
Engine Size (HP) 6.5
Engine Size (kW) 4.85
Features Advantage Drive, Durable Cart Design, SmartControl
Fluid Inlet Size (in) 1-5/16
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Hose Inlet Diameter (in) 1/4
Includes Contractor Gun, RAC X 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose
Inlet Paint Strainer 8 Mesh Stainless Steel Screen
Maximum Flow Rate (GPM) 1.6
Maximum Hose Length (ft) 50
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (in) 0.043
Maximum Tip Size 1 Gun (in) 0.043
Maximum Tip Size 2 Guns (in) 0.029
Maximum Tip Size 3 Guns (in) 0.023
Maximum Tip Size 4 Guns (in) 0.019
Maximum Working Pressure (MPa) 22.7
Maximum Working Pressure (psi) 3300
Model GMAX II
Motor Type Electric
Number of Guns 4
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Power Rating (HP) 6.5
Power Rating (W) 4847.1
Power Rating (kW) 4.85
Power Source Gas
Pressure Control Type SmartControl 3.0
Pump Mount Type QuikChange
Pump Rod Type Chromex
Pump Sleeve Material Stainless Steel
Pump Type Endurance
Series 5900
Standards Met CE Certified
Type Airless Sprayer
Weight (lb) 138
Wetted Material Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
Compatible Material Acrylics, Dry Fall, Drywall Mud, Elastomer, Gypsum, Paint, Primer
Compatible Replacement Pump 16Y706
Convertible Non-Convertible
Engine Brand Honda
Engine Size (HP) 6.5
Engine Size (kW) 4.85
Features Advantage Drive, Durable Cart Design, SmartControl
Fluid Inlet Size (cm) 3.334
Fluid Inlet Size (mm) 33.34
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (cm) 0.9525
Fluid Outlet Size (mm) 9.525
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Hose Inlet Diameter (cm) 0.635
Hose Inlet Diameter (mm) 6.35
Includes Contractor Gun, RAC X 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose
Inlet Paint Strainer 8 Mesh Stainless Steel Screen
Maximum Flow Rate (L/min) 6.06
Maximum Hose Length (m) 15
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (cm) 0.10922
Maximum Tip Size (mm) 1.0922
Maximum Tip Size 1 Gun (cm) 0.10922
Maximum Tip Size 1 Gun (mm) 1.0922
Maximum Tip Size 2 Guns (cm) 0.07366
Maximum Tip Size 2 Guns (mm) 0.7366
Maximum Tip Size 3 Guns (cm) 0.05842
Maximum Tip Size 3 Guns (mm) 0.5842
Maximum Tip Size 4 Guns (cm) 0.04826
Maximum Tip Size 4 Guns (mm) 0.4826
Maximum Working Pressure (MPa) 22.7
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 22700
Maximum Working Pressure (kg/cm²) 232
Model GMAX II
Motor Type Electric
Number of Guns 4
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Power Rating (HP) 6.5
Power Rating (W) 4847.1
Power Rating (cc) 200
Power Rating (kW) 4.85
Power Source Gas
Pressure Control Type SmartControl 3.0
Pump Mount Type QuikChange
Pump Rod Type Chromex
Pump Sleeve Material Stainless Steel
Pump Type Endurance
Series 5900
Standards Met CE Certified
Type Airless Sprayer
Weight (kg) 63
Wetted Material Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
