GMAX II 5900

GMAX II 5900 ProContractor Series Gas Airless Sprayer, Hi-Boy

16W871

16W871_GMAX_II_5900_Procontractor_Main 16W871_GMAX_II_5900_Procontractor_Alt_1

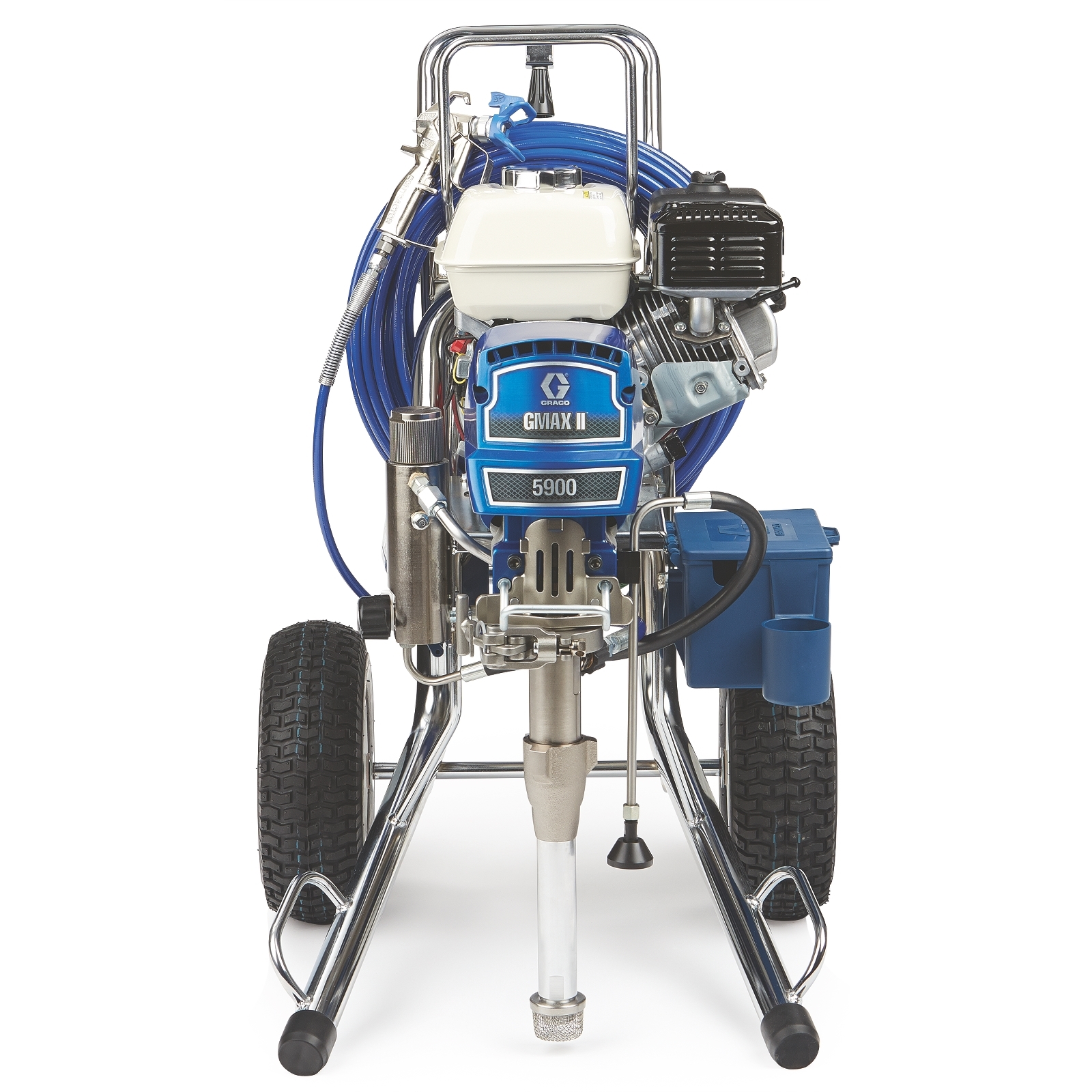

16W871, GMAX II 5900 Hi-Boy ProContractor Series
16W871, GMAX II 5900 Hi-Boy ProContractor Series

GMAX II 5900

GMAX II 5900 ProContractor Series Gas Airless Sprayer, Hi-Boy

16W871

With a 160 cc Honda engine and the ability to spray up to 1.6 gallons per minute, the GMAX II 5900 is the industry standard for the professional contractor who sprays a wide variety of coatings on residential, commercial, and industrial jobs.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

With a 160 cc Honda engine and the ability to spray up to 1.6 gallons per minute, the GMAX II 5900 is the industry standard for the professional contractor who sprays a wide variety of coatings on residential, commercial, and industrial jobs.

  • Advantage Drive System

    • Runs quiet and has a lifetime guarantee
  • SmartControl 3.0 Pressure Control

    • Delivers consistent spray fan without pressure fluctuations at all spraying pressures
  • Endurance Pump

    • Amazingly durable design lasts twice as long as the next leading brand
  • Honda Engine

    • Delivers maximum performance and contractor preferred reliability
  • Rugged Cart Design

    • Chrome over steel makes this durable cart last for years
  • Easy Out Pump Filter

    • Less mess when changing or cleaning the filter
  • Heavy-Duty Prime Valve

    • Maintenance free design withstands high pressure dumping
  • QuikReel

    • Deploy and rewind up to 300 feet of hose in seconds with out twists, kinks or coils
  • Ready To Spray

    • A total of 100 feet of hose and gun already installed
  • ProConnect 2

    • Change out the pump using no tools in seconds resulting in quickly getting back to work

Specifications

Technical Specifications

Convert to Metric
Compatible Material Primer, Water-Based Paint, Acrylics, Enamel, Latex, Solventborne Paints, Block Filler, Fillers, Drywall Mud, Elastomeric Coating
Compatible Replacement Pump 16X419
Convertible Non-Convertible
Engine Brand Honda
Engine Size (HP) 6.5
Engine Size (kW) 4.85
Features Onboard Toolbox, SmartControl, WatchDog
Fluid Inlet Size (in) 1-5/16
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Hose Reel Type QuikReel
Includes Contractor Gun, RAC X 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, 3/8 in x 50 ft BlueMax II Airless Hose
Inlet Paint Strainer 8 Mesh Stainless Steel Screen
Maximum Flow Rate (GPM) 1.6
Maximum Hose Length (ft) 50
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (in) 0.043
Maximum Tip Size 1 Gun (in) 0.043
Maximum Tip Size 2 Guns (in) 0.029
Maximum Tip Size 3 Guns (in) 0.023
Maximum Tip Size 4 Guns (in) 0.019
Maximum Working Pressure (MPa) 22.7
Maximum Working Pressure (psi) 3300
Model GMAX II
Motor Type Electric
Number of Guns 3
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Power Rating (HP) 6.5
Power Rating (W) 4847.1
Power Rating (kW) 4.85
Power Source Gas
Pressure Control Type SmartControl 3.0
Pump Mount Type ProConnect
Pump Rod Type Chromex
Pump Sleeve Material Stainless Steel
Pump Type Endurance
Series 5900
Standards Met CE Certified
Type Airless Sprayer
Weight (lb) 160
Wetted Material Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
Compatible Material Primer, Water-Based Paint, Acrylics, Enamel, Latex, Solventborne Paints, Block Filler, Fillers, Drywall Mud, Elastomeric Coating
Compatible Replacement Pump 16X419
Convertible Non-Convertible
Engine Brand Honda
Engine Size (HP) 6.5
Engine Size (kW) 4.85
Features Onboard Toolbox, SmartControl, WatchDog
Fluid Inlet Size (cm) 3.334
Fluid Inlet Size (mm) 33.34
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (cm) 0.9525
Fluid Outlet Size (mm) 9.525
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Hose Reel Type QuikReel
Includes Contractor Gun, RAC X 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, 3/8 in x 50 ft BlueMax II Airless Hose
Inlet Paint Strainer 8 Mesh Stainless Steel Screen
Maximum Flow Rate (L/min) 6.06
Maximum Hose Length (m) 15
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (cm) 0.10922
Maximum Tip Size (mm) 1.0922
Maximum Tip Size 1 Gun (cm) 0.10922
Maximum Tip Size 1 Gun (mm) 1.0922
Maximum Tip Size 2 Guns (cm) 0.07366
Maximum Tip Size 2 Guns (mm) 0.7366
Maximum Tip Size 3 Guns (cm) 0.05842
Maximum Tip Size 3 Guns (mm) 0.5842
Maximum Tip Size 4 Guns (cm) 0.04826
Maximum Tip Size 4 Guns (mm) 0.4826
Maximum Working Pressure (MPa) 22.7
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 22700
Maximum Working Pressure (kg/cm²) 232
Model GMAX II
Motor Type Electric
Number of Guns 3
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Power Rating (HP) 6.5
Power Rating (W) 4847.1
Power Rating (cc) 200
Power Rating (kW) 4.85
Power Source Gas
Pressure Control Type SmartControl 3.0
Pump Mount Type ProConnect
Pump Rod Type Chromex
Pump Sleeve Material Stainless Steel
Pump Type Endurance
Series 5900
Standards Met CE Certified
Type Airless Sprayer
Weight (kg) 73
Wetted Material Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
