GMAX II 5900

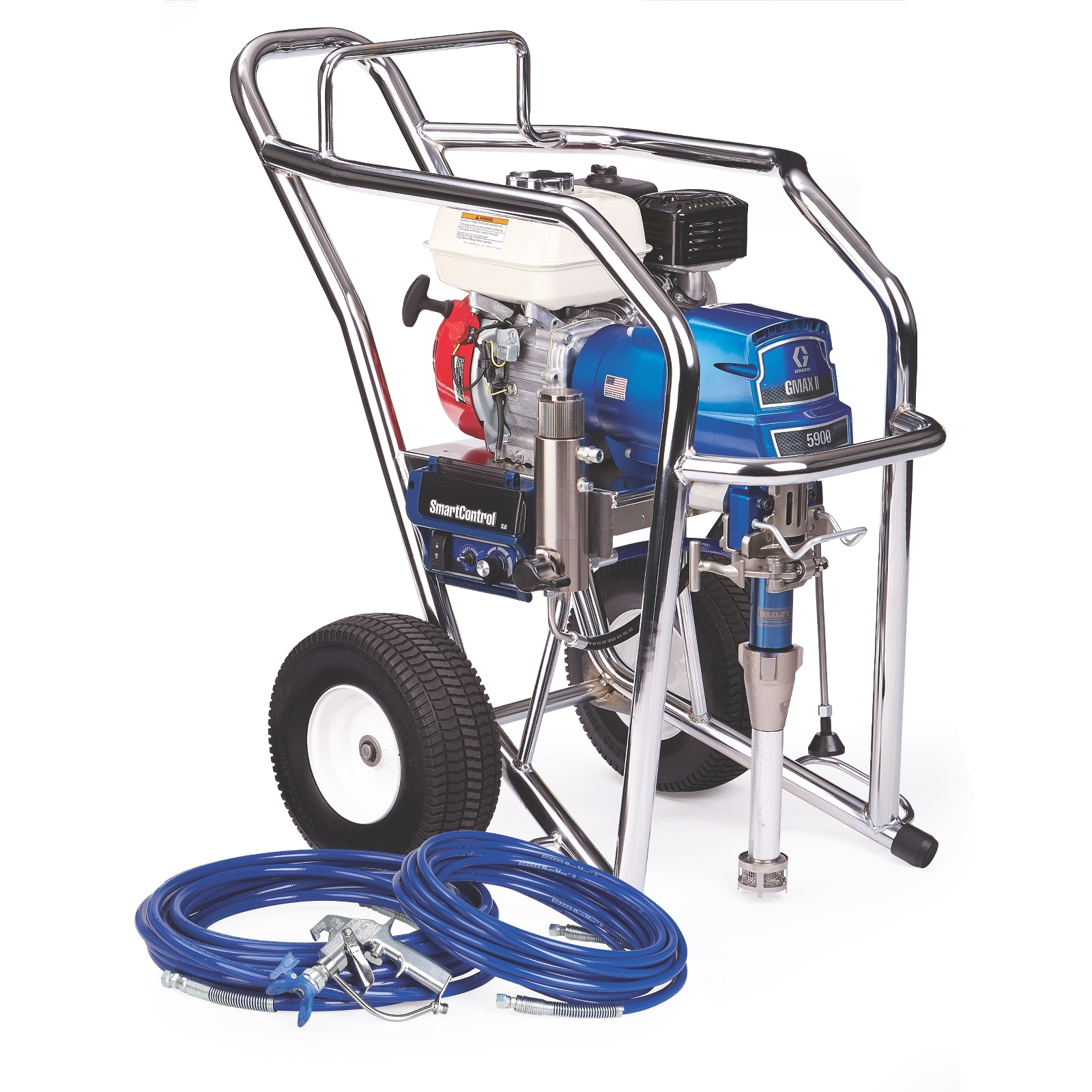

GMAX II 5900 IronMan Series Gas Airless Sprayer, Hi-Boy

16W881

16W881_GMAX_II_5900_IronMan_Main
16W887, GMAX II 5900 IronMan Series

GMAX II 5900

GMAX II 5900 IronMan Series Gas Airless Sprayer, Hi-Boy

16W881

With a 160 cc Honda engine and the ability to spray up to 1.6 gallons per minute, the GMAX II 5900 is the industry standard for the professional contractor who sprays a wide variety of coatings on residential, commercial, and industrial jobs.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

With a 160 cc Honda engine and the ability to spray up to 1.6 gallons per minute, the GMAX II 5900 is the industry standard for the professional contractor who sprays a wide variety of coatings on residential, commercial, and industrial jobs.

  • Advantage Drive System

    • Runs quiet and has a lifetime guarantee
  • SmartControl 3.0 Pressure Control

    • Delivers consistent spray fan without pressure fluctuations at all spraying pressures
  • Endurance Pump

    • Amazingly durable design lasts twice as long as the next leading brand
  • Honda Engine

    • Delivers maximum performance and contractor preferred reliability
  • Rugged Cart Design

    • Chrome over steel makes this durable cart last for years
  • Easy Out Pump Filter

    • Less mess when changing or cleaning the filter
  • Heavy-Duty Prime Valve

    • Maintenance free design withstands high pressure dumping
  • MaxLife Extreme Duty Pump

    • Keeps you working by running 6X longer between repacks
  • Ceramic and Stainless Steel Ball Set

    • Ceramic and stainless steel ball sets provide maximum versatility no matter what you're spraying
  • ProConnect 2

    • Change out the pump using no tools in seconds resulting in quickly getting back to work

Specifications

Technical Specifications

Convert to Metric
Compatible Material Acrylics, Dry Fall, Drywall Mud, Elastomer, Gypsum, Paint, Primer
Compatible Replacement Pump 16X420
Convertible Non-Convertible
Engine Brand Honda
Engine Size (HP) 6.5
Features Extreme-Duty MaxLife Pump, Flat-Proof Tires, Roll Cage Frame Design, SmartControl, WatchDog
Fluid Inlet Size (in) 1-5/16
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Includes Silver Plus Gun, RAC X 517 Spray Tip, WideRAC RAC X 1231 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, 3/8 in x 50 ft BlueMax II Airless Hose
Inlet Paint Strainer 8 Mesh Stainless Steel Screen
Maximum Flow Rate (GPM) 1.6
Maximum Hose Length (ft) 50
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (in) 0.043
Maximum Tip Size 1 Gun (in) 0.043
Maximum Tip Size 2 Guns (in) 0.029
Maximum Tip Size 3 Guns (in) 0.023
Maximum Tip Size 4 Guns (in) 0.019
Maximum Working Pressure (MPa) 22.7
Maximum Working Pressure (psi) 3300
Model GMAX II
Motor Type Electric
Number of Guns 3
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Power Rating (HP) 6.5
Power Rating (W) 4847.1
Power Rating (kW) 4.85
Power Source Gas
Pressure Control Type SmartControl 3.0
Pump Mount Type ProConnect
Pump Rod Type MaxLife
Pump Sleeve Material MaxLife
Pump Type Endurance
Series 5900
Standards Met CE Certified
Type Airless Sprayer
Weight (lb) 160
Wetted Material Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
Compatible Material Acrylics, Dry Fall, Drywall Mud, Elastomer, Gypsum, Paint, Primer
Compatible Replacement Pump 16X420
Convertible Non-Convertible
Engine Brand Honda
Engine Size (HP) 6.5
Features Extreme-Duty MaxLife Pump, Flat-Proof Tires, Roll Cage Frame Design, SmartControl, WatchDog
Fluid Inlet Size (cm) 3.334
Fluid Inlet Size (mm) 33.34
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (cm) 0.375
Fluid Outlet Size (mm) 3.75
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Includes Silver Plus Gun, RAC X 517 Spray Tip, WideRAC RAC X 1231 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, 3/8 in x 50 ft BlueMax II Airless Hose
Inlet Paint Strainer 8 Mesh Stainless Steel Screen
Maximum Flow Rate (L/min) 6.06
Maximum Hose Length (m) 15
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (cm) 0.10922
Maximum Tip Size (mm) 1.0922
Maximum Tip Size 1 Gun (cm) 0.10922
Maximum Tip Size 1 Gun (mm) 1.0922
Maximum Tip Size 2 Guns (cm) 0
Maximum Tip Size 2 Guns (mm) 1
Maximum Tip Size 3 Guns (cm) 0
Maximum Tip Size 3 Guns (mm) 1
Maximum Tip Size 4 Guns (cm) 0
Maximum Tip Size 4 Guns (mm) 0
Maximum Working Pressure (MPa) 22.7
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 22700
Model GMAX II
Motor Type Electric
Number of Guns 3
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Power Rating (HP) 6.5
Power Rating (W) 4847.1
Power Rating (cc) 200
Power Rating (kW) 4.85
Power Source Gas
Pressure Control Type SmartControl 3.0
Pump Mount Type ProConnect
Pump Rod Type MaxLife
Pump Sleeve Material MaxLife
Pump Type Endurance
Series 5900
Standards Met CE Certified
Type Airless Sprayer
Weight (kg) 73
Wetted Material Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
