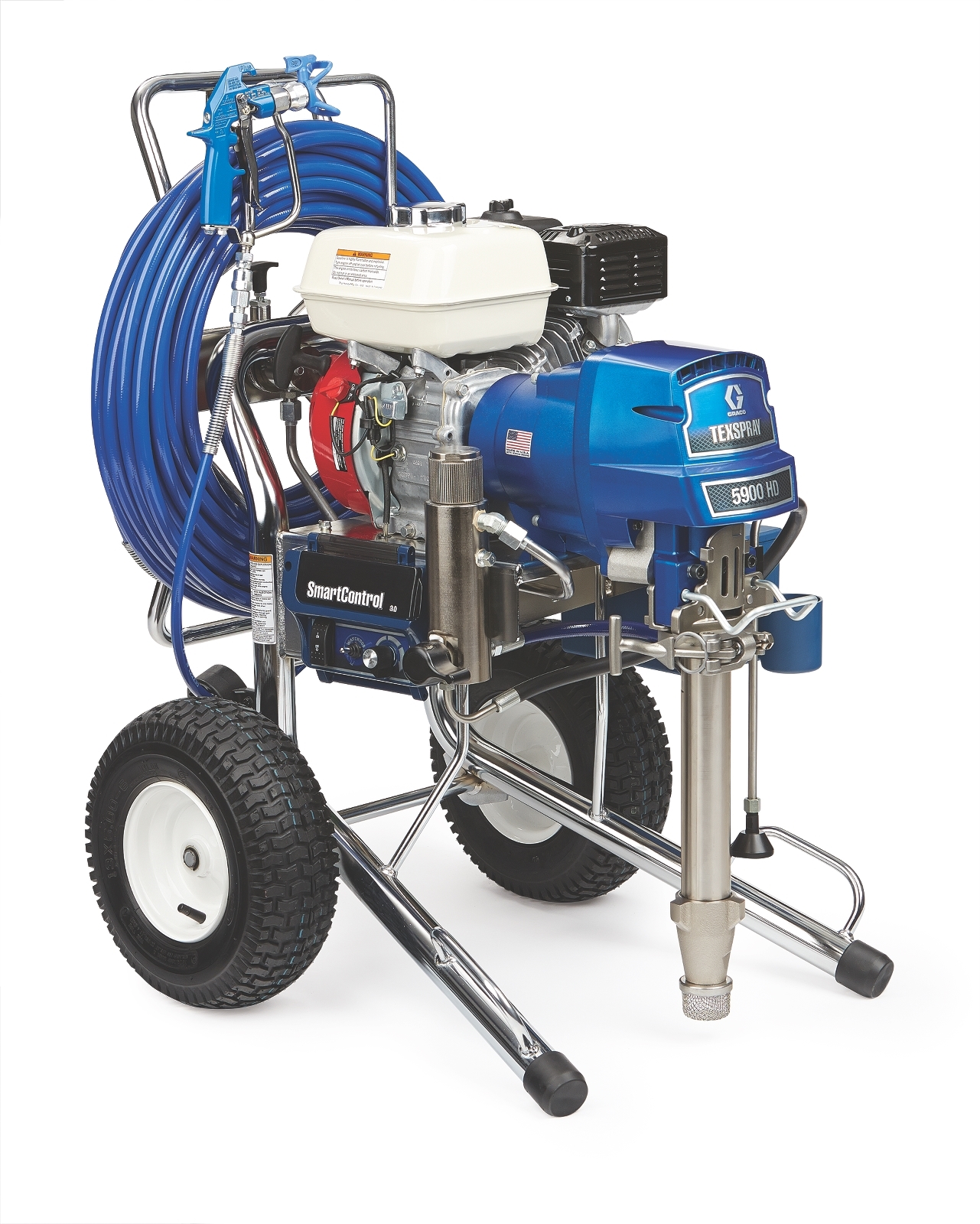

TexSpray 5900HD

TexSpray 5900 HD ProContractor Series Gas Airless Sprayer

16W882

16W882_TexSpray_5900HD_ProContractor_Series_Sprayer_Main 16W882_TexSpray_5900HD_ProContractor_Series_Sprayer_Alt_1

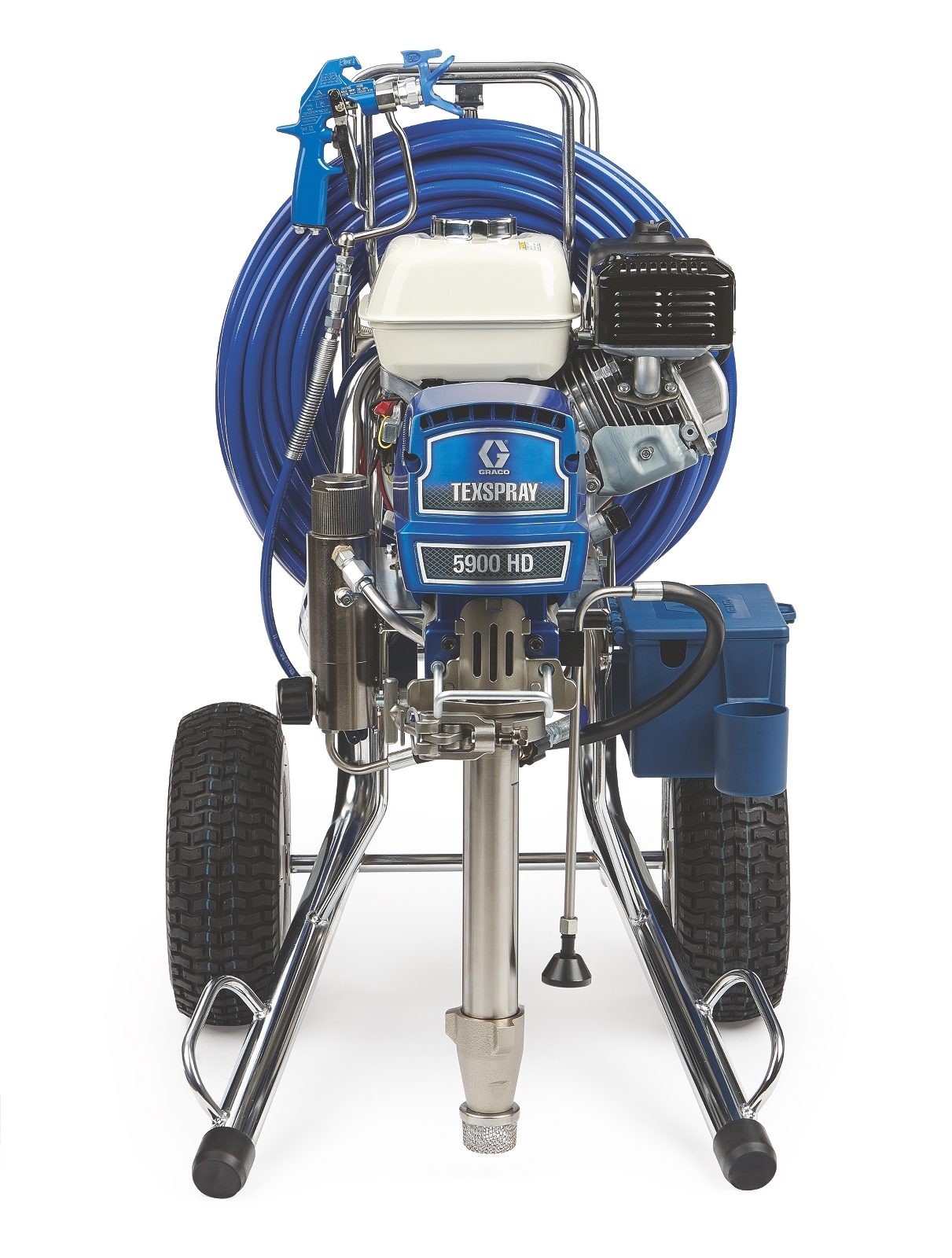

16W882, TexSpray 5900 HD Hi-Boy ProContractor Series Front

TexSpray 5900HD

TexSpray 5900 HD ProContractor Series Gas Airless Sprayer

16W882

Built with must-have features that are designed to save you time and money, the TexSpray 5900 HD delivers topnotch performance and versatility. Whether you need to spray skim coat in a Level 5 finish, drywall mud in an orange peel, splatter or knockdown finish or even the wide range of primers, pain...

More Info

Features

Product Brochure

Built with must-have features that are designed to save you time and money, the TexSpray 5900 HD delivers topnotch performance and versatility. Whether you need to spray skim coat in a Level 5 finish, drywall mud in an orange peel, splatter or knockdown finish or even the wide range of primers, paints and other heavy coatings, this sprayer can handle just about any task you need it to. Doing the job just got easier with Graco!

  • Advantage Drive System
    • Runs quiet and has a lifetime guarantee
  • SmartControl 3.0 Pressure Control
    • Delivers consistent spray fan without pressure fluctuations at all spraying pressures
  • Endurance Pump with Max Flo+
    • Submerged foot valve easily handles the thickest materials
  • Ceramic and Stainless Steel Ball Sets
    • Provides maximum versatility no matter what you're spraying
  • Honda Engine
    • Delivers maximum performance and contractor preferred reliability
  • Rugged Cart Design
    • Chrome over steel makes this durable cart last for years
  • Easy Out Pump Filter
    • Less mess when changing or cleaning the filter
  • Heavy-Duty Prime Valve
    • Maintenance-free design withstands high pressure dumping
  • QuikReel
    • Deploy and rewind up to 300 ft of hose in seconds without twists or coils
  • LED Display
    • Bright easy-to-read LED display shows pressure readout, job/lifetime/gallon counter and self diagnostics

Specifications

Technical Specifications

Convert to Metric
Compatible Material Acrylics, Coating, Drywall, Elastomer, Enamel, Epoxies, Latex, Mud
Convertible Non-Convertible
Engine Brand Honda
Engine Size (HP) 5.5
Engine Size (kW) 4.1
Features SmartControl, WatchDog
Fluid Inlet Size (in) 1-5/16
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Type NPSM
Frame Configuration Cart
Hose Inlet Diameter (in) 3/8
Hose Reel Type QuikReel
Includes Heavy-Duty Blue Texture Gun, RAC X 427 Spray Tip, RAC X 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft Whip Hose
Inlet Paint Strainer 8 Mesh Stainless Steel Screen
Material Application Liquid Waterproofing
Maximum Flow Rate (GPM) 1.6
Maximum Hose Length (ft) 100
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (in) 0.043
Maximum Tip Size 1 Gun (in) 0.043
Maximum Tip Size 2 Guns (in) 0.029
Maximum Tip Size 3 Guns (in) 0.023
Maximum Tip Size 4 Guns (in) 0.019
Maximum Working Pressure (MPa) 22.7
Maximum Working Pressure (psi) 3300
Model TexSpray
Motor Type Electric
Number of Guns 4
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Power Rating (HP) 5.5
Power Rating (W) 4101.4
Power Rating (kW) 4.10
Power Source Gas Hydraulic
Pressure Control Type SmartControl 3.0
Pump Mount Type ProConnect 2
Pump Rod Type Chromex
Pump Sleeve Material Stainless Steel
Pump Type Endurance
Series 5900HD
Standards Met CE Certified
Type Airless Sprayer
Weight (lb) 164
Wetted Material Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
Compatible Material Acrylics, Coating, Drywall, Elastomer, Enamel, Epoxies, Latex, Mud
Convertible Non-Convertible
Engine Brand Honda
Engine Size (HP) 5.5
Engine Size (kW) 4.1
Features SmartControl, WatchDog
Fluid Inlet Size (cm) 3.334
Fluid Inlet Size (mm) 33.34
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (cm) 0.9525
Fluid Outlet Size (mm) 9.525
Fluid Outlet Thread Type NPSM
Frame Configuration Cart
Hose Inlet Diameter (cm) 0.9525
Hose Inlet Diameter (mm) 9.525
Hose Reel Type QuikReel
Includes Heavy-Duty Blue Texture Gun, RAC X 427 Spray Tip, RAC X 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft Whip Hose
Inlet Paint Strainer 8 Mesh Stainless Steel Screen
Material Application Liquid Waterproofing
Maximum Flow Rate (L/min) 6.06
Maximum Hose Length (m) 30
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (cm) 0.10922
Maximum Tip Size (mm) 1.0922
Maximum Tip Size 1 Gun (cm) 0.10922
Maximum Tip Size 1 Gun (mm) 1.0922
Maximum Tip Size 2 Guns (cm) 0.07366
Maximum Tip Size 2 Guns (mm) 0.7366
Maximum Tip Size 3 Guns (cm) 0.05842
Maximum Tip Size 3 Guns (mm) 0.5842
Maximum Tip Size 4 Guns (cm) 0.04826
Maximum Tip Size 4 Guns (mm) 0.4826
Maximum Working Pressure (MPa) 22.7
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 22700
Maximum Working Pressure (kg/cm²) 210.9
Model TexSpray
Motor Type Electric
Number of Guns 4
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Power Rating (HP) 5.5
Power Rating (W) 4101.4
Power Rating (cc) 160
Power Rating (kW) 4.10
Power Source Gas Hydraulic
Pressure Control Type SmartControl 3.0
Pump Mount Type ProConnect 2
Pump Rod Type Chromex
Pump Sleeve Material Stainless Steel
Pump Type Endurance
Series 5900HD
Standards Met CE Certified
Type Airless Sprayer
Weight (kg) 74
Wetted Material Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
