GMAX II 7900

GMAX II 7900 Standard Series Gas Airless Sprayer, Hi-Boy

16W883

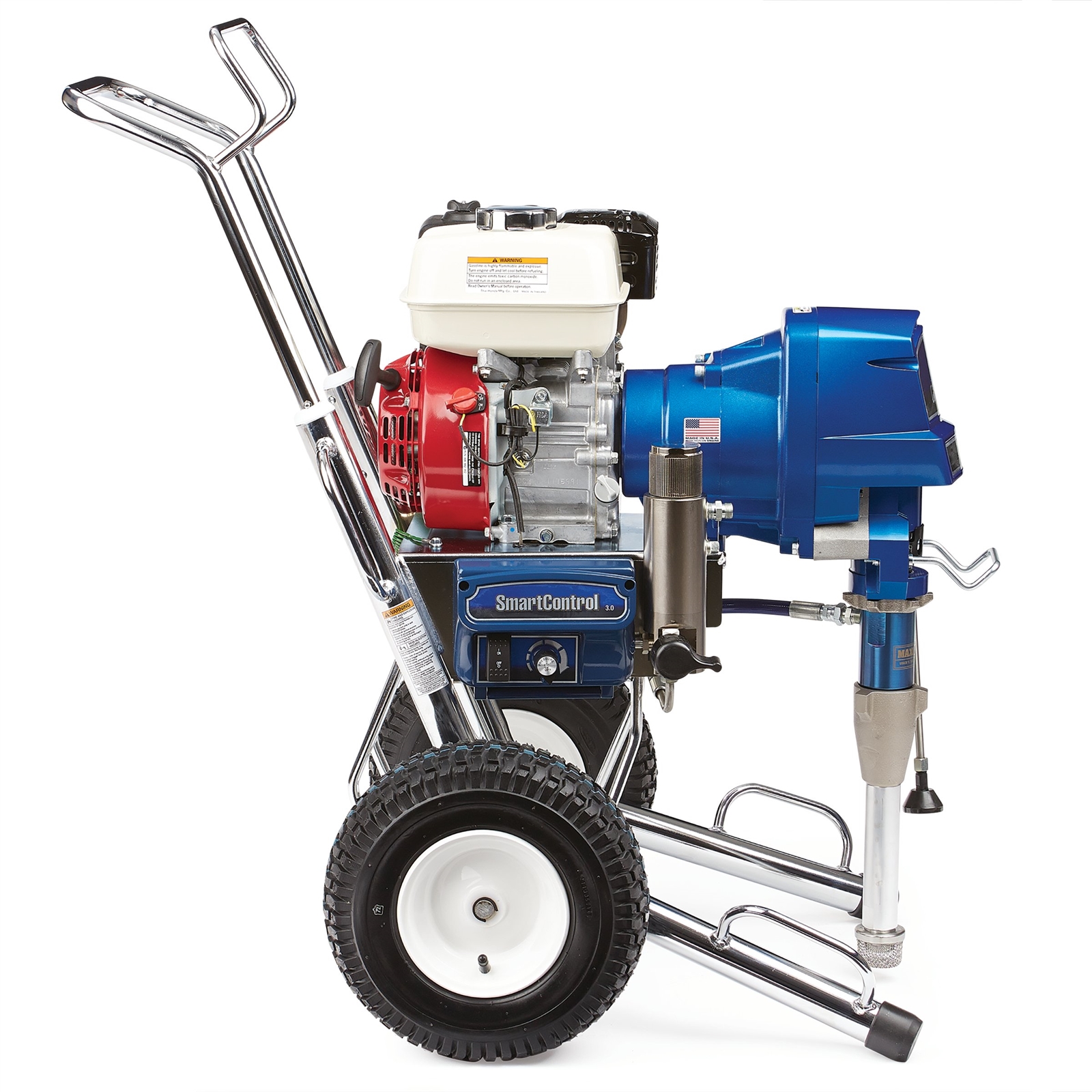

16W883_GMAX_II_7900_Standard_HiBoy_Main 16W883_GMAX_II_7900_Standard_HiBoy_Alt_1

GMAX II 7900

GMAX II 7900 Standard Series Gas Airless Sprayer, Hi-Boy

16W883

With a 200 cc Honda engine and the ability to spray up to 2.2 gallons per minute, the GMAX 7900 is Graco’s largest gas mechanical sprayer. All 7900 sprayers come equipped with Graco’s Extreme-Duty MaxLife pump, and they can handle the widest range of tip sizes, multiple guns, longer hose lengths and... More Info
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
With a 200 cc Honda engine and the ability to spray up to 2.2 gallons per minute, the GMAX 7900 is Graco’s largest gas mechanical sprayer. All 7900 sprayers come equipped with Graco’s Extreme-Duty MaxLife pump, and they can handle the widest range of tip sizes, multiple guns, longer hose lengths and heavier coatings with ease.
  • Advantage Drive System
    • Runs quiet and has a lifetime guarantee
  • SmartControl 3.0 Pressure Control
    • Delivers consistent spray fan without pressure fluctuations at all spraying pressures
  • MaxLife Extreme-Duty Pump
    • Keeps you working by running 6X longer between repacks
  • Honda® Engine
    • Delivers maximum performance and contractor preferred reliability
  • Rugged Cart Design
    • Chrome over steel makes this durable cart last for years
  • Easy Out Pump Filter
    • Less mess when changing or cleaning the filter
  • Heavy-Duty Prime Valve
    • Maintenancefree design withstands high pressure dumping

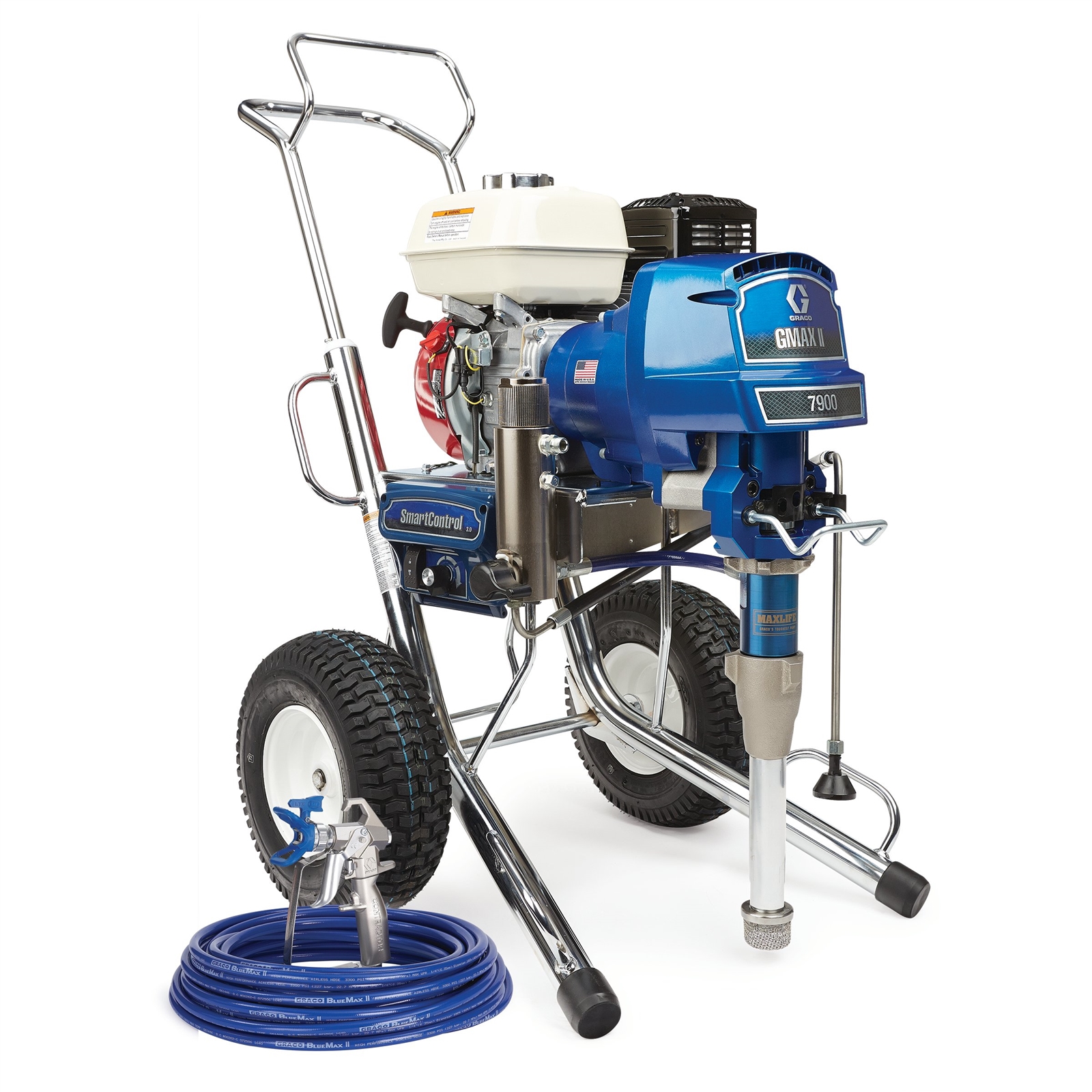

16W883_GMAX_II_7900_Standard_HiBoy_Feat_1

Specifications

Technical Specifications

Convert to Metric
Compatible Material Acrylics, Dry Fall, Drywall Mud, Elastomer, Gypsum, Paint, Primer
Compatible Replacement Pump 16X423
Convertible Non-Convertible
Engine Brand Honda
Engine Size (HP) 6.5
Engine Size (kW) 4.85
Features Advantage Drive, Durable Cart Design, SmartControl
Fluid Inlet Size (in) 1-5/16
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Includes Contractor Gun, RAC X 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, 3/8 in x 50 ft BlueMax II Airless Hose
Inlet Paint Strainer 8 Mesh Stainless Steel Screen
Maximum Flow Rate (GPM) 2.2
Maximum Hose Length (ft) 50
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (in) 0.048
Maximum Tip Size 1 Gun (in) 0.048
Maximum Tip Size 2 Guns (in) 0.035
Maximum Tip Size 3 Guns (in) 0.027
Maximum Tip Size 4 Guns (in) 0.023
Maximum Working Pressure (MPa) 22.7
Maximum Working Pressure (psi) 3300
Model GMAX II
Motor Type Electric
Number of Guns 4
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Power Rating (HP) 6.5
Power Rating (W) 4847.1
Power Rating (kW) 4.85
Power Source Gas
Pressure Control Type SmartControl 3.0
Pump Mount Type QuikChange
Pump Rod Type MaxLife
Pump Sleeve Material MaxLife
Pump Type Endurance
Series 7900
Standards Met CE Certified
Type Airless Sprayer
Weight (lb) 148
Wetted Material Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
Compatible Material Acrylics, Dry Fall, Drywall Mud, Elastomer, Gypsum, Paint, Primer
Compatible Replacement Pump 16X423
Convertible Non-Convertible
Engine Brand Honda
Engine Size (HP) 6.5
Engine Size (kW) 4.85
Features Advantage Drive, Durable Cart Design, SmartControl
Fluid Inlet Size (cm) 3.334
Fluid Inlet Size (mm) 33.34
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (cm) 0.9525
Fluid Outlet Size (mm) 9.525
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Includes Contractor Gun, RAC X 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, 3/8 in x 50 ft BlueMax II Airless Hose
Inlet Paint Strainer 8 Mesh Stainless Steel Screen
Maximum Flow Rate (L/min) 8.33
Maximum Hose Length (m) 15
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (cm) 0.1219
Maximum Tip Size (mm) 1.219
Maximum Tip Size 1 Gun (cm) 0.1219
Maximum Tip Size 1 Gun (mm) 1.219
Maximum Tip Size 2 Guns (cm) 0.0889
Maximum Tip Size 2 Guns (mm) 0.889
Maximum Tip Size 3 Guns (cm) 0.06858
Maximum Tip Size 3 Guns (mm) 0.6858
Maximum Tip Size 4 Guns (cm) 0.05842
Maximum Tip Size 4 Guns (mm) 0.5842
Maximum Working Pressure (MPa) 22.7
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 22700
Maximum Working Pressure (kg/cm²) 232
Model GMAX II
Motor Type Electric
Number of Guns 4
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Power Rating (HP) 6.5
Power Rating (W) 4847.1
Power Rating (cc) 200
Power Rating (kW) 4.85
Power Source Gas
Pressure Control Type SmartControl 3.0
Pump Mount Type QuikChange
Pump Rod Type MaxLife
Pump Sleeve Material MaxLife
Pump Type Endurance
Series 7900
Standards Met CE Certified
Type Airless Sprayer
Weight (kg) 67
Wetted Material Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
