GMAX II 7900

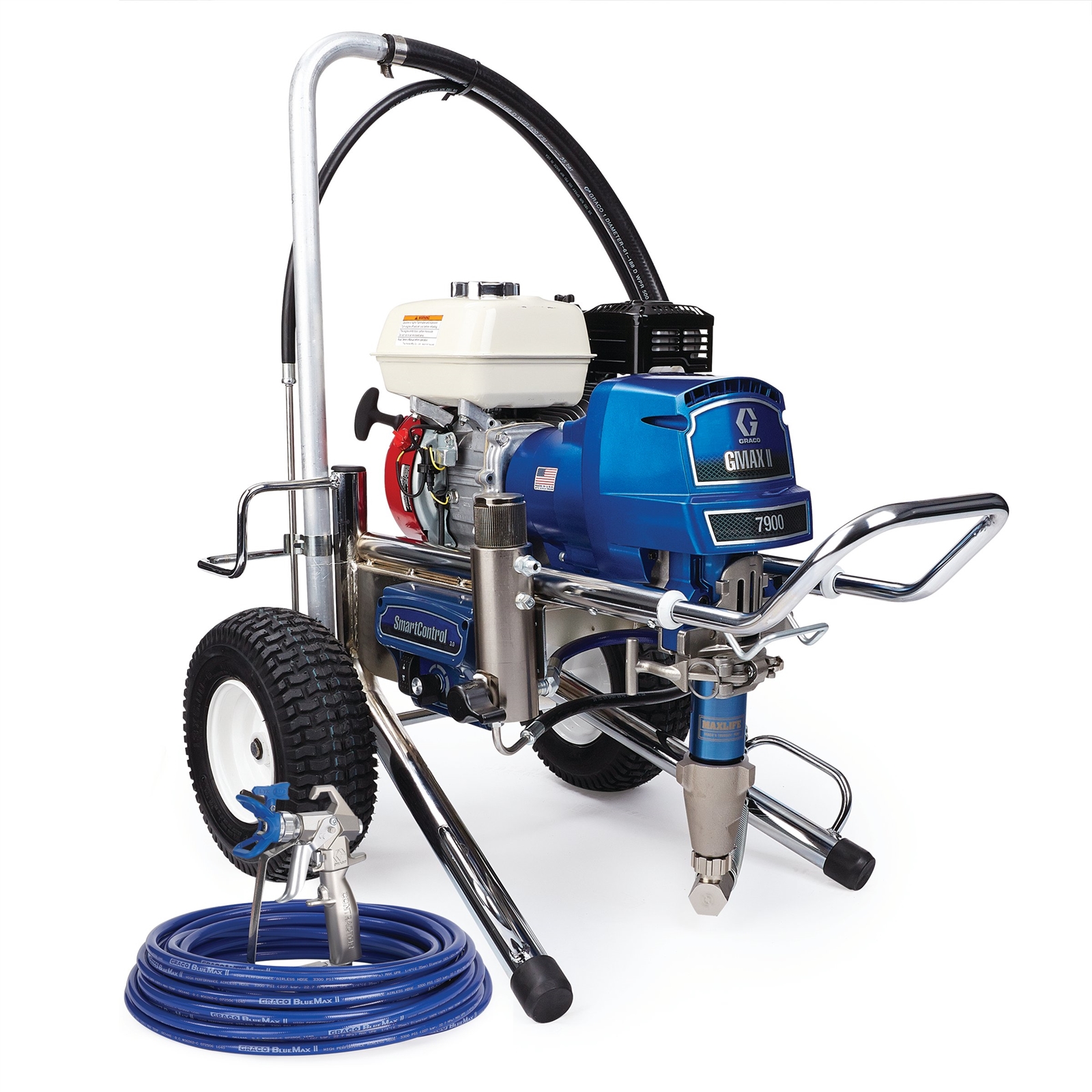

GMAX II 7900 Standard Series Gas Airless Sprayer, Lo-Boy

16W884

16W884_GMAX_II_7900_Standard_LoBoy_Main

GMAX II 7900

GMAX II 7900 Standard Series Gas Airless Sprayer, Lo-Boy

16W884

With a 200 cc Honda engine and the ability to spray up to 2.2 gallons per minute, the GMAX 7900 is Graco’s largest gas mechanical sprayer. All 7900 sprayers come equipped with Graco’s Extreme-Duty MaxLife pump, and they can handle the widest range of tip sizes, multiple guns, longer hose lengths and... More Info
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
With a 200 cc Honda engine and the ability to spray up to 2.2 gallons per minute, the GMAX 7900 is Graco’s largest gas mechanical sprayer. All 7900 sprayers come equipped with Graco’s Extreme-Duty MaxLife pump, and they can handle the widest range of tip sizes, multiple guns, longer hose lengths and heavier coatings with ease.
  • Advantage Drive System
    • Runs quiet and has a lifetime guarantee.
  • SmartControl 3.0 Pressure Control
    • Delivers consistent spray fan without pressure fluctuations at all spraying pressures.
  • Endurance Pump
    • Amazingly durable design lasts twice as long as the next leading brand.
  • Honda® Engine
    • Delivers maximum performance and contractor preferred reliability.
  • Rugged Cart Design
    • Chrome over steel makes this durable cart last for years.
  • Easy Out Pump Filter
    • Less mess when changing or cleaning the filter.
  • Heavy-Duty Prime Valve
    • Maintenance-free design withstands high pressure dumping.
  • ProConnect 2
    • Change out the pump using no tools in seconds resulting in quickly getting back to work.
  • Lo-Boy units include:
    • Contractor Gun
    • RAC X 517 SwitchTip and Guard
    • 3/8 in x 50 ft (9.5 mm x 15 m) BlueMax II Airless Hose
    • 1/4 in x 3 ft (6.4 mm x 0.9 m) BlueMax II Whip
16W884_GMAX_II_7900_Standard_LoBoy_Main

Specifications

Technical Specifications

Convert to Metric
Compatible Material Acrylics, Dry Fall, Drywall Mud, Elastomer, Gypsum, Paint, Primer
Engine Brand Honda
Engine Size (HP) 6.5
Features Advantage Drive, Durable Cart Design, SmartControl
Fluid Inlet Size (in) 1-5/16
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Type NPSM
Frame Configuration Lo-Boy
Includes Contractor Gun, RAC X 517 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft Whip Hose
Inlet Paint Strainer 8 Mesh Stainless Steel Screen
Maximum Flow Rate (GPM) 2.2
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (in) 0.048
Maximum Tip Size 1 Gun (in) 0.048
Maximum Tip Size 2 Guns (in) 0.035
Maximum Tip Size 3 Guns (in) 0.027
Maximum Tip Size 4 Guns (in) 0.023
Maximum Working Pressure (MPa) 22.7
Maximum Working Pressure (psi) 3300
Model GMAX II
Motor Type Electric
Number of Guns 4
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Power Rating (HP) 6.5
Power Rating (W) 4847.1
Power Rating (kW) 4.85
Power Source Gas
Pressure Control Type SmartControl 3.0
Pump Mount Type QuikChange
Pump Rod Type MaxLife
Pump Type Endurance
Series 7900
Standards Met CE Certified
Type Airless Sprayer
Weight (lb) 154
Wetted Material Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
Compatible Material Acrylics, Dry Fall, Drywall Mud, Elastomer, Gypsum, Paint, Primer
Engine Brand Honda
Engine Size (HP) 6.5
Features Advantage Drive, Durable Cart Design, SmartControl
Fluid Inlet Size (cm) 3.334
Fluid Inlet Size (mm) 33.34
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (cm) 0.375
Fluid Outlet Size (mm) 3.75
Fluid Outlet Thread Type NPSM
Frame Configuration Lo-Boy
Includes Contractor Gun, RAC X 517 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft Whip Hose
Inlet Paint Strainer 8 Mesh Stainless Steel Screen
Maximum Flow Rate (L/min) 8.33
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (cm) 0.1219
Maximum Tip Size (mm) 1.219
Maximum Tip Size 1 Gun (cm) 0.1219
Maximum Tip Size 1 Gun (mm) 1.219
Maximum Tip Size 2 Guns (cm) 0.0889
Maximum Tip Size 2 Guns (mm) 0.8890
Maximum Tip Size 3 Guns (cm) 0.0686
Maximum Tip Size 3 Guns (mm) 0.6858
Maximum Tip Size 4 Guns (cm) 0.0584
Maximum Tip Size 4 Guns (mm) 0.5842
Maximum Working Pressure (MPa) 22.7
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 22700
Model GMAX II
Motor Type Electric
Number of Guns 4
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Power Rating (HP) 6.5
Power Rating (W) 4847.1
Power Rating (kW) 4.85
Power Source Gas
Pressure Control Type SmartControl 3.0
Pump Mount Type QuikChange
Pump Rod Type MaxLife
Pump Type Endurance
Series 7900
Standards Met CE Certified
Type Airless Sprayer
Weight (kg) 70
Wetted Material Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
