TexSpray 7900HD

TexSpray 7900 HD ProContractor Series Gas Airless Sprayer

16W888

16W888_TexSpray_7900HD_ProContractor_Series_Sprayer_Main 16W888_TexSpray_7900HD_ProContractor_Series_Sprayer_Alt_1

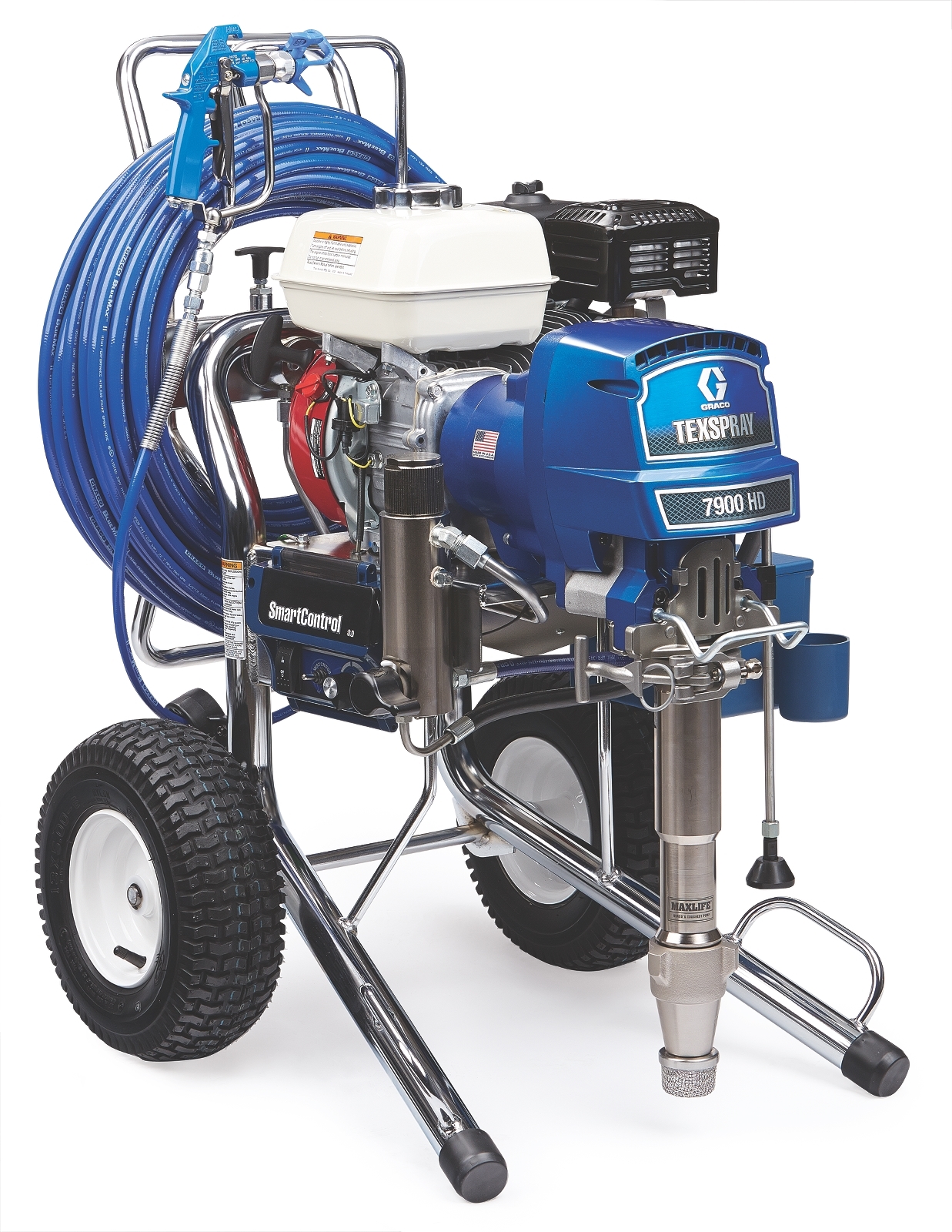

6W888, TexSpray 7900 HD Hi-Boy ProContractor Series

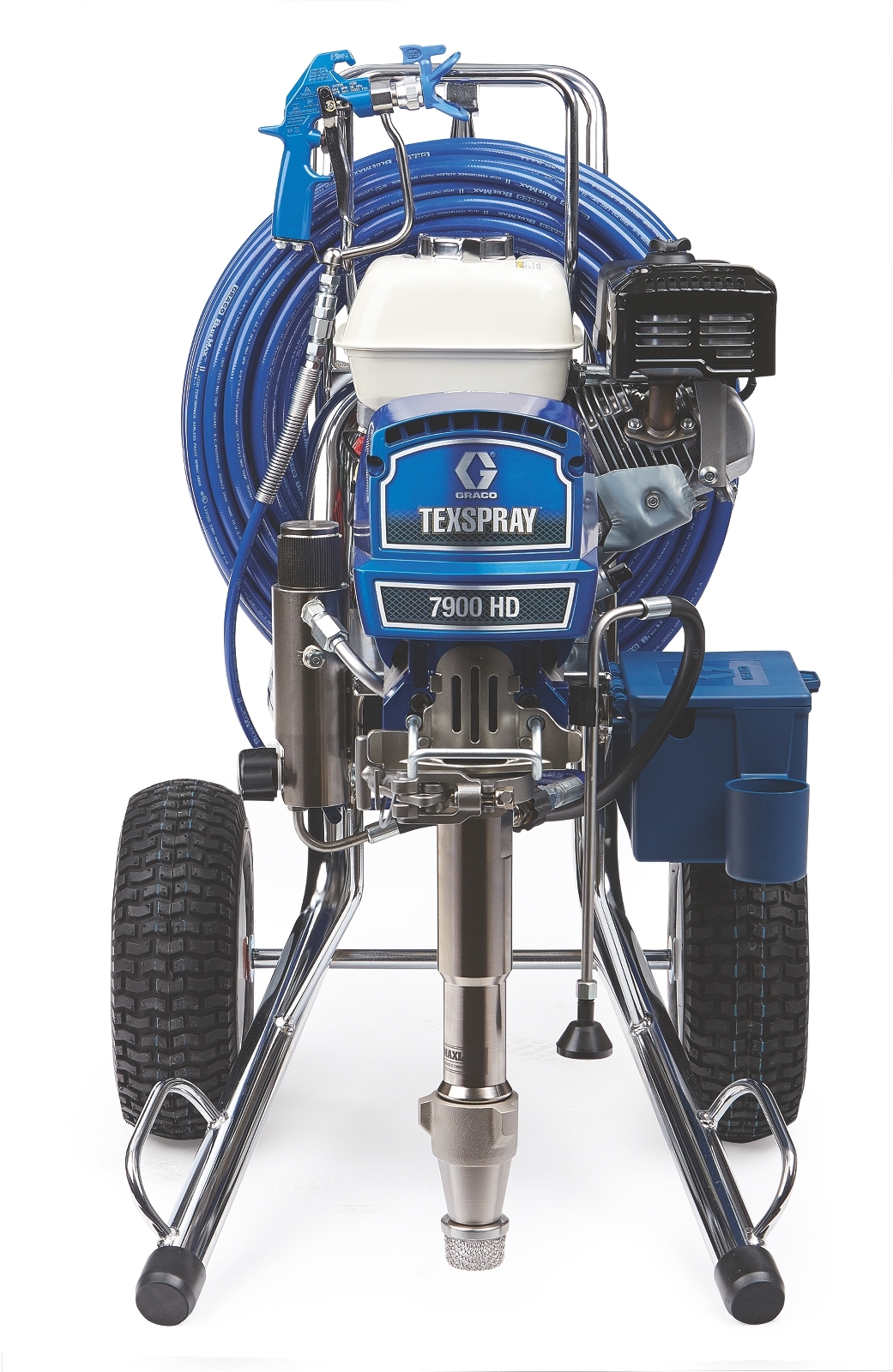

16W888, TexSpray 7900 HD Hi-Boy ProContractor Series Front

TexSpray 7900HD

TexSpray 7900 HD ProContractor Series Gas Airless Sprayer

16W888

When you need the highest performance for the biggest jobs, look no further than the 7900 HD. Designed from pump to gun for maximum flow and extreme durability, every 7900 HD comes equipped with the Extreme-Duty MaxLife™ Endurance Pump—Graco’s toughest pump. Whether you need to spray skim coat in a ...

More Info

Features

Product Brochure

When you need the highest performance for the biggest jobs, look no further than the 7900 HD. Designed from pump to gun for maximum flow and extreme durability, every 7900 HD comes equipped with the Extreme-Duty MaxLife™ Endurance Pump—Graco’s toughest pump. Whether you need to spray skim coat in a Level 5 finish, drywall mud in an orange peel, splatter or knockdown finish or even the wide range of primers, paints and other heavy coatings, this sprayer can do it all!

  • Advantage Drive System

    • Runs quiet and has a lifetime guarantee
  • SmartControl 3.0 Pressure Control

    • Delivers consistent spray fan without pressure fluctuations at all spraying pressures
  • Endurance Pump with Max Flo+

    • Submerged foot valve easily handles the thickest materials
  • Ceramic and Stainless Steel Ball

    • Sets Provides maximum versatility no matter what you're spraying
  • Honda Engine

    • Delivers maximum performance and contractor preferred reliability
  • Rugged Cart Design

    • Chrome over steel makes this durable cart last for years
  • Easy Out Pump Filter

  • Less mess when changing or cleaning the filter
  • Heavy-Duty Prime Valve

    • Maintenance-free design withstands high pressure dumping
  • QuikReel

    • Deploy and rewind up to 300 feet of hose in seconds without twists, kinks or coils
  • Ready To Spray

    • A total of 100 feet of hose and gun already installed

Specifications

Technical Specifications

Convert to Metric
Compatible Material Acrylics, Coating, Drywall Mud, Elastomer, Enamel, Epoxies, Latex
Convertible Non-Convertible
Engine Brand Honda
Engine Size (HP) 6.5
Engine Size (kW) 4.85
Features Onboard Toolbox, SmartControl, WatchDog
Fluid Inlet Size (in) 1-5/16
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Type NPSM
Frame Configuration Cart
Hose Inlet Diameter (in) 3/8
Hose Reel Type QuikReel
Includes Heavy-Duty Blue Texture Gun, RAC X 427 Spray Tip, RAC X 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft Whip Hose
Inlet Paint Strainer 8 Mesh Stainless Steel Screen
Material Application Liquid Waterproofing
Maximum Flow Rate (GPM) 2.2
Maximum Hose Length (ft) 100
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (in) 0.048
Maximum Tip Size 1 Gun (in) 0.048
Maximum Tip Size 2 Guns (in) 0.035
Maximum Tip Size 3 Guns (in) 0.027
Maximum Tip Size 4 Guns (in) 0.023
Maximum Working Pressure (MPa) 22.7
Maximum Working Pressure (psi) 3300
Model TexSpray
Number of Guns 4
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Power Rating (HP) 6.5
Power Rating (W) 4847.1
Power Rating (kW) 4.85
Power Source Gas
Pressure Control Type SmartControl 3.0
Pump Mount Type ProConnect
Pump Rod Type Chromex
Pump Sleeve Material MaxLife
Pump Type Endurance
Series 7900HD
Standards Met CE Certified
Type Airless Sprayer
Weight (lb) 159
Wetted Material Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
Compatible Material Acrylics, Coating, Drywall Mud, Elastomer, Enamel, Epoxies, Latex
Convertible Non-Convertible
Engine Brand Honda
Engine Size (HP) 6.5
Engine Size (kW) 4.85
Features Onboard Toolbox, SmartControl, WatchDog
Fluid Inlet Size (cm) 3.334
Fluid Inlet Size (mm) 33.34
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (cm) 0.9525
Fluid Outlet Size (mm) 9.525
Fluid Outlet Thread Type NPSM
Frame Configuration Cart
Hose Inlet Diameter (cm) 0.9525
Hose Inlet Diameter (mm) 9.525
Hose Reel Type QuikReel
Includes Heavy-Duty Blue Texture Gun, RAC X 427 Spray Tip, RAC X 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft Whip Hose
Inlet Paint Strainer 8 Mesh Stainless Steel Screen
Material Application Liquid Waterproofing
Maximum Flow Rate (L/min) 8.33
Maximum Hose Length (m) 30
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (cm) 0.1219
Maximum Tip Size (mm) 1.219
Maximum Tip Size 1 Gun (cm) 0.1219
Maximum Tip Size 1 Gun (mm) 1.219
Maximum Tip Size 2 Guns (cm) 0.0889
Maximum Tip Size 2 Guns (mm) 0.889
Maximum Tip Size 3 Guns (cm) 0.06858
Maximum Tip Size 3 Guns (mm) 0.6858
Maximum Tip Size 4 Guns (cm) 0.05842
Maximum Tip Size 4 Guns (mm) 0.5842
Maximum Working Pressure (MPa) 22.7
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 22700
Maximum Working Pressure (kg/cm²) 232
Model TexSpray
Number of Guns 4
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Power Rating (HP) 6.5
Power Rating (W) 4847.1
Power Rating (cc) 200
Power Rating (kW) 4.85
Power Source Gas
Pressure Control Type SmartControl 3.0
Pump Mount Type ProConnect
Pump Rod Type Chromex
Pump Sleeve Material MaxLife
Pump Type Endurance
Series 7900HD
Standards Met CE Certified
Type Airless Sprayer
Weight (kg) 72
Wetted Material Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
