Ultra Max II 695

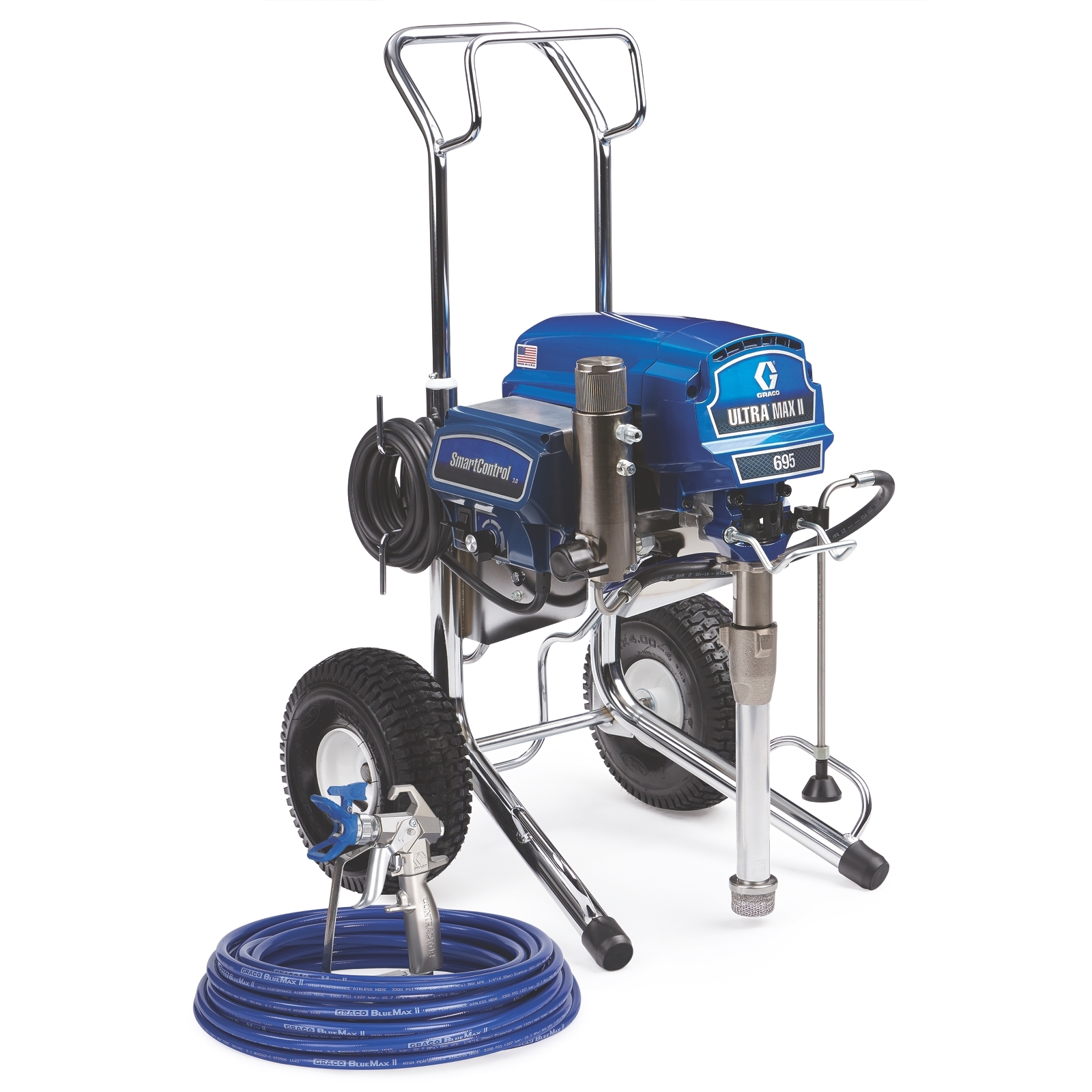

Ultra Max II 695 Standard Series Electric Airless Sprayer, Hi-Boy

16W892

16W892_UltraMaxII_695_Standard_HiBoy_Main
16W892; Ultra Max II 695 Hi-Boy Standard Series

Ultra Max II 695

Ultra Max II 695 Standard Series Electric Airless Sprayer, Hi-Boy

16W892

With a 2.0 hp brushless DC motor, the Ultra Max II 695 is a rock-solid performer for the professional residential contractor who sprays a wide variety of coatings. It can handle a wide variety of tip sizes and has outstanding proven reliability.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

With a 2.0 hp brushless DC motor, the Ultra Max II 695 is a rock-solid performer for the professional residential contractor who sprays a wide variety of coatings. It can handle a wide variety of tip sizes and has outstanding proven reliability.

The industry standard for professional contractors who spray a variety of residential coatings.

  • Advantage Drive System
    • Runs quiet and has a lifetime guarantee
  • MaxPower Brushless DC Motor
    • Never change brushes with this maintenance-free, totally enclosed motor
  • SmartControl 3.0 Pressure Control
    • Delivers consistent spray fan without pressure fluctuations at all spraying pressures
    • Includes ProGuard technology
  • Endurance Pump

    • Amazingly durable and easy-to-service design means less downtime on the job
  • Easy Out Pump Filter
    • Spill less material when removing the filter element
  • Rugged Cart Design
    • Chrome over steel makes this durable cart last for years
  • Heavy-Duty Prime Valve
    • Maintenance-free design withstands high pressure dumping
16W892_UltraMaxII_695_Standard_HiBoy_Main

Specifications

Technical Specifications

Convert to Metric
Compatible Material Acrylics, Enamel, Latex, Primer
Engine Size (HP) 2
Features Advantage Drive, Durable Cart Design, Heavy-Duty Prime Valve, SmartControl
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Includes Contractor Gun, RAC X 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose
Maximum Flow Rate (GPM) 0.95
Maximum Hose Length (ft) 50
Maximum Sound Pressure Level (dB(A)) 82
Maximum Tip Size (in) 0.031
Maximum Tip Size 1 Gun (in) 0.031
Maximum Tip Size 2 Guns (in) 0.023
Maximum Working Pressure (MPa) 22.7
Maximum Working Pressure (psi) 3300
Minimum Generator Power (W) 5000
Model Ultra Max II
Motor Type MaxPower
Number of Guns 2
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Phase 1
Power Rating (HP) 2.0
Power Rating (W) 1491.4
Power Rating (kW) 1.49
Power Source Electric
Pressure Control Type SmartControl 3.0
Pump Mount Type QuikChange
Pump Rod Type Chromex
Pump Sleeve Material Stainless Steel
Pump Type Endurance
Series 695
Standards Met Certified to CAN/CSA C22.2 No.68, Conforms to UL1450, cETLus Listed
Type Airless Sprayer
Volume Per Cycle (cycles/gal) 226
Weight (lb) 94
Wetted Material Acetal, Aluminum, Brass, Leather, Nylon, PEEK, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
Compatible Material Acrylics, Enamel, Latex, Primer
Engine Size (HP) 2
Features Advantage Drive, Durable Cart Design, Heavy-Duty Prime Valve, SmartControl
Fluid Outlet Size (cm) 0.635
Fluid Outlet Size (mm) 6.35
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Includes Contractor Gun, RAC X 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose
Maximum Flow Rate (L/min) 3.6
Maximum Hose Length (m) 15
Maximum Sound Pressure Level (dB(A)) 82
Maximum Tip Size (cm) 0.0787
Maximum Tip Size (mm) 0.7874
Maximum Tip Size 1 Gun (cm) 0.0787
Maximum Tip Size 1 Gun (mm) 0.7874
Maximum Tip Size 2 Guns (cm) 0.0584
Maximum Tip Size 2 Guns (mm) 0.5842
Maximum Working Pressure (MPa) 22.7
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 22700
Minimum Generator Power (W) 5000
Model Ultra Max II
Motor Type MaxPower
Number of Guns 2
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Phase 1
Power Rating (HP) 2.0
Power Rating (W) 1491.4
Power Rating (kW) 1.49
Power Source Electric
Pressure Control Type SmartControl 3.0
Pump Mount Type QuikChange
Pump Rod Type Chromex
Pump Sleeve Material Stainless Steel
Pump Type Endurance
Series 695
Standards Met Certified to CAN/CSA C22.2 No.68, Conforms to UL1450, cETLus Listed
Type Airless Sprayer
Weight (kg) 43
Wetted Material Acetal, Aluminum, Brass, Leather, Nylon, PEEK, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
