Ultra Max II 695

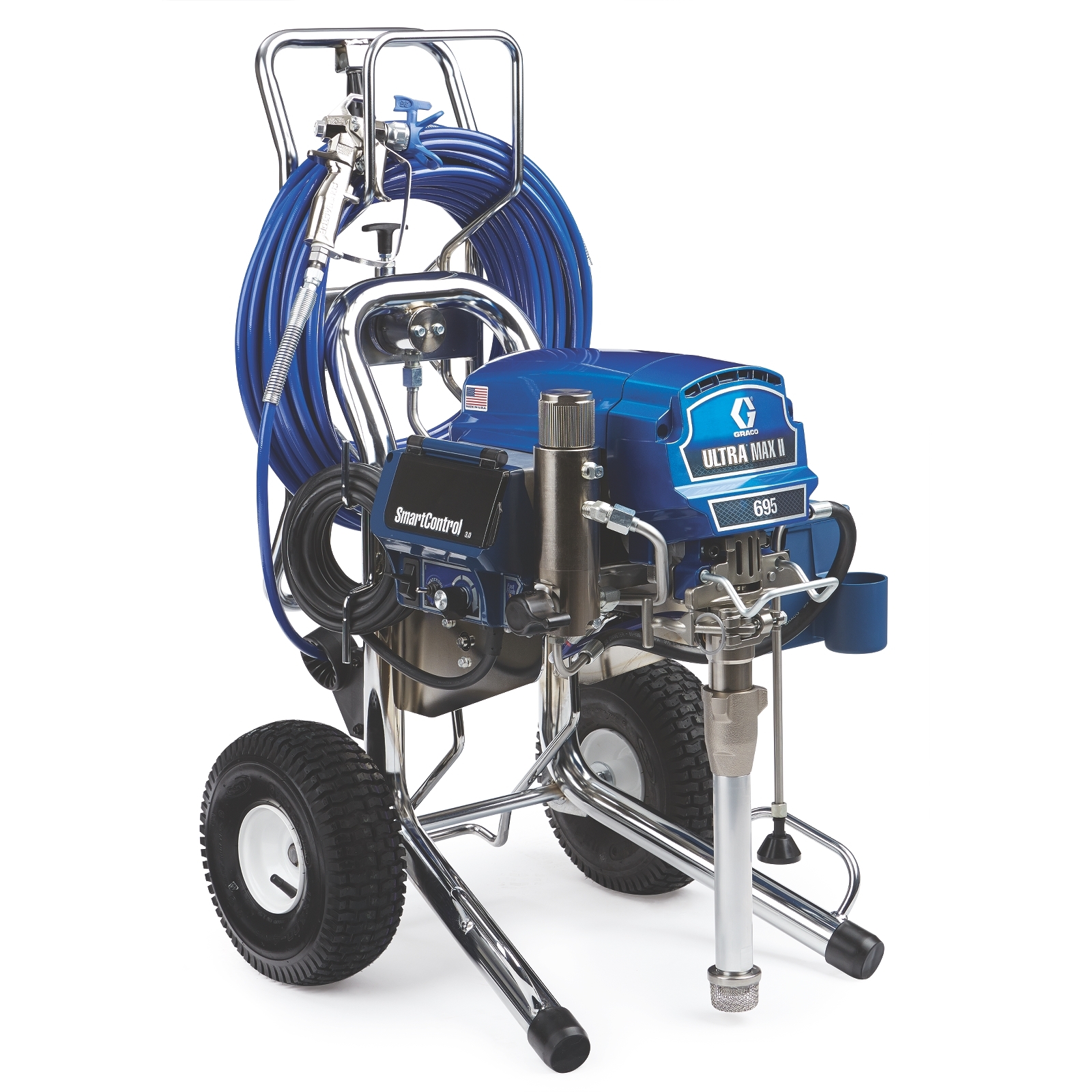

Ultra Max II 695 ProContractor Series Electric Airless Sprayer

16W894

16W894_UltraMaxII_695_ProContractor_Main
16W894; Ultra Max II 695 Hi-Boy ProContractor Series;

Ultra Max II 695

Ultra Max II 695 ProContractor Series Electric Airless Sprayer

16W894

With a 2.0 hp brushless DC motor, the Ultra Max II 695 is a rock-solid performer for the professional residential contractor who sprays a wide variety of coatings. It can handle a wide variety of tip sizes and has outstanding proven reliability.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

With a 2.0 hp brushless DC motor, the Ultra Max II 695 is a rock-solid performer for the professional residential contractor who sprays a wide variety of coatings. It can handle a wide variety of tip sizes and has outstanding proven reliability.

The industry standard for professional contractors who spray a variety of residential coatings.

  • Advantage Drive
    • Runs quiet and has a lifetime guarantee
  • MaxPower Brushless DC Motor
    • Never change brushes with this maintenance-free, totally enclosed motor
  • SmartControl 3.0 Pressure Control
    • Delivers consistent spray fan without pressure fluctuations at all spraying pressures
    • Includes ProGuard technology
  • Endurance Pump
    • Amazingly durable and easy-to-service design means less downtime on the job
  • Easy Out Pump Filter
    • Spill less material when removing the filter element
  • Rugged Cart Design
    • Chrome over steel makes this durable cart last for years
  • Heavy-Duty Prime Valve
    • Maintenance-free design withstands high pressure dumping
  • QuikReel

    • Deploy and rewind up to 300 ft of hose in seconds without twists or coils
  • LED Display
    • Bright easy-to-read LED display shows pressure readout, job/lifetime/gallon counter and self diagnostic
  • WatchDog Pump Protection System
    • Saves the pump from damage when paint or texture material runs out or a hose breaks

Specifications

Technical Specifications

Convert to Metric
Compatible Material Acrylics, Enamel, Latex, Primer
Engine Size (HP) 2
Features FastFlush, Onboard Toolbox, SmartControl, WatchDog
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Hose Reel Type QuikReel
Includes Contractor Gun, RAC X 517 Spray Tip, RAC X Guard, 2 - 1/4 in x 50 ft BlueMax II Airless Hose
Maximum Flow Rate (GPM) 0.95
Maximum Hose Length (ft) 50
Maximum Sound Pressure Level (dB(A)) 82
Maximum Tip Size (in) 0.031
Maximum Tip Size 1 Gun (in) 0.031
Maximum Tip Size 2 Guns (in) 0.023
Maximum Working Pressure (MPa) 22.7
Maximum Working Pressure (psi) 3300
Minimum Generator Power (W) 5000
Model Ultra Max II
Motor Type MaxPower
Number of Guns 2
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Phase 1
Power Rating (HP) 2.0
Power Rating (W) 1491.4
Power Rating (kW) 1.49
Power Source Electric
Pump Mount Type ProConnect
Pump Rod Type Chromex
Pump Sleeve Material Stainless Steel
Pump Type Endurance
Series 695
Standards Met CE Certified
Type Airless Sprayer
Volume Per Cycle (cycles/gal) 226
Weight (lb) 111
Wetted Material Acetal, Aluminum, Brass, Leather, Nylon, PEEK, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
Compatible Material Acrylics, Enamel, Latex, Primer
Engine Size (HP) 2
Features FastFlush, Onboard Toolbox, SmartControl, WatchDog
Fluid Outlet Size (cm) 0.635
Fluid Outlet Size (mm) 6.35
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Hose Reel Type QuikReel
Includes Contractor Gun, RAC X 517 Spray Tip, RAC X Guard, 2 - 1/4 in x 50 ft BlueMax II Airless Hose
Maximum Flow Rate (L/min) 3.6
Maximum Hose Length (m) 15
Maximum Sound Pressure Level (dB(A)) 82
Maximum Tip Size (cm) 0.0787
Maximum Tip Size (mm) 0.7874
Maximum Tip Size 1 Gun (cm) 0.0787
Maximum Tip Size 1 Gun (mm) 0.7874
Maximum Tip Size 2 Guns (cm) 0.0584
Maximum Tip Size 2 Guns (mm) 0.5842
Maximum Working Pressure (MPa) 22.7
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 22700
Minimum Generator Power (W) 5000
Model Ultra Max II
Motor Type MaxPower
Number of Guns 2
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Phase 1
Power Rating (HP) 2.0
Power Rating (W) 1491.4
Power Rating (kW) 1.49
Power Source Electric
Pump Mount Type ProConnect
Pump Rod Type Chromex
Pump Sleeve Material Stainless Steel
Pump Type Endurance
Series 695
Standards Met CE Certified
Type Airless Sprayer
Weight (kg) 50
Wetted Material Acetal, Aluminum, Brass, Leather, Nylon, PEEK, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
