Ultra Max II 795

Ultra Max II 795 Standard Series Electric Airless Sprayer

16W895

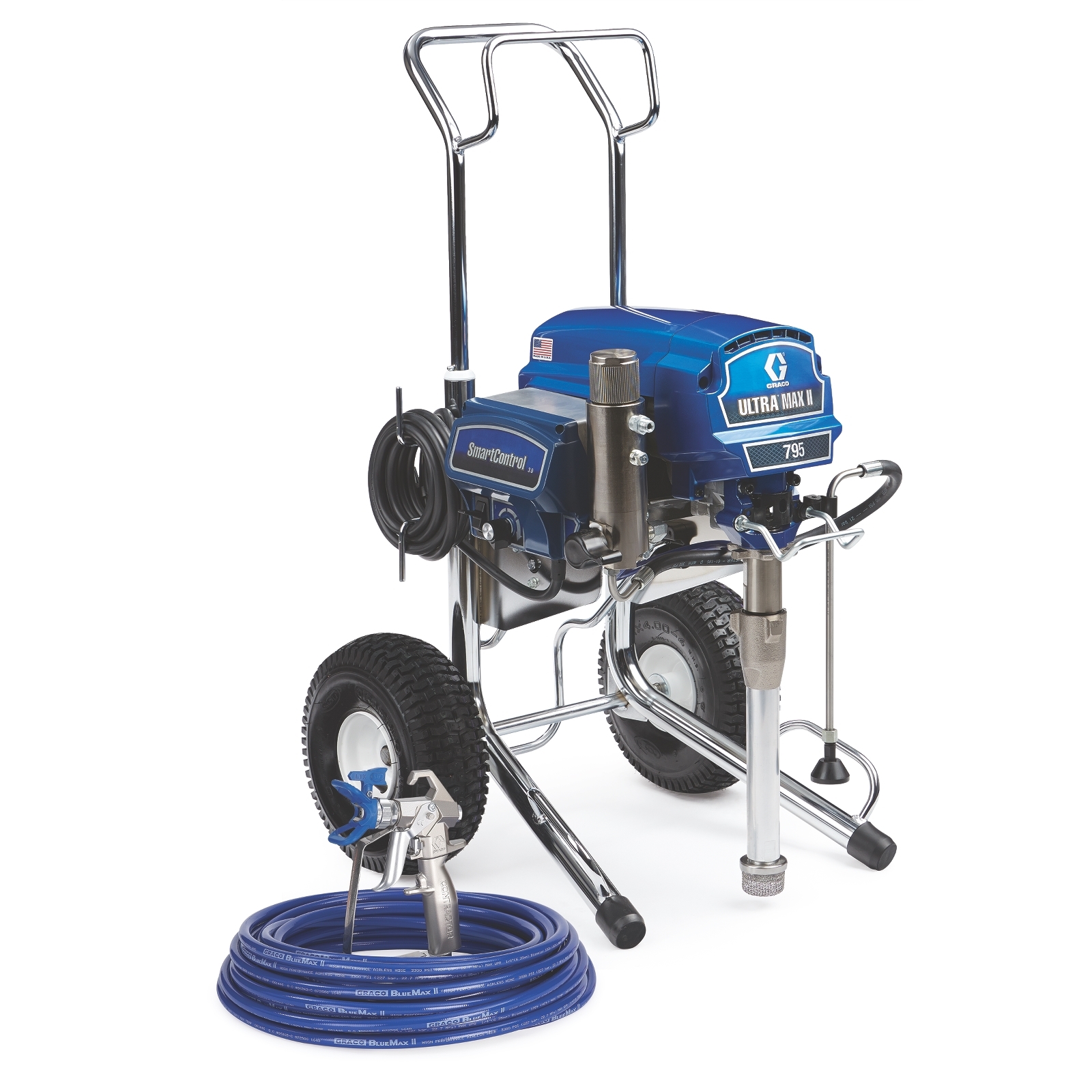

16W895_UltraMaxII_795_Standard_HiBoy_Main
16W895; Ultra Max II 795 Hi-Boy Standard Series

Ultra Max II 795

Ultra Max II 795 Standard Series Electric Airless Sprayer

16W895

With a 2.2 hp brushless DC motor, the Ultra Max II 795 can handle multiple guns and is ideal for the professional residential remodeling and repainting contractor who sprays a wide variety of coatings.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

With a 2.2 hp brushless DC motor, the Ultra Max II 795 can handle multiple guns and is ideal for the professional residential remodeling and repainting contractor who sprays a wide variety of coatings.

Ideal for one gun and occasional two gun spraying on residential, commercial and industrial jobs.

  • Advantage Drive System
    • Runs quiet and has a lifetime guarantee
  • MaxPower Brushless DC Motor
    • Never change brushes with this maintenance-free, totally enclosed motor
  • SmartControl 3.0 Pressure Control
    • Delivers consistent spray fan without pressure fluctuations at all spraying pressures
    • Includes ProGuard technology
  • Endurance Pump
    • Amazingly durable and easy-to-service design means less downtime on the job
  • Easy Out Pump Filter
    • Spill less material when removing the filter element
  • Rugged Cart Design
    • Chrome over steel makes this durable cart last for years
  • Heavy-Duty Prime Valve
    • Maintenance-free design withstands high pressure dumping

Specifications

Technical Specifications

Convert to Metric
Compatible Material Acrylics, Enamel, Latex, Primer
Engine Size (HP) 2.2
Features Advantage Drive, Durable Cart Design, Heavy-Duty Prime Valve, SmartControl
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Includes Contractor Gun, RAC X 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose
Maximum Flow Rate (GPM) 1.1
Maximum Sound Pressure Level (dB(A)) 82
Maximum Tip Size (in) 0.033
Maximum Tip Size 1 Gun (in) 0.033
Maximum Tip Size 2 Guns (in) 0.025
Maximum Tip Size 3 Guns (in) 0.019
Maximum Working Pressure (MPa) 22.7
Maximum Working Pressure (psi) 3300
Minimum Generator Power (W) 5000
Model Ultra Max II
Motor Type MaxPower
Number of Guns 3
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Phase 1
Power Rating (HP) 2.2
Power Rating (W) 1640.5
Power Rating (kW) 1.64
Power Source Electric
Pump Mount Type QuikChange
Pump Rod Type Chromex
Pump Sleeve Material Stainless Steel
Pump Type Endurance
Series 795
Standards Met Certified to CAN/CSA C22.2 No.68, Conforms to UL1450, cETLus Listed
Type Airless Sprayer
Volume Per Cycle (cycles/gal) 195
Weight (lb) 98
Wetted Material Acetal, Aluminum, Brass, Leather, Nylon, PEEK, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
Compatible Material Acrylics, Enamel, Latex, Primer
Engine Size (HP) 2.2
Features Advantage Drive, Durable Cart Design, Heavy-Duty Prime Valve, SmartControl
Fluid Outlet Size (cm) 0.635
Fluid Outlet Size (mm) 6.35
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Includes Contractor Gun, RAC X 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose
Maximum Flow Rate (L/min) 4.1
Maximum Sound Pressure Level (dB(A)) 82
Maximum Tip Size (cm) 0.0838
Maximum Tip Size (mm) 0.8382
Maximum Tip Size 1 Gun (cm) 0.0838
Maximum Tip Size 1 Gun (mm) 0.8382
Maximum Tip Size 2 Guns (cm) 0.0635
Maximum Tip Size 2 Guns (mm) 0.6350
Maximum Tip Size 3 Guns (cm) 0.0483
Maximum Tip Size 3 Guns (mm) 0.4826
Maximum Working Pressure (MPa) 22.7
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 22700
Minimum Generator Power (W) 5000
Model Ultra Max II
Motor Type MaxPower
Number of Guns 3
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Phase 1
Power Rating (HP) 2.2
Power Rating (W) 1640.5
Power Rating (kW) 1.64
Power Source Electric
Pump Mount Type QuikChange
Pump Rod Type Chromex
Pump Sleeve Material Stainless Steel
Pump Type Endurance
Series 795
Standards Met Certified to CAN/CSA C22.2 No.68, Conforms to UL1450, cETLus Listed
Type Airless Sprayer
Weight (kg) 45
Wetted Material Acetal, Aluminum, Brass, Leather, Nylon, PEEK, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
