Ultra Max II 1095

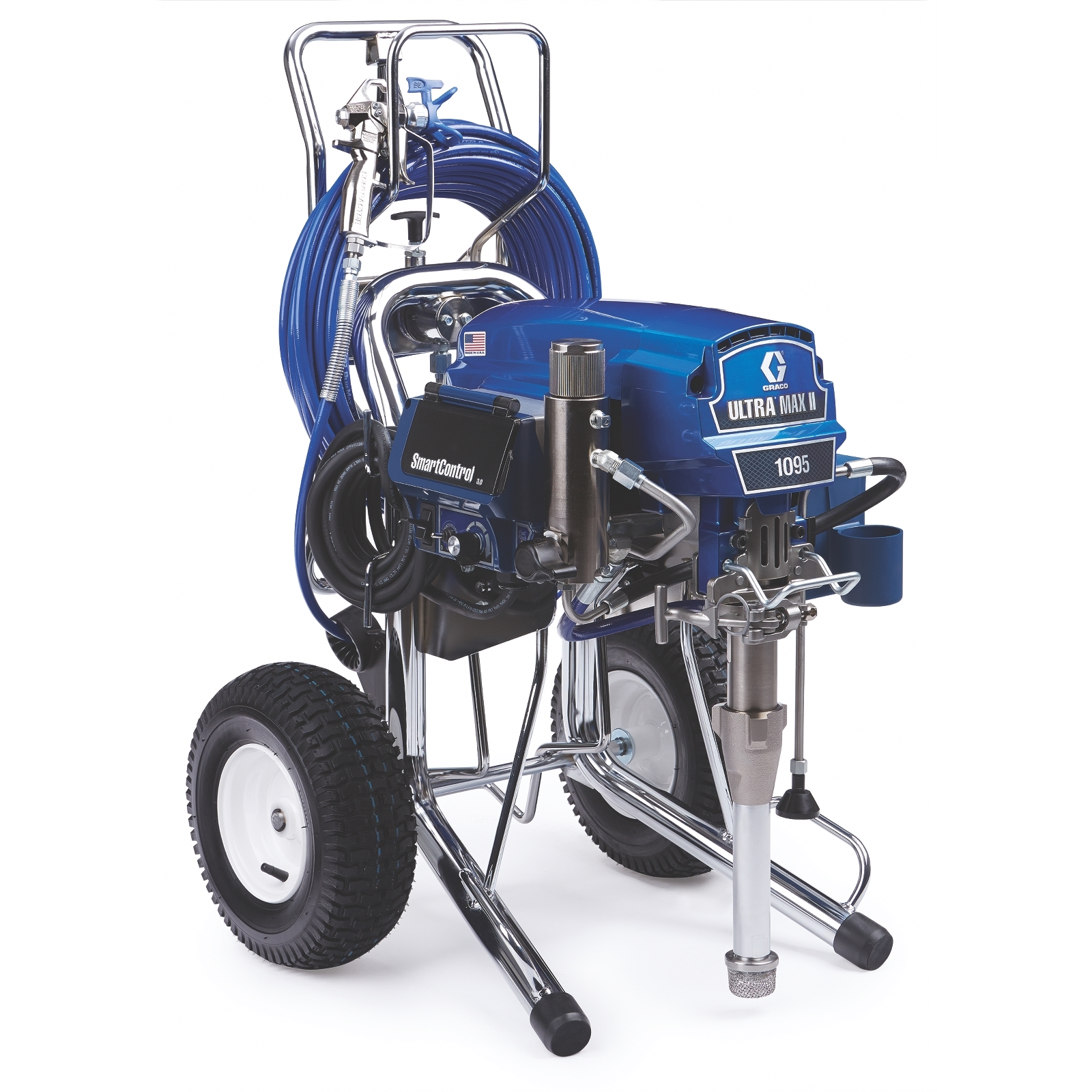

Ultra Max II 1095 ProContractor Series Electric Airless Sprayer

16W900

16W900_UltraMaxII_1095_ProContractor_Main
16W900, Ultra Max II 1095 Hi-Boy ProContractor Series

Ultra Max II 1095

Ultra Max II 1095 ProContractor Series Electric Airless Sprayer

16W900

The Ultra Max II 1095 ProContractor Series provides reliability and performance with a 2.4 hp brushless DC motor, Endurance Pump, Advantage Drive and timesaving features like the ProConnect 2 Pump Replacement System and QuikReel Hose Management System.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

The Ultra Max II 1095 ProContractor Series provides reliability and performance with a 2.4 hp brushless DC motor, Endurance Pump, Advantage Drive and timesaving features like the ProConnect 2 Pump Replacement System and QuikReel Hose Management System.

Ideal for one gun and occasional two gun spraying on residential, commercial and industrial jobs.

  • Advantage Drive

    • Runs quiet and has a lifetime guarantee
  • MaxPower Brushless DC Motor

    • Never change brushes with this maintenance-free, totally enclosed motor
  • SmartControl 3.0 Pressure Control

    • Delivers consistent spray fan without pressure fluctuations at all spraying pressures
    • Includes ProGuard technology
  • Endurance Pump

    • Amazingly durable and easy-to-service design means less downtime on the job
  • QuikReel

    • Deploy and rewind up to 300 ft of hose in seconds without twists or coils
  • LED Display

    • Bright easy-to-read LED display shows pressure readout, job/lifetime/gallon counter and self diagnostics
  • Heavy-Duty Prime Valve

    • Maintenance-free design withstands high pressure dumping
  • ProConnect 2 Pump Removal System

    • Change out the pump using no tools in seconds resulting in quickly getting back to work
  • FastFlush Cleaning System

    • Cleans the unit four times faster using only half the water
  • Additional Features

    • WatchDog Pump Protection System
    • Rugged Cart Design
    • On-board Toolbox

Specifications

Technical Specifications

Convert to Metric
Compatible Material Acrylics, Dry Fall, Elastomer, Enamel, Latex, Primer
Engine Size (HP) 2.4
Features FastFlush, Onboard Toolbox, SmartControl, WatchDog
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Hose Reel Type QuikReel
Includes Contractor Gun, RAC X 517 Spray Tip, RAC X Guard, 2 - 1/4 in x 50 ft BlueMax II Airless Hose
Maximum Flow Rate (GPM) 1.2
Maximum Sound Pressure Level (dB(A)) 82
Maximum Tip Size (in) 0.035
Maximum Tip Size 1 Gun (in) 0.035
Maximum Tip Size 2 Guns (in) 0.027
Maximum Tip Size 3 Guns (in) 0.021
Maximum Working Pressure (MPa) 22.7
Maximum Working Pressure (psi) 3300
Minimum Generator Power (W) 5000
Model Ultra Max II
Motor Type MaxPower
Number of Guns 3
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Phase 1
Power Rating (HP) 2.4
Power Rating (W) 1789.7
Power Rating (kW) 1.79
Power Source Electric
Pressure Control Type SmartControl 3.0
Pump Mount Type ProConnect
Pump Rod Type Chromex
Pump Sleeve Material Stainless Steel
Pump Type Endurance
Series 1095
Standards Met Certified to CAN/CSA C22.2 No.68, Conforms to UL1450, cETLus Listed
Type Airless Sprayer
Volume Per Cycle (cycles/gal) 123
Weight (lb) 141
Wetted Material Acetal, Aluminum, Brass, Leather, Nylon, PEEK, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
Compatible Material Acrylics, Dry Fall, Elastomer, Enamel, Latex, Primer
Engine Size (HP) 2.4
Features FastFlush, Onboard Toolbox, SmartControl, WatchDog
Fluid Outlet Size (cm) 0.635
Fluid Outlet Size (mm) 6.35
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Hose Reel Type QuikReel
Includes Contractor Gun, RAC X 517 Spray Tip, RAC X Guard, 2 - 1/4 in x 50 ft BlueMax II Airless Hose
Maximum Flow Rate (L/min) 4.5
Maximum Sound Pressure Level (dB(A)) 82
Maximum Tip Size (cm) 0.0889
Maximum Tip Size (mm) 0.889
Maximum Tip Size 1 Gun (cm) 0.0889
Maximum Tip Size 1 Gun (mm) 0.889
Maximum Tip Size 2 Guns (cm) 0.0686
Maximum Tip Size 2 Guns (mm) 0.6858
Maximum Tip Size 3 Guns (cm) 0.0533
Maximum Tip Size 3 Guns (mm) 0.5334
Maximum Working Pressure (MPa) 22.7
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 22700
Minimum Generator Power (W) 5000
Model Ultra Max II
Motor Type MaxPower
Number of Guns 3
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Phase 1
Power Rating (HP) 2.4
Power Rating (W) 1789.7
Power Rating (kW) 1.79
Power Source Electric
Pressure Control Type SmartControl 3.0
Pump Mount Type ProConnect
Pump Rod Type Chromex
Pump Sleeve Material Stainless Steel
Pump Type Endurance
Series 1095
Standards Met Certified to CAN/CSA C22.2 No.68, Conforms to UL1450, cETLus Listed
Type Airless Sprayer
Weight (kg) 64
Wetted Material Acetal, Aluminum, Brass, Leather, Nylon, PEEK, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
