Ultra Max II 1095

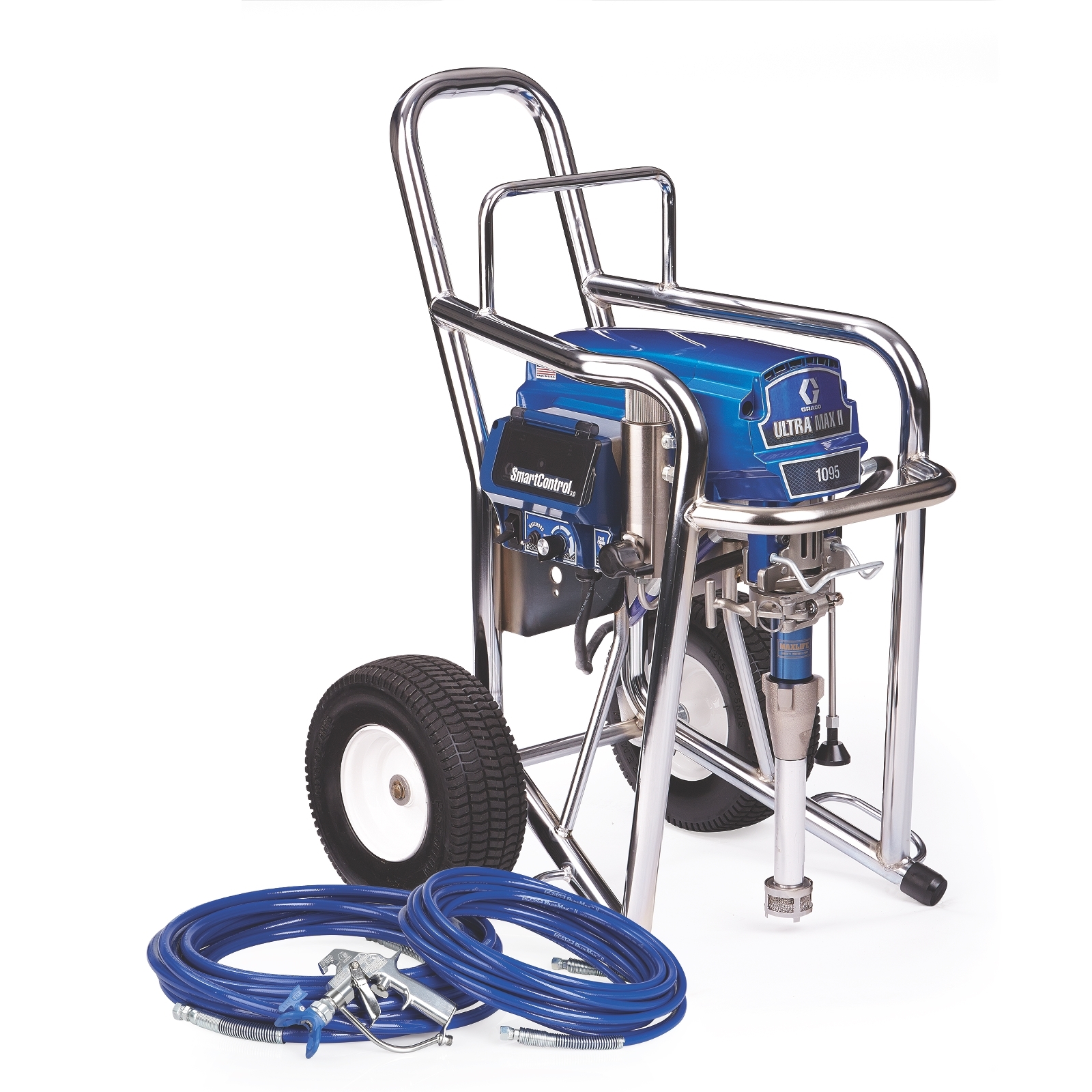

Ultra Max II 1095 IronMan Series Electric Airless Sprayer

16W901

16W901_UltraMaxII_1095_IronMan_Main

Ultra Max II 1095

Ultra Max II 1095 IronMan Series Electric Airless Sprayer

16W901

With a 2.4 hp brushless DC motor and the ability to spray up to 1.2 gallons per minute, the Ultra Max II 1095 is the industry standard for the large residential and commercial contractor who sprays a wide variety of coatings.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

With a 2.4 hp brushless DC motor and the ability to spray up to 1.2 gallons per minute, the Ultra Max II 1095 is the industry standard for the large residential and commercial contractor who sprays a wide variety of coatings.

The preferred choice of large professional painting contractors worldwide.

  • Advantage Drive
    • Runs quiet and has a lifetime guarantee
  • MaxPower Brushless DC Motor
    • Never change brushes with this maintenance-free, totally enclosed motor
  • SmartControl 3.0 Pressure Control
    • Delivers consistent spray fan without pressure fluctuations at all spraying pressures
    • Includes ProGuard technology
  • MaxLife Extreme Duty Pump
    • Keeps you working by running 6X longer between repacks
    • Ceramic and Stainless Steel ball sets provide maximum versatility no matter what you’re spraying
  • LED Display
    • Bright easy-to-read LED display shows pressure readout, job/lifetime/gallon counter and self diagnostics
  • Rugged Cart Design

    • Roll Cage Frame withstands rugged environments and protects critical sprayer components
    • Chrome over steel makes this durable cart last for years
  • FastFlush Cleaning System
    • Cleans the unit up to 4X faster using only half the water
  • ProConnect 2
    • Change out the pump using no tools in seconds resulting in quickly getting back to work
  • Flat-Proof Tires
    • Roll through even the worst jobsite debris without ever going flat
  • Additional Features
    • Watchdog Pump Protection System
    • Heavy Duty Prime Valve
    • Easy Out Filter System

Specifications

Technical Specifications

Convert to Metric
Compatible Material Acrylics, Dry Fall, Elastomer, Enamel, Latex, Primer
Engine Size (HP) 2.4
Features Extreme-Duty MaxLife Pump, FastFlush, Flat-Proof Tires, Roll Cage Frame Design, SmartControl, WatchDog
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Includes Silver Plus Gun, RAC X 517 Spray Tip, WideRAC RAC X 1231 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, 3/8 in x 50 ft BlueMax II Airless Hose
Maximum Flow Rate (GPM) 1.2
Maximum Sound Pressure Level (dB(A)) 82
Maximum Tip Size (in) 0.035
Maximum Tip Size 1 Gun (in) 0.035
Maximum Tip Size 2 Guns (in) 0.027
Maximum Tip Size 3 Guns (in) 0.021
Maximum Working Pressure (MPa) 22.7
Maximum Working Pressure (psi) 3300
Minimum Generator Power (W) 5000
Model Ultra Max II
Motor Type MaxPower
Number of Guns 3
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Phase 1
Power Rating (HP) 2.4
Power Rating (W) 1789.7
Power Rating (kW) 1.79
Power Source Electric
Pressure Control Type SmartControl 3.0
Pump Mount Type ProConnect
Pump Rod Type MaxLife
Pump Sleeve Material MaxLife
Pump Type MaxLife
Series 1095
Standards Met Certified to CAN/CSA C22.2 No.68, Conforms to UL1450, cETLus Listed
Type Airless Sprayer
Volume Per Cycle (cycles/gal) 123
Weight (lb) 127
Wetted Material Acetal, Aluminum, Brass, Leather, Nylon, PEEK, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
Compatible Material Acrylics, Dry Fall, Elastomer, Enamel, Latex, Primer
Engine Size (HP) 2.4
Features Extreme-Duty MaxLife Pump, FastFlush, Flat-Proof Tires, Roll Cage Frame Design, SmartControl, WatchDog
Fluid Outlet Size (cm) 0.635
Fluid Outlet Size (mm) 6.35
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Includes Silver Plus Gun, RAC X 517 Spray Tip, WideRAC RAC X 1231 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose, 3/8 in x 50 ft BlueMax II Airless Hose
Maximum Flow Rate (L/min) 4.5
Maximum Sound Pressure Level (dB(A)) 82
Maximum Tip Size (cm) 0.0889
Maximum Tip Size (mm) 0.889
Maximum Tip Size 1 Gun (cm) 0.0889
Maximum Tip Size 1 Gun (mm) 0.889
Maximum Tip Size 2 Guns (cm) 0.0686
Maximum Tip Size 2 Guns (mm) 0.6858
Maximum Tip Size 3 Guns (cm) 0.0533
Maximum Tip Size 3 Guns (mm) 0.5334
Maximum Working Pressure (MPa) 22.7
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 22700
Minimum Generator Power (W) 5000
Model Ultra Max II
Motor Type MaxPower
Number of Guns 3
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Phase 1
Power Rating (HP) 2.4
Power Rating (W) 1789.7
Power Rating (kW) 1.79
Power Source Electric
Pressure Control Type SmartControl 3.0
Pump Mount Type ProConnect
Pump Rod Type MaxLife
Pump Sleeve Material MaxLife
Pump Type MaxLife
Series 1095
Standards Met Certified to CAN/CSA C22.2 No.68, Conforms to UL1450, cETLus Listed
Type Airless Sprayer
Weight (kg) 58
Wetted Material Acetal, Aluminum, Brass, Leather, Nylon, PEEK, PTFE, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
