GMAX II 7900

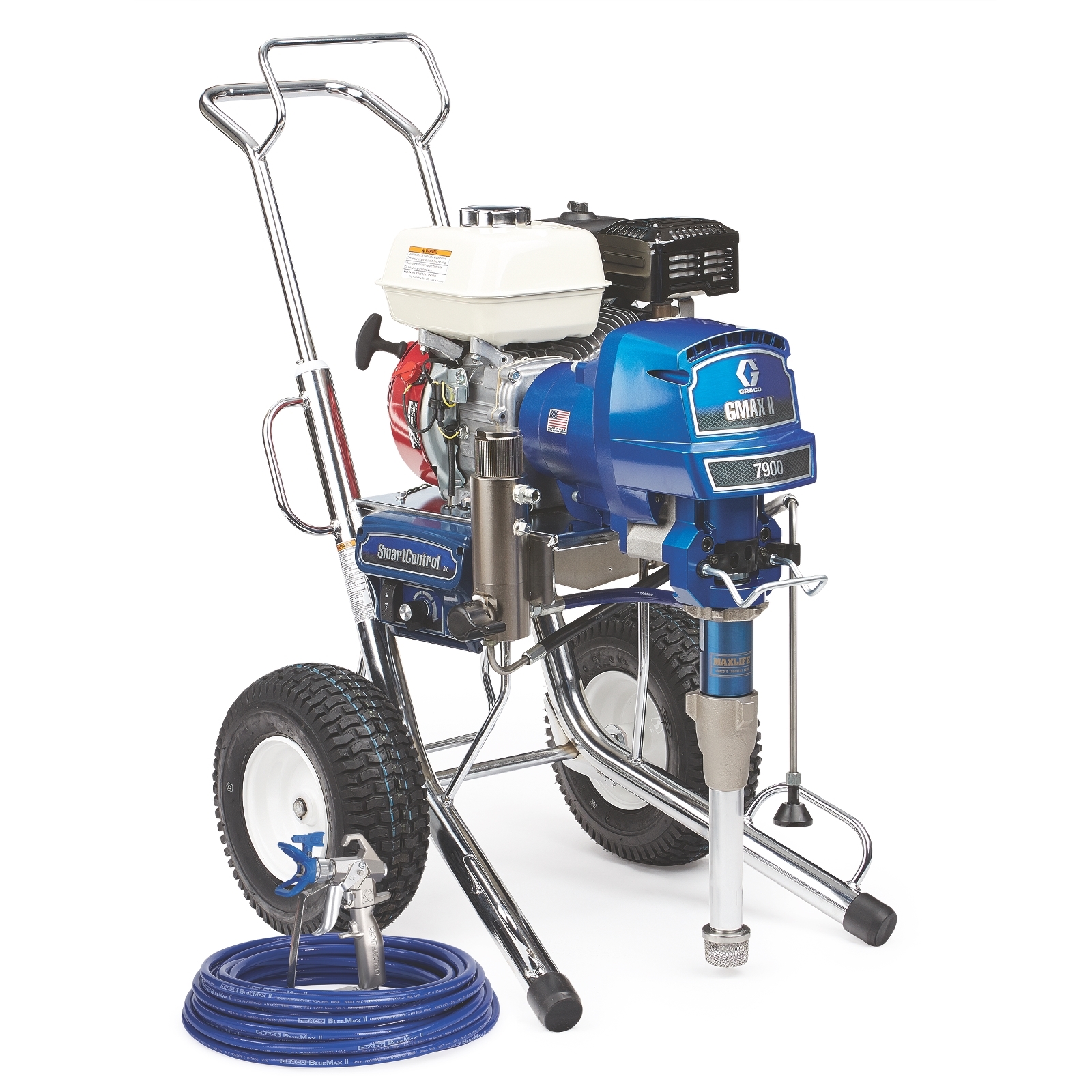

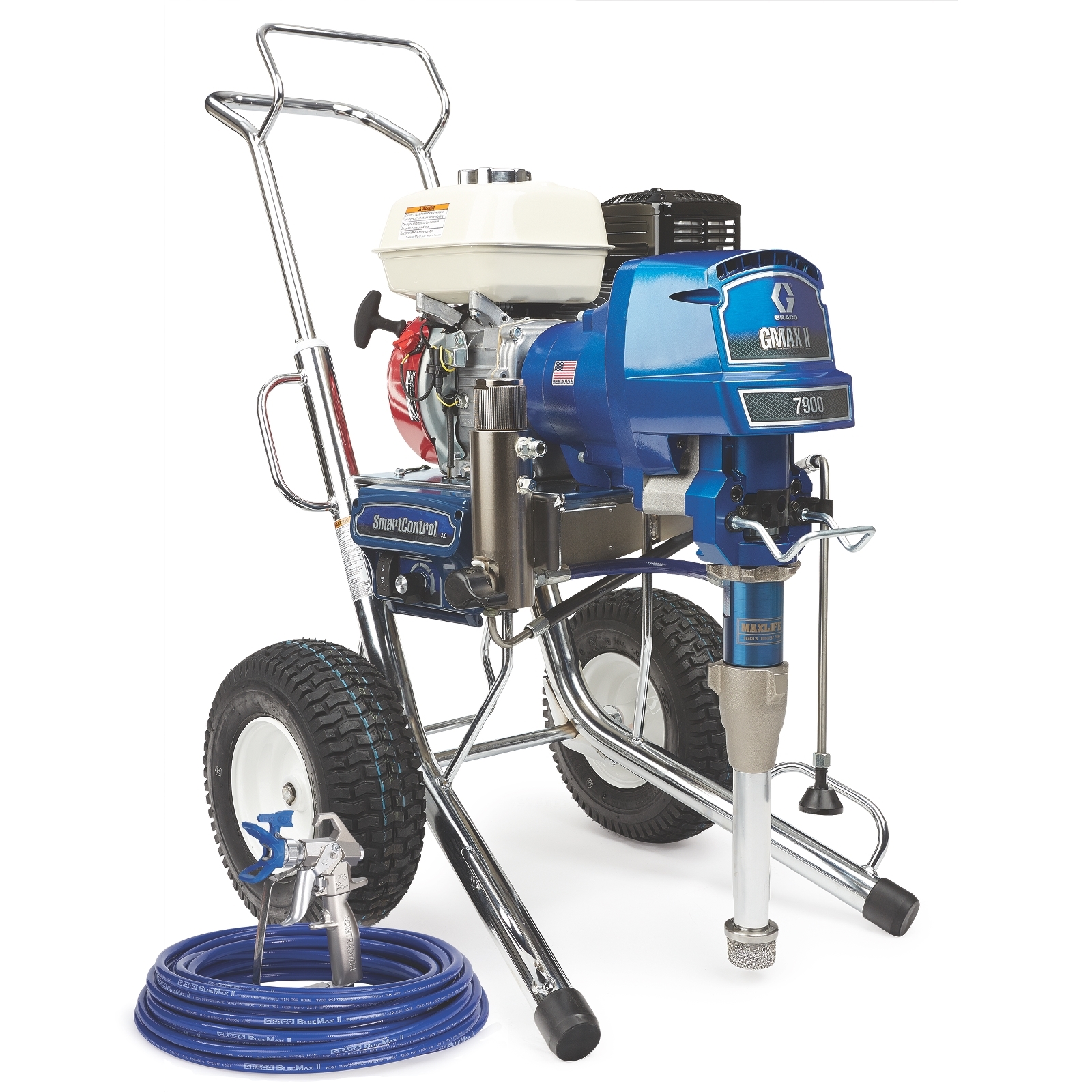

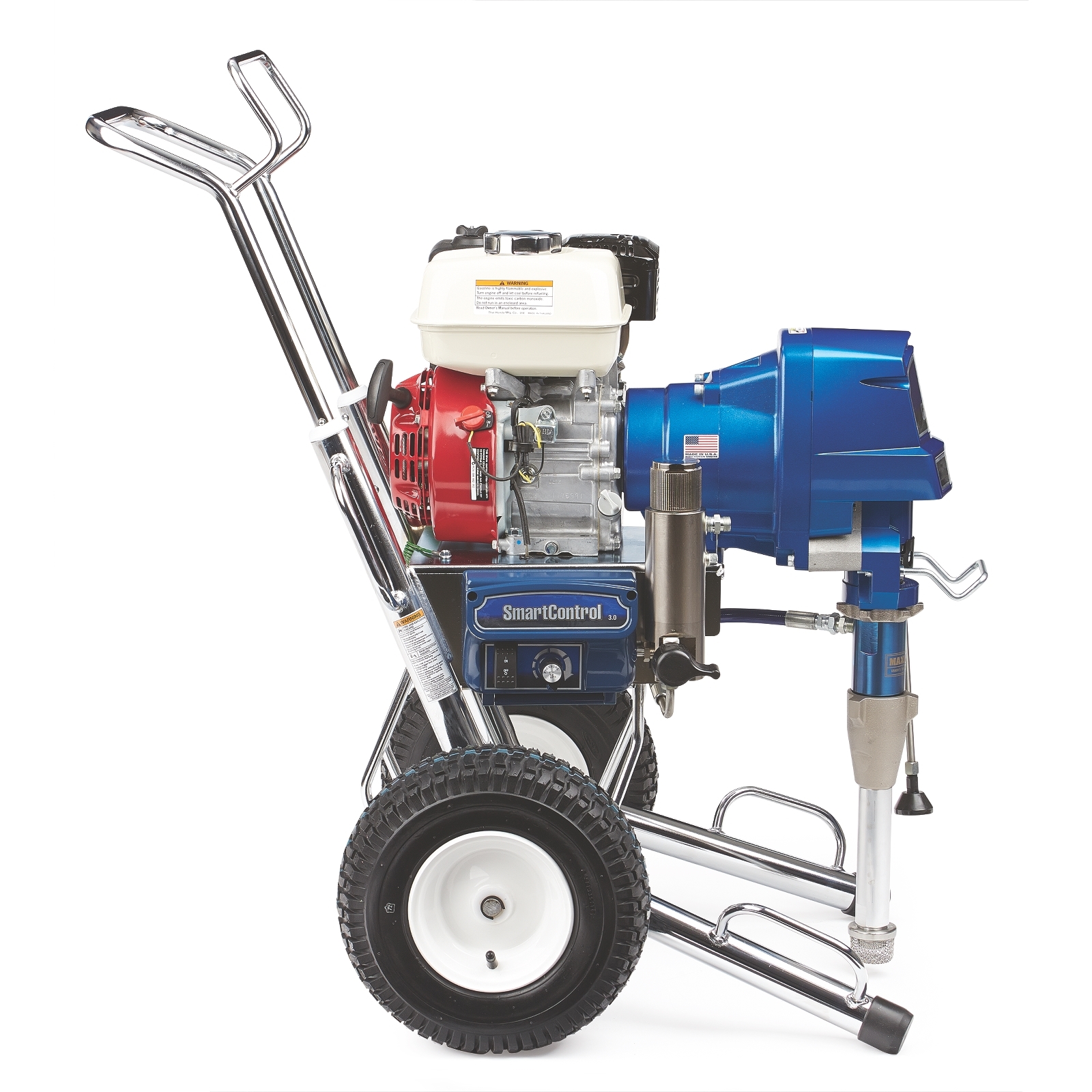

GMAX II 7900 Roof Rig Gas Airless Sprayer

16W987

16W987_GMAX_II_7900_Roof_Rig_Main 16W987_GMAX_II_7900_Roof_Rig_Alt_1 16W987_GMAX_II_7900_Roof_Rig_Alt_2
16W883, GMAX II 7900 Hi-Boy Standard Series
16W871, GMAX II 7900 Hi-Boy Standard Series SmartControl Box
16W871, GMAX II 7900 Hi-Boy Standard Series Hero

GMAX II 7900

GMAX II 7900 Roof Rig Gas Airless Sprayer

16W987

The GMAX II 7900 Roof Rig is the industry standard for professional contractors who spray a full range of coatings on residential, commercial and industrial jobs. Powered by Honda engines, this portable rig will go anywhere the job demands.

Features

Product Brochure

The GMAX II 7900 Roof Rig is the industry standard for professional contractors who spray a full range of coatings on residential, commercial and industrial jobs. Powered by Honda engines, this portable rig will go anywhere the job demands.

  • Honda Power

    • Delivers maximum performance
    • Contractor preferred engine with Oil Alert
  • SmartControl Pressure Control

    • Advanced microprocessor control delivers the most consistent spray fan at all spraying pressures
  • Advantage Drive System

    • Time-tested drive system provides peace of mind
    • Hardened helical gears are quiet running
    • Lifetime guarantee
  • Easy Out Pump Filter

    • Filtering reduces tip clogs and ensures a quality finish
    • Easy Out design filters from the inside out – so filters won’t get stuck or collapse when dirty
    • Filter removes with the cap for less mess
  • Endurance Pump

    • Long-life V-Max Blue packings, Chromex rod and hardened Stainless Steel sleeve
    • Exclusive MaxLife rod and sleeve delivers unmatched durability and life – Graco’s best
    • QuikAccess intake valve requires only a hammer to access the intake ball to easily clean or clear debris
16W987_GMAX_II_7900_Roof_Rig_Alt_2
16W871, GMAX II 7900 Hi-Boy Standard Series Hero

Specifications

Technical Specifications

Convert to Metric
Compatible Material Acrylics, Coal Tar, Elastomer, Enamel, Epoxies, Epoxy Mastics, Paint, Polyester, Polyurethane, Primer
Convertible Convertible
Engine Brand Honda
Engine Size (HP) 6.5
Features Advantage Drive, Durable Cart Design, SmartControl
Fluid Inlet Size (in) 1-5/16
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Type NPSM
Includes Heavy-Duty Blue Texture Gun, RAC X 527 Spray Tip, RAC X 635 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft Whip Hose
Inlet Paint Strainer 8 Mesh Stainless Steel Screen
Maximum Flow Rate (GPM) 2.2
Maximum Hose Length (ft) 50
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (in) 0.048
Maximum Tip Size 1 Gun (in) 0.048
Maximum Tip Size 2 Guns (in) 0.035
Maximum Tip Size 3 Guns (in) 0.027
Maximum Tip Size 4 Guns (in) 0.023
Maximum Working Pressure (psi) 3300
Model GMAX II
Motor Type Electric
Number of Guns 4
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Power Rating (HP) 6.5
Power Source Gas Hydraulic
Pressure Control Type SmartControl 3.0
Pump Mount Type QuikChange
Pump Rod Type MaxLife
Pump Sleeve Material MaxLife
Pump Type Endurance
Series 7900
Standards Met CE Certified
Type Airless Sprayer
Weight (kg) 6.7192
Weight (lb) 148
Wetted Material Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
Compatible Material Acrylics, Coal Tar, Elastomer, Enamel, Epoxies, Epoxy Mastics, Paint, Polyester, Polyurethane, Primer
Convertible Convertible
Engine Brand Honda
Engine Size (HP) 6.5
Features Advantage Drive, Durable Cart Design, SmartControl
Fluid Inlet Thread Type UN-2A
Fluid Outlet Thread Type NPSM
Includes Heavy-Duty Blue Texture Gun, RAC X 527 Spray Tip, RAC X 635 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft Whip Hose
Inlet Paint Strainer 8 Mesh Stainless Steel Screen
Maximum Flow Rate (GPM) 2.2
Maximum Hose Length (m) 15.2500
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (cm) 0.1219
Maximum Tip Size (mm) 1.2192
Maximum Tip Size 1 Gun (cm) 0.1219
Maximum Tip Size 1 Gun (mm) 1.2192
Maximum Tip Size 2 Guns (cm) 0.0889
Maximum Tip Size 2 Guns (mm) 0.8890
Maximum Tip Size 3 Guns (cm) 0.0686
Maximum Tip Size 3 Guns (mm) 0.6858
Maximum Tip Size 4 Guns (cm) 0.0584
Maximum Tip Size 4 Guns (mm) 0.5842
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 22737
Model GMAX II
Motor Type Electric
Number of Guns 4
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Power Rating (HP) 6.5
Power Source Gas Hydraulic
Pressure Control Type SmartControl 3.0
Pump Mount Type QuikChange
Pump Rod Type MaxLife
Pump Sleeve Material MaxLife
Pump Type Endurance
Series 7900
Standards Met CE Certified
Type Airless Sprayer
Weight (kg) 6.7192
Weight (lb) 148
Wetted Material Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel

What's Included

Part No. Description Qty Unit
16W883 GMAX II 7900 Standard Series Gas Airless Sprayer, Hi-Boy 1 ea
LTX635 RAC X SwitchTip, 635 1 ea
