Ultra Max II 490 PC Pro

Ultra Max II 490 PC Pro Electric Airless Sprayer, Hi-Boy

17C332

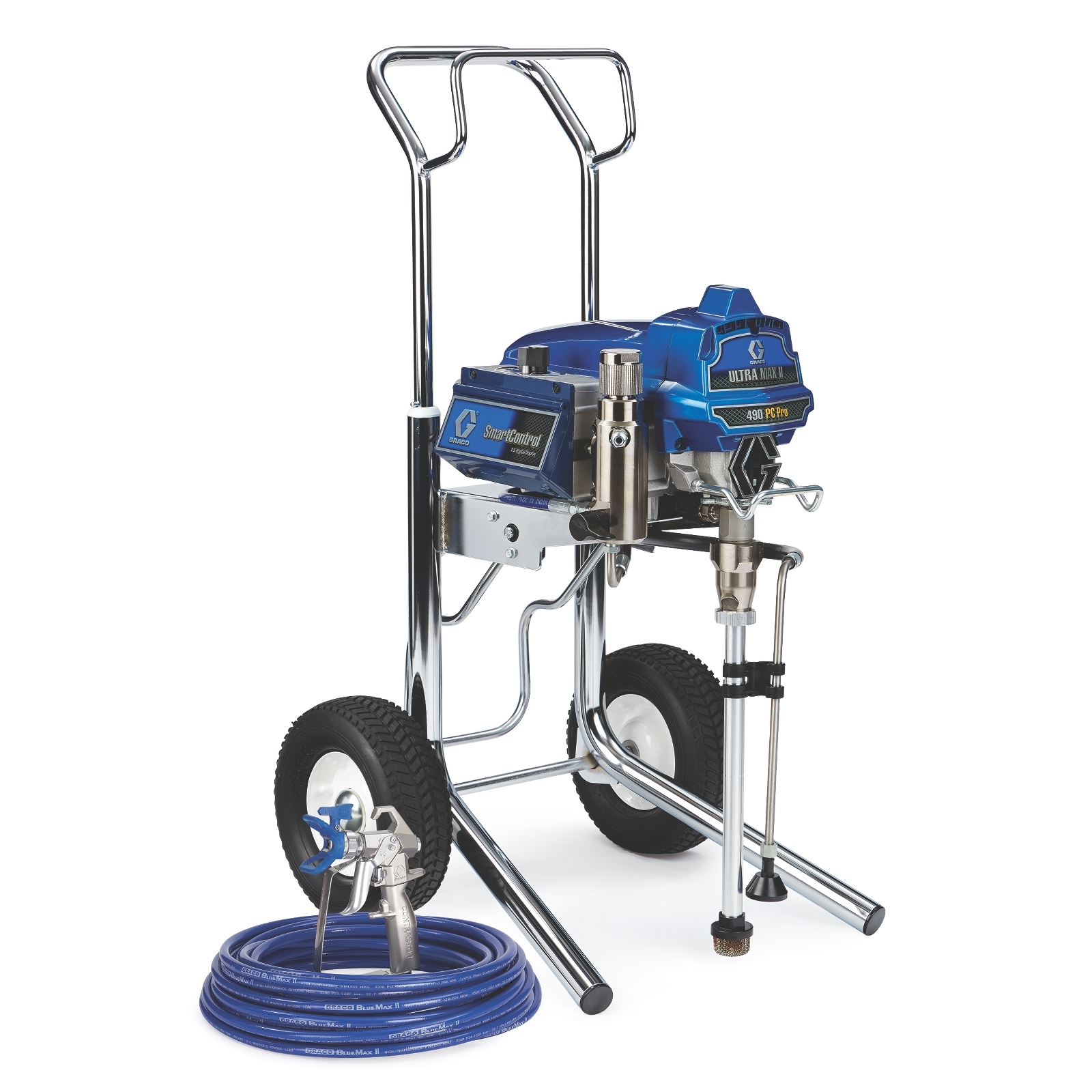

17C332_UltraMaxII_490_PC_Pro_HiBoy_Main
17C332; 490 PC Pro HiBoy;

Ultra Max II 490 PC Pro

Ultra Max II 490 PC Pro Electric Airless Sprayer, Hi-Boy

17C332

The new Ultra Max II 490 PC Pro Hi-Boy brings the leading technology and performance of Graco's larger Ultra Max II models into these compact sprayers. The Ultra Max II 490 PC Pro is the ideal step-up for professionals looking for superior performance and features in a small electric sprayer.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

The new Ultra Max II 490 PC Pro Hi-Boy brings the leading technology and performance of Graco's larger Ultra Max II models into these compact sprayers. The Ultra Max II 490 PC Pro is the ideal step-up for professionals looking for superior performance and features in a small electric sprayer.

The best choice for professionals looking for superior performance and control for daily use on residential jobs.

  • ProConnect
    • Fast and easy on-the-job Pump Replacement System
    • 1-minute jobsite replacement in 3 simple steps
  • MaxPower Motor
    • Graco's compact and powerful brushless DC motors are designed to produce the most power possible for all painting applications
    • Higher torque = More work done
    • Totally enclosed, fan-cooled design protects the internal components of the motor from dirt, dust and overspray
    • Brushless design means that you will never need to replace brushes
    • DC motors are more forgiving to voltage fluctuation, and can run on longer power cords
  • Endurance Pump
    • The most reliable pump on the market—lasts 2 times longer than the next leading brand
    • Long-life V-Max Blue packings, Chromex rod and hardened stainless steel cylinder
    • QuikAccess intake valve for fast cleaning or debris clearing
  • Easy Out Pump Filter
    • Vertical design helps eliminate spills
    • Filters from the inside out and won't collapse
    • Large 7.8-square-inch filtering area reduces tip clogs
    • Flow-through design cleans with only a few gallons
  • Advantage Drive
    • Hardened steel gears run extremely quiet
    • High-ratio reduction provides slow pump stroking
  • FastFlush
    • High-flow cleaning system runs faster and dramatically reduces cleaning time
  • Smart Control 2.5
    • Digital display shows pressure, gallons, and hours
    • Provides error messages and diagnostics
    • Ideal for maintenance tracking
    • Aids in fleet management
17C332_UltraMaxII_490_PC_Pro_HiBoy_Main

Specifications

Technical Specifications

Convert to Metric
Compatible Material Acrylics, Enamel, Lacquer, Latex, Primer, Stains
Engine Size (HP) 1
Features Advantage Drive, FastFlush, SmartControl
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Includes Contractor Gun, RAC X 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose
Maximum Flow Rate (GPM) 0.54
Maximum Sound Pressure Level (dB(A)) 90
Maximum Tip Size (in) 0.023
Maximum Tip Size 1 Gun (in) 0.023
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (psi) 3300
Minimum Generator Power (W) 3500
Model Ultra Max II
Motor Type MaxPower
Number of Guns 1
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Phase 1
Power Rating (HP) 1.0
Power Rating (W) 745.7
Power Rating (kW) 0.75
Power Source Electric
Pressure Control Type SmartControl 2.5
Pump Mount Type ProConnect
Pump Rod Type Chromex
Pump Sleeve Material Hardened Steel
Pump Type Endurance
Series 490 PC Pro
Type Airless Sprayer
Volume Per Cycle (cycles/gal) 620
Weight (lb) 66
Wetted Material Acetal, Aluminum, Fluoroelastomer, Leather, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
Compatible Material Acrylics, Enamel, Lacquer, Latex, Primer, Stains
Engine Size (HP) 1
Features Advantage Drive, FastFlush, SmartControl
Fluid Outlet Size (cm) 0.635
Fluid Outlet Size (mm) 6.35
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Includes Contractor Gun, RAC X 517 Spray Tip, RAC X Guard, 1/4 in x 50 ft BlueMax II Airless Hose
Maximum Flow Rate (L/min) 2.0
Maximum Sound Pressure Level (dB(A)) 90
Maximum Tip Size (cm) 0.0584
Maximum Tip Size (mm) 0.5842
Maximum Tip Size 1 Gun (cm) 0.0584
Maximum Tip Size 1 Gun (mm) 0.5842
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (bar) 228
Maximum Working Pressure (kPa) 22800
Minimum Generator Power (W) 3500
Model Ultra Max II
Motor Type MaxPower
Number of Guns 1
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Phase 1
Power Rating (HP) 1.0
Power Rating (W) 745.7
Power Rating (kW) 0.75
Power Source Electric
Pressure Control Type SmartControl 2.5
Pump Mount Type ProConnect
Pump Rod Type Chromex
Pump Sleeve Material Hardened Steel
Pump Type Endurance
Series 490 PC Pro
Type Airless Sprayer
Weight (kg) 30
Wetted Material Acetal, Aluminum, Fluoroelastomer, Leather, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
