FinishPro II 595 PC Pro

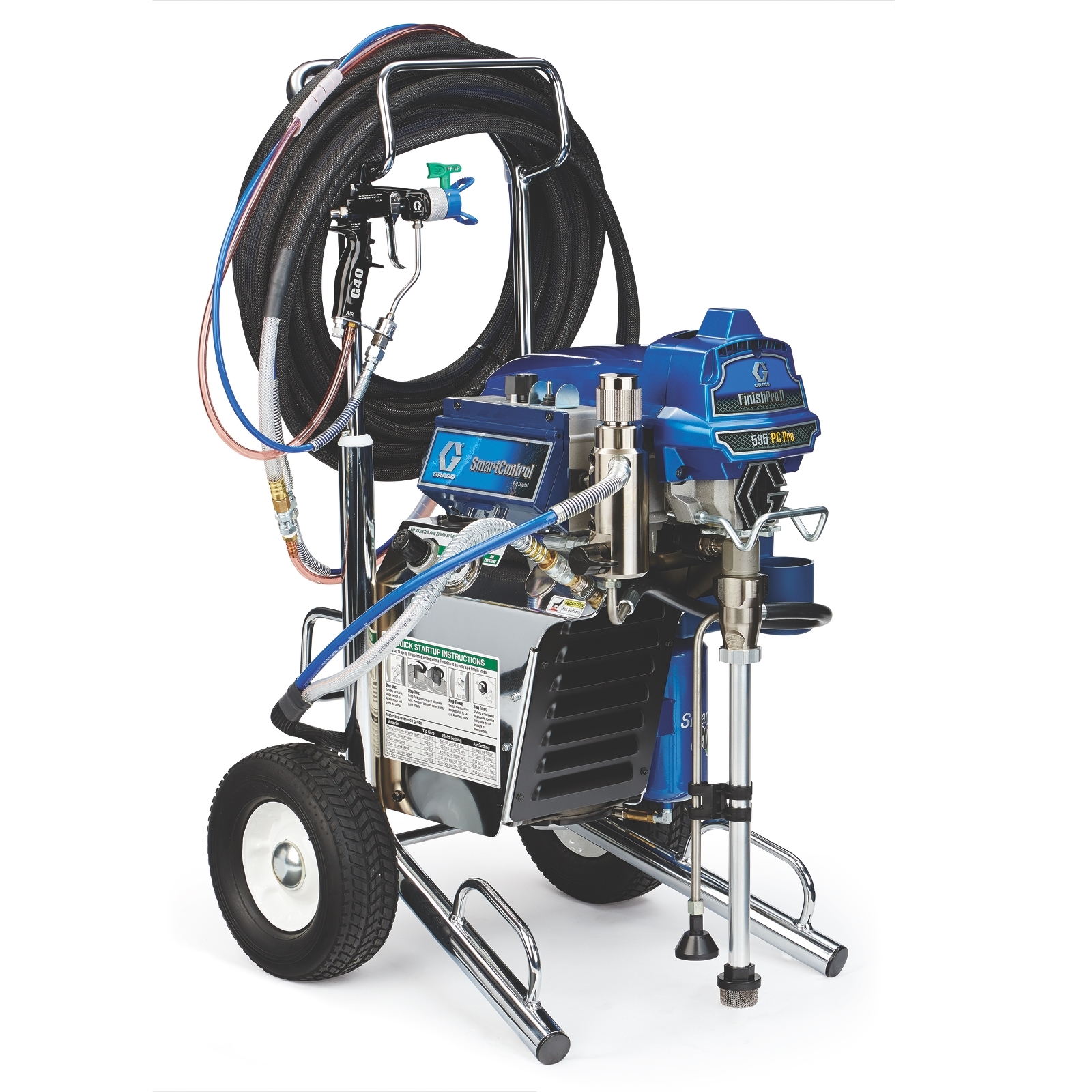

FinishPro II 595 PC Pro Electric Air-Assisted Airless Sprayer

17C424

17C424_Air_Assisted_FinishProII_595_PC_Pro_Main
17C424; FinishPro II 595 PC Pro

FinishPro II 595 PC Pro

FinishPro II 595 PC Pro Electric Air-Assisted Airless Sprayer

17C424

The most versatile FinishPro™ II sprayer ever, with more performance to get the job done faster, the FinishPro II 595 PC Pro is ideal for large commercial and industrial jobs.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

The most versatile FinishPro™ II sprayer ever, with more performance to get the job done faster, the FinishPro II 595 PC Pro is ideal for large commercial and industrial jobs.

The most versatile FinishPro sprayer ever, with more performance to get the job done faster

  • ProConnect™

    • Fast and easy on-the-job Pump Replacement System
    • 1-minute jobsite replacement in 3 simple steps
    • Pinless design eliminates the chance of losing parts during the change-out process
    • Endurance™ Now program available
  • SmartComp™

    • Compressor is activated by the gun trigger—if you’re not spraying, it’s not running!
    • Reduces jobsite noise, resulting in less fatigue
    • Automatic shut-off reduces moisture entering the system and extends compressor life
    • Pulling trigger delivers instant air to the gun with zero lag
    • Release the trigger and SmartComp shuts off the compressor after 5 seconds
    • Extends compressor life
  • High-Output On-Board Air Compressor

    • Ideal for on-site finish jobs
    • Delivers 3.2 cfm at 35 psi—enough air to break up the heaviest of materials
    • Exclusive Pressure Unloader results in quieter operation
    • Cooling coil reduces air temperature, extending the life of the critical compontents and providing safer operator handling
  • Endurance™ Pump

    • The most reliable pump on the market—lasts 2 times longer than the next leading brand
    • Long-life V-Max Blue™ packings, Chromex™ rod and hardened stainless steel cylinder
    • QuikAccess™ intake valve for fast cleaning or debris clearing
  • Super-Flex™ Hose Set—By increasing flexibility and maneuverability, Graco’s Super-Flex Hose Set enables you to work in tight confines and helps you increase the quality of finish you’re laying down.

    • The flexibility to get into tight spaces—focus on the task, not the tool!
    • Extremely lightweight in hand, which reduces fatigue
    • Connects directly to the gun for maximum flexibility
    • Flex Wrap hose skin protects from paint build up and increases hose durability
  • Improved G40 Spray Gun

    • An industrial quality air-assisted spray gun that delivers superior finishing results
    • Integrated air valve improves gun handling
    • RAC X™ air cap included
    • Flat tip conversion kit included
  • SmartControl™ 2.5

    • Advanced technology delivers a consistent spray fan without pressure fluctuations at all spraying pressures
    • Ideal for smaller tips commonly used for fine finish work
    • Digital display accurately shows spraying pressure
  • FastFlush™

    • High-flow cleaning system runs faster and dramatically reduces cleaning time
  • Two Sprayers in One!

    • Select air-assisted or airless modes, depending on what’s best for the application
  • Self-Contained & Portable

    • One plug runs the entire unit, simplifying jobsite operation

Specifications

Technical Specifications

Convert to Metric
Compatible Material Primer, Stains, Acrylics, Enamel, Latex
Engine Size (HP) 1.4
Features Digital Display, SmartControl
Gun Included 1
Includes G40 Air-Assisted Airless Gun, Contractor Gun, RAC X FF LP 210 Spray Tip, RAC X 517 Spray Tip, RAC X Guard, Precision Cut Fine Finish Flat Tip Kit, Precision Cut Fine Finish 309 Flat Tip, 50 ft Super-Flex Hose Set, 1/4 in x 50 ft BlueMax II Airless Hose, 100 Mesh Gun Filter
Inlet Paint Strainer 100 Mesh Stainless Steel Screen
Maximum Flow Rate (GPM) 0.70
Maximum Hose Length (ft) 50
Maximum Sound Pressure Level (dB(A)) 79
Maximum Tip Size (in) 0.027
Maximum Tip Size 1 Gun (in) 0.027
Maximum Working Pressure (psi) 3300
Minimum Generator Power (W) 4000
Model FinishPro II
Motor Type DC
Number of Guns 1
Outlet Paint Filter 100 Mesh Stainless Steel Screen
Phase 1
Power Rating (HP) 1.4
Power Source Electric
Pressure Control Type SmartControl 2.5
Product Type Spray Package
Pump Mount Type ProConnect
Pump Rod Type Chromex
Pump Type Endurance
Series 595 PC Pro
Spray Type Air-Assisted Airless
Standards Met Certified to CAN/CSA C22.2 No.68, Conforms to UL1450, cETLus Listed
Type Air-Assisted Airless Sprayer
Weight (kg) 50.8
Weight (lb) 112
Wetted Material Acetal, Aluminum, Fluoroelastomer, Leather, Nickel-Plated Carbon Steel, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel
Compatible Material Primer, Stains, Acrylics, Enamel, Latex
Engine Size (HP) 1.4
Features Digital Display, SmartControl
Gun Included 1
Includes G40 Air-Assisted Airless Gun, Contractor Gun, RAC X FF LP 210 Spray Tip, RAC X 517 Spray Tip, RAC X Guard, Precision Cut Fine Finish Flat Tip Kit, Precision Cut Fine Finish 309 Flat Tip, 50 ft Super-Flex Hose Set, 1/4 in x 50 ft BlueMax II Airless Hose, 100 Mesh Gun Filter
Inlet Paint Strainer 100 Mesh Stainless Steel Screen
Maximum Flow Rate (GPM) 0.70
Maximum Hose Length (m) 15.2500
Maximum Sound Pressure Level (dB(A)) 79
Maximum Tip Size (cm) 0.0686
Maximum Tip Size (mm) 0.6858
Maximum Tip Size 1 Gun (cm) 0.0686
Maximum Tip Size 1 Gun (mm) 0.6858
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 22737
Minimum Generator Power (W) 4000
Model FinishPro II
Motor Type DC
Number of Guns 1
Outlet Paint Filter 100 Mesh Stainless Steel Screen
Phase 1
Power Rating (HP) 1.4
Power Source Electric
Pressure Control Type SmartControl 2.5
Product Type Spray Package
Pump Mount Type ProConnect
Pump Rod Type Chromex
Pump Type Endurance
Series 595 PC Pro
Spray Type Air-Assisted Airless
Standards Met Certified to CAN/CSA C22.2 No.68, Conforms to UL1450, cETLus Listed
Type Air-Assisted Airless Sprayer
Weight (kg) 50.8
Weight (lb) 112
Wetted Material Acetal, Aluminum, Fluoroelastomer, Leather, Nickel-Plated Carbon Steel, Nylon, PTFE, Polyethylene, Stainless Steel, Tungsten Carbide, UHMWPE, Urethane, Zinc-Plated Carbon Steel

What's Included

Part No. Description Qty Unit
103413 PACKING O-RING 1 ea
107434 BEARING, THRUST 1 ea
109575 SCREW, THREADFORMING, HEX HD 2 ea
111600 PIN, GROOVED 1 ea
111909 PLUG, BUTTON 1 ea
113491 CLAMP, WIRE 1 ea
115477 SCREW, MACH., TORX PAN HD 1 ea
115494 SCREW, MACH.,PHILLIPS, PAN HD 3 ea
115498 SCREW, MCH, SLOT, HEX, WASH HD 1 ea
116073 WASHER, THRUST 1 ea
116074 WASHER, THRUST 1 ea
116079 BEARING, THRUST 2 ea
117493 SCREW, MACH, HEX WSHER HD 12 ea
117501 SCREW, MACH, SLOT HEX WASH HD 15 ea
117633 SCREW, SLOT HEX WASH HD 6 ea
118852 SCREW,THRD FRMNG,HEX,WSHR HD 3 ea
120643 GAUGE, PRESSURE, PANEL MOUNT, 1.5" 1 ea
120653 FITTING, PUSH TO CONNECT, 90 1 ea
120685 GROMMET 1 ea
120708 COMPRESSOR, AIR,120V,395 AA 1 ea
120732 FITTING, COMPRESSION, MALE CONN 1 ea
120753 FITTING, PUSH TO CONNECT ELBOW 1 ea
127330 REGULATOR,AIR, 1/4" NPT 1 ea
127465 FILTER, INLINE DESSICANT AIR 1 ea
127580 WIRE,TIE, .40-.50 BUNDLE DIA. 1 ea
127914 SCREW, MACH, SLOT HEX WASH HD 3 ea
15B071 INSERT, FILTER 1 ea
15B120 GROMMET, TRANSDUCER 1 ea
15B652 WASHER, SUCTION SWIVEL 1 ea
15B822 TUBE, AIR 3 ea
15E813 NUT, JAM 1 ea
15G447 PLUG, SHIELD, PAINTED 1 ea
15G456 CAP, FILTER 1 ea
15H064 CORD, POWER 1 ea
15K040 NUT, REGULATOR, METAL 1 ea
15K052 PLATE, FRONT, PAINTED 1 ea
15K053 PLATE, REAR, PAINTED 1 ea
15K391 TUBE, AIR 1 ea
16H137 O-RING, FX-90 1 ea
16X397 TUBE,HEAT EXCHANGE, 395/595 1 ea
16X399 SOLENOID, 2 WAY, NORM OPEN, 120V 1 ea
16X477 HOSE,AIR 1 ea
16X530 CORD, PWR, COMP. FEMALE END 1 ea
16X827 CORD, COMPRESS/CONTROL BOARD 1 ea
16Y436 TIMER,SOLID STATE 120V 1 ea
16Y457 PLUG,MOLDED 1 ea
17C284 HOSE,COUPLED, QD, 1/4" ID 1 ea
17C483 COVER, PC PRO PUMP ROD, G 1 ea
180131 BEARING, THRUST 1 ea
187625 HANDLE, VALVE, DRAIN 1 ea
224807 BASE VALVE 1 ea
262929 G40 Air-Assisted Airless Gun 1 ea
287489 HANDLE, ASSY, HI-CART 1 ea
801012 GROMMET 1 ea
C19862 NUT, HEX, STOP 2 ea
LTX517 RAC X SwitchTip, 517 1 ea
17C231 FITTING, PUMP, QD, 1/4 NPT 1 ea
