TexSpray Mark V

TexSpray Mark V IronMan Series Electric Airless Sprayer

17E607

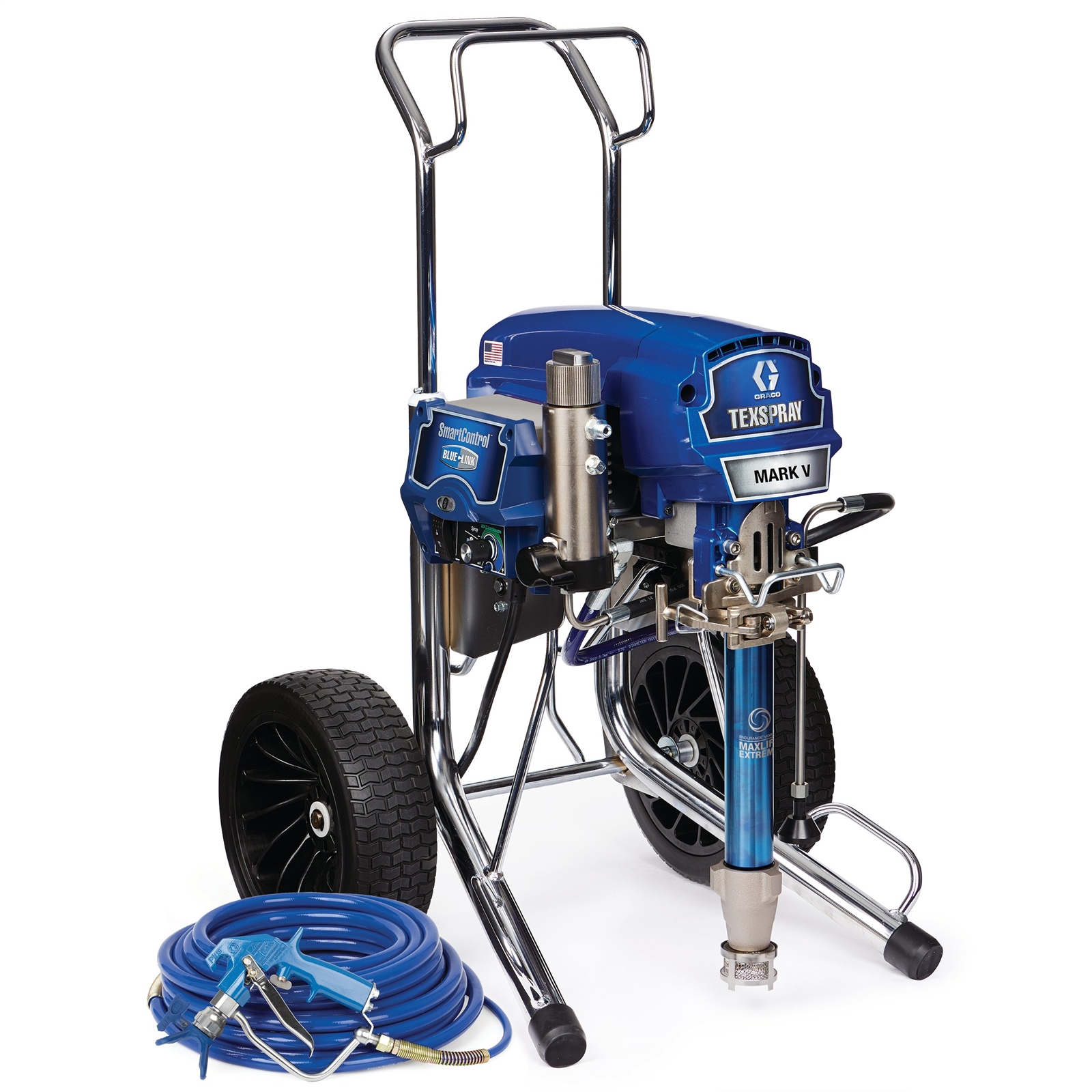

17E607_TexSpray_Mark_V_IronMan_190520_Main

TexSpray Mark V

TexSpray Mark V IronMan Series Electric Airless Sprayer

17E607

The TexSpray Mark V delivers a higher flow rate to complete jobs faster. Providing 20% more productivity than the Mark IV, this unit comes with an upgraded Heavy-Duty Texture Gun that can accommodate a larger tip size to handle all texture finishes and the wide range of primers and paint.

Features

Product Brochure
The TexSpray Mark V delivers a higher flow rate to complete jobs faster. Providing 20% more productivity than the Mark IV, this unit comes with an upgraded Heavy-Duty Texture Gun that can accommodate a larger tip size to handle all texture finishes and the wide range of primers and paint.

Beyond Jobsite Tough. TexSpray IronMan Series electric airless texture sprayers are built to routinely handle the rugged demands of large commercial and industrial jobs – day in and day out.

  • Endurance Vortex MaxLife Extreme Piston Pump
    • The longest durability & life
    • Breakthrough Vortex Rotating Piston Technology
    • Longest-life packings and piston rod 3X pump rod life
    • Maximum versatility no matter what you’re spraying Long Life ceramic and stainless steel balls included for maximum versatility
  • MaxFlo 2 with Pack-Out Protection
    • Less pack-out, more productivity
    • Self-cleaning Vibra-Seal Technology eliminates material build-up
    • Continuous spraying with True Pack-Out Protection for more productivity
    • Optimized fluid passageways for the heaviest coatings
  • BlueLink Job & Sprayer Management System
    • Streamline your business
    • Track every sprayer: Exact location & hourly productivity
    • Know job progress: On demand productivity facts and reporting from anywhere
    • Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
  • SmartControl 4.0 with ProGuard Protection System
    • Precision pressure control
    • Lowest dead band at any pressure delivers a consistent spray fan without pressure fluctuation
    • ProGuard prevents electrical damage from extreme jobsite power conditions
    • WatchDog Pump Protection System automatically prevents pump damage if material supply is too low
  • Flat Proof Tires
    • Never have a flat again
    • Tires can’t be punctured by nails, screws, or any sharp debris
  • ProConnect 2 Pump Replacement System
    • Eliminate costly downtime
    • Exchange pump in minutes
    • No tools, pins or parts to lose
  • FastFlush 2 System
    • Fast cleaning now even FASTER
    • Clean the pump 6X faster using ½ the water
    • High-velocity fluid flow delivered with 60% higher motor speed
  • Crushproof Inlet Strainer
    • Durable filtration
    • Stands up to harsh impacts to maintain even flow through filter
  • MaxPower Motor & Precision Advantage Drive
    • Proven power and performance for all painting applications
    • High-torque brushless design with a Lifetime Warranty
    • The longest lasting drive
    • Hardened steel gears provide extremely quiet operation and a lifetime warranty
  • Additional Features:
    • WatchDog Pump Protection System
    • Easy Out Filter Manifold
    • Heavy-Duty Prime Valve
    • Rugged, Durable Cart Design
17E607_TexSpray_Mark_V_IronMan_190520_Main

Specifications

Technical Specifications

Convert to Metric
Amperage (A) 20, 15, 10
Convertible Non-Convertible
Engine Size (HP) 2.8
Features BlueLink System, Endurance Vortex MaxLife Extreme Pump, ProConnect 2, FastFlush 2, Flat Proof Tires, MaxFlo 2, WatchDog, Crushproof Inlet Strainer
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Type NPSM
Frame Configuration Cart
Frequency (Hz) 50/60
Includes Heavy-Duty Blue Texture Gun, RAC X 427 Spray Tip, RAC X 531 Spray Tip, RAC X Tip Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose
Maximum Flow Rate (GPM) 1.35
Maximum Sound Pressure Level (dB(A)) 82
Maximum Tip Size (in) 0.039
Maximum Tip Size 1 Gun (in) 0.039
Maximum Working Pressure (psi) 3300
Minimum Generator Power (W) 5000
Model TexSpray
Motor Type MaxPower
Number of Guns 1
Overall Height (in) 40.2
Overall Length (in) 29.9
Overall Width (in) 24.4
Power Rating (HP) 2.8
Power Source Electric
Pressure Control Type SmartControl 3.0
Pump Mount Type ProConnect 2
Pump Rod Type MaxLife Extreme
Pump Sleeve Material MaxLife
Series Mark V
Type Airless Sprayer
Volume Per Cycle (cycles/gal) 110
Weight (lb) 137
Wetted Material Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass
Amperage (A) 20, 15, 10
Convertible Non-Convertible
Engine Size (HP) 2.8
Features BlueLink System, Endurance Vortex MaxLife Extreme Pump, ProConnect 2, FastFlush 2, Flat Proof Tires, MaxFlo 2, WatchDog, Crushproof Inlet Strainer
Fluid Outlet Size (cm) 0.9525
Fluid Outlet Size (mm) 9.525
Fluid Outlet Thread Type NPSM
Frame Configuration Cart
Frequency (Hz) 50/60
Includes Heavy-Duty Blue Texture Gun, RAC X 427 Spray Tip, RAC X 531 Spray Tip, RAC X Tip Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose
Maximum Flow Rate (L/min) 5.1
Maximum Sound Pressure Level (dB(A)) 82
Maximum Tip Size (cm) 0.09906
Maximum Tip Size (mm) 0.9906
Maximum Tip Size 1 Gun (cm) 0.09906
Maximum Tip Size 1 Gun (mm) 0.9906
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 2270
Minimum Generator Power (W) 5000
Model TexSpray
Motor Type MaxPower
Number of Guns 1
Overall Height (cm) 102
Overall Height (mm) 1020
Overall Length (cm) 76
Overall Length (mm) 760
Overall Width (cm) 62
Overall Width (mm) 620
Power Rating (HP) 2.8
Power Source Electric
Pressure Control Type SmartControl 3.0
Pump Mount Type ProConnect 2
Pump Rod Type MaxLife Extreme
Pump Sleeve Material MaxLife
Series Mark V
Type Airless Sprayer
Weight (kg) 62
Wetted Material Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel, Nylon, Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Aluminum, Tungsten Carbide, PEEK, Brass

What's Included

Part No. Description Qty Unit
241705 Heavy-Duty Blue Texture Airless Spray Gun, 4 Finger Trigger, RAC X 1 ea
LTX427 RAC X SwitchTip, 427 1 ea
LTX531 RAC X SwitchTip, 531 1 ea
246215 RAC X HandTite Tip Guard 1 ea
240797 BlueMax II Airless Hose, 3/8 in x 50 ft 1 ea
