TexSpray 5900 HD

TexSpray 5900 HD Standard Series Gas Airless Sprayer

17E839

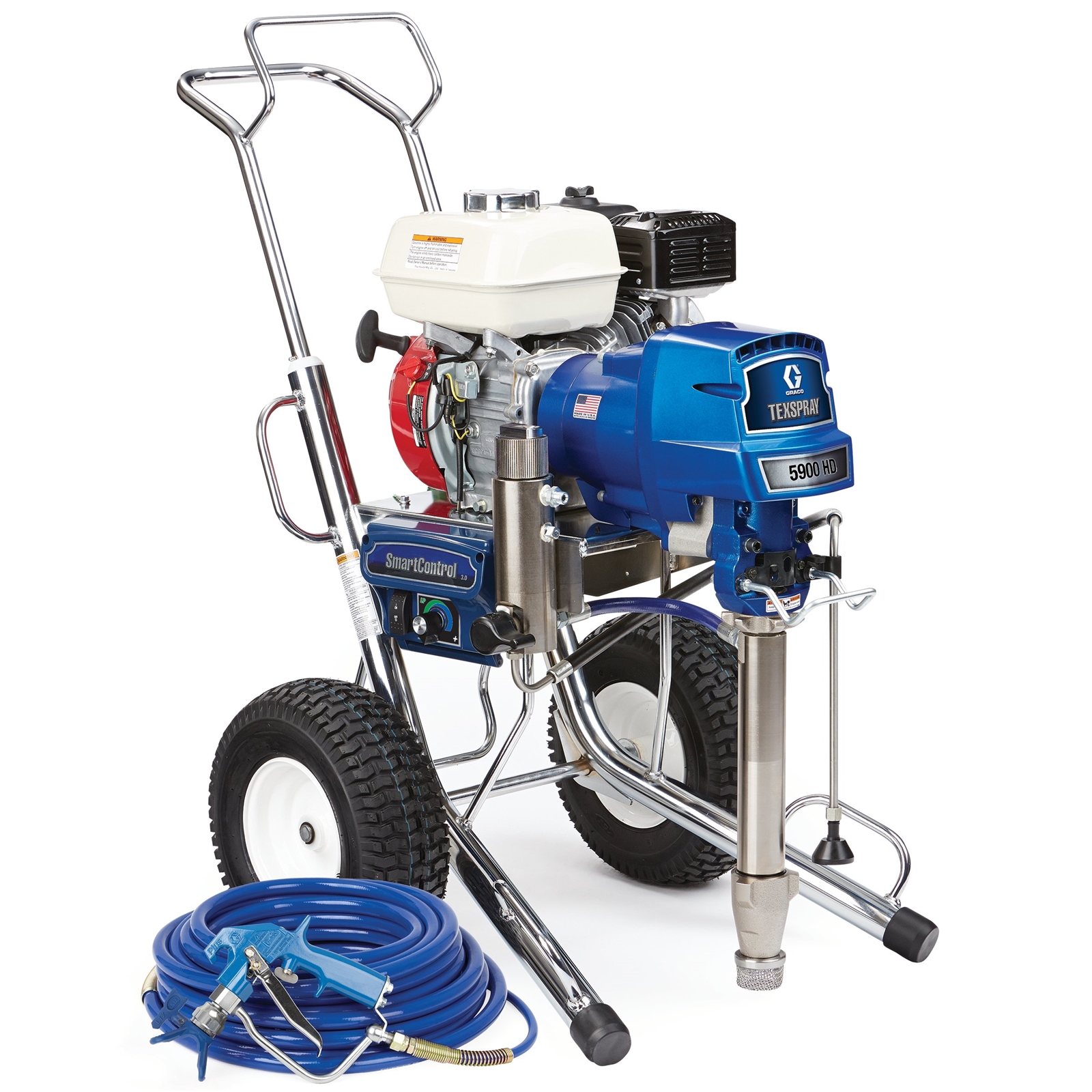

17E839_TexSpray_5900_HD_Standard_190520_Main

TexSpray 5900 HD

TexSpray 5900 HD Standard Series Gas Airless Sprayer

17E839

The TexSpray 5900 HD is built with must-have features to save you time and money by delivering exceptional performance and versatility. Spray more square footage in a day and increase your productivity with all texture finishes as well as the wide range of primers and paint.

Features

Product Brochure
The TexSpray 5900 HD is built with must-have features to save you time and money by delivering exceptional performance and versatility. Spray more square footage in a day and increase your productivity with all texture finishes as well as the wide range of primers and paint.

Everyday Reliability. TexSpray HD Standard Series airless texture sprayers deliver unmatched durability and performance, with the capability to handle the widest range of tip sizes, longer hose lengths and heavier coatings with ease.

  • Endurance Chromex Piston Pump
    • The most reliable pump
    • Lasts 2X Longer than the next leading brand
    • Long life ceramic and stainless steel balls included for maximum versatility
    • Faster cleaning with the QuikAccess intake foot valve
  • MaxFlo 2 with Pack-Out Protection
    • Less pack-out, more productivity
    • Self-cleaning Vibra-Seal Technology eliminates material build-up
    • Continuous spraying with True Pack-Out Protection for more productivity
    • Optimized fluid passageways for the heaviest coatings
  • SmartControl 3.0
    • Consistent spray fan & pressure control
    • Ideal for low overspray applications with the lowest dead band at any pressure
  • Precision Advantage Drive
    • The longest lasting drive
    • Improved jobsite conditions with extremely quiet operation
    • Lifetime Warranty
  • Honda® GX Engine
    • Reliable, Powerful & Easy-to-Start
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • Easy Out Pump Filter
    • Easy Pump Maintenance & Less Clogging
    • Inside-out design means less mess with fewer tip clogs
  • Rugged, Durable Cart Design
    • Rugged and easy-to-move
    • Withstands tough jobsite conditions while absorbing impacts and vibrations
    • Easy hose storage with integrated hose wrap and telescoping handle
    • Easy loading with built-in lift handles
  • Heavy-Duty Prime Valve
    • Maintenance-free high-pressure dumping capability
17E839_TexSpray_5900_HD_Standard_190520_Main

Specifications

Technical Specifications

Convert to Metric
Compatible Replacement Pump 17H829
Convertible Non-Convertible
Engine Brand Honda
Engine Size (HP) 5.5
Engine Size (kW) 4.1
Features Endurance Chromex Pump, MaxFlo 2, SmartControl 3.0, Advantage Drive, Honda Engine, Easy Out Filter, Heavy-Duty Prime Valve
Fluid Inlet Size (in) 1-5/16
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Type NPSM
Frame Configuration Cart
Hose Inlet Diameter (in) 3/8
Includes Heavy-Duty Blue Texture Gun, RAC X LTX 427 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose
Inlet Paint Strainer 8 Mesh Stainless Steel Screen
Maximum Flow Rate (GPM) 1.6
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (in) 0.043
Maximum Tip Size 1 Gun (in) 0.043
Maximum Tip Size 2 Guns (in) 0.029
Maximum Tip Size 3 Guns (in) 0.023
Maximum Tip Size 4 Guns (in) 0.019
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (psi) 3300
Model TexSpray
Number of Guns 4
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Overall Height (in) 38.0
Overall Length (in) 32.7
Overall Width (in) 24.4
Power Rating (HP) 5.5
Power Rating (W) 4101.4
Power Rating (kW) 4.10
Power Source Gas
Pressure Control Type SmartControl 3.0
Pump Mount Type QuikChange
Pump Rod Type Chromex
Pump Sleeve Material Stainless Steel
Recommended Annual Usage 100-200 gallons per week
Series 5900 HD
Type Airless Sprayer
Weight (lb) 142
Wetted Material Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
Compatible Replacement Pump 17H829
Convertible Non-Convertible
Engine Brand Honda
Engine Size (HP) 5.5
Engine Size (kW) 4.1
Features Endurance Chromex Pump, MaxFlo 2, SmartControl 3.0, Advantage Drive, Honda Engine, Easy Out Filter, Heavy-Duty Prime Valve
Fluid Inlet Size (cm) 3.334
Fluid Inlet Size (mm) 33.34
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (cm) 0.9525
Fluid Outlet Size (mm) 9.525
Fluid Outlet Thread Type NPSM
Frame Configuration Cart
Hose Inlet Diameter (cm) 0.9525
Hose Inlet Diameter (mm) 9.525
Includes Heavy-Duty Blue Texture Gun, RAC X LTX 427 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose
Inlet Paint Strainer 8 Mesh Stainless Steel Screen
Maximum Flow Rate (L/min) 6.06
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (cm) 0.10922
Maximum Tip Size (mm) 1.0922
Maximum Tip Size 1 Gun (cm) 0.10922
Maximum Tip Size 1 Gun (mm) 1.0922
Maximum Tip Size 2 Guns (cm) 0.07366
Maximum Tip Size 2 Guns (mm) 0.7366
Maximum Tip Size 3 Guns (cm) 0.05842
Maximum Tip Size 3 Guns (mm) 0.5842
Maximum Tip Size 4 Guns (cm) 0.04826
Maximum Tip Size 4 Guns (mm) 0.4826
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (bar) 228
Maximum Working Pressure (kPa) 22800
Model TexSpray
Number of Guns 4
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Overall Height (cm) 98.6
Overall Height (mm) 986
Overall Length (cm) 83.1
Overall Length (mm) 831
Overall Width (cm) 62.0
Overall Width (mm) 620
Power Rating (HP) 5.5
Power Rating (W) 4101.4
Power Rating (kW) 4.10
Power Source Gas
Pressure Control Type SmartControl 3.0
Pump Mount Type QuikChange
Pump Rod Type Chromex
Pump Sleeve Material Stainless Steel
Recommended Annual Usage 100-200 gallons per week
Series 5900 HD
Type Airless Sprayer
Weight (kg) 65
Wetted Material Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel

What's Included

Part No. Description Qty Unit
241705 Heavy-Duty Blue Texture Airless Spray Gun, 4 Finger Trigger, RAC X 1 ea
LTX427 RAC X SwitchTip, 427 1 ea
LTX531 RAC X SwitchTip, 531 1 ea
246215 RAC X HandTite Tip Guard 1 ea
240797 BlueMax II Airless Hose, 3/8 in x 50 ft 1 ea
