GMAX II HD 5900

GMAX II 5900 HD 3-in-1 ProContractor Series Gas Airless Sprayer

Part Number: 17E840

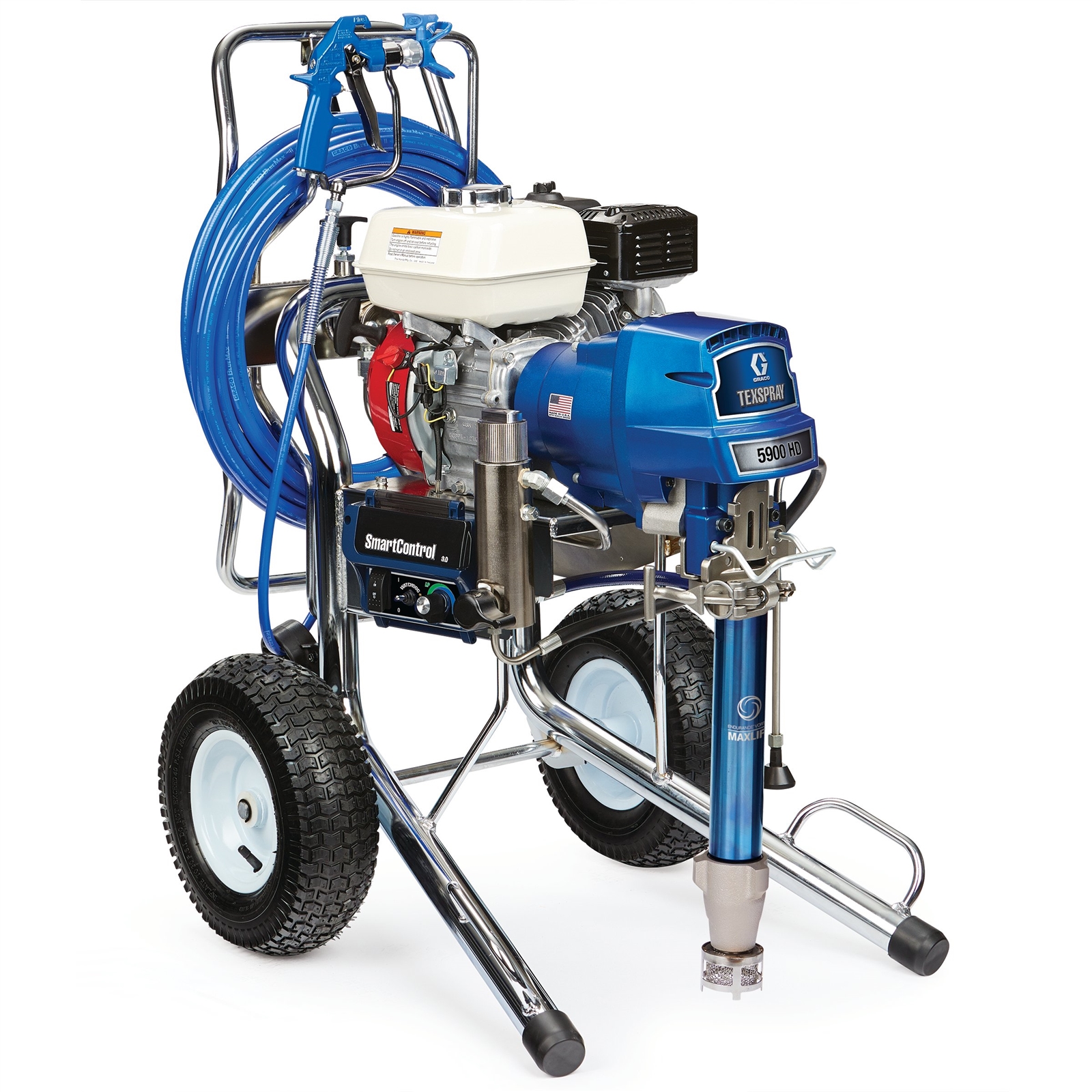

product image

GMAX II HD 5900

GMAX II 5900 HD 3-in-1 ProContractor Series Gas Airless Sprayer

Part Number: 17E840

Built with must-have features that are designed to save you time and money, the GMAX II 5900 HD delivers topnotch performance and versatility. Whether you need to spray skim coat in a Level 5 finish, drywall mud in an orange peel, splatter or knockdown finish or even the wide range of primers, paint... More Info
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
Built with must-have features that are designed to save you time and money, the GMAX II 5900 HD delivers topnotch performance and versatility. Whether you need to spray skim coat in a Level 5 finish, drywall mud in an orange peel, splatter or knockdown finish or even the wide range of primers, paints and other heavy coatings, this sprayer can handle just about any task you need it to. Doing the job just got easier with Graco.

Work Smarter, Finish More Jobs. GMAX II HD ProContractor Series airless texture sprayers are designed to deliver improved speed & performance so you can get to the next jobsite faster and increase your profits.

  • Endurance Vortex MaxLife Piston Pump
    • Superior pump life
    • Breakthrough vortex rotating rod technology
    • Lasts 6X longer between repacks with innovative MaxLife technology
    • Oversized passages for high velocity flow to rotate piston for even wear
    • Longest life packings and piston rod
    • Long life ceramic and stainless steel balls included for maximum versatility
  • MaxFlo 2 with Pack-Out Protection
    • Less pack-out, more productivity
    • Self-cleaning Vibra-Seal Technology eliminates material build-up
    • Continuous spraying with True Pack-Out Protection for more productivity
    • Optimized fluid passageways for the heaviest coatings
  • SmartControl 3.0 Pressure Control
    • Consistent spray fan & pressure control
    • Ideal for low overspray applications with the lowest dead band at any pressure
  • Precision Advantage Drive
    • The longest lasting drive
    • Improved joist conditions with extremely quiet operation
    • Lifetime Warranty
  • ProConnect 2 Pump Replacement System
    • Eliminate costly downtime
    • Exchange pump in minutes
    • No tools, pins or parts to lose
  • QuikReel Hose Management System
    • Easy hose management
    • Deploy and rewind up to 300 feet (90 meters) of hose in seconds
    • No twisting, kinking, and coiling
    • Use only the hose you need — the rest stays on the reel
  • LED Display
    • Easy-to-read display provides quick reference to show:
      • Pressure read-out
      • Job/lifetime/gallon counter
      • Self-diagnostics
  • Honda® GX Engine
    • Reliable, powerful & easy-to-start
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • Crushproof Inlet Strainer
    • Durable filtration
    • Stands up to harsh impacts to maintain even flow through filter
  • Additional Features:
    • Rugged, Durable Cart Design
    • Heavy-Duty Prime Valve
    • Easy Out Pump Filter
    • WatchDog Pump Protection System

Specifications & Documents

Technical Specifications

Convert to Metric
Compatible Material Stains, Oil, Lacquer, Primers, Fillers, Acrylics, Interior Emulsions, Exterior Emulsions, Latex, Plaster, Anti-Corrosive Paints, Fire-Retardant Paint, Intumescent
Compatible Replacement Pump 17H833
Construction Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
Convertible Non-Convertible
Engine Brand Honda
Engine Size (HP) 6.5
Features Endurance Vortex MaxLife Pump, SmartControl 3.0, QuikReel, Honda Engine, Advantage Drive, ProConnect 2, Easy Out Filter, Crushproof Inlet Strainer, Heavy-Duty Prime Valve, WatchDog, LED Display, Contractor PC Gun
Filter Mesh Size 60
Fluid Hose Inside Diameter (in) 1/4
Fluid Inlet Size (in) 1-5/16
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Hose Inlet Diameter (in) 1/4
Hose Reel Type QuikReel
Includes Heavy-Duty Blue Texture Gun, RAC X LTX 427 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose
Inlet Paint Strainer 8 Mesh Stainless Steel Screen
Maximum Flow Rate (GPM) 1.6
Maximum Fluid Working Pressure (psi) 3300
Maximum Hose Length (ft) 150
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (in) 0.043
Maximum Tip Size 1 Gun (in) 0.043
Maximum Tip Size 2 Guns (in) 0.033
Maximum Tip Size 3 Guns (in) 0.023
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (psi) 3300
Model GMAX II HD
Number of Guns 1
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Overall Height (in) 38.0
Overall Length (in) 32.7
Overall Width (in) 24.4
Power Rating (HP) 6.5
Power Rating (W) 4847
Power Rating (kW) 4.85
Power Source Gas
Pressure Control Type SmartControl 3.0
Product Series ProContractor
Pump Mount Type ProConnect 2
Pump Rod Type MaxLife
Pump Sleeve Material MaxLife
Pump Type Endurance Vortex
Recommended Annual Usage Up to 1,000 gallons per week
Series 5900
Spray Gun Type HD Blue Texture Gun
Spray Type Airless
Type Airless Sprayer
Weight (lb) 147
Compatible Material Stains, Oil, Lacquer, Primers, Fillers, Acrylics, Interior Emulsions, Exterior Emulsions, Latex, Plaster, Anti-Corrosive Paints, Fire-Retardant Paint, Intumescent
Compatible Replacement Pump 17H833
Construction Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
Convertible Non-Convertible
Engine Brand Honda
Features Endurance Vortex MaxLife Pump, SmartControl 3.0, QuikReel, Honda Engine, Advantage Drive, ProConnect 2, Easy Out Filter, Crushproof Inlet Strainer, Heavy-Duty Prime Valve, WatchDog, LED Display, Contractor PC Gun
Filter Mesh Size 60
Fluid Hose Inside Diameter (in) 1/4
Fluid Inlet Size (in) 1-5/16
Fluid Inlet Size (mm) 33.34
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (in) 3/8
Fluid Outlet Size (mm) 9.525
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Hose Inlet Diameter (cm) 0.635
Hose Inlet Diameter (in) 1/4
Hose Inlet Diameter (mm) 6.35
Hose Reel Type QuikReel
Includes Heavy-Duty Blue Texture Gun, RAC X LTX 427 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose
Inlet Paint Strainer 8 Mesh Stainless Steel Screen
Maximum Flow Rate (L/min) 6.06
Maximum Fluid Working Pressure (psi) 3300
Maximum Hose Length (m) 45
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (in) 0.043
Maximum Tip Size 1 Gun (in) 0.043
Maximum Tip Size 2 Guns (in) 0.033
Maximum Tip Size 3 Guns (in) 0.023
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (bar) 227
Maximum Working Pressure (kPa) 22700
Maximum Working Pressure (kg/cm²) 22.7
Maximum Working Pressure (psi) 3300
Model GMAX II HD
Number of Guns 1
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Overall Height (cm) 98.6
Overall Height (mm) 965
Overall Length (cm) 83.1
Overall Length (mm) 846
Overall Width (cm) 62.0
Overall Width (mm) 620
Power Rating (W) 4847
Power Rating (cc) 200
Power Rating (kW) 4.85
Power Source Gas
Pressure Control Type SmartControl 3.0
Product Series ProContractor
Pump Mount Type ProConnect 2
Pump Rod Type MaxLife
Pump Sleeve Material MaxLife
Pump Type Endurance Vortex
Recommended Annual Usage Up to 1,000 gallons per week
Series 5900
Spray Gun Type HD Blue Texture Gun
Spray Type Airless
Type Airless Sprayer
Weight (kg) 67

What's Included

Part No. Description Qty Unit
241705 Heavy-Duty Blue Texture Airless Spray Gun, 4 Finger Trigger, RAC X 1 ea
LTX427 RAC X SwitchTip, 427 1 ea
LTX531 RAC X SwitchTip, 531 1 ea
246215 RAC X HandTite Tip Guard 1 ea
240797 BlueMax II Airless Hose, 3/8 in x 50 ft 1 ea

Repair Parts

Part No. Description
244068 Easy Out Pump Manifold Filter, Long, 100 mesh
244069 Easy Out Pump Manifold Filter, Long, 200 mesh
244071 Easy Out Pump Manifold Filter, Long, 30 mesh
244067 Easy Out Pump Manifold Filter, Long, 60 mesh
240797 BlueMax II Airless Hose, 3/8 in x 50 ft
287988 HOSE, SUCTION, GMAX 3900/5900
248215 KIT, REPAIR, INTAKE TUBE
257352 Q KIT, REPAIR, PRIME VALVE, HD
244240 KIT, REPAIR, RETURN LINE, HI
189920 Inlet Strainer, SST Cap Single Screen, 1 in
243222 Pressure Control Transducer Repair Kit
287699 KIT, REPAIR, TRIGGER
16Y496 KIT,DISPLAY, GMAX, PREMIUM
117285 PACKING, O-RING
118494 PACKING, O-RING
116752 SWITCH, ROCKER
15C766 TUBE, DIFFUSION
241705 Heavy-Duty Blue Texture Airless Spray Gun, 4 Finger Trigger, RAC X
