TexSpray 7900 HD

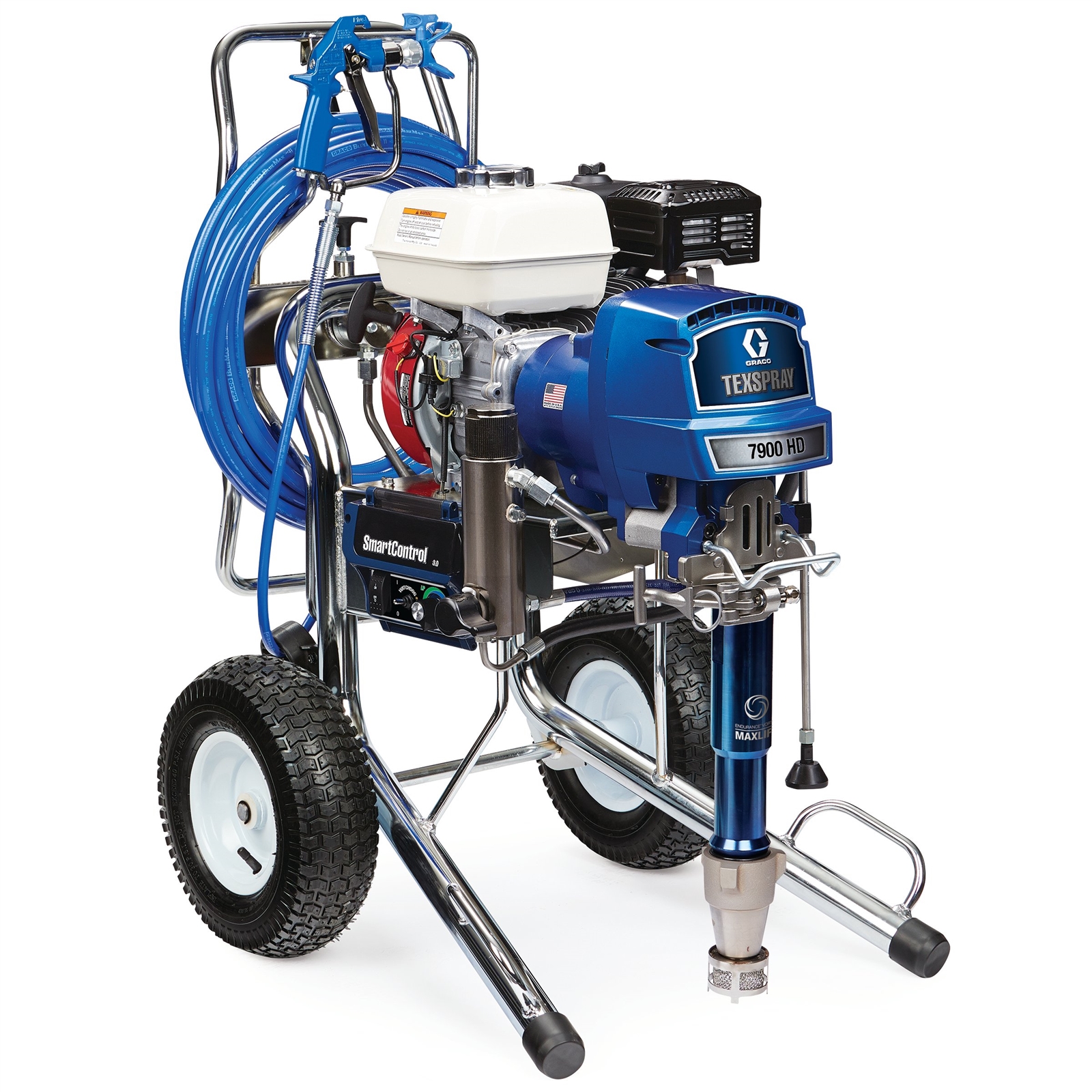

TexSpray 7900 HD ProContractor Series Gas Airless Sprayer

17E842

17E842_TexSpray_7900_HD_ProContractor_190520_Main

TexSpray 7900 HD

TexSpray 7900 HD ProContractor Series Gas Airless Sprayer

17E842

The Graco TexSpray 7900 HD airless texture sprayer delivers the highest performance for the biggest jobs. With maximum flow and extreme durability, this sprayer does it all — skim coat in a Level 5 finish, drywall mud in a variety of finishes, all paints and primers and other heavy coatings.

Features

Product Brochure
The Graco TexSpray 7900 HD airless texture sprayer delivers the highest performance for the biggest jobs. With maximum flow and extreme durability, this sprayer does it all — skim coat in a Level 5 finish, drywall mud in a variety of finishes, all paints and primers and other heavy coatings.

Work Smarter, Finish More Jobs. TexSpray HD ProContractor Series airless texture sprayers are designed to deliver improved speed & performance so you can get to the next jobsite faster and increase your profits.

  • Endurance Vortex MaxLife Piston Pump
    • Superior pump life
    • Breakthrough vortex rotating rod technology
    • Lasts 6X longer between repacks with innovative MaxLife technology
    • Oversized passages for high velocity flow to rotate piston for even wear Longest life packings and piston rod Long life ceramic and stainless steel balls included for maximum versatility
  • MaxFlo 2 with Pack-Out Protection
    • Less pack-out, more productivity
    • Self-cleaning Vibra-Seal Technology eliminates material build-up
    • Continuous spraying with True Pack-Out Protection for more productivity
    • Optimized fluid passageways for the heaviest coatings
  • SmartControl 3.0
    • Consistent spray fan & pressure control
    • Ideal for low overspray applications with the lowest dead band at any pressure
  • Precision Advantage Drive
    • The longest lasting drive
    • Improved joist conditions with extremely quiet operation
    • Lifetime Warranty
  • ProConnect 2 Pump Replacement System
    • Eliminate costly downtime
    • Exchange pump in minutes
    • No tools, pins or parts to lose
  • QuikReel Hose Management System
    • Easy hose management
    • Deploy and rewind up to 300 feet of hose in seconds
    • No twisting, kinking, and coiling
    • Use only the hose you need — the rest stays on the reel
  • LED Display
    • Easy-to-read display provides quick reference to show:
      • Pressure read-out
      • Job/lifetime/gallon counter
      • Self-diagnostics
  • Honda® GX Engine
    • Reliable, powerful & easy-to-start
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • Crushproof Inlet Strainer
    • Durable filtration
    • Stands up to harsh impacts to maintain even flow through filter
  • Additional Features:
    • Rugged, Durable Cart Design
    • Heavy-Duty Prime Valve
    • Easy Out Pump Filter
    • WatchDog Pump Protection System
17E842_TexSpray_7900_HD_ProContractor_190520_Main

Specifications

Technical Specifications

Convert to Metric
Compatible Replacement Pump 17H835
Convertible Non-Convertible
Engine Brand Honda
Engine Size (HP) 6.5
Engine Size (kW) 4.85
Features Endurance Vortex MaxLife Pump, MaxFlo 2, SmartControl 3.0, Advantage Drive, ProConnect 2, QuikReel, LED Display, Honda Engine, Crushproof Inlet Strainer, Heavy-Duty Prime Valve, Easy Out Filter, WatchDog
Fluid Inlet Size (in) 1-5/16
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Type NPSM
Frame Configuration Cart
Hose Inlet Diameter (in) 3/8
Hose Reel Type QuikReel
Includes Heavy-Duty Blue Texture Gun, RAC X LTX 427 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose
Inlet Paint Strainer 8 Mesh Stainless Steel Screen
Maximum Flow Rate (GPM) 2.2
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (in) 0.048
Maximum Tip Size 1 Gun (in) 0.048
Maximum Tip Size 2 Guns (in) 0.035
Maximum Tip Size 3 Guns (in) 0.027
Maximum Tip Size 4 Guns (in) 0.023
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (psi) 3300
Model TexSpray
Number of Guns 4
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Overall Height (in) 38.0
Overall Length (in) 33.3
Overall Width (in) 24.4
Power Rating (HP) 6.5
Power Rating (W) 4847.1
Power Rating (kW) 4.85
Power Source Gas
Pressure Control Type SmartControl 3.0
Pump Mount Type ProConnect 2
Pump Rod Type MaxLife
Pump Sleeve Material MaxLife
Recommended Annual Usage 100-200 gallons per week
Series 7900 HD
Type Airless Sprayer
Weight (lb) 182
Wetted Material Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel
Compatible Replacement Pump 17H835
Convertible Non-Convertible
Engine Brand Honda
Engine Size (HP) 6.5
Engine Size (kW) 4.85
Features Endurance Vortex MaxLife Pump, MaxFlo 2, SmartControl 3.0, Advantage Drive, ProConnect 2, QuikReel, LED Display, Honda Engine, Crushproof Inlet Strainer, Heavy-Duty Prime Valve, Easy Out Filter, WatchDog
Fluid Inlet Size (cm) 3.334
Fluid Inlet Size (mm) 33.34
Fluid Inlet Thread Type UN-2A
Fluid Outlet Size (cm) 0.9525
Fluid Outlet Size (mm) 9.525
Fluid Outlet Thread Type NPSM
Frame Configuration Cart
Hose Inlet Diameter (cm) 0.9525
Hose Inlet Diameter (mm) 9.525
Hose Reel Type QuikReel
Includes Heavy-Duty Blue Texture Gun, RAC X LTX 427 Spray Tip, RAC X LTX 531 Spray Tip, RAC X Guard, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose
Inlet Paint Strainer 8 Mesh Stainless Steel Screen
Maximum Flow Rate (L/min) 8.33
Maximum Sound Pressure Level (dB(A)) 96
Maximum Tip Size (cm) 0.1219
Maximum Tip Size (mm) 1.219
Maximum Tip Size 1 Gun (cm) 0.1219
Maximum Tip Size 1 Gun (mm) 1.219
Maximum Tip Size 2 Guns (cm) 0.0889
Maximum Tip Size 2 Guns (mm) 0.889
Maximum Tip Size 3 Guns (cm) 0.06858
Maximum Tip Size 3 Guns (mm) 0.6858
Maximum Tip Size 4 Guns (cm) 0.05842
Maximum Tip Size 4 Guns (mm) 0.5842
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (bar) 228
Maximum Working Pressure (kPa) 22800
Model TexSpray
Number of Guns 4
Outlet Paint Filter 60 Mesh Stainless Steel Screen
Overall Height (cm) 96.5
Overall Height (mm) 965
Overall Length (cm) 84.6
Overall Length (mm) 846
Overall Width (cm) 62.0
Overall Width (mm) 620
Power Rating (HP) 6.5
Power Rating (W) 4847.1
Power Rating (kW) 4.85
Power Source Gas
Pressure Control Type SmartControl 3.0
Pump Mount Type ProConnect 2
Pump Rod Type MaxLife
Pump Sleeve Material MaxLife
Recommended Annual Usage 100-200 gallons per week
Series 7900 HD
Type Airless Sprayer
Weight (kg) 83
Wetted Material Acetal, Aluminum, Chrome Plating, Fluoroelastomer, Leather, Nylon, PTFE, Polyurethane, Stainless Steel, Tungsten Carbide, UHMWPE, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel

What's Included

Part No. Description Qty Unit
241705 Heavy-Duty Blue Texture Airless Spray Gun, 4 Finger Trigger, RAC X 1 ea
LTX427 RAC X SwitchTip, 427 1 ea
LTX531 RAC X SwitchTip, 531 1 ea
246215 RAC X HandTite Tip Guard 1 ea
240797 BlueMax II Airless Hose, 3/8 in x 50 ft 1 ea
