LineLazer V 250SPS

LineLazer V 250SPS HP Automatic Series Self-Propelled Gas Hydraulic Airless Line Striper, 1 Auto Gun

17H466

17H466_LineLazer_V_250SPS_HP_Automatic_1Gun_Main 17H466_LineLazer_V_250SPS_HP_Automatic_1Gun_Alt_1

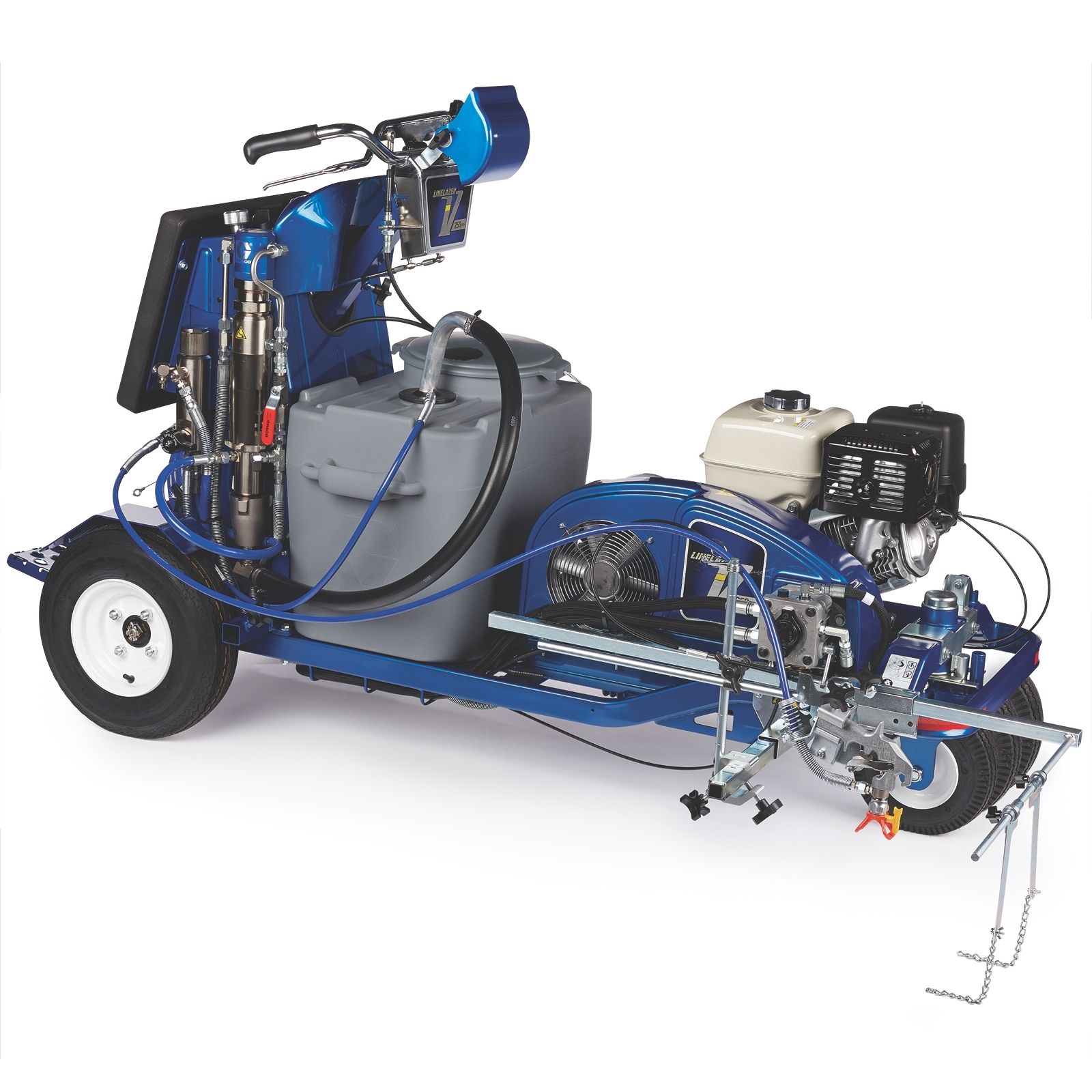

LineLazer V 250sps, 17H466; Automatic; 3/4qtr, 1 Gun

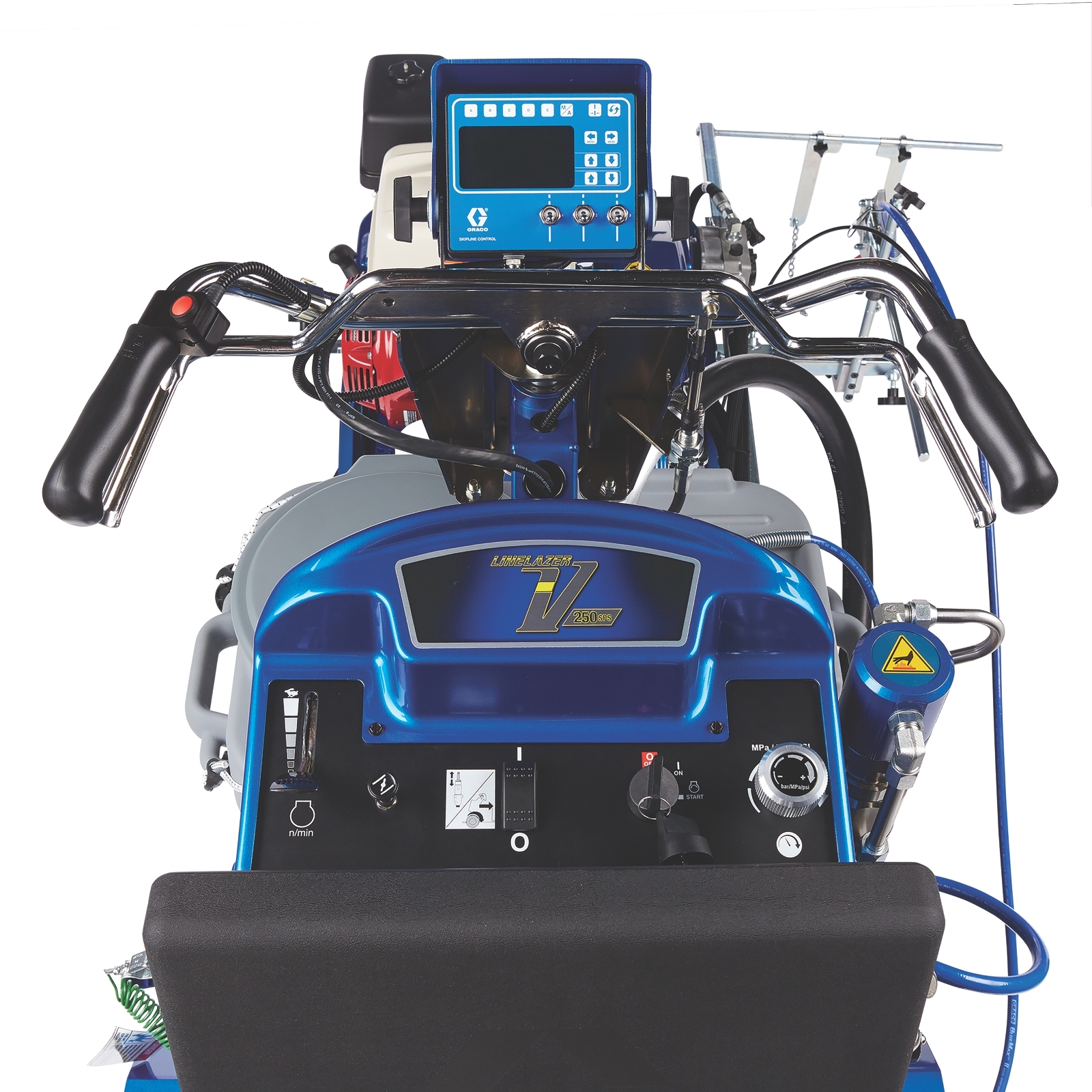

250sps back, Close Up, Handle bar,

LineLazer V 250SPS

LineLazer V 250SPS HP Automatic Series Self-Propelled Gas Hydraulic Airless Line Striper, 1 Auto Gun

17H466

With exclusive automatic paint guns and hydraulic power, the LineLazer V 250SPS HP Automatic Series is a self-propelled system that is ideal for large, heavy-duty line striping jobs including parking lots and road jobs.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
With exclusive automatic paint guns and hydraulic power, the LineLazer V 250SPS HP Automatic Series is a self-propelled system that is ideal for large, heavy-duty line striping jobs including parking lots and road jobs.

The HP Automatic Series adds enhanced features that provide contractors automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

  • Automatic Paint Gun System
    • Automatically Stripe Skip-Lines
    • Reduce operator fatigue — push button line production
    • Quality solenoid driven system
  • Remote Mount Control Box
    • Striping Information At-A-Glance
    • Simple to use and easy to see in all conditions
  • 25-Gallon Paint Hopper
    • Less Refilling
    • Extended striping time with large capacity hopper
  • Honda® GX Engine
    • Reliable, Easy-to-Start Power
    • Contractor-preferred — excellent power and proven reliability
    • Oil Alert shuts down engine to prevent damage if oil level drops too low
  • Electric Start
    • Fast starting
  • EasyMark Gun Adjustment System
    • Easy Gun Adjustments
    • Perfect gun alignment every time with easy-to-use guide mark system
    • 2-gun capability with QuikSelect gun selector
  • Front or Rear Gun Mount
    • Straighter long lines
    • Use up to six guns
  • Self-Centering Front Wheel
    • Simple operation
    • Foam-filled, three-wheel design for stability
  • Easy Handlebar Adjustment
  • Additional Features
    • Endurance Chromex Pump
    • High-Efficiency Hydraulic Motor
    • High-Capacity Cooling System
    • Easy Out Pump Filter
    • Flex Plus Gun
17H466_LineLazer_V_250SPS_HP_Automatic_1Gun_Main

Specifications

Technical Specifications

Convert to Metric
Bead System Pressurized Bead System
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model GX390
Fuel Tank Capacity (gal) 1.4
Gun Activation Automatic
Hopper Volume Capacity (gal) 25
Includes Gun, Hose, SwitchTip, Easy Out Filter
Maximum Flow Rate (GPM) 2.5
Maximum Operating Speed (mph) 10
Maximum Sound Pressure Level (dB(A)) 86.5
Maximum Speed (RPM) 3600
Maximum Tip Size (in) 0.055
Maximum Working Pressure (psi) 3300
Model LineLazer V
Number of Colors One Color
Number of Guns 1
Number of Hoppers 1
Number of Pumps 1
Overall Height (in) 50.5
Overall Length (in) 73.5
Overall Width (in) 33
Power Rating (HP) 13
Power Rating (W) 9690
Power Rating (kW) 9.69
Power Source Gas Hydraulic
Pump Type Endurance
Series 250SPS
Type Self-Propelled Line Striper
Bead System Pressurized Bead System
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Engine Model GX390
Fuel Tank Capacity (L) 5.3
Gun Activation Automatic
Hopper Volume Capacity (L) 95
Includes Gun, Hose, SwitchTip, Easy Out Filter
Maximum Flow Rate (L/min) 9.46
Maximum Operating Speed (km/h) 16.1
Maximum Sound Pressure Level (dB(A)) 86.5
Maximum Speed (RPM) 3600
Maximum Tip Size (cm) 0.14
Maximum Tip Size (mm) 1.4
Maximum Working Pressure (bar) 228
Maximum Working Pressure (kPa) 22800
Model LineLazer V
Number of Colors One Color
Number of Guns 1
Number of Hoppers 1
Number of Pumps 1
Overall Height (cm) 128.3
Overall Height (mm) 1283
Overall Length (cm) 186.7
Overall Length (mm) 1867
Overall Width (cm) 83.8
Overall Width (mm) 838
Power Rating (HP) 13
Power Rating (W) 9690
Power Rating (kW) 9.69
Power Source Gas Hydraulic
Pump Type Endurance
Series 250SPS
Type Self-Propelled Line Striper
