LineLazer V 200HS

LineLazer V 200HS HP Reflective Series Gas Hydraulic Airless Line Striper, 2 Auto Guns

17K585

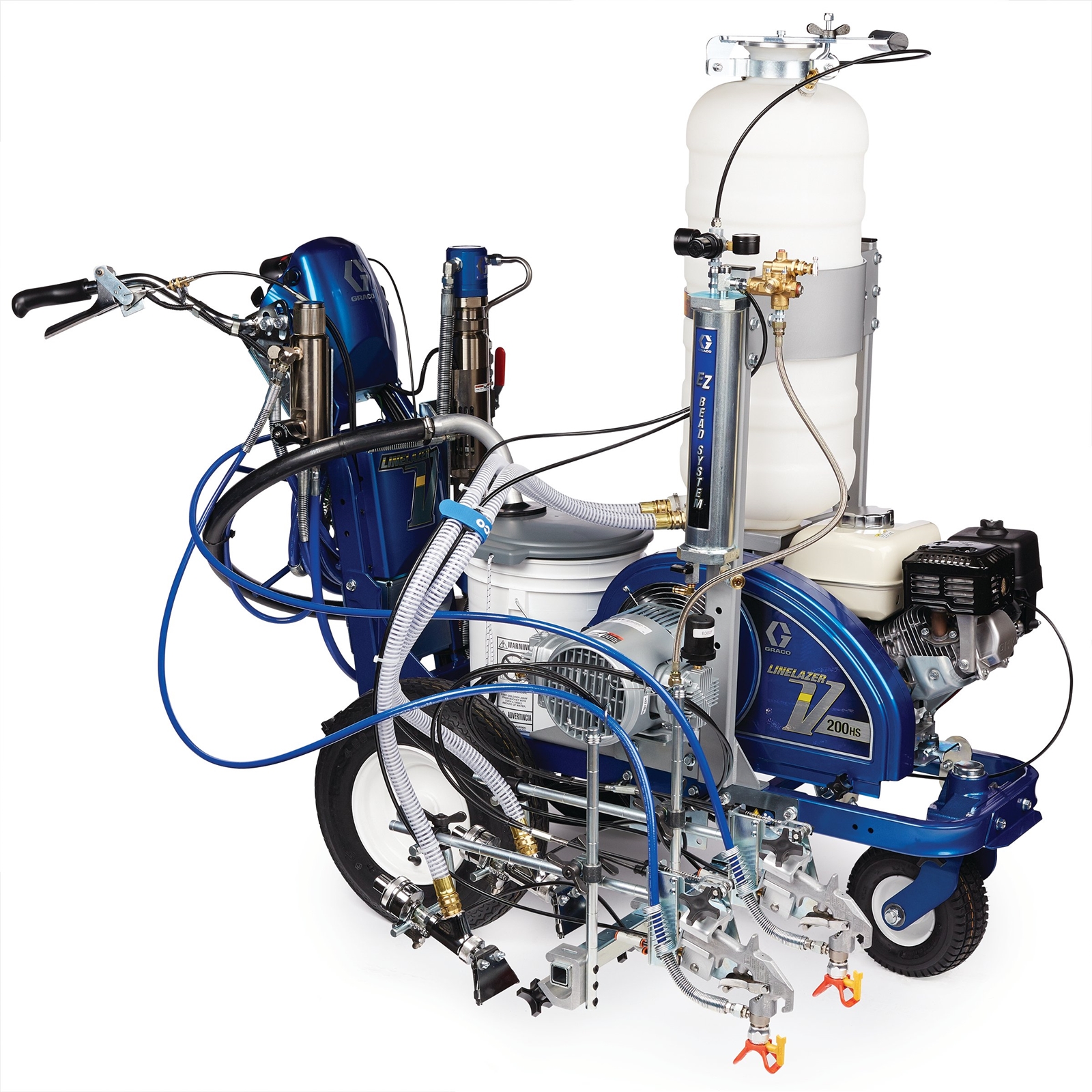

17K585_LineLazer_V_200HS_HP_Reflective_2Gun_Main
17H465, LineLazer V 200HS, 2 Guns, Reflective

LineLazer V 200HS

LineLazer V 200HS HP Reflective Series Gas Hydraulic Airless Line Striper, 2 Auto Guns

17K585

The LineLazer V 200hs is the high performance hydraulic striper you’ll want for your most demanding jobs. It’s proven history of innovative features has made it the striper of choice for contractors demanding a true workhorse. The LineLazer V 200hs is the perfect unit for large parking lot jobs, air...

More Info

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

The LineLazer V 200hs is the high performance hydraulic striper you’ll want for your most demanding jobs. It’s proven history of innovative features has made it the striper of choice for contractors demanding a true workhorse. The LineLazer V 200hs is the perfect unit for large parking lot jobs, airports, and city jobs that not only require precise line but also demand reflective beads. With high production features such as automatic and semi-automatic paint guns along with the EZ Bead Pressurized Bead System, this unit has no equal.

  • EasyMark Gun Adjustment System

  • Simple guide mark system
  • Easy gun on/off, front/back
  • Perfect gun set up - every time
  • EZ Align Front Wheel System

  • Keeps unit tracking straight
  • Intuitive design
  • DualComfort Handle Bar System

  • Fits all users
  • Easy to adjust
  • Solid 4-bolt design
  • LiveLook Display with SmartControl

  • Tracks all aspects of the job
  • Real-time information
  • Automatic Guns

  • Push button control for accurate stripes every time
  • Auto-Layout II

  • Cuts layout time in half
  • Exclusive Green Laser Guidance (country dependant)
  • Data Logging with J-Log System

  • On-board job information for proof of completion
  • On-Board Power

  • 12V battery for all your accessory items
  • EZ Bead Pressurized System

  • Innovative bead tank with unmatched performance
  • Provides perfect bead embedment
  • Air valves to dial in starts and stops
  • Installed and ready to go
17K585_LineLazer_V_200HS_HP_Reflective_2Gun_Main

Specifications

Technical Specifications

Convert to Metric
Bead System Pressurized Bead System
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Fuel Tank Capacity (gal) 1.25
Gun Activation Automatic
Includes Auto Gun, PBS Tank
Maximum Flow Rate (GPM) 2.15
Maximum Sound Pressure Level (dB(A)) 86.5
Maximum Tip Size (in) 0.047
Maximum Working Pressure (psi) 3300
Model LineLazer V
Number of Colors One Color
Number of Guns 2
Number of Pumps 1
Power Rating (HP) 6.5
Power Rating (W) 4850
Power Rating (kW) 4.85
Power Source Gas
Series 200HS
Standards Met CE
Type Walk-Behind Line Striper
Weight (lb) 417
Bead System Pressurized Bead System
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Fuel Tank Capacity (L) 4.73
Gun Activation Automatic
Includes Auto Gun, PBS Tank
Maximum Flow Rate (L/min) 8.14
Maximum Sound Pressure Level (dB(A)) 86.5
Maximum Tip Size (cm) 0.1194
Maximum Tip Size (mm) 1.194
Maximum Working Pressure (bar) 227.5
Maximum Working Pressure (kPa) 22750
Model LineLazer V
Number of Colors One Color
Number of Guns 2
Number of Pumps 1
Power Rating (HP) 6.5
Power Rating (W) 4850
Power Rating (kW) 4.85
Power Source Gas
Series 200HS
Standards Met CE
Type Walk-Behind Line Striper
Weight (kg) 189.1
