G40 Air-Assist Gun for high viscosity materials above 1500 psi

24C855

15034 14975

G40

G40 Air-Assist Gun for high viscosity materials above 1500 psi

24C855

Designed to maximize efficiency and quality, G15 and G40 air-assist spray guns use the highest quality components for long lasting reliable performance. The AAF tip line is designed for soft spray and improved transfer efficiency.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

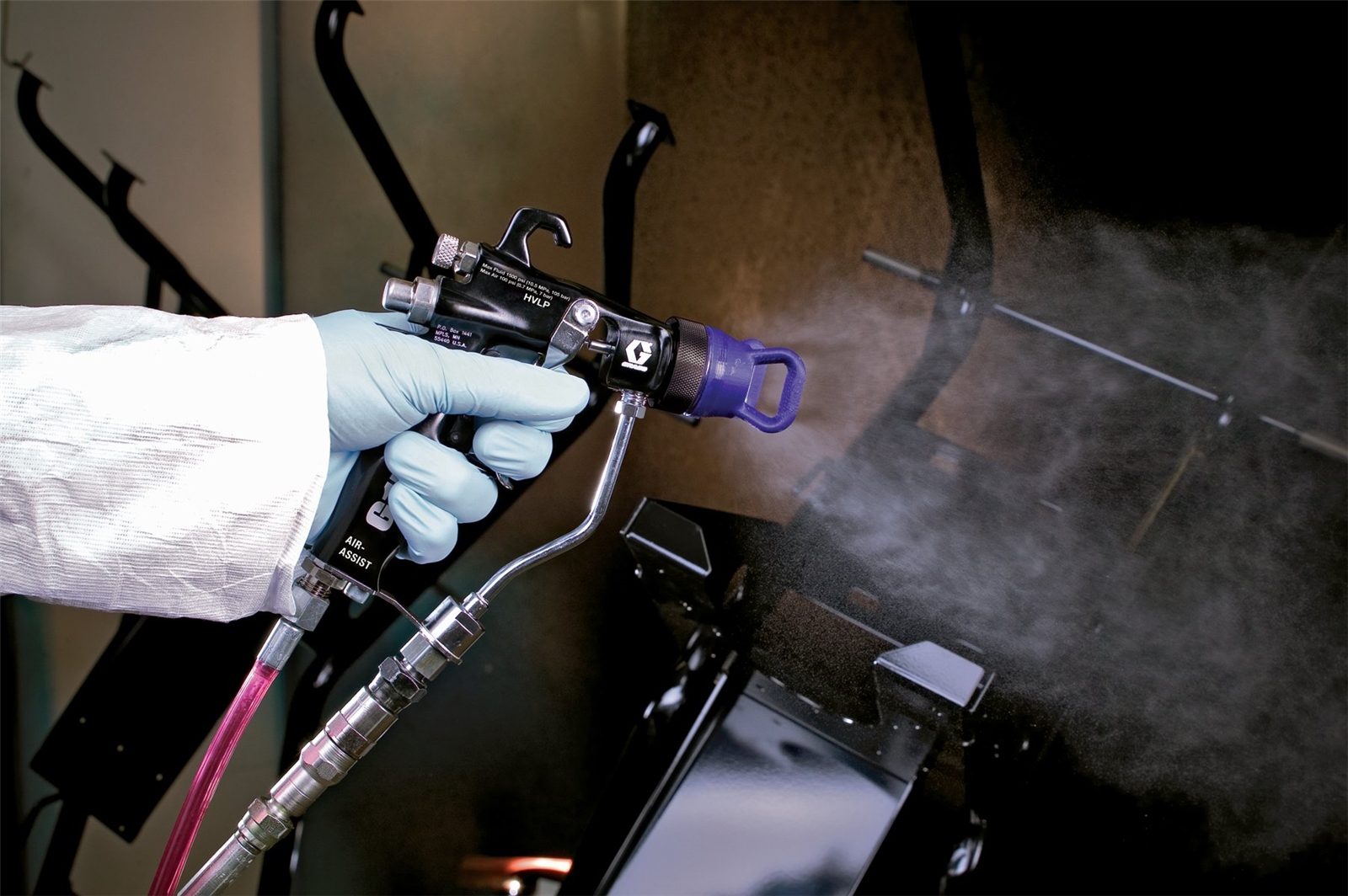

Designed to maximize efficiency and quality, G15 and G40 air-assist spray guns use the highest quality components for long lasting reliable performance. The AAF tip line is designed for soft spray and improved transfer efficiency.

  • High quality air-assisted spraying in a variety of applications
  • All tips have a ring to retain the tip in the aircap
  • Designed to minimize wear of replacement parts
  • Improving transfer efficiency and material usage
  • Trigger pull force is ultra-light, reducing operator fatigue and muscle stress

Specifications

Technical Specifications

Convert to Metric
Air Inlet Size (in) 1/4
Air Inlet Thread Gender Male
Air Inlet Thread Type NPSM
Applicator Type Manual
Bleed Type Non-Bleeder
Compatible Material Acid Catalyzed, Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solventborne, Urethane, UV Coating, Varnish, Waterborne
Feed Type Pressure Feed
Fluid Inlet Size (in) 1/4
Fluid Inlet Thread Type NPSM
Gun Activation Manual
Gun Included 1
Gun Type Air-Assisted Gun
Gun Weight (lb) 1
Gun Weight (oz) 16
Includes Carbide Seat, Tip Guard Air Cap, Tip of Choice, Tool Kit
Maximum Air Inlet Pressure (MPa) 0.7
Maximum Air Inlet Pressure (psi) 100
Maximum Air Pressure (MPa) 0.7
Maximum Air Pressure (psi) 100
Maximum Fluid Pressure (MPa) 28
Maximum Fluid Pressure (psi) 4000
Maximum Fluid Temperature (°F) 110
Model G40
Overall Height (in) 8
Overall Length (in) 6.9
Product Type Spray Gun
Sound Power Level (dB(A)) 89.9
Sound Pressure Level (dB(A)) 80
Spray Pattern Flat
Spray Type Air-Assisted
Technology Type N/A
Trigger Lock Locking
Trigger Type Two-Finger
Type Spray Gun
Wetted Parts Stainless Steel, Carbide, UHMWPE, Engineered Plastic, PTFE, Nylon, Fluoroelastomer
Air Inlet Size (cm) 0.635
Air Inlet Size (mm) 6.35
Air Inlet Thread Gender Male
Air Inlet Thread Type NPSM
Applicator Type Manual
Bleed Type Non-Bleeder
Compatible Material Acid Catalyzed, Epoxies, High Solids, Lacquer, Latex, Plural Component Materials, Polyurethane, Solventborne, Urethane, UV Coating, Varnish, Waterborne
Feed Type Pressure Feed
Fluid Inlet Size (cm) 0.635
Fluid Inlet Size (mm) 6.35
Fluid Inlet Thread Type NPSM
Gun Activation Manual
Gun Included 1
Gun Type Air-Assisted Gun
Gun Weight (g) 450
Gun Weight (kg) 0.45
Includes Carbide Seat, Tip Guard Air Cap, Tip of Choice, Tool Kit
Maximum Air Inlet Pressure (MPa) 0.7
Maximum Air Inlet Pressure (bar) 7
Maximum Air Inlet Pressure (kPa) 700
Maximum Air Pressure (MPa) 0.7
Maximum Air Pressure (bar) 7
Maximum Air Pressure (kPa) 700
Maximum Fluid Pressure (MPa) 28
Maximum Fluid Pressure (bar) 280
Maximum Fluid Pressure (kPa) 28000
Maximum Fluid Temperature (°C) 43
Model G40
Overall Height (cm) 20.3
Overall Height (mm) 203
Overall Length (cm) 17.5
Overall Length (mm) 175
Product Type Spray Gun
Sound Power Level (dB(A)) 89.9
Sound Pressure Level (dB(A)) 80
Spray Pattern Flat
Spray Type Air-Assisted
Technology Type N/A
Trigger Lock Locking
Trigger Type Two-Finger
Type Spray Gun
Wetted Parts Stainless Steel, Carbide, UHMWPE, Engineered Plastic, PTFE, Nylon, Fluoroelastomer

Repair Parts

Part No. Description
LTX213 RAC X SwitchTip, 213
LTX227 RAC X SwitchTip, 227
LTX321 RAC X SwitchTip, 321
LTX327 RAC X SwitchTip, 327
LTX409 RAC X SwitchTip, 409
LTX411 RAC X SwitchTip, 411
LTX415 RAC X SwitchTip, 415
LTX425 RAC X SwitchTip, 425
LTX427 RAC X SwitchTip, 427
LTX435 RAC X SwitchTip, 435
LTX529 RAC X SwitchTip, 529
LTX611 RAC X SwitchTip, 611
LTX613 RAC X SwitchTip, 613
LTX617 RAC X SwitchTip, 617
LTX621 RAC X SwitchTip, 621
LTX625 RAC X SwitchTip, 625
LTX627 RAC X SwitchTip, 627
LTX721 RAC X SwitchTip, 721
LTX729 RAC X SwitchTip, 729
LTX817 RAC X SwitchTip, 817
LTX827 RAC X SwitchTip, 827
FFT612 FFT Fine Finish RAC Spray Tips, 0.012 inch (0.305 mm) Orifice Size, 12-14 inches (300-350 mm) Fan Width
WR1235 RAC X WideRAC SwitchTip, 1235
WR1237 RAC X WideRAC SwitchTip, 1237
189018 Fluid swivel connector
15C161 Ultimate Gun Cleaning Kit
LTX211 RAC X SwitchTip, 211
LTX309 RAC X SwitchTip, 309
LTX325 RAC X SwitchTip, 325
LTX623 RAC X SwitchTip, 623
LTX633 RAC X SwitchTip, 633
FFT510 FFT Fine Finish RAC Spray Tips, 0.010 inch (0.254 mm) Orifice Size, 10-12 inches (250-300 mm) Fan Width
FFT514 FFT Fine Finish RAC Spray Tips, 0.014 inch (0.356 mm) Orifice Size, 10-12 inches (250-300 mm) Fan Width
WR1221 RAC X WideRAC SwitchTip, 1221
WR1225 RAC X WideRAC SwitchTip, 1225
WR1239 RAC X WideRAC SwitchTip, 1239
238694 High Pressure Fluid Ball Valve, 5000 psi (350 bar) maximum working pressure, 3/8 npt(mbe)
LTX209 RAC X SwitchTip, 209
LTX225 RAC X SwitchTip, 225
LTX429 RAC X SwitchTip, 429
LTX431 RAC X SwitchTip, 431
LTX433 RAC X SwitchTip, 433
LTX513 RAC X SwitchTip, 513
LTX631 RAC X SwitchTip, 631
LTX109 RAC X SwitchTip, 109
LTX111 RAC X SwitchTip, 111
LTX231 RAC X SwitchTip, 231
LTX335 RAC X SwitchTip, 335
LTX509 RAC X SwitchTip, 509
LTX521 RAC X SwitchTip, 521
LTX531 RAC X SwitchTip, 531
LTX615 RAC X SwitchTip, 615
LTX635 RAC X SwitchTip, 635
LTX723 RAC X SwitchTip, 723
WR1227 RAC X WideRAC SwitchTip, 1227
WR1231 RAC X WideRAC SwitchTip, 1231
LTX219 RAC X SwitchTip, 219
LTX221 RAC X SwitchTip, 221
LTX235 RAC X SwitchTip, 235
LTX315 RAC X SwitchTip, 315
LTX317 RAC X SwitchTip, 317
LTX323 RAC X SwitchTip, 323
LTX421 RAC X SwitchTip, 421
LTX511 RAC X SwitchTip, 511
LTX515 RAC X SwitchTip, 515
LTX523 RAC X SwitchTip, 523
LTX525 RAC X SwitchTip, 525
LTX533 RAC X SwitchTip, 533
LTX535 RAC X SwitchTip, 535
LTX619 RAC X SwitchTip, 619
LTX629 RAC X SwitchTip, 629
LTX735 RAC X SwitchTip, 735
WR1229 RAC X WideRAC SwitchTip, 1229
WR1233 RAC X WideRAC SwitchTip, 1233
238563 Spray Tip Filter, 3 pack, 0.009 in (equivalent to 60 mesh screen) to prevent particles from ruining sprayed surface smoothness
241812 Fluid Hose, 3500 psi (242 bar) MWP, 1/4-18 npsm(fbe), 3/16 in (5 mm) ID, 25 ft (7.62 m) long, nylon tubing w/ polyurethane cover
246453 RAC X One Seal, 5 pk
LTX215 RAC X SwitchTip, 215
LTX311 RAC X SwitchTip, 311
LTX319 RAC X SwitchTip, 319
LTX329 RAC X SwitchTip, 329
LTX331 RAC X SwitchTip, 331
LTX413 RAC X SwitchTip, 413
LTX423 RAC X SwitchTip, 423
LTX517 RAC X SwitchTip, 517
LTX527 RAC X SwitchTip, 527
LTX833 RAC X SwitchTip, 833
LTX835 RAC X SwitchTip, 835
FFT214 FFT Fine Finish RAC Spray Tips, 0.014 inch (0.356 mm) Orifice Size, 4-6 inches (100-150 mm) Fan Width
FFT414 FFT Fine Finish RAC Spray Tips, 0.014 inch (0.356 mm) Orifice Size, 8-10 inches (200-250 mm) Fan Width
FFT614 FFT Fine Finish RAC Spray Tips, 0.014 inch (0.356 mm) Orifice Size, 12-14 inches (300-350 mm) Fan Width
WR1223 RAC X WideRAC SwitchTip, 1223
224453 Fluid Filter Kit, 5 pack, 100 mesh (.005 gap spacing) replacement fluid filters
248936 Acetal RAC Gasket, 5 pack
LTX115 RAC X SwitchTip, 115
LTX217 RAC X SwitchTip, 217
LTX313 RAC X SwitchTip, 313
LTX417 RAC X SwitchTip, 417
LTX419 RAC X SwitchTip, 419
LTX519 RAC X SwitchTip, 519
LTX819 RAC X SwitchTip, 819
LTX821 RAC X SwitchTip, 821
LTX831 RAC X SwitchTip, 831
FFT314 FFT Fine Finish RAC Spray Tips, 0.014 inch (0.356 mm) Orifice Size, 6-8 inches (150-200 mm) Fan Width
FFT512 FFT Fine Finish RAC Spray Tips, 0.012 inch (0.305 mm) Orifice Size, 10-12 inches (250-300 mm) Fan Width
111265 Non-silicone lubricant, 4 oz (113g)
