Merkur ES

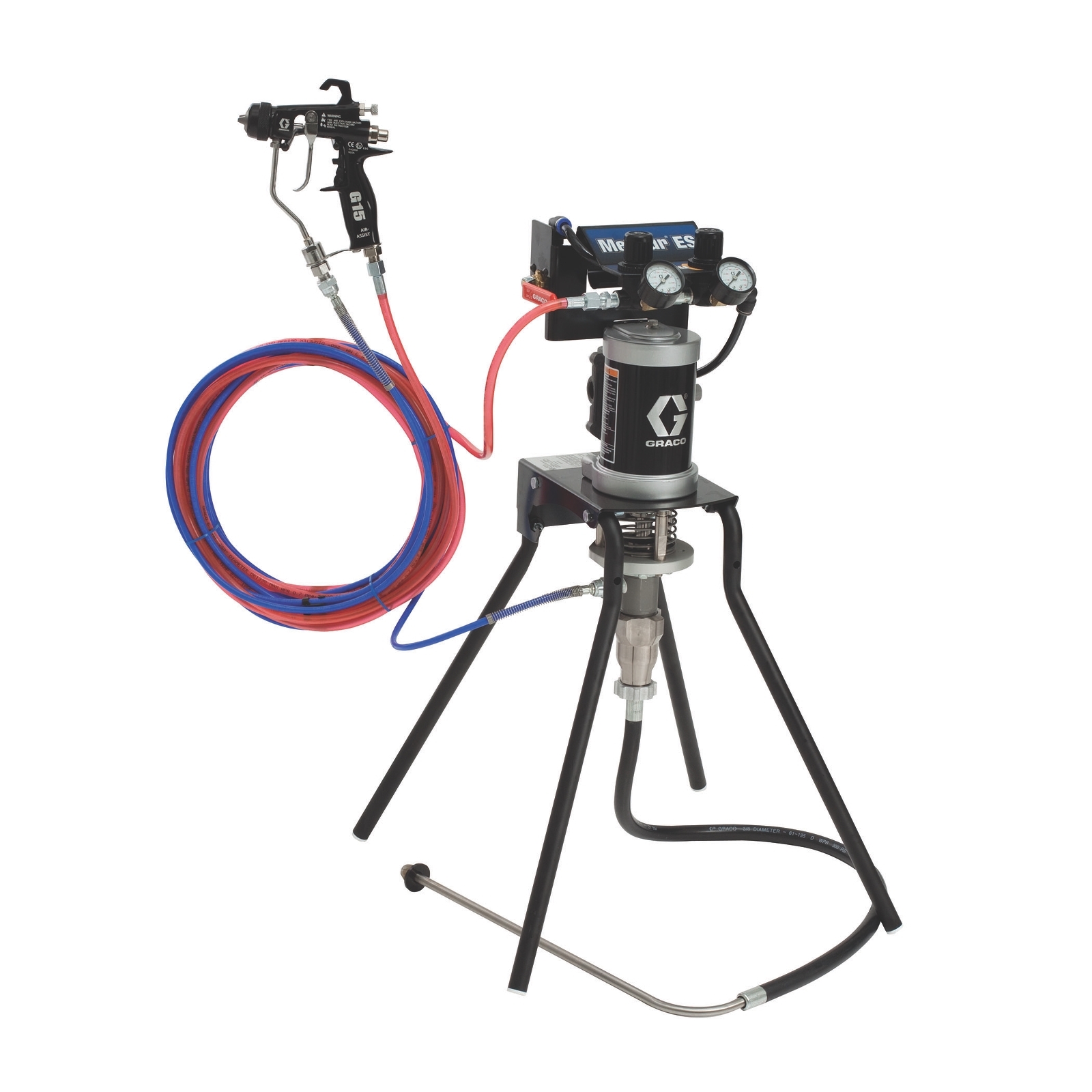

15:1 Merkur ES Air Assisted Package, 0.4 gpm (1.5 lpm) fluid flow, standard mount, with G15 gun, suction hose, and plated steel

24F151

19361 v2 19377 19380 19381

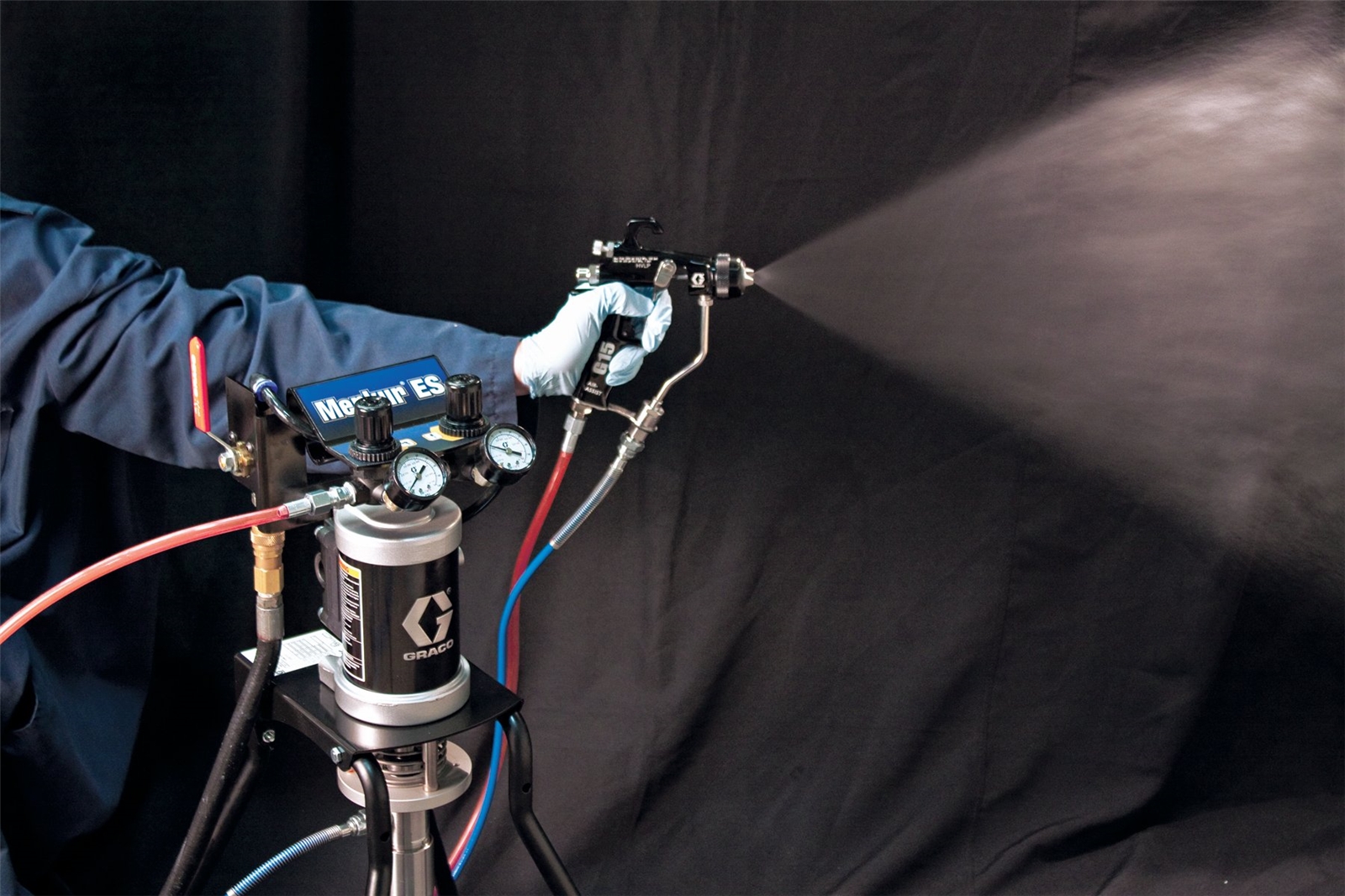

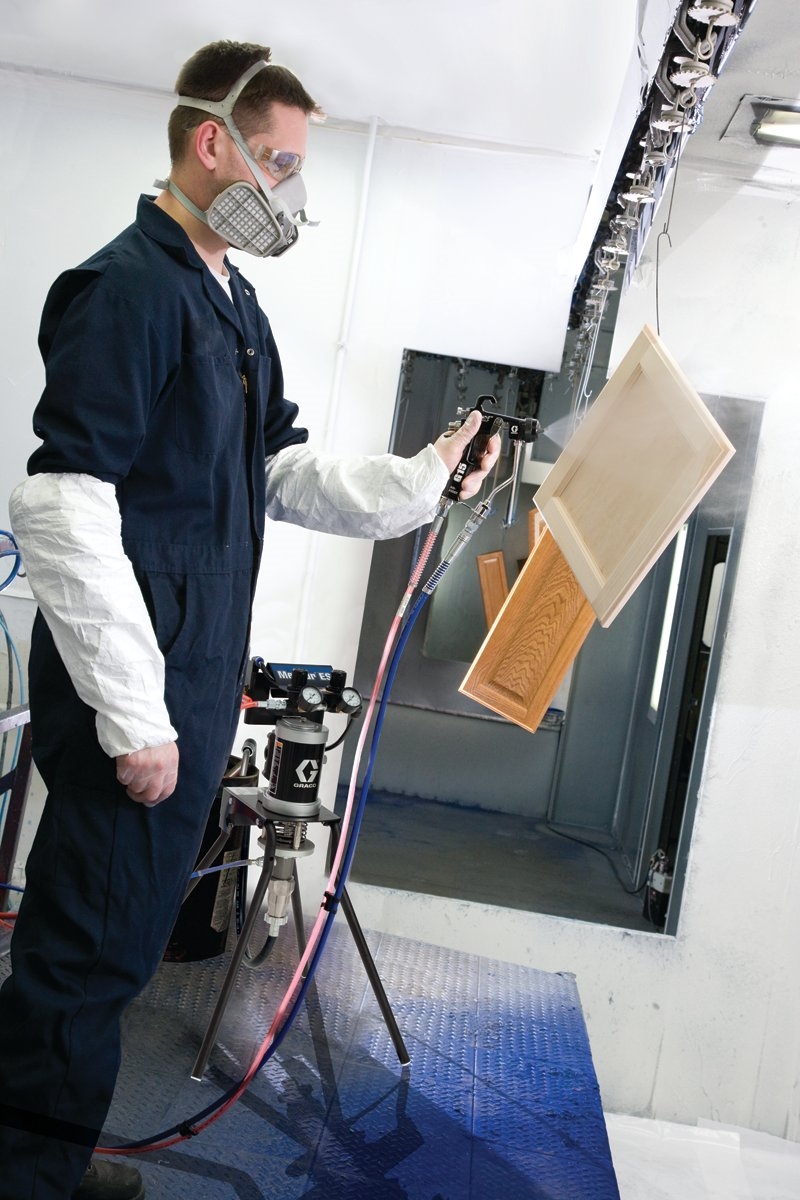

G15 Air-Assist Spray Gun Application, Merkur ES

Merkur ES

15:1 Merkur ES Air Assisted Package, 0.4 gpm (1.5 lpm) fluid flow, standard mount, with G15 gun, suction hose, and plated steel

24F151

The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

The Merkur ES is one of the most efficient sprayers designed to use less material than the competition and to reduce air usage and pulsation.

  • Quick flush system requires less than 1 minute to flush
  • 45% less material to fill the system than the leading competitors
  • Delivers a superior, consistent spray finish
  • Low profile spray package makes it easy to transport
  • Easily set and monitor air control, plus an integrated carrying handle for transport
  • Air motor provides consistent finishes with smooth, rapid changeover
  • Suction hose and strainer leaves less material in the supply container
  • Lightweight, flexible 1/8 in fluid hose reduces material and solvent usage

Specifications

Technical Specifications

Convert to Metric
Convertible Non-Convertible
Fluid Outlet Size (in) 0.25
Fluid Outlet Thread Type NPSM
Gun Included 1
Gun Model G15
Gun Type Air-Assisted
Hose Inlet Diameter (in) 0.125
Includes G15 Gun, Suction Hose, Stand Mount
Maximum Flow Rate (GPM) 0.4
Maximum Hose Length (ft) 25
Maximum Sound Pressure Level (dB(A)) 76.5
Maximum Tip Size (in) 0.019
Maximum Working Pressure (psi) 1500
Model Merkur
Motor Type Pneumatic
Mount Type Stand Mount
Number of Guns 1
Power Source Air
Pressure Type High Pressure
Product Type Spray Package
Pump Ratio 15:1
Pump Sleeve Material Carbon Steel
Series ES
Spray Type Air-Assisted
Standards Met ATEX, CE
Type Air-Assisted Airless Sprayer
Weight (lb) 23
Wetted Material Stainless Steel, Nickel-Plated Carbon Steel, Tungsten Carbide, PTFE, Acetal, Leather, UHMWPE, Engineered Plastic, Nylon, Fluoroelastomer, Polyethylene
Convertible Non-Convertible
Fluid Outlet Size (cm) 0.6350
Fluid Outlet Size (mm) 6.3500
Fluid Outlet Thread Type NPSM
Gun Included 1
Gun Model G15
Gun Type Air-Assisted
Hose Inlet Diameter (cm) 0
Hose Inlet Diameter (mm) 3
Includes G15 Gun, Suction Hose, Stand Mount
Maximum Hose Length (m) 7.6250
Maximum Sound Pressure Level (dB(A)) 76.5
Maximum Tip Size (cm) 0.0483
Maximum Tip Size (mm) 0.4826
Maximum Working Pressure (bar) 103
Maximum Working Pressure (kPa) 10335
Model Merkur
Motor Type Pneumatic
Mount Type Stand Mount
Number of Guns 1
Power Source Air
Pressure Type High Pressure
Product Type Spray Package
Pump Ratio 15:1
Pump Sleeve Material Carbon Steel
Series ES
Spray Type Air-Assisted
Standards Met ATEX, CE
Type Air-Assisted Airless Sprayer
Weight (kg) 10.4
Wetted Material Stainless Steel, Nickel-Plated Carbon Steel, Tungsten Carbide, PTFE, Acetal, Leather, UHMWPE, Engineered Plastic, Nylon, Fluoroelastomer, Polyethylene
