FieldLazer S90

FieldLazer S90 Airless Field Striper

24N950

24N950_FieldLazer_S90_190604_Main 24N950_FieldLazer_S90_190604_Alt_1 24N950_FieldLazer_S90_190604_Alt_2 24N950_FieldLazer_S90_190604_Alt_3 24N950_FieldLazer_S90_190604_Alt_4

FieldLazer S90

FieldLazer S90 Airless Field Striper

24N950

The FieldLazer S90 is the industry's first battery-powered, high-pressure airless field marker – providing simplicity combined with Graco’s professional, paint-saving high-pressure technology.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The FieldLazer S90 is the industry's first battery-powered, high-pressure airless field marker – providing simplicity combined with Graco’s professional, paint-saving high-pressure technology.

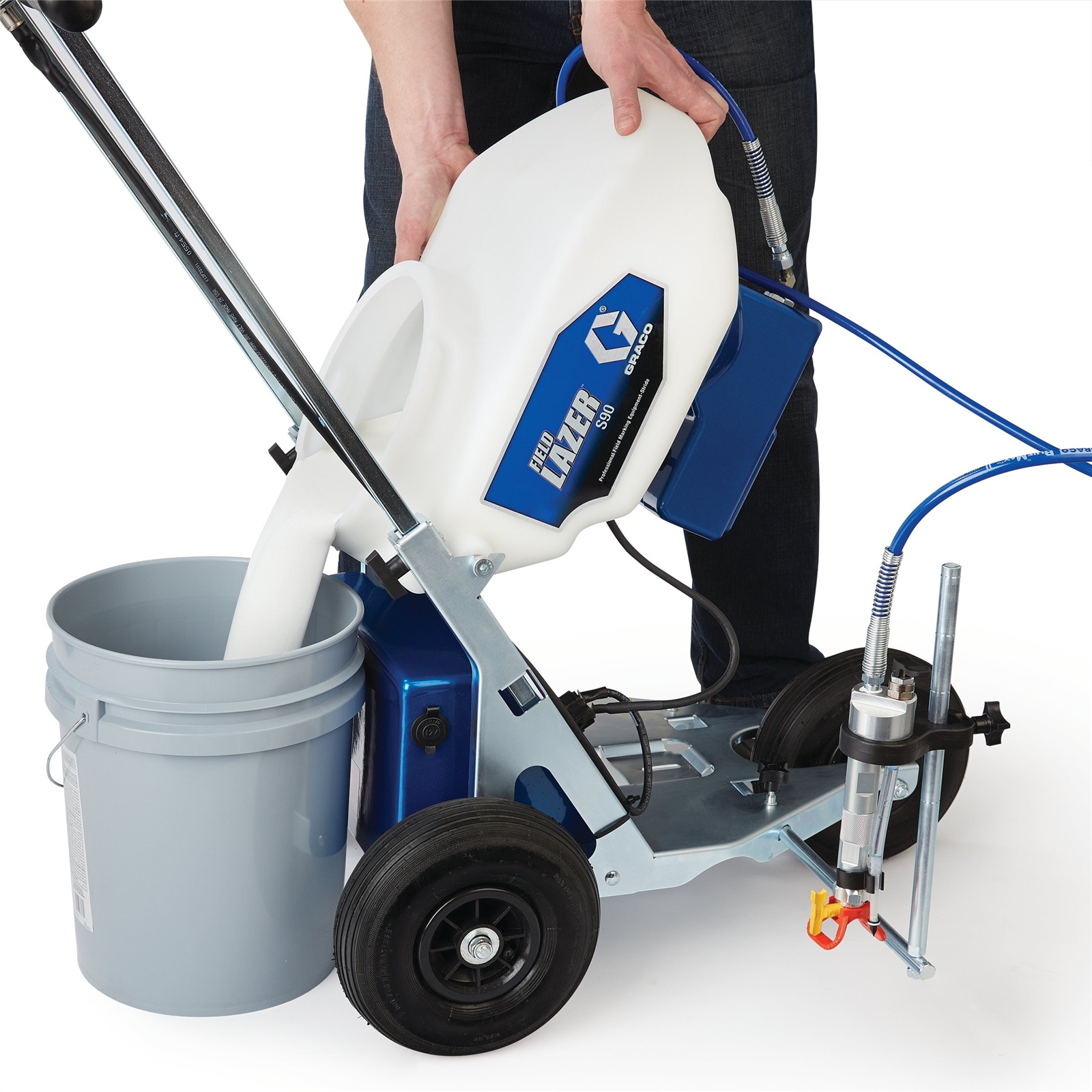

  • Tilt-N-Pour Removable 6-Gallon Hopper
    • Quickly pour and save unused paint, remove for additional cleaning ease

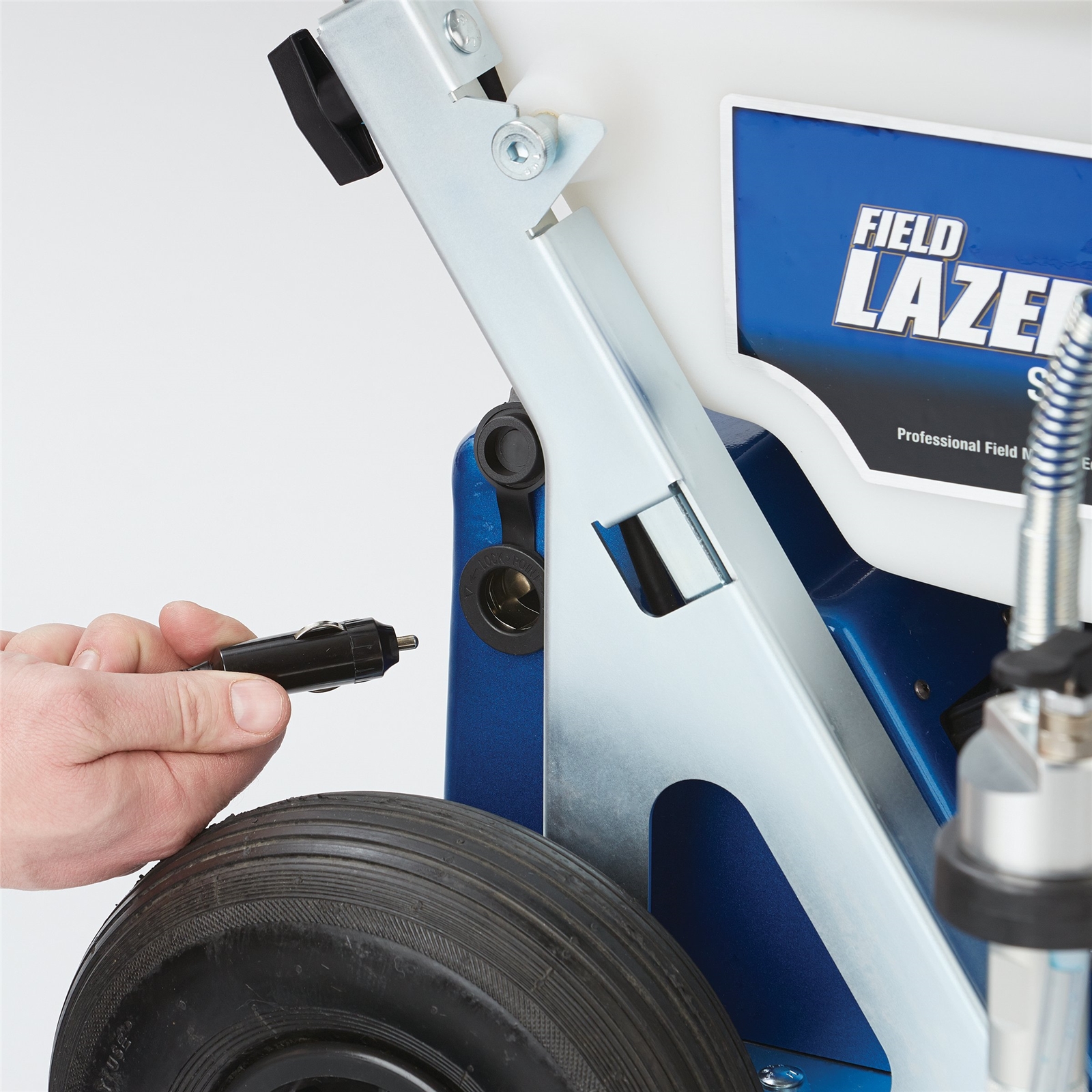

  • On-Board 120V Charger
    • Convenient plug-n-play battery charging
  • Adjustable Spray Shields
    • Protection in windy conditions
  • Quiet, Reliable Battery Power
    • Easy to use and maintain
    • Environmentally friendly
    • Long-lasting
  • FieldLazer LL5 RAC 5 (Reverse-A-Clean) Tip
    • Turn tip 180˚ to easily clear clogs
  • Easy Out Pump Filter
    • Large capacity and no-tools removal for smooth operation
  • Easy, One Button Operation
    • Add paint and simply press the button to start

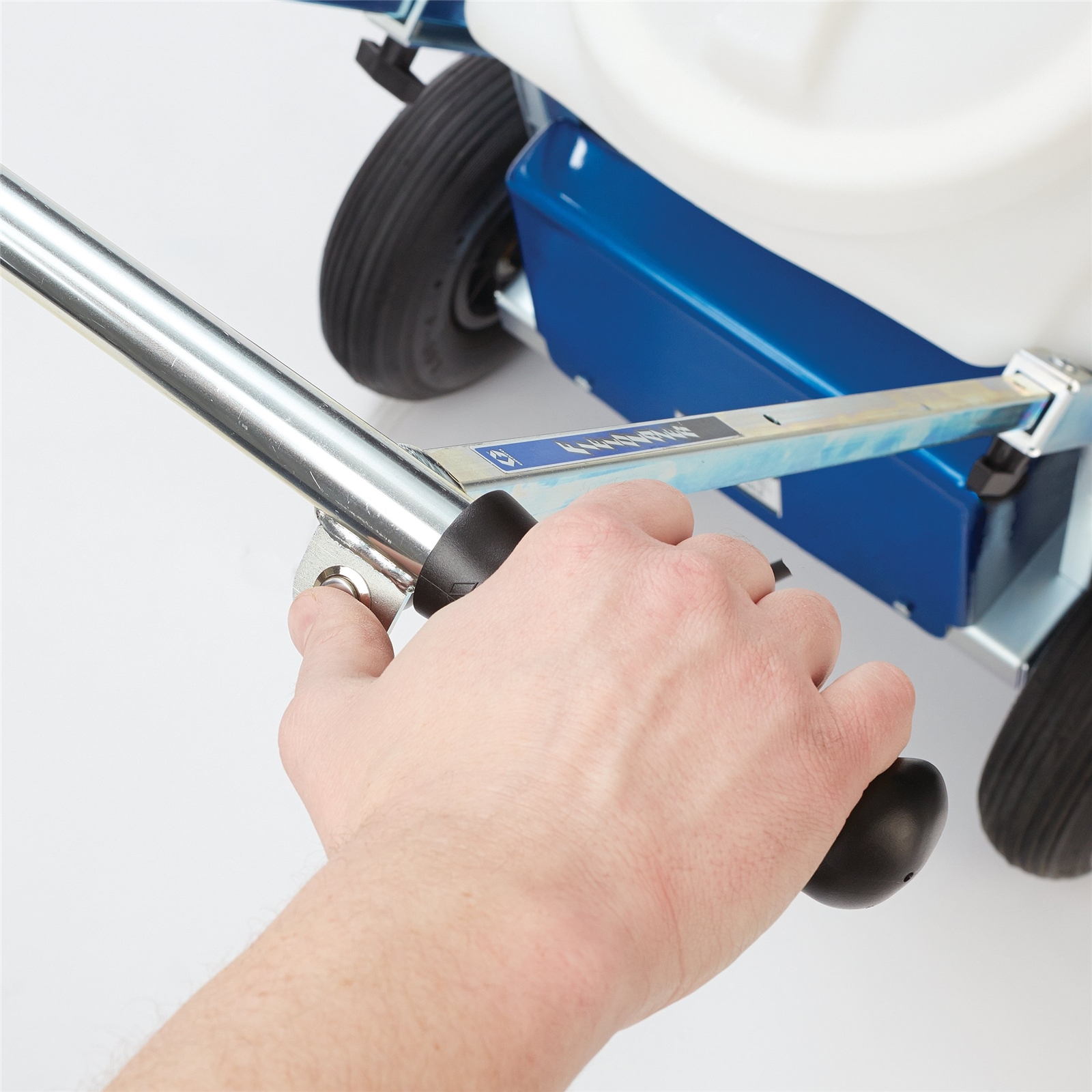

  • Adjustable Handlebar
    • Fits in a car trunk
    • Comfort for all heights

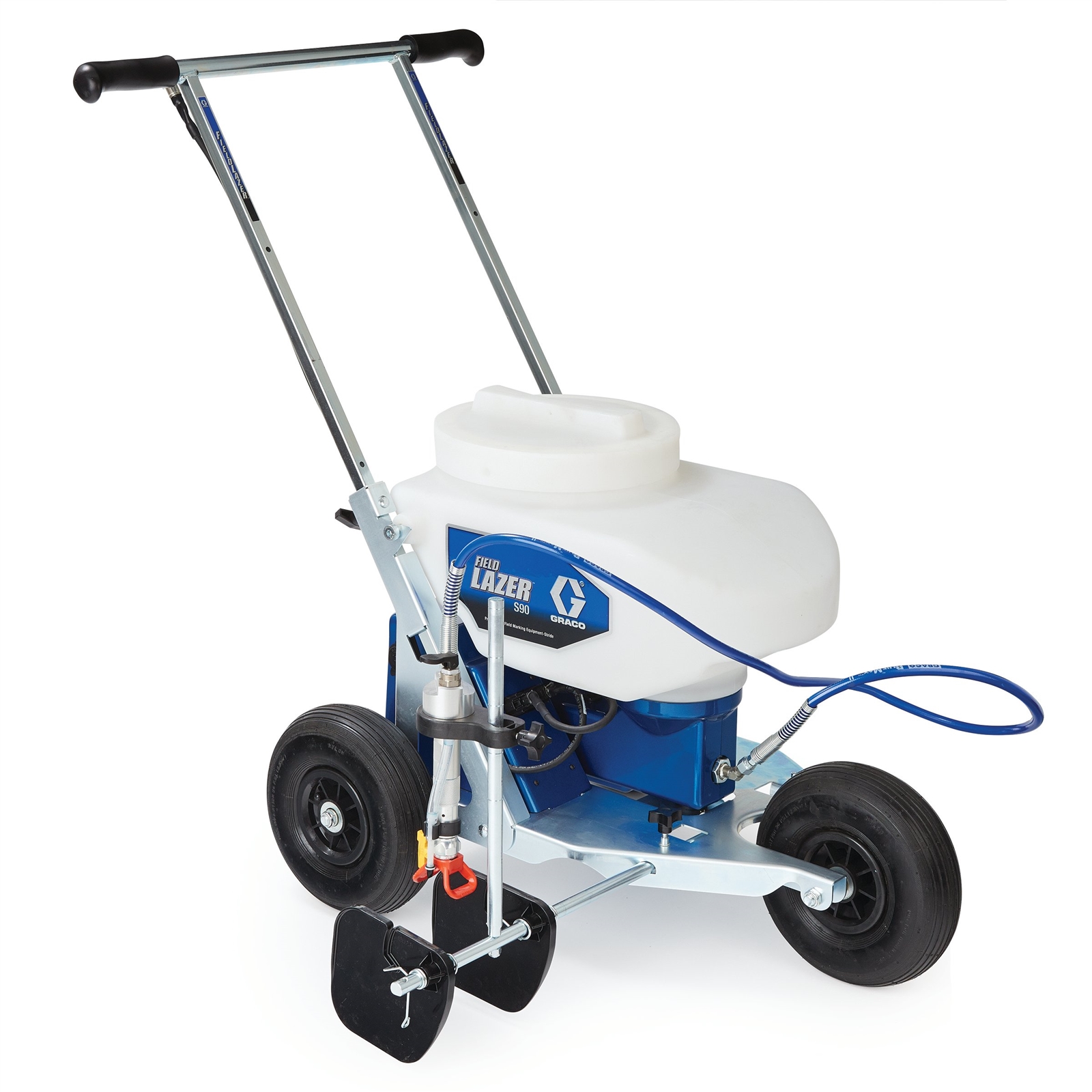

24N950_FieldLazer_S90_190604_Main

Specifications

Technical Specifications

Convert to Metric
Compatible Surfaces Turf
Features Adjustable Handlebars, Battery Charging Port, Quick System Flush, Sealed System, Tilt and Pour Removable Hopper
Gun Activation Manual
Hopper Volume Capacity (gal) 6
Includes FieldLazer RAC 5 315 Spray Tip, RAC 5 Guard, 3/16 in x 6 ft BlueMax II Airless Hose
Maximum Tip Size (in) 0.017
Maximum Working Pressure (psi) 1200
Model FieldLazer
Number of Colors One Color
Number of Guns 1
Number of Hoppers 1
Number of Pumps 1
Overall Height (in) 36
Overall Length (in) 40
Overall Width (in) 23
Power Source Battery Powered
Pump Type Airless Piston Powered
Recommended Annual Usage Up to 25 gallons per week
Series S90
Standards Met ETL Certified
Type Walk-Behind Line Striper
Weight (lb) 60
Compatible Surfaces Turf
Features Adjustable Handlebars, Battery Charging Port, Quick System Flush, Sealed System, Tilt and Pour Removable Hopper
Gun Activation Manual
Hopper Volume Capacity (L) 23
Includes FieldLazer RAC 5 315 Spray Tip, RAC 5 Guard, 3/16 in x 6 ft BlueMax II Airless Hose
Maximum Tip Size (cm) 0.0432
Maximum Tip Size (mm) 0.432
Maximum Working Pressure (bar) 83
Maximum Working Pressure (kPa) 8300
Model FieldLazer
Number of Colors One Color
Number of Guns 1
Number of Hoppers 1
Number of Pumps 1
Overall Height (cm) 91.4
Overall Height (mm) 914
Overall Length (cm) 101.6
Overall Length (mm) 1016
Overall Width (cm) 58.4
Overall Width (mm) 584
Power Source Battery Powered
Pump Type Airless Piston Powered
Recommended Annual Usage Up to 25 gallons per week
Series S90
Standards Met ETL Certified
Type Walk-Behind Line Striper
Weight (kg) 27.22

What's Included

Part No. Description Qty Unit
LL5315 LineLazer RAC 5 SwitchTip, 315 1 ea
243161 RAC 5 HandTite Tip Guard 1 ea
277183 HOSE, CPLD, 3/16" X 6' 1 ea
