TexSpray DutyMax EH 230DI

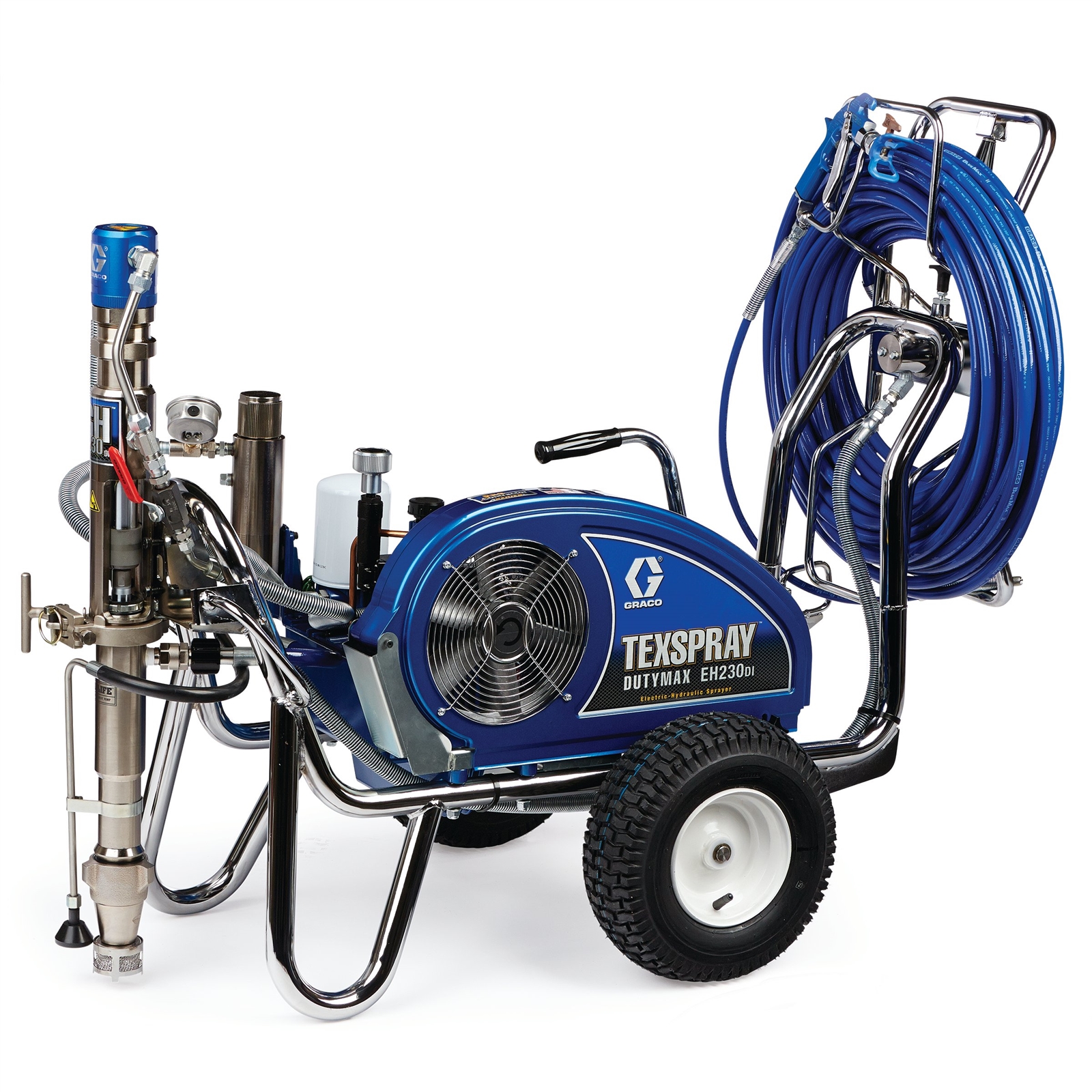

TexSpray DutyMax EH 230DI ProContractor Series Convertible Hydraulic Airless Sprayer

24W942

24W942_TexSpray_DutyMax_EH_230DI_ProContractor_Main

TexSpray DutyMax EH 230DI

TexSpray DutyMax EH 230DI ProContractor Series Convertible Hydraulic Airless Sprayer

24W942

When your job requires maximum productivity and versatility, turn to the TexSpray DutyMax EH 230DI sprayer to get the job done—fast! Equipped with a long stroke, direct immersion pump, this hydraulic workhorse is built for the biggest, most demanding jobs and materials.

Features

When your job requires maximum productivity and versatility, turn to the TexSpray DutyMax EH 230DI sprayer to get the job done—fast! Equipped with a long stroke, direct immersion pump, this hydraulic workhorse is built for the biggest, most demanding jobs and materials.

With features that enable you to work more efficiently and finish jobs faster, DutyMax ProContractor Series gas hydraulic airless sprayers spray a wide range of materials – from latex and acrylics to more heavy duty materials like plasters, elastomerics, fire retardants and liquid roofing solutions.

  • Extreme-Duty Endurance MaxLife Pump
    • Lasts 6X longer between repacks
    • Better spraying performance and fast cleaning
    • Long Life ceramic and stainless steel balls included for maximum versatility
  • MaxFlo 2 with Pack-Out Protection
    • Less Pack-Out, More Productivity
    • Self-cleaning Vibra-Seal Technology eliminates material build-up
    • Continuous spraying with True Pack-Out Protection for more productivity
    • Optimized fluid passageways for the heaviest coatings
  • High-Efficiency Hydraulic Motor
    • Finish Jobs Faster
    • Fast, responsive changeover
    • Less maintenance and longer life with fewer moving parts
    • 100% O-ring sealed fittings prevent leaks
  • High-Capacity Cooling System
    • Reduced Downtime
    • Innovative design allows the pump to run cooler and more efficiently with extremely quiet operation
    • Easier and more thorough fluid changes
    • Reservoir cooling fins deflect more heat
  • ProConnect 2 One-Part Pump Replacement System
    • Eliminate Costly Downtime
    • Swap your pump in less than 1 minute – with no tools, pins or parts to lose
  • QuikReel Hose Management System
    • Easy Hose Management
    • Deploy and rewind up to 300 feet of hose in seconds
    • No twisting, kinking, and coiling
  • Crushproof Inlet Strainer
    • Improved Filtration
    • Stands up to harsh impacts
  • Easy Out Pump Filter
    • Easy Maintenance & Less Clogging
    • Large filtering area for easier cleaning & fewer tip clogs ensure a quality finish
    • Won’t collapse or get stuck with inside out filtering process
  • Heavy-Duty Prime Valve
    • High-Pressure Dumping Capability
    • Maintenance-free design
  • Durable Cart Design
    • Rugged and Easy-to-Maneuver
    • Withstands the tough jobsite conditions while absorbing impacts and vibrations
    • Retractable handle doubles as coiled hose storage
24W942_TexSpray_DutyMax_EH_230DI_ProContractor_Main

Specifications

Technical Specifications

Convert to Metric
Compatible Material Primer, Water-Based Paint, Acrylics, Latex, Solventborne Paints, Block Filler, Drywall Mud, Elastomeric Coating
Control Type N/A
Convertible Yes
Engine Size (HP) 3
Engine Size (kW) 2.24
Fluid Inlet Size (in) 1
Fluid Inlet Thread Type NPT
Fluid Outlet Size (in) 3/8
Fluid Outlet Thread Type NPT
Frame Configuration Cart
Hose Inlet Diameter (in) 3/8
Material Application Paints, Primers
Maximum Flow Rate (GPM) 1.56
Maximum Sound Pressure Level (dB(A)) 80
Maximum Tip Size (in) 0.039
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (psi) 3300
Model TexSpray
Number of Guns 1
Phase 1
Power Rating (HP) 3.0
Power Rating (W) 2237.1
Power Rating (kW) 2.24
Power Source Gas, Electric
Product Type Single Leg
Series DutyMax EH 230DI
Standards Met CE
Type Airless Sprayer
Volume Per Cycle (cycles/gal) 80
Weight (lb) 227
Compatible Material Primer, Water-Based Paint, Acrylics, Latex, Solventborne Paints, Block Filler, Drywall Mud, Elastomeric Coating
Control Type N/A
Convertible Yes
Engine Size (HP) 3
Engine Size (kW) 2.24
Fluid Inlet Size (cm) 2.54
Fluid Inlet Size (mm) 25.4
Fluid Inlet Thread Type NPT
Fluid Outlet Size (cm) 0.9525
Fluid Outlet Size (mm) 9.525
Fluid Outlet Thread Type NPT
Frame Configuration Cart
Hose Inlet Diameter (cm) 0.9525
Hose Inlet Diameter (mm) 9.525
Material Application Paints, Primers
Maximum Flow Rate (L/min) 5.9
Maximum Sound Pressure Level (dB(A)) 80
Maximum Tip Size (cm) 0.0991
Maximum Tip Size (mm) 0.9906
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (bar) 228
Maximum Working Pressure (kPa) 22800
Maximum Working Pressure (kg/cm²) 232
Model TexSpray
Number of Guns 1
Phase 1
Power Rating (HP) 3.0
Power Rating (W) 2237.1
Power Rating (cc) 200
Power Rating (kW) 2.24
Power Source Gas, Electric
Product Type Single Leg
Series DutyMax EH 230DI
Standards Met CE
Type Airless Sprayer
Weight (kg) 103
