TexSpray HTX 2030

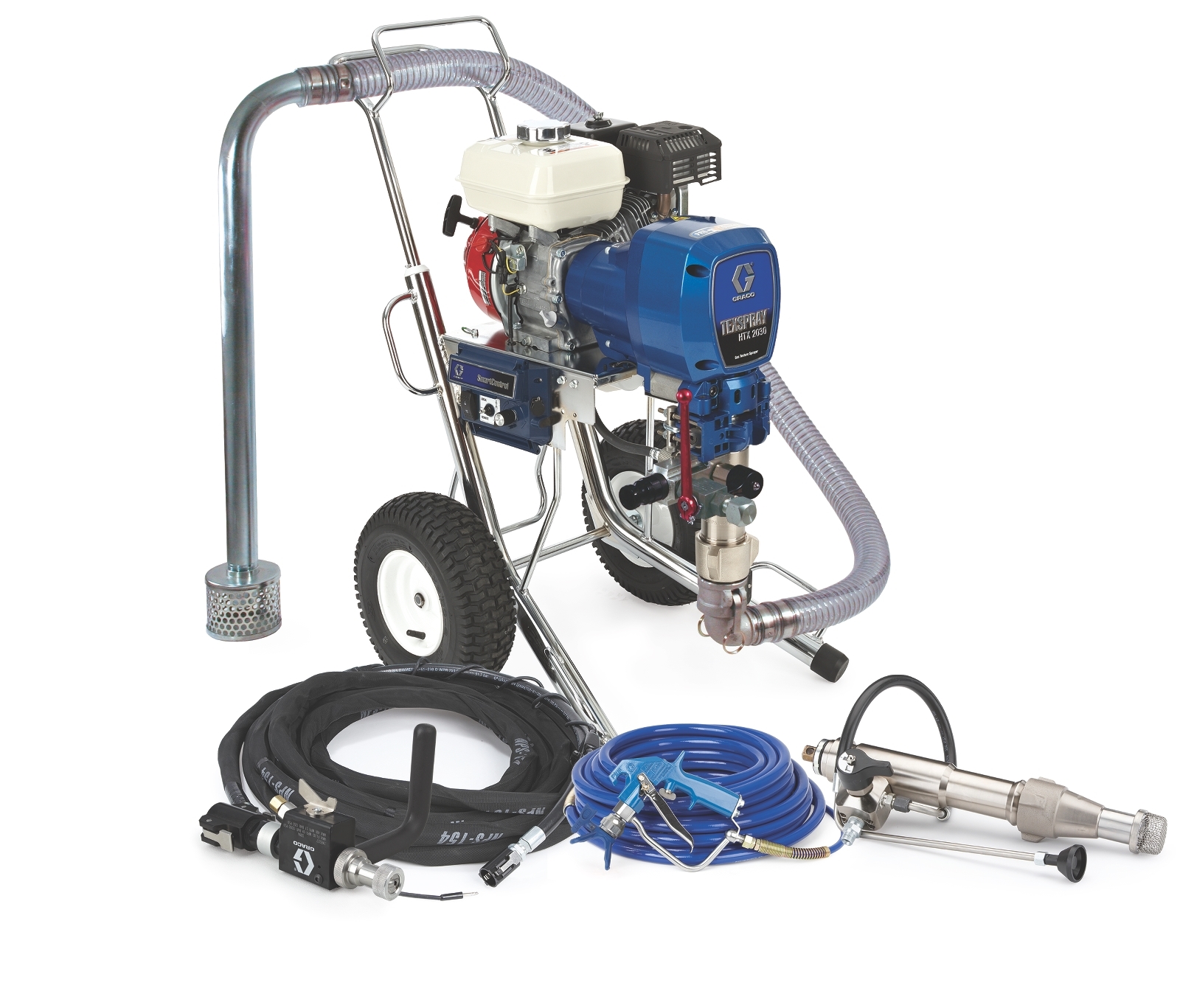

TexSpray HTX 2030 Complete Plus+, FreeFlo Inline Gun

258741

258741_TexSpray_HTX_2030_Complete_Plus_190711_Main

TexSpray HTX 2030

TexSpray HTX 2030 Complete Plus+, FreeFlo Inline Gun

258741

The HTX 2030 Complete Plus+ Texture Sprayer is specifically engineered to spray the most demanding materials — from exterior smooth and aggregate coatings, elastomerics, acrylic coatings, drywall mud finishes as well as paints and primers with the included high-pressure MaxLife Endurance Pump.

Features

Product Brochure
The HTX 2030 Complete Plus+ Texture Sprayer is specifically engineered to spray the most demanding materials — from exterior smooth and aggregate coatings, elastomerics, acrylic coatings, drywall mud finishes as well as paints and primers with the included high-pressure MaxLife Endurance Pump.

Apply interior and exterior texture finishes with aggregate size up to 2.5 mm.

  • High-Output Texture Pump
    • Time-Saving Production Rates
    • Pump aggregated materials up to 2.5mm with extra large passages
    • More uptime with no-tools hose connections at pump and gun
    • Consistent, optimal performance with innovative foot valve soft seal
  • PowerFlo Control System
    • Full-Range Flow Control (.6 to 3 gpm)
    • Remotely stops and starts material flow right at the pump
    • Smooth, controlled material flow prevents pack-out conditions
    • Soft start eliminates material blast to ensure finish quality
  • StraightThru Fluid Path
    • Reduced Pack-Out Conditions
    • Easily spray more demanding and aggressive aggregate materials
  • Convert-A-Pump System
    • Easily Expand Job Capabilities
    • Easily convert to a high-pressure airless sprayer
    • Spray heavier smooth coatings: skim coat, level 5, primers and paints
    • System automatically recognizes installed pump and converts to airless sprayer
  • Additional Endurance MaxLife Pump
  • FreeFlo Inline Gun
    • Maximum flow from oversized, unobstructed fluid passages
  • Texture Applications
    • Simulated Acoustic (Popcorn)
    • Orange Peel & Fine Splatter
    • Splatter
    • Knockdown
    • Textured Acrylics & Elastomerics
    • Deck Coatings
    • EIFS & Synthetic Stucco Finish Coats
    • Skim Coat/Level 5 (Airless)
    • Primers/Paints (Airless)

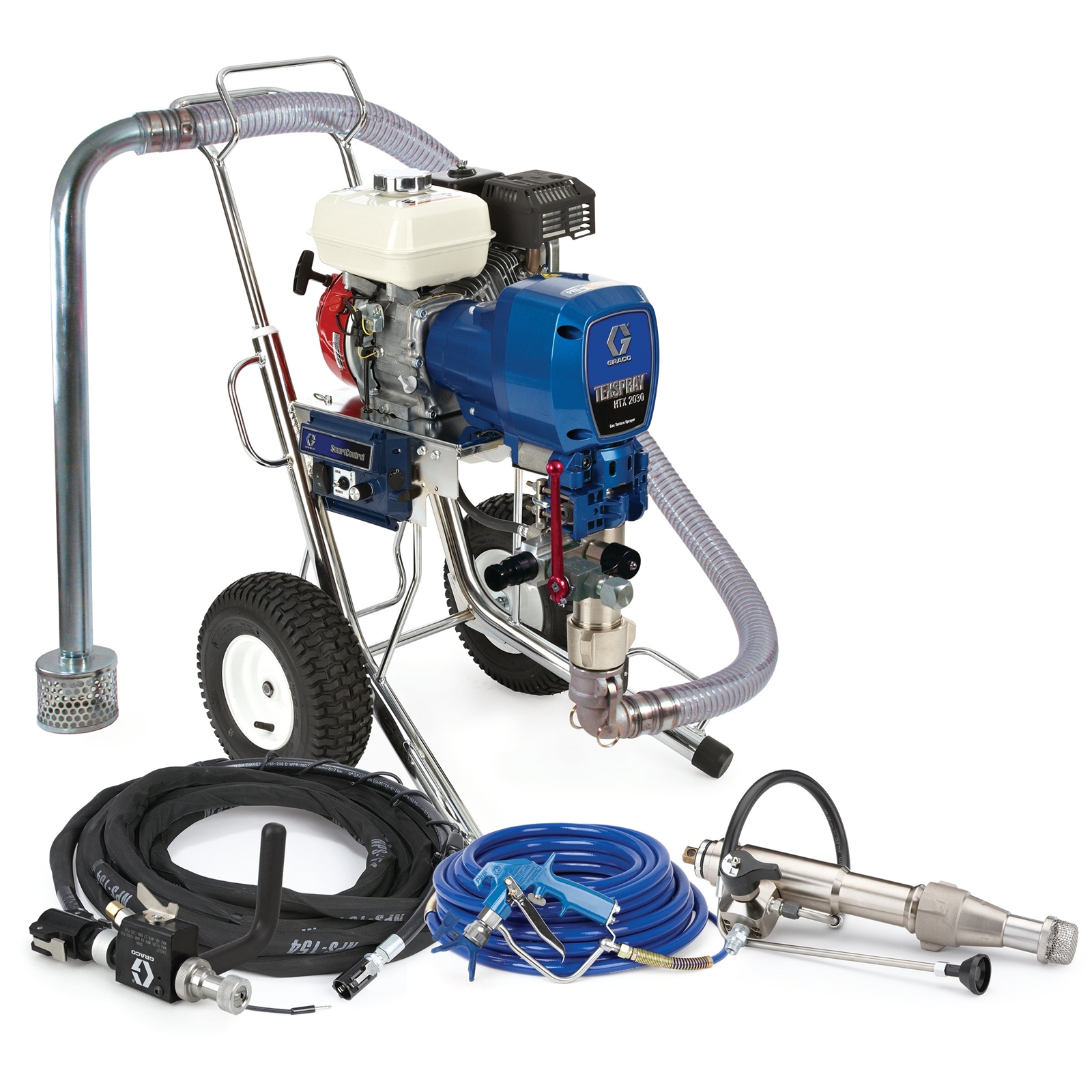

258741_TexSpray_HTX_2030_Complete_Plus_190711_Main

Specifications

Technical Specifications

Convert to Metric
Compatible Material Block Filler, Drywall Mud, Elastomeric Coating
Convertible Non-Convertible
Engine Brand Honda
Engine Size (HP) 6.5
Frame Configuration Cart
Includes MaxLife Endurance High-Pressure Pump, FreeFlo Inline Gun, Heavy-Duty Blue Texture Gun, 3/4 in x 50 ft Hose, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose, RAC X LTX 643 Spray Tip, RAC X LTX 671 Spray Tip, RAC X Guard, 4 mm, 6 mm, 8 mm, 10 mm Nozzles, Fine Finish Kit with 1/8 in, 1/4 in, 5/16 in, 3/8 in Nozzles, 55 gal Suction Set
Material Application Liquid Waterproofing
Maximum Flow Rate (GPM) 2.2
Maximum Tip Size (in) 0.048
Maximum Tip Size 1 Gun (in) 0.048
Maximum Tip Size 2 Guns (in) 0.035
Maximum Tip Size 3 Guns (in) 0.027
Maximum Tip Size 4 Guns (in) 0.023
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (psi) 3300
Model TexSpray HTX
Number of Guns 4
Power Source Gas
Pump Rod Type Chromex
Pump Type MaxLife
Series 2030
Type Airless Sprayer
Weight (lb) 150
Compatible Material Block Filler, Drywall Mud, Elastomeric Coating
Convertible Non-Convertible
Engine Brand Honda
Engine Size (HP) 6.5
Frame Configuration Cart
Includes MaxLife Endurance High-Pressure Pump, FreeFlo Inline Gun, Heavy-Duty Blue Texture Gun, 3/4 in x 50 ft Hose, 3/8 in x 50 ft BlueMax II Airless Hose, 1/4 in x 3 ft BlueMax II Airless Whip Hose, RAC X LTX 643 Spray Tip, RAC X LTX 671 Spray Tip, RAC X Guard, 4 mm, 6 mm, 8 mm, 10 mm Nozzles, Fine Finish Kit with 1/8 in, 1/4 in, 5/16 in, 3/8 in Nozzles, 55 gal Suction Set
Material Application Liquid Waterproofing
Maximum Flow Rate (L/min) 8.33
Maximum Tip Size (cm) 0.1219
Maximum Tip Size (mm) 1.219
Maximum Tip Size 1 Gun (cm) 0.1219
Maximum Tip Size 1 Gun (mm) 1.219
Maximum Tip Size 2 Guns (cm) 0.0889
Maximum Tip Size 2 Guns (mm) 0.8890
Maximum Tip Size 3 Guns (cm) 0.0686
Maximum Tip Size 3 Guns (mm) 0.6858
Maximum Tip Size 4 Guns (cm) 0.0584
Maximum Tip Size 4 Guns (mm) 0.5842
Maximum Working Pressure (MPa) 22.8
Maximum Working Pressure (bar) 228
Maximum Working Pressure (kPa) 22800
Model TexSpray HTX
Number of Guns 4
Power Source Gas
Pump Rod Type Chromex
Pump Type MaxLife
Series 2030
Type Airless Sprayer
Weight (kg) 68

What's Included

Part No. Description Qty Unit
24B327 GB KIT, REPL, APPLICATOR, HTX 1 ea
24B300 GB HOSE, FLUID, 3/4" X 50' COUPLED 1 ea
24B140 GB KIT, SPRAYER, TOPCOAT, HTX 2030 1 ea
224442 KIT, REPAIR, SUCTION, (55 GAL) 1 ea
