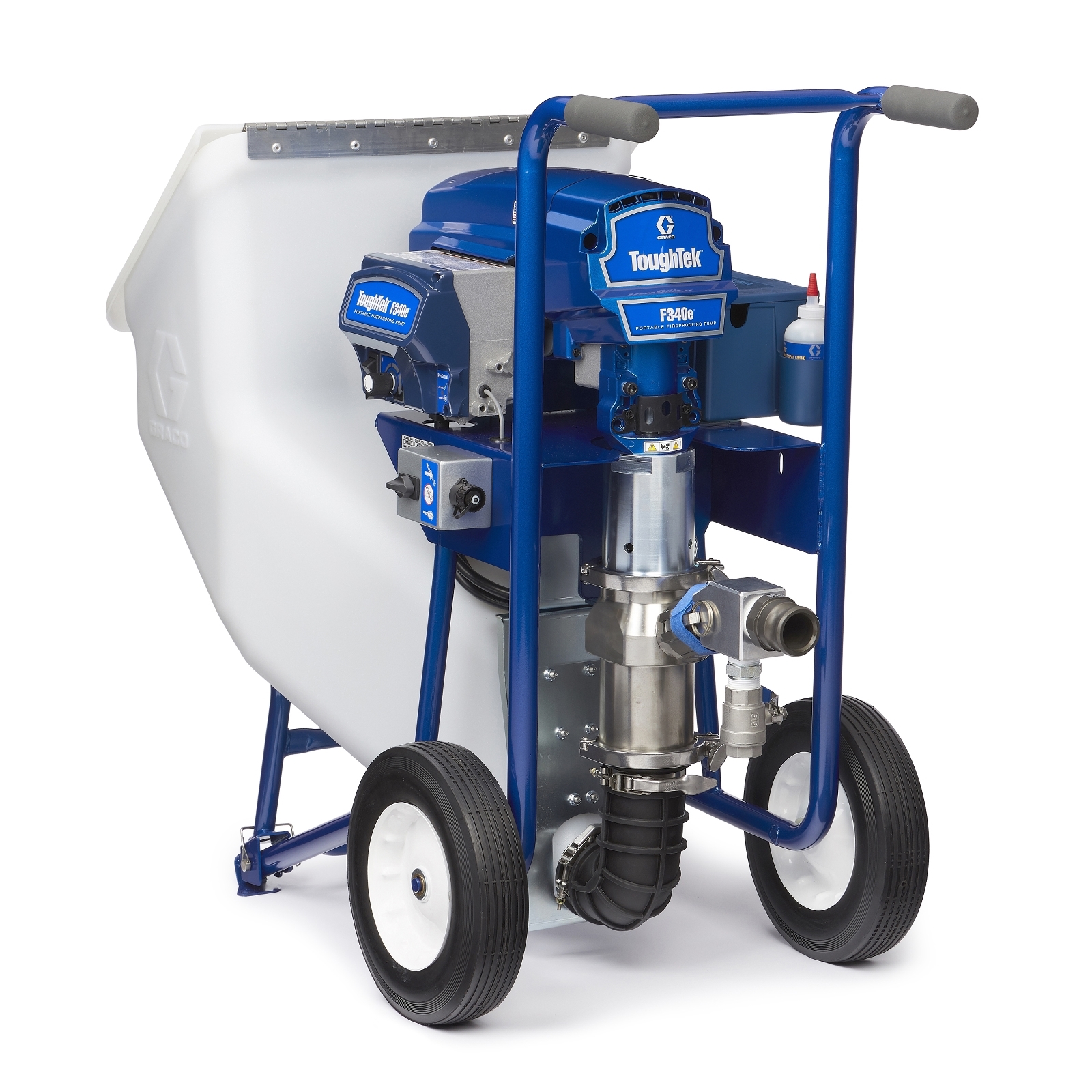

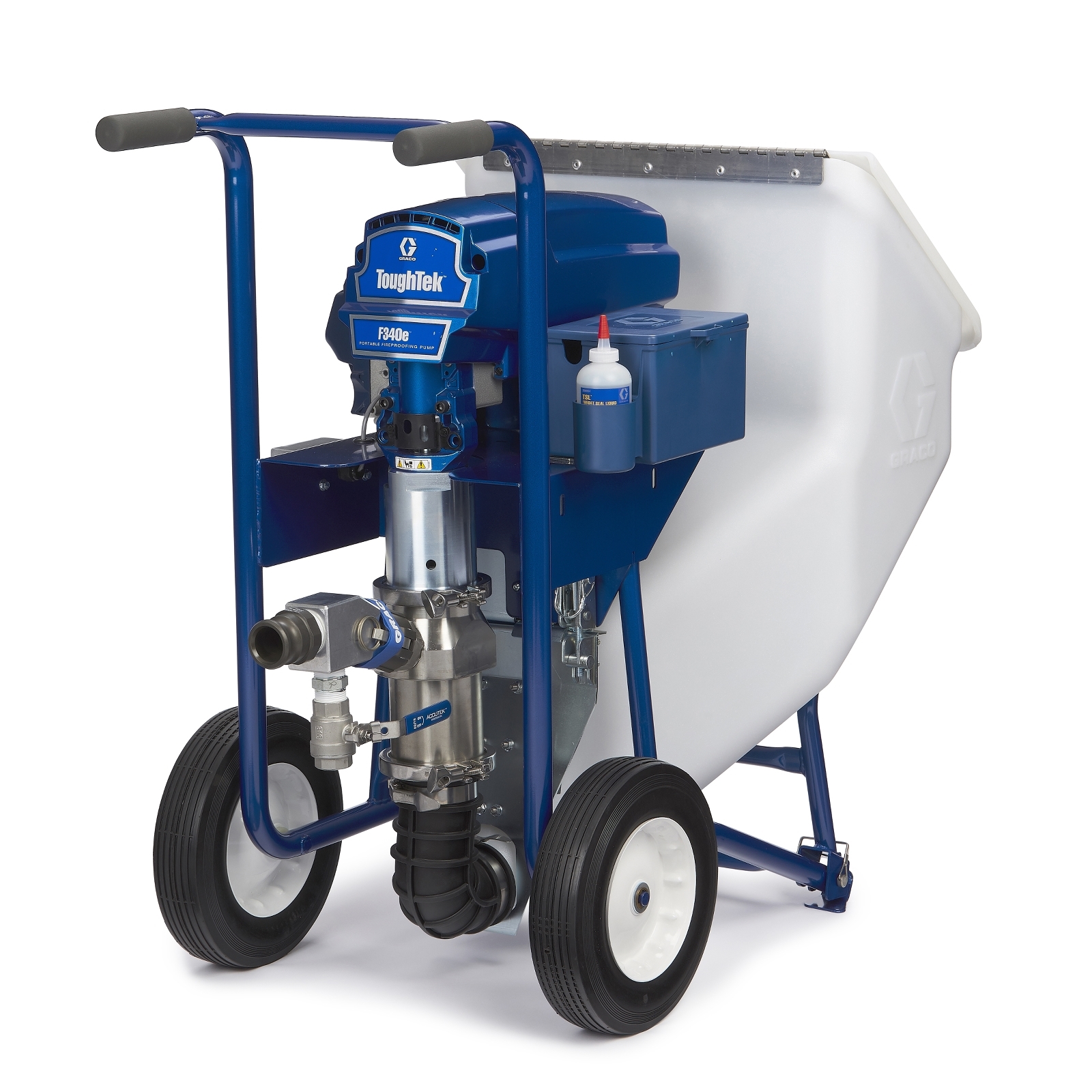

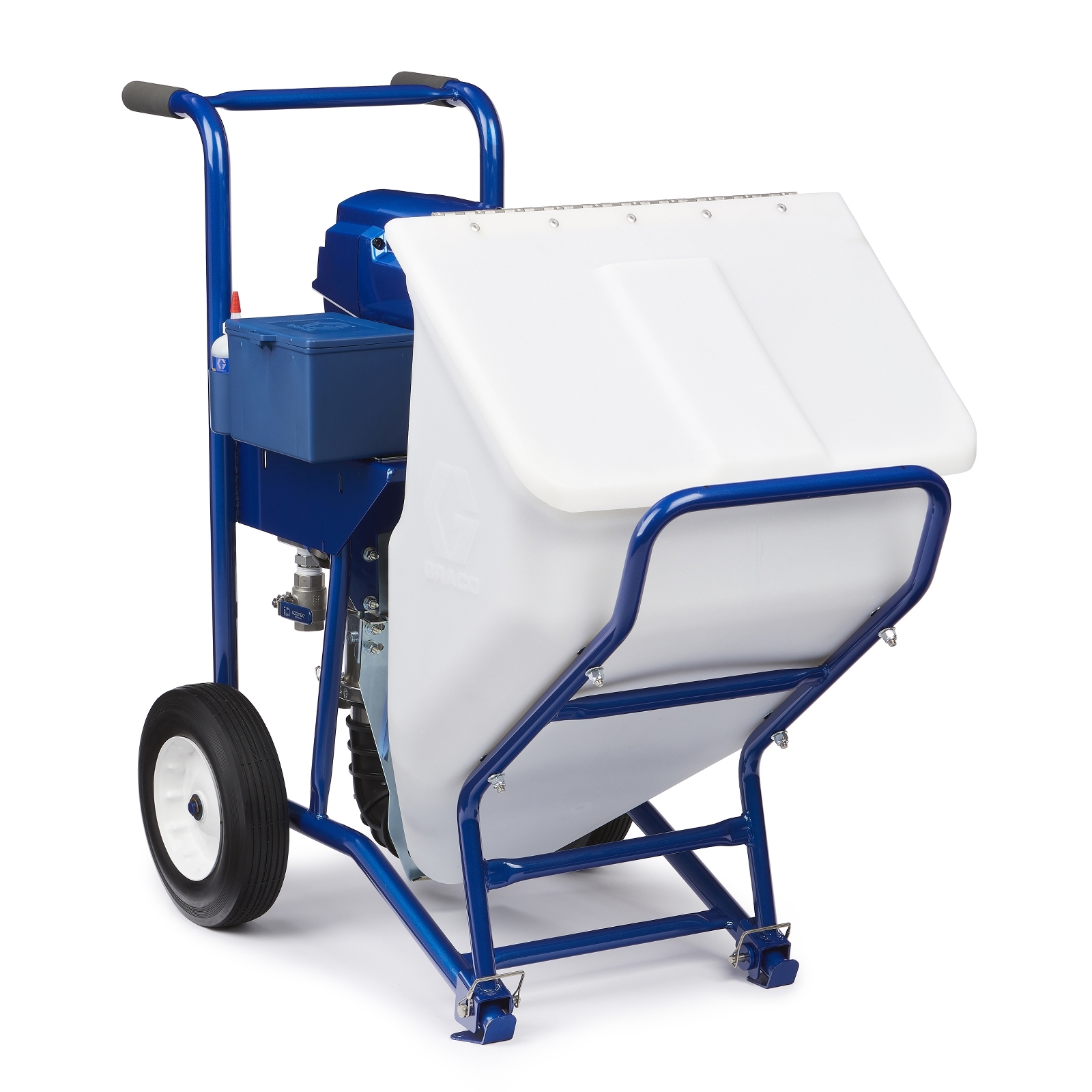

ToughTek F340e System, 230V, 10A
Part Number: 25B506
ToughTek F340e System, 230V, 10A
Part Number: 25B506
Engineered with Graco’s proprietary piston pump technology, the ToughTek F340e piston pump is perfect for small to medium jobs that spray up to 100 bags per day and is capable of producing pressures of up to 600 psi (41 bar) using an energy efficient direct drive electric motor. This high pumping pr...
More Info
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure
Engineered with Graco’s proprietary piston pump technology, the ToughTek F340e piston pump is perfect for small to medium jobs that spray up to 100 bags per day and is capable of producing pressures of up to 600 psi (41 bar) using an energy efficient direct drive electric motor. This high pumping pressure will allow your crew to spray up to 150 feet (46 m) from the machine and pump 15 bags per hour.
- Piston pump technology easily handles fireproofing materials
- Gets projects done faster with high-pressure performance
- Electric operation – plugs into a standard 120V, 15A wall outlet
- Long lasting wear parts for more uptime, less downtime
- Easy to use, simple to maintain
- Ideal for fireproofing over structural steel or spray foam insulation
- Features ProGuard System -Built-in protection system continually monitors operation -Dual LED indicators provide instant feedback while applying material -Automatically shuts pump off to protect from thermal overload or excessive pressure
Specifications & Documents
Technical Specifications
Convert to Metric| Application | Fireproofing |
|---|---|
| Compatible Material | Cementitious Material |
| Fluid Outlet Size (in) | 1-1/2 |
| Fluid Section Type | 2-Ball |
| Hopper Capacity (gal) | 20 |
| Input Voltage (V ac) | 230 |
| Material | Fireproofing |
| Material Output (bags/hr) | 20 |
| Maximum Continuous Cycle Rate (CPM) | 150 |
| Maximum Flow Rate (GPM) | 12 |
| Maximum Hose Length (ft) | 150 |
| Maximum Input Amperage (A) | 10 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Working Pressure (MPa) | 4.1 |
| Maximum Working Pressure (psi) | 600 |
| Minimum Operating Temperature (°F) | 32 |
| Motor Type | Brushless |
| Portable | Portable |
| Power Rating (HP) | 2 |
| Type | Electric Piston Pump |
| Weight (lb) | 205 |
| Application | Fireproofing |
| Compatible Material | Cementitious Material |
| Fluid Outlet Size (in) | 1-1/2 |
| Fluid Outlet Size (mm) | 38.1 |
| Fluid Section Type | 2-Ball |
| Input Voltage (V ac) | 230 |
| Material | Fireproofing |
| Material Output (bags/hr) | 20 |
| Maximum Continuous Cycle Rate (CPM) | 150 |
| Maximum Flow Rate (L/min) | 24.61 |
| Maximum Input Amperage (A) | 10 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Working Pressure (MPa) | 4.1 |
| Maximum Working Pressure (bar) | 41.3 |
| Maximum Working Pressure (kPa) | 4130 |
| Maximum Working Pressure (psi) | 600 |
| Minimum Operating Temperature (°C) | 0 |
| Motor Type | Brushless |
| Portable | Portable |
| Type | Electric Piston Pump |
| Weight (kg) | 93 |
Product Manuals
Sales Literature
Certifications
MSD201EN, Loctite 567 Low Strength Thread Sealant, Safety Data Sheet, English
(141 KB)
(English Only)
Repair Parts
| Part No. | Description |
|---|---|
| 127232 | VALVE, BALL, 1000 PSI, 1 INCH |
