ToughTek
ToughTek SL340e System, 120V, 15A
25B508
ToughTek
ToughTek SL340e System, 120V, 15A
25B508
Quickly pump self-leveling underlayment to the floor using the Graco ToughTek SL340e piston pump. This easy-to-use machine can be fed with two to three barrel mixers and stationed near the pallets of material, saving your crew the back and forth time that comes with mixing and dumping. Simply plug i...
More Info
Questions About this Product?
If you’re not finding the information you need, ask one of our experts.
Ask an ExpertFeatures
Product Brochure

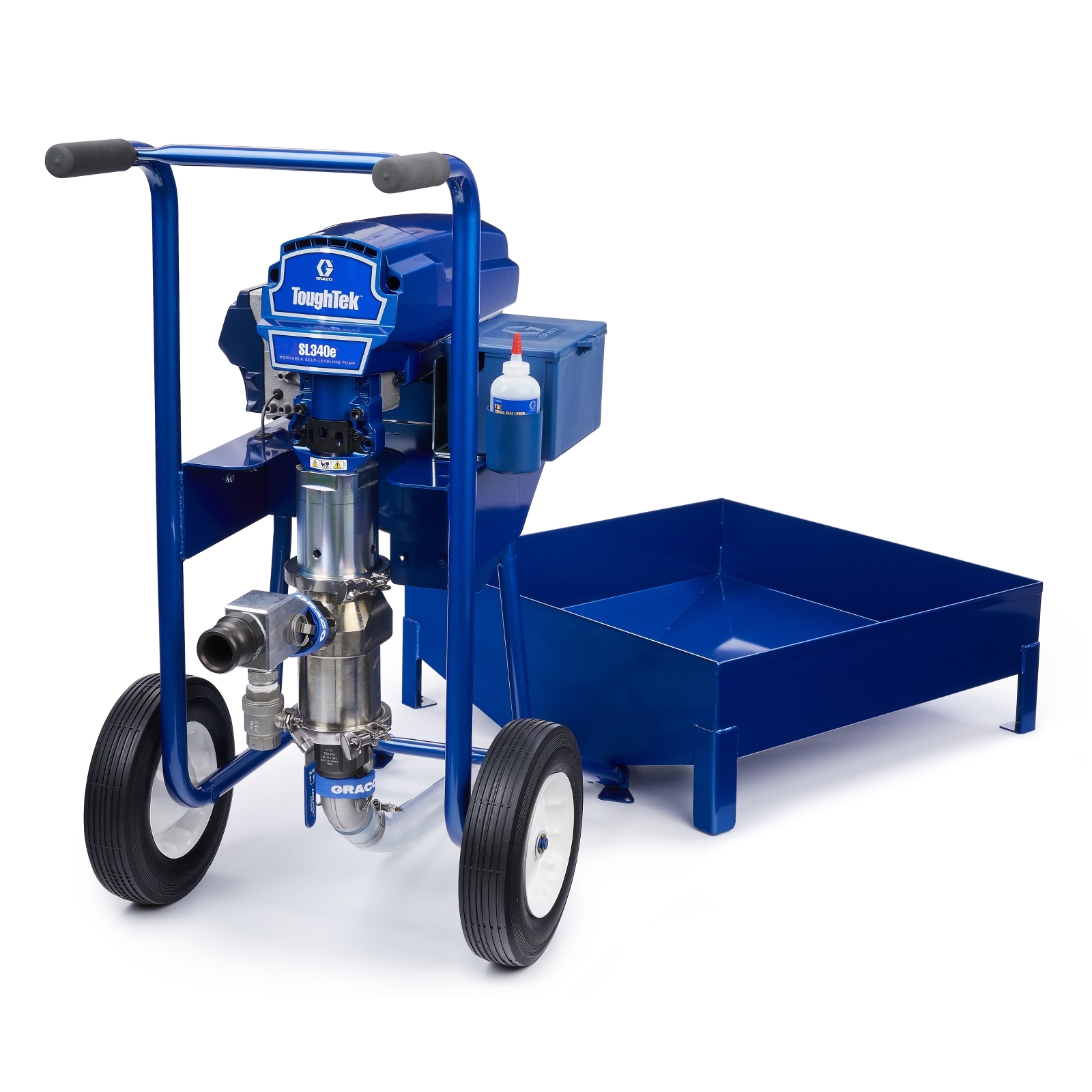

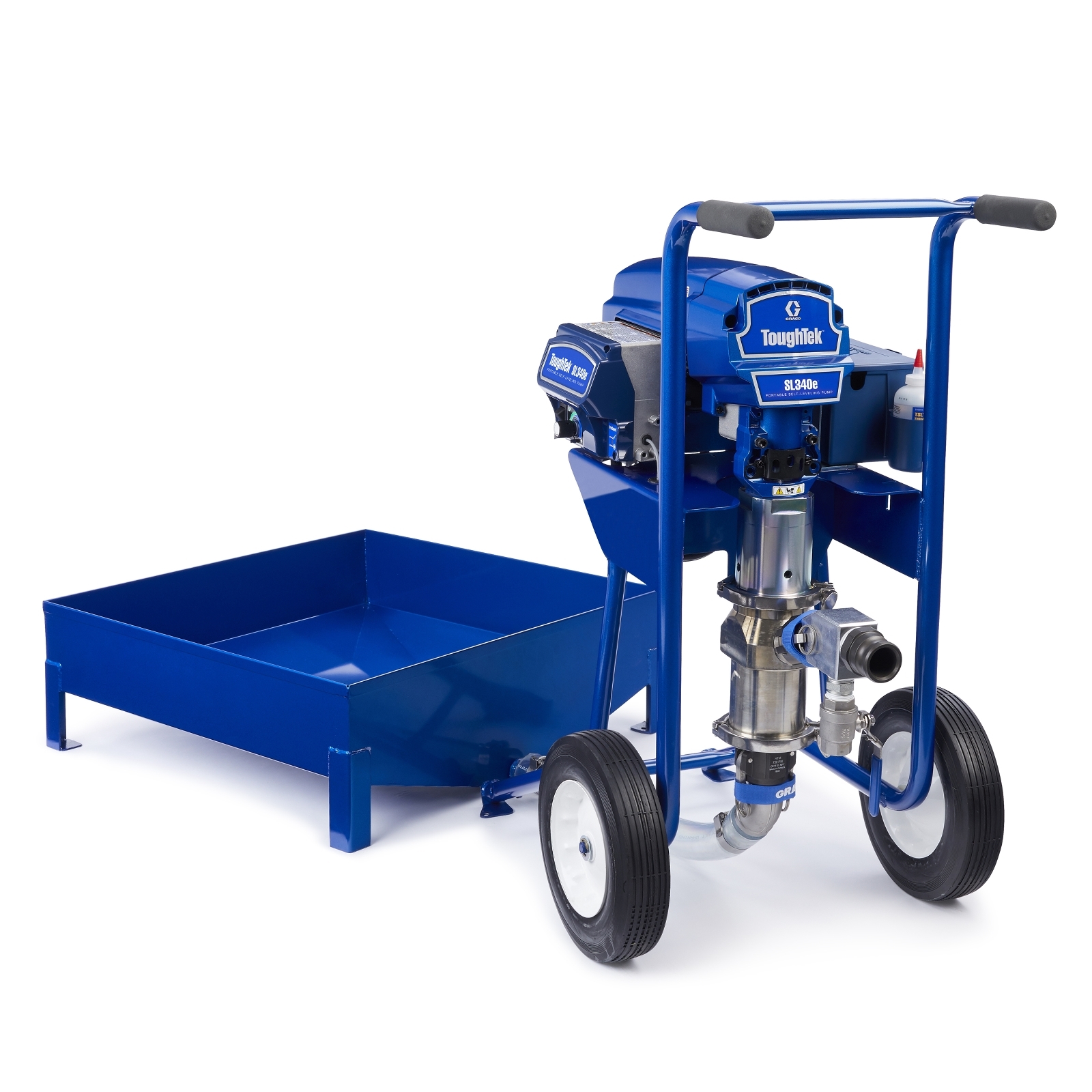

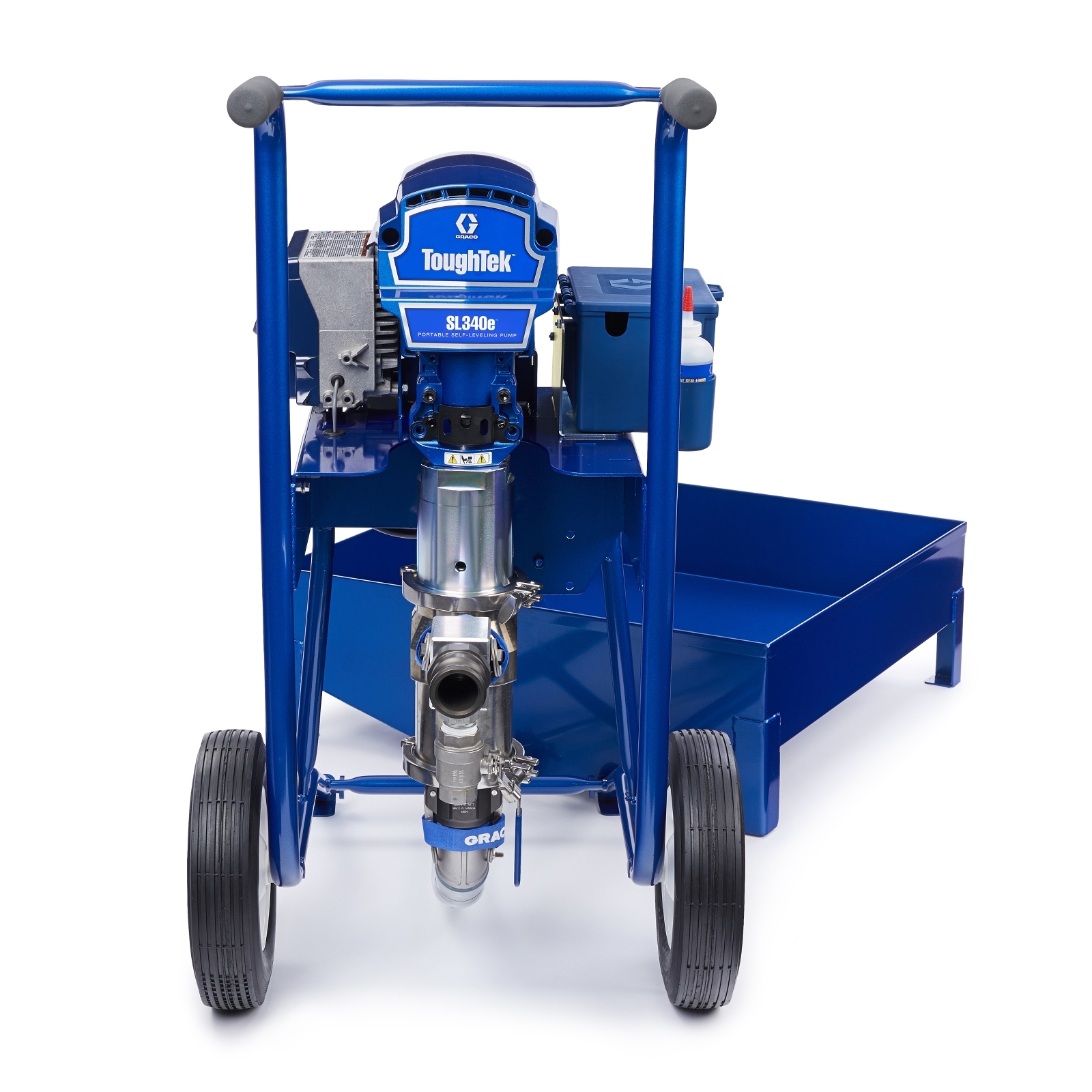

Quickly pump self-leveling underlayment to the floor using the Graco ToughTek SL340e piston pump. This easy-to-use machine can be fed with two to three barrel mixers and stationed near the pallets of material, saving your crew the back and forth time that comes with mixing and dumping. Simply plug into any 120V outlet and begin pumping up to 130 bags per hour.
- Pump up to 130 bags an hour so you get the job done sooner
- Only weighing 210 lbs it’s smaller and lighter than comparable high performance pumps
- Only requires a standard 120V wall outlet for maximum convenience
- Longer life from piston pump seals (compared to rotor stator pumps) with less maintenance
- Tool-less disassembly allows you to get from one job to another
Specifications & Documents
Technical Specifications
Convert to Metric| Compatible Material | Self-Leveling Underlayment |
|---|---|
| Fluid Outlet Size (in) | 1.5 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | Camlock |
| Maximum Flow Rate (GPM) | 12 |
| Maximum Fluid Working Pressure (psi) | 600 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Working Pressure (MPa) | 4.1 |
| Motor Type | Brushless |
| Pump Weight (lb) | 210 |
| Type | Piston Pump Package |
| Wetted Material | Stainless Steel, Plated Steel, Carbide, Urethane, PTFE, UHMWPE, LLDPE, Aluminum, Solvent-Resistant O-Ring |
| Compatible Material | Self-Leveling Underlayment |
| Fluid Outlet Size (cm) | 3.81 |
| Fluid Outlet Size (mm) | 38.1 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | Camlock |
| Maximum Flow Rate (L/min) | 45 |
| Maximum Operating Temperature (°C) | 49 |
| Maximum Working Pressure (MPa) | 4.1 |
| Maximum Working Pressure (bar) | 41.3 |
| Motor Type | Brushless |
| Type | Piston Pump Package |
| Wetted Material | Stainless Steel, Plated Steel, Carbide, Urethane, PTFE, UHMWPE, LLDPE, Aluminum, Solvent-Resistant O-Ring |
