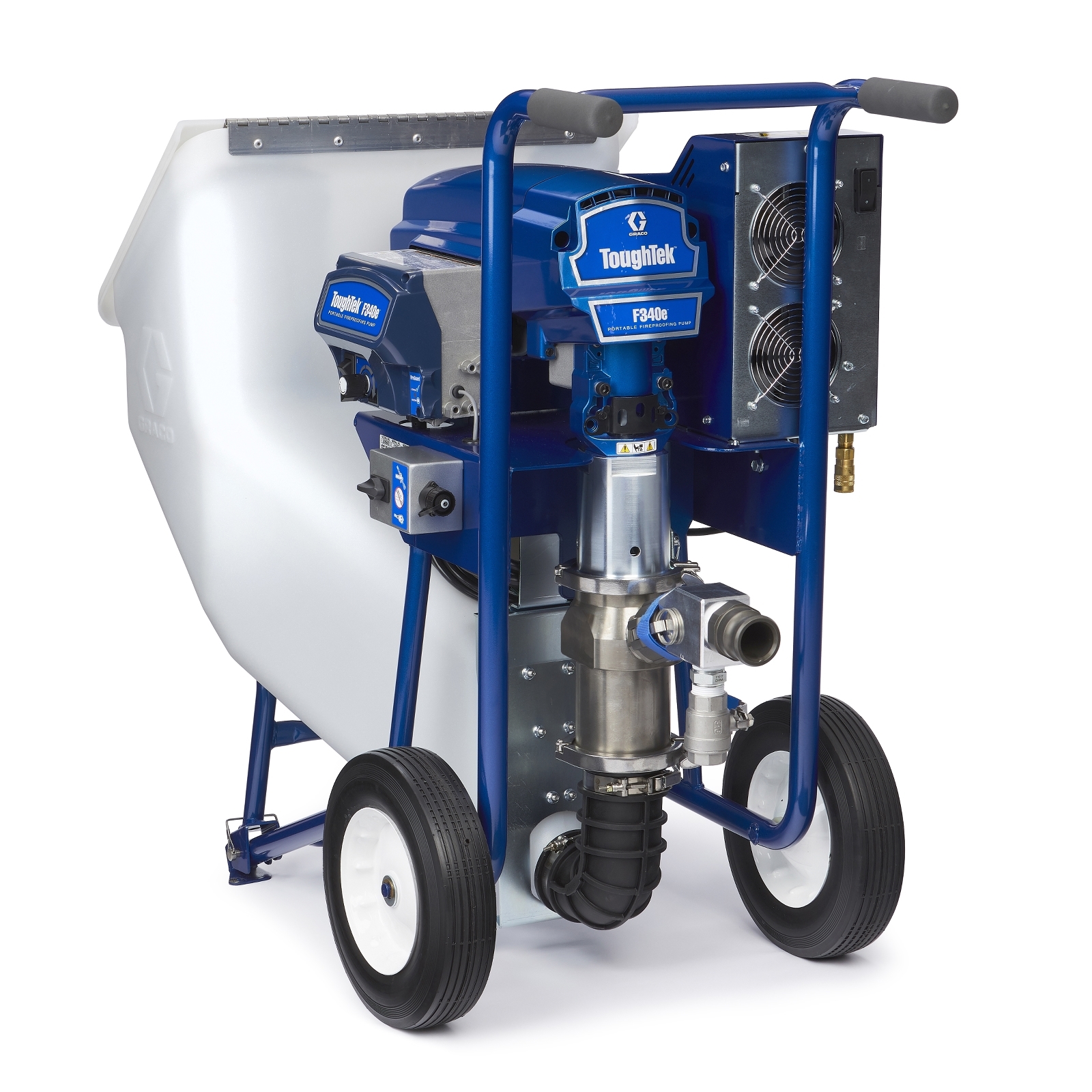

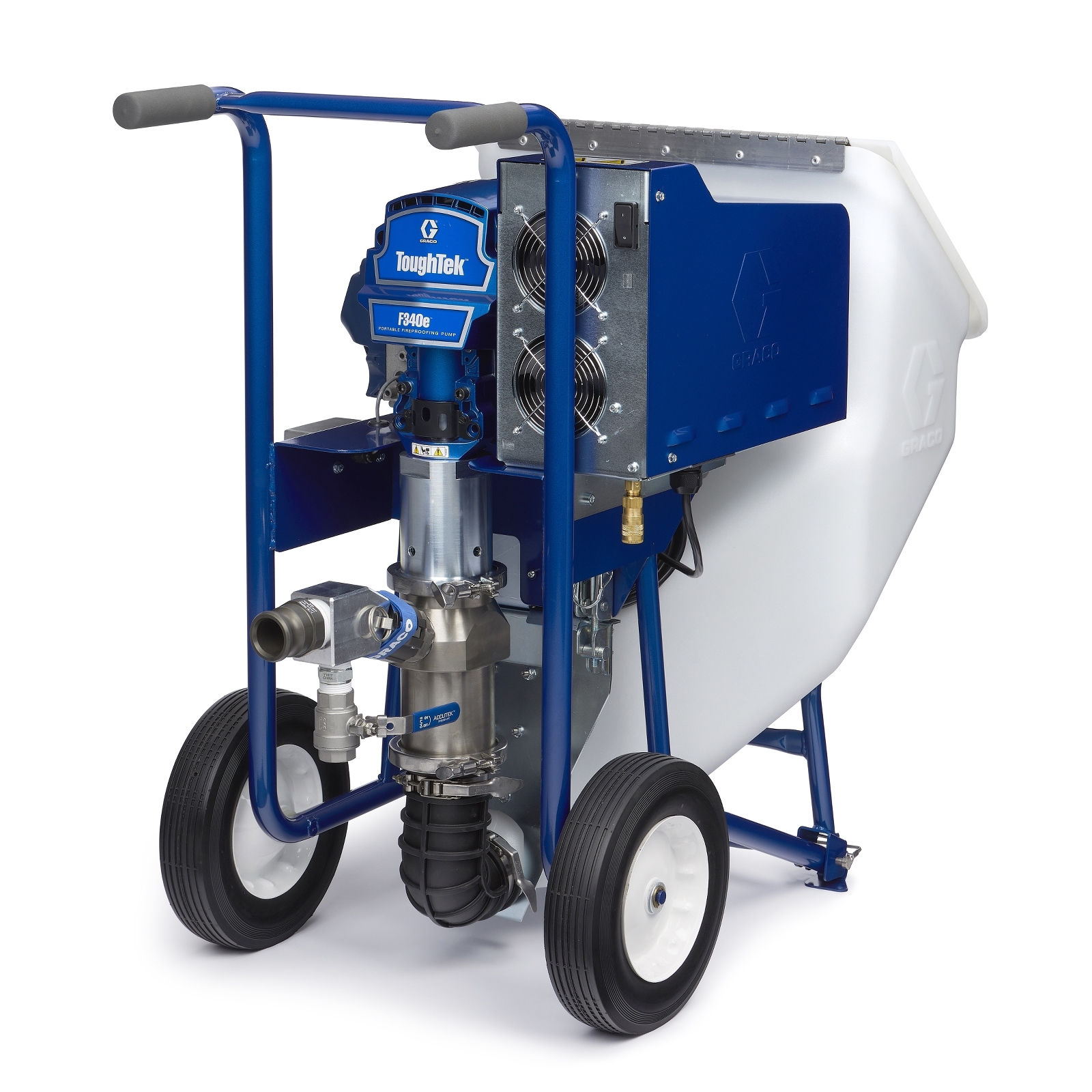

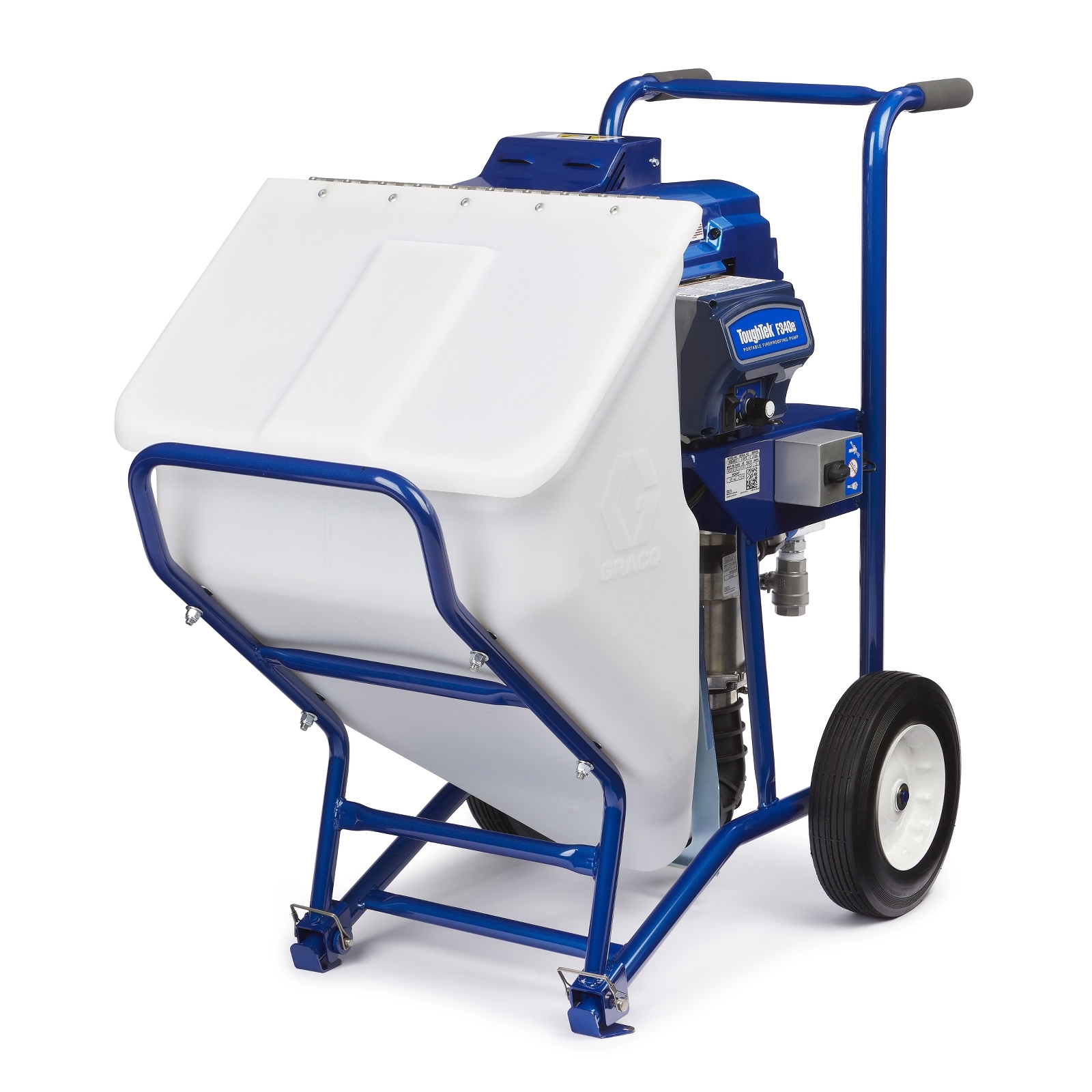

F340e-compressor-3Qtr-left-front F340e-compressor-3Qtr-right-front F340e-compressor-3Qtr-right-back

F340e

ToughTek F340e System with Compressor, 230V

25B556

Engineered with Graco’s proprietary piston pump technology, the ToughTek F340e piston pump is perfect for small to medium jobs that spray up to 100 bags per day and is capable of producing pressures of up to 600 psi using an energy efficient direct drive electric motor. This high pumping pressure wi... More Info

Features

Product Brochure
Engineered with Graco’s proprietary piston pump technology, the ToughTek F340e piston pump is perfect for small to medium jobs that spray up to 100 bags per day and is capable of producing pressures of up to 600 psi using an energy efficient direct drive electric motor. This high pumping pressure will allow your crew to spray up to 150 feet from the machine and pump 15 bags per hour.
  • Piston pump technology easily handles fireproofing materials
  • Gets projects done faster with high-pressure performance
  • Electric operation – plugs into a standard 120V, 15A wall outlet
  • Long lasting wear parts for more uptime, less downtime
  • Easy to use, simple to maintain
  • Ideal for fireproofing over structural steel or spray foam insulation
  • Features ProGuard System -Built-in protection system continually monitors operation -Dual LED indicators provide instant feedback while applying material -Automatically shuts pump off to protect from thermal overload or excessive pressure

Specifications

Technical Specifications

Convert to Metric
Application Fireproofing
Compatible Material Cementitious Material
Fluid Outlet Size (in) 1-1/2
Fluid Section Type 2-Ball
Hopper Capacity (gal) 20
Input Voltage (V ac) 230
Material Fireproofing
Material Output (bags/hr) 20
Maximum Continuous Cycle Rate (CPM) 150
Maximum Flow Rate (GPM) 12
Maximum Hose Length (ft) 150
Maximum Input Amperage (A) 10
Maximum Operating Temperature (°F) 120
Maximum Working Pressure (MPa) 4.1
Maximum Working Pressure (psi) 600
Minimum Operating Temperature (°F) 32
Motor Type Brushless
Portable Portable
Power Rating (HP) 2
Type Electric Piston Pump
Weight (lb) 205
Application Fireproofing
Compatible Material Cementitious Material
Fluid Outlet Size (mm) 38.1
Fluid Section Type 2-Ball
Input Voltage (V ac) 230
Material Fireproofing
Material Output (bags/hr) 20
Maximum Continuous Cycle Rate (CPM) 150
Maximum Flow Rate (L/min) 24.61
Maximum Input Amperage (A) 10
Maximum Operating Temperature (°C) 49
Maximum Working Pressure (MPa) 4.1
Maximum Working Pressure (bar) 41.8
Maximum Working Pressure (kPa) 4140
Minimum Operating Temperature (°C) 0
Motor Type Brushless
Portable Portable
Power Rating (HP) 2
Type Electric Piston Pump
Weight (kg) 118
