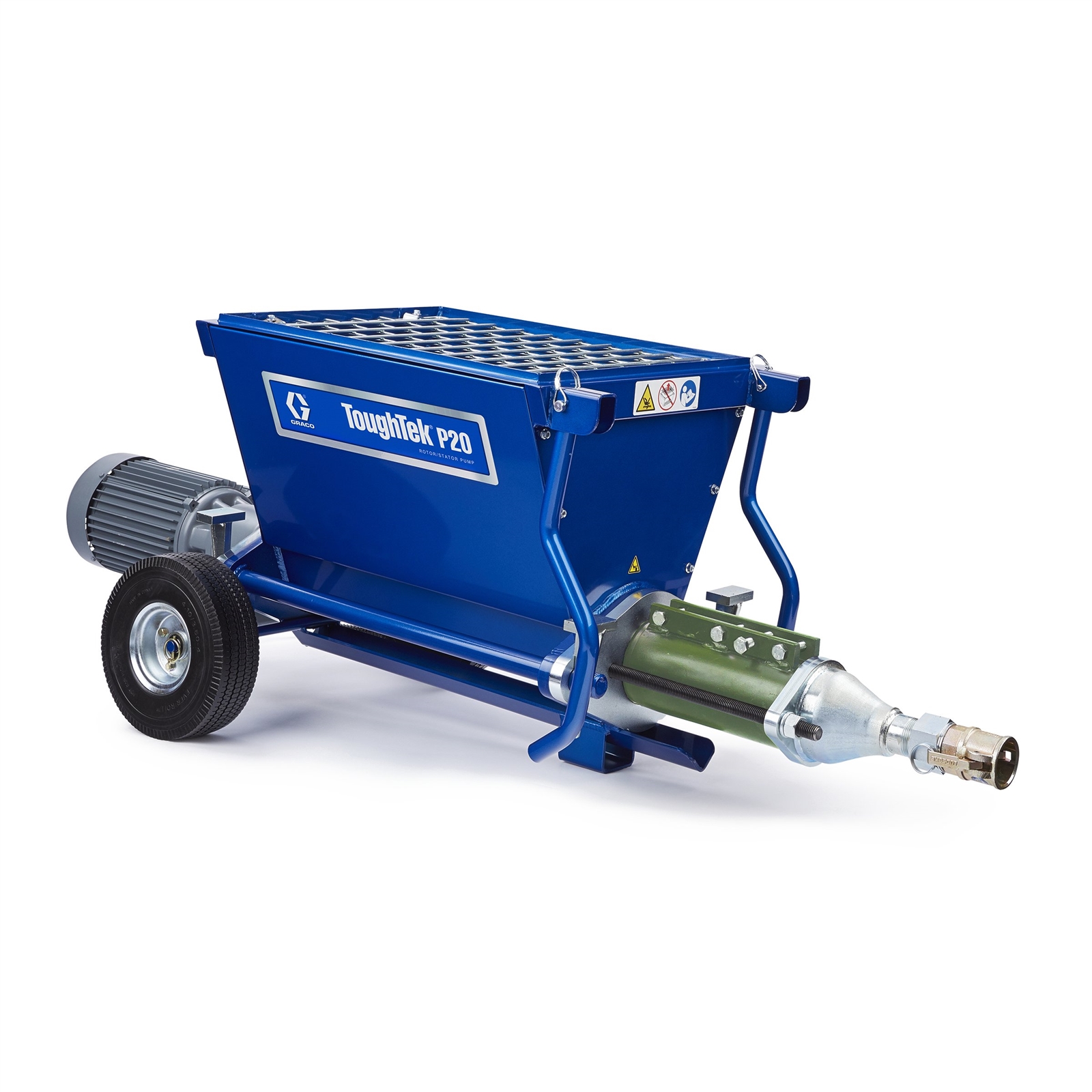

ToughTek P20

ToughTek P20 Rotor Stator Pump Package, 230V, 16A, 1Ph

25M133

ToughTek P20

ToughTek P20 Rotor Stator Pump Package, 230V, 16A, 1Ph

25M133

The smallest of the three P-Series pumps, the ToughTek P20 is ideal for medium sized plaster applications as well as small jobs like pointing, or filling the spaces between stone or grout. This pump provides longlasting durability and rugged performance for even the thickest mortar materials. In add...

More Info
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure

The smallest of the three P-Series pumps, the ToughTek P20 is ideal for medium sized plaster applications as well as small jobs like pointing, or filling the spaces between stone or grout. This pump provides longlasting durability and rugged performance for even the thickest mortar materials. In addition, its compact design and light weight make it easy to transport and use on the jobsite.

Built for mid-range mortar applications

  • Easy to use, easy to move
  • Variable pump output lets you adjust material flow

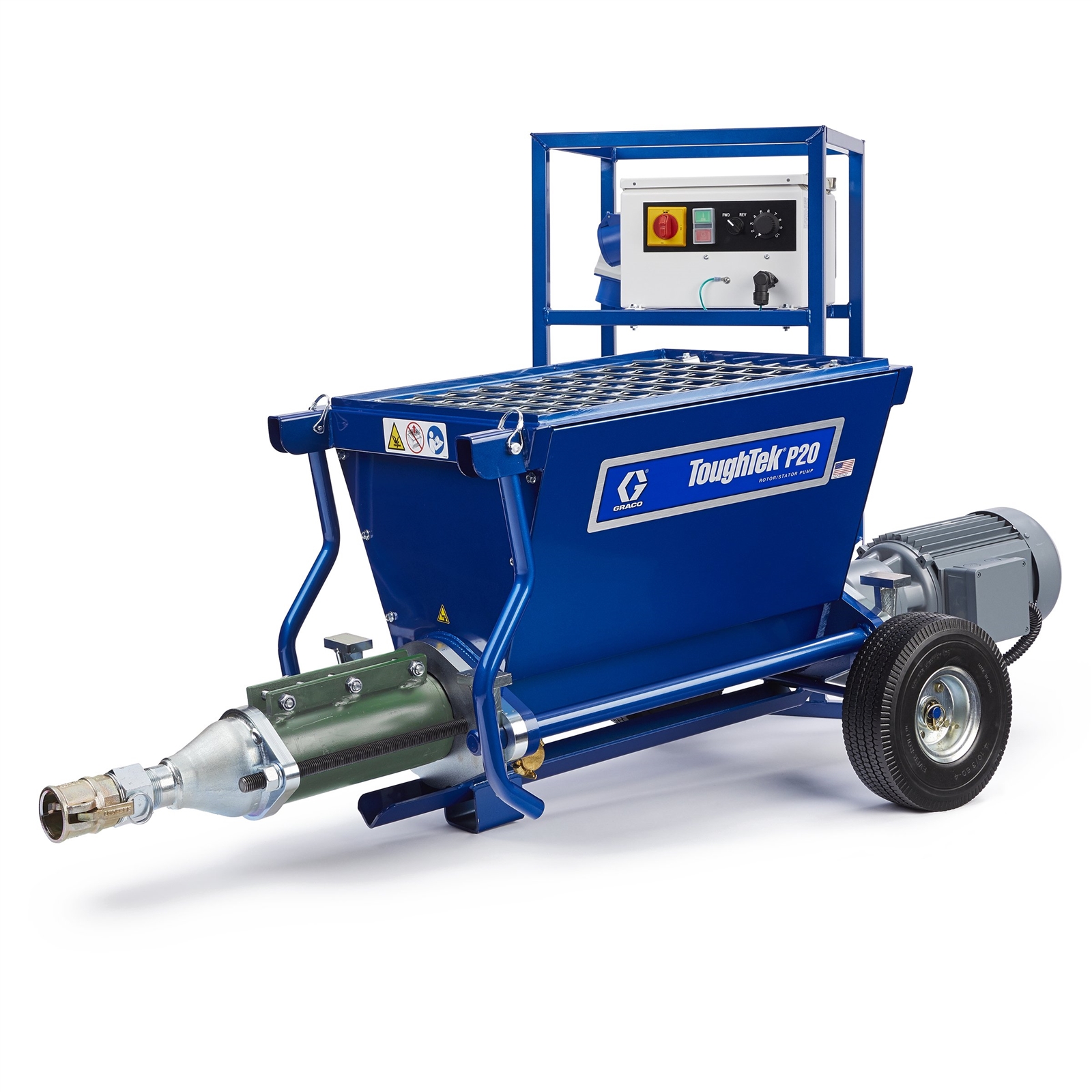

  • Optional remote control operation
  • Flow rate: 10 gpm (38 lpm)
  • Output (underlayment): 200 bags per hour (based on 50-lb/22.6 kg bags)
  • Pumping distance: 100 feet + (30 m)
  • Pumping height: 60 feet (18 m)
  • Reversible pump direction
  • Hopper capacity: 19 Gal (72 L)
  • Power requirements: 230V, 30A, 1-ph

Specifications & Documents

Technical Specifications

Convert to Metric
Compatible Material Water-Based Material
Fluid Inlet Size (in) 3
Fluid Outlet Size (in) 1-1/2
Fluid Outlet Thread Gender Male
Fluid Outlet Thread Type NPT
Hopper Capacity (gal) 19
Includes Applicator, Hose, Adapter
Material Output (bags/hr) 25
Maximum Flow Rate (GPM) 7.3
Maximum Hose Length (ft) 100
Maximum Input Amperage (A) 16
Maximum Operating Temperature (°F) 120
Maximum Solid Size (in) 1/4
Maximum Speed (RPM) 244
Maximum Working Pressure (MPa) 2.1
Maximum Working Pressure (psi) 300
Minimum Operating Temperature (°F) 32
Phase 1
Sound Pressure Level (dB(A)) 85
Type Electric Piston Pump
Voltage (V ac) 230
Weight (lb) 300
Wetted Material Tool Steel, Painted Steel, Plated Steel, PORON
Compatible Material Water-Based Material
Fluid Inlet Size (cm) 7.62
Fluid Inlet Size (mm) 76.2
Fluid Outlet Size (cm) 3.81
Fluid Outlet Size (mm) 38.1
Fluid Outlet Thread Gender Male
Fluid Outlet Thread Type NPT
Includes Applicator, Hose, Adapter
Material Output (bags/hr) 25
Maximum Flow Rate (L/min) 27.63
Maximum Input Amperage (A) 16
Maximum Operating Temperature (°C) 49
Maximum Solid Size (mm) 6
Maximum Speed (RPM) 244
Maximum Working Pressure (MPa) 2.1
Maximum Working Pressure (bar) 21
Maximum Working Pressure (kPa) 2100
Minimum Operating Temperature (°C) 0
Phase 1
Sound Pressure Level (dB(A)) 85
Type Electric Piston Pump
Voltage (V ac) 230
Weight (kg) 136
Wetted Material Tool Steel, Painted Steel, Plated Steel, PORON
