LineLazer ES 1000

LineLazer ES 1000 Electric Battery-Powered Airless Line Striper, 1 Manual Gun, 2 Batteries

25M315

The industry's first electric striper, the LineLazer ES 1000 is powered by a 100AH AGM battery and provides quiet, fume-free striping that is safe to use indoors while having the power and performance for outdoor jobs.

Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The industry's first electric striper, the LineLazer ES 1000 is powered by a 100AH AGM battery and provides quiet, fume-free striping that is safe to use indoors while having the power and performance for outdoor jobs.
  • No Engine Vibration

  • Allows for perfect lines on all surfaces and reduces user fatigue.
  • No Engine Vibration

  • Allows for perfect lines on all surfaces and reduces user fatigue.

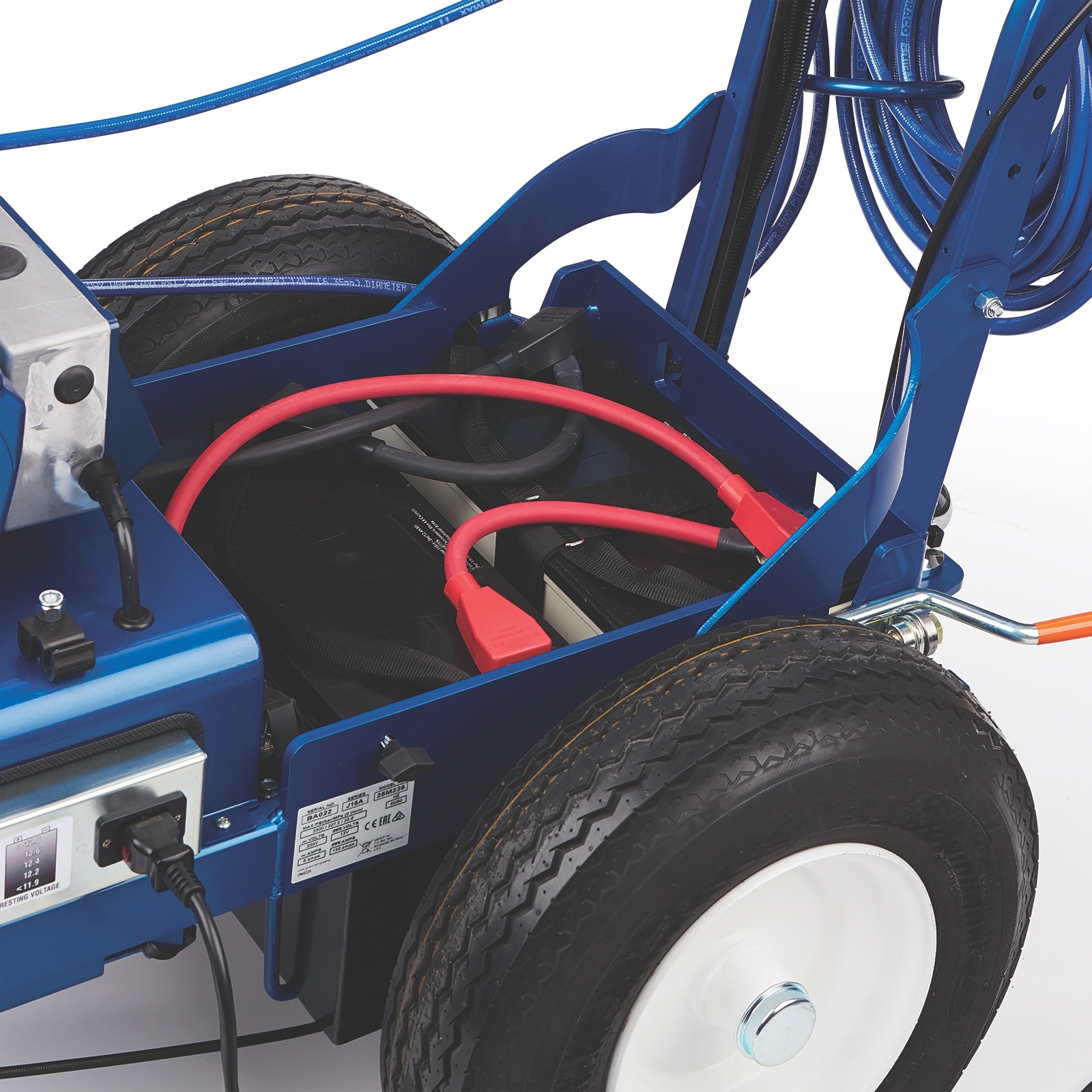

  • Deep Cycle 100AH AGM Battery

  • Maintenance-free sealed battery design for striping up to 20 gallons per charge. Adding a second battery connected in parallel increases capacity, reducing voltage drop while under load, and triples run time allowing you to stripe up to 60 gallons per charge.
  • On-board 12V Charger

  • Simply plug in to recharge, no need for battery removal.
  • 120V Capacity / 230V in EMEA

  • Get infinite striping time when using for stationary applications by running on 120V wall power (230V in EMEA). Just plug it in.
  • SmartControl 2.5
    • Advanced pressure control system delivers consistent spray fan resulting in unmatched line quality.
  • New ProConnect System

  • Industry-first for walk-behind stripers allows quick on the job pump replacement.

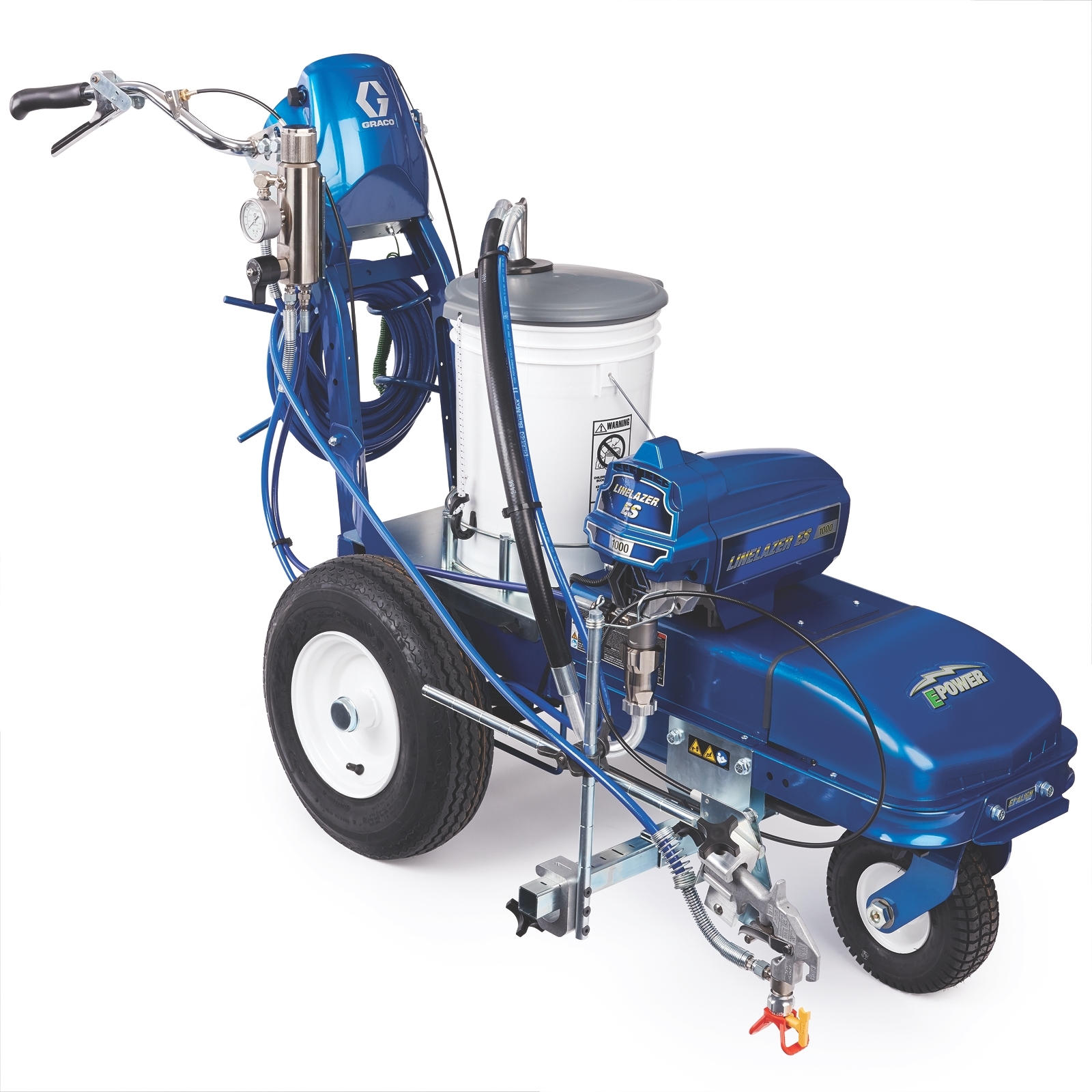

25M315_LineLazer_ES 1000_Main

Specifications

Technical Specifications

Convert to Metric
Bead System No Bead System
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Gun Activation Manual
Includes (2) 120 V Batteries, Flex Plus Gun, 1/4 in x 50 ft BlueMax II Airless Hose, LineLazer RAC 5 SwitchTip, 60 Mesh Easy Out Filter
Maximum Flow Rate (GPM) 0.6
Maximum Sound Pressure Level (dB(A)) 85.3
Maximum Tip Size (in) 0.025
Maximum Working Pressure (psi) 3300
Model LineLazer
Number of Colors One Color
Number of Guns 1
Number of Pumps 1
Power Source Battery Powered
Pump Type Endurance
Series ES 1000
Type Walk-Behind Line Striper
Weight (lb) 410
Bead System No Bead System
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Engine Brand Honda
Gun Activation Manual
Includes (2) 120 V Batteries, Flex Plus Gun, 1/4 in x 50 ft BlueMax II Airless Hose, LineLazer RAC 5 SwitchTip, 60 Mesh Easy Out Filter
Maximum Flow Rate (L/min) 2.27
Maximum Sound Pressure Level (dB(A)) 85.3
Maximum Tip Size (cm) 0.0635
Maximum Tip Size (mm) 0.635
Maximum Working Pressure (bar) 227.5
Maximum Working Pressure (kPa) 22750
Model LineLazer
Number of Colors One Color
Number of Guns 1
Number of Pumps 1
Power Source Battery Powered
Pump Type Endurance
Series ES 1000
Type Walk-Behind Line Striper
Weight (kg) 186.0
