LineLazer V ES 2000

LineLazer V ES 2000 Standard Series Electric Battery-Powered Airless Line Striper, 2 Manual Guns

25N550

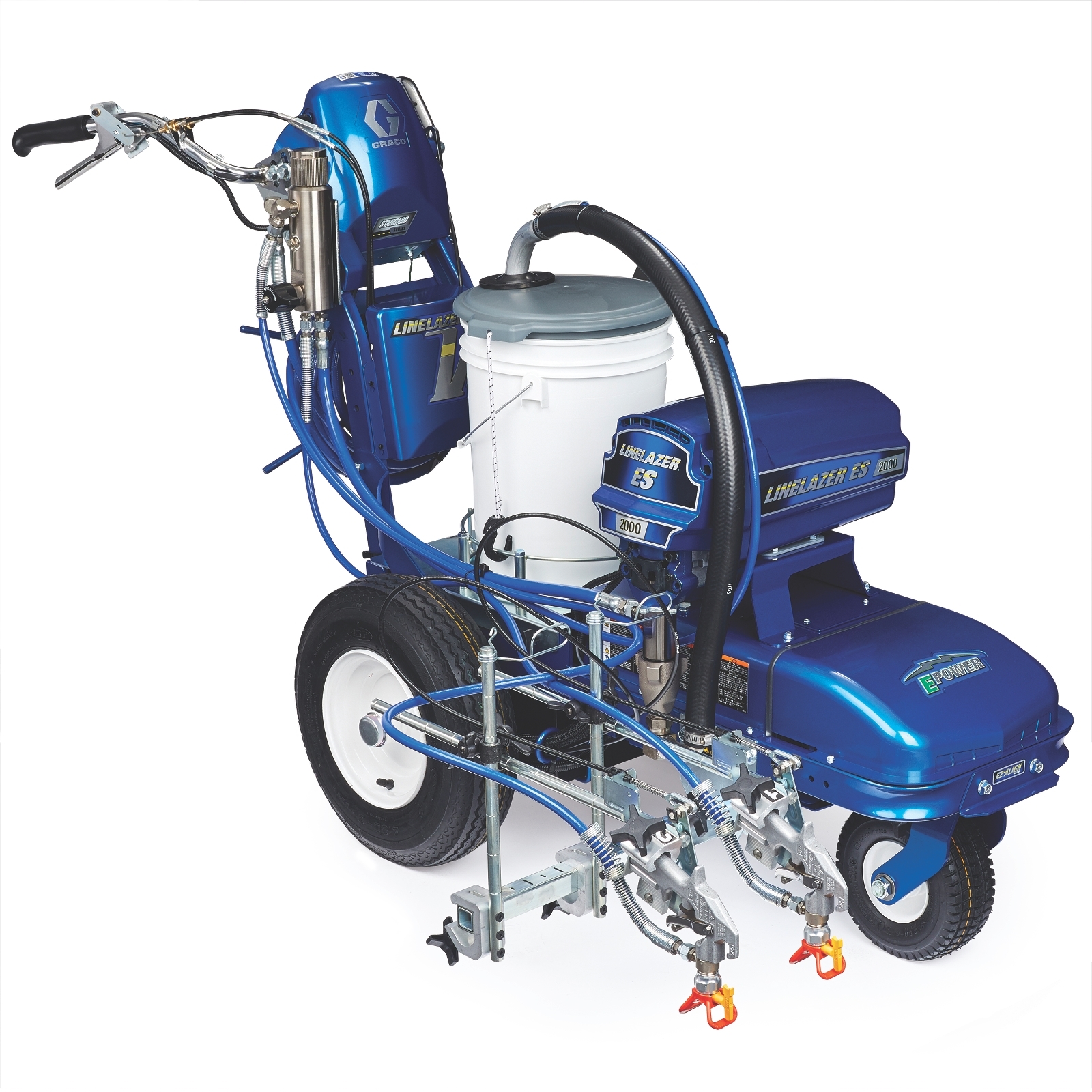

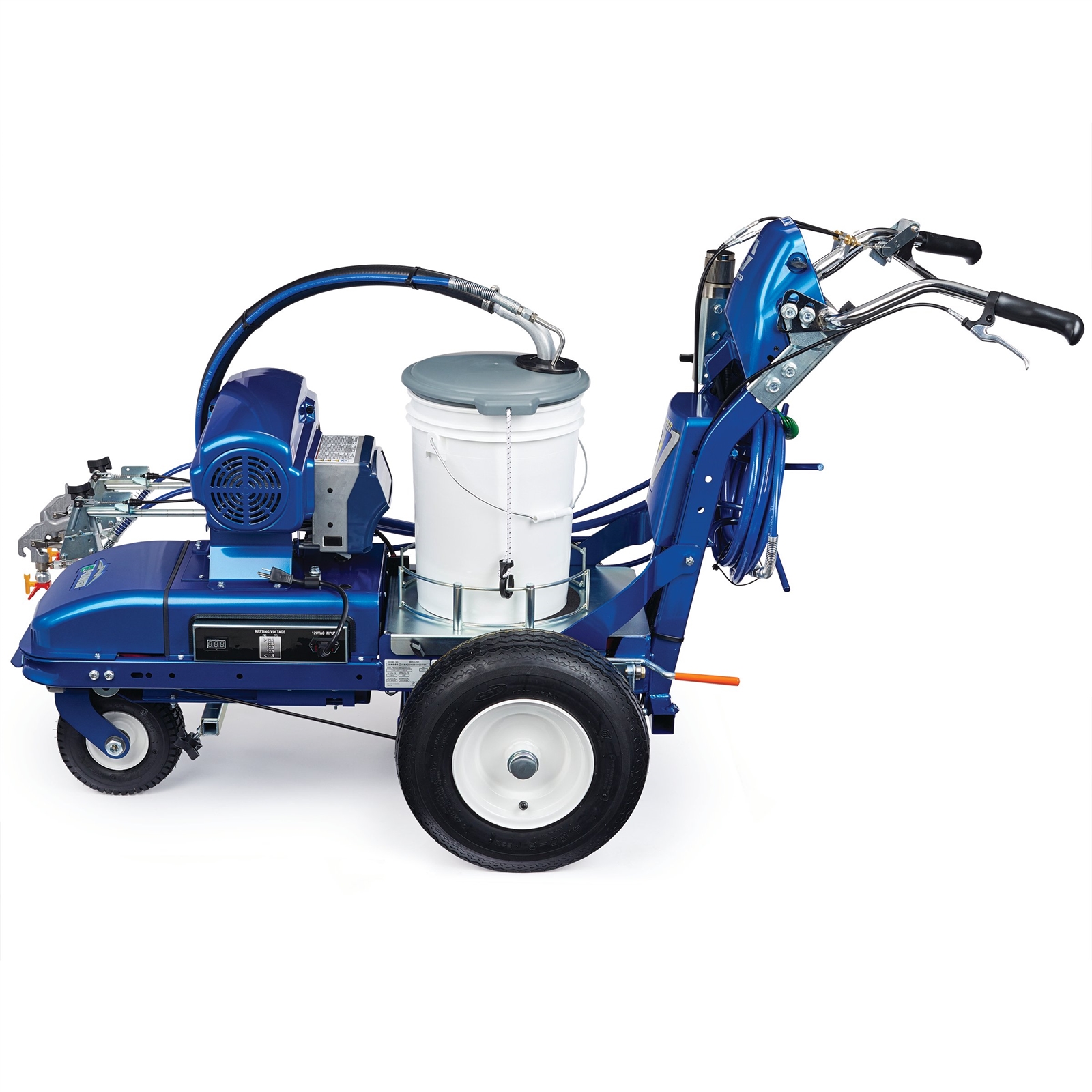

25N550_LineLazer_V_ES_2000_Standard_190604_Main 25N550_LineLazer_V_ES_2000_Standard_190604_Alt_1 25N550_LineLazer_V_ES_2000_Standard_190604_Alt_2

LineLazer V ES 2000

LineLazer V ES 2000 Standard Series Electric Battery-Powered Airless Line Striper, 2 Manual Guns

25N550

The LineLazer V ES 2000 provides fume-free, noise-free & vibration-free striping performance on any indoor job as well as the power and features to deliver the highest productivity needed to tackle large outdoor applications.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The LineLazer V ES 2000 provides fume-free, noise-free & vibration-free striping performance on any indoor job as well as the power and features to deliver the highest productivity needed to tackle large outdoor applications.

The LineLazer V Standard Series is ideal for the higher production re-striping contractor completing and considering larger re-striping jobs with basic pattern applications requiring a single-color, single or dual gun striping solution.

  • Two Sealed AGM Batteries
    • Quiet, Reliable Power
    • Maintenance-free design
    • Up to 60 gallons of run time
  • On-board 120V Inverter/Charger
    • Simple, Plug-in Charging
    • 120V wall power for stationary applications
  • LiveLook Display with SmartControl
    • Striping Information At-A-Glance
    • Track, measure and control every aspect of your job
    • Accessible proof-of-job data from the J-Log System with USB Download
    • Consistent spraying pressure for perfect lines
  • J-Log System with USB Download
    • Valuable Job Information
    • Proof of job = More striping opportunities
    • USB download capability allows you to capture and save all job data
  • MaxPower DC Motor & Advantage Drive
    • Maintenance-Free Power
    • Field proven brushless design
    • The longest lasting drive
    • Improved jobsite conditions with extremely quiet operation
  • EasyMark Gun Adjustment System
    • Easy Gun Adjustments
    • Perfect gun alignment every time with easy-to-use guide mark system
    • 2-gun capability with QuikSelect gun selector
  • EZ Align Wheel System
    • Perfect Striper Tracking
    • Simple front wheel alignment, no special tools needed
  • DualComfort Handlebar System
    • Easy Handlebar Adjustment
  • Endurance Chromex Pump
    • Reliable, Long-Life Pump
    • Industry-best pump performance — field-proven design
    • Handle the most demanding materials with long-life rod treatment
    • 4X harder than ordinary chrome
  • Additional Features
    • QuikSelect Gun Selector
    • Easy Out Pump Filter

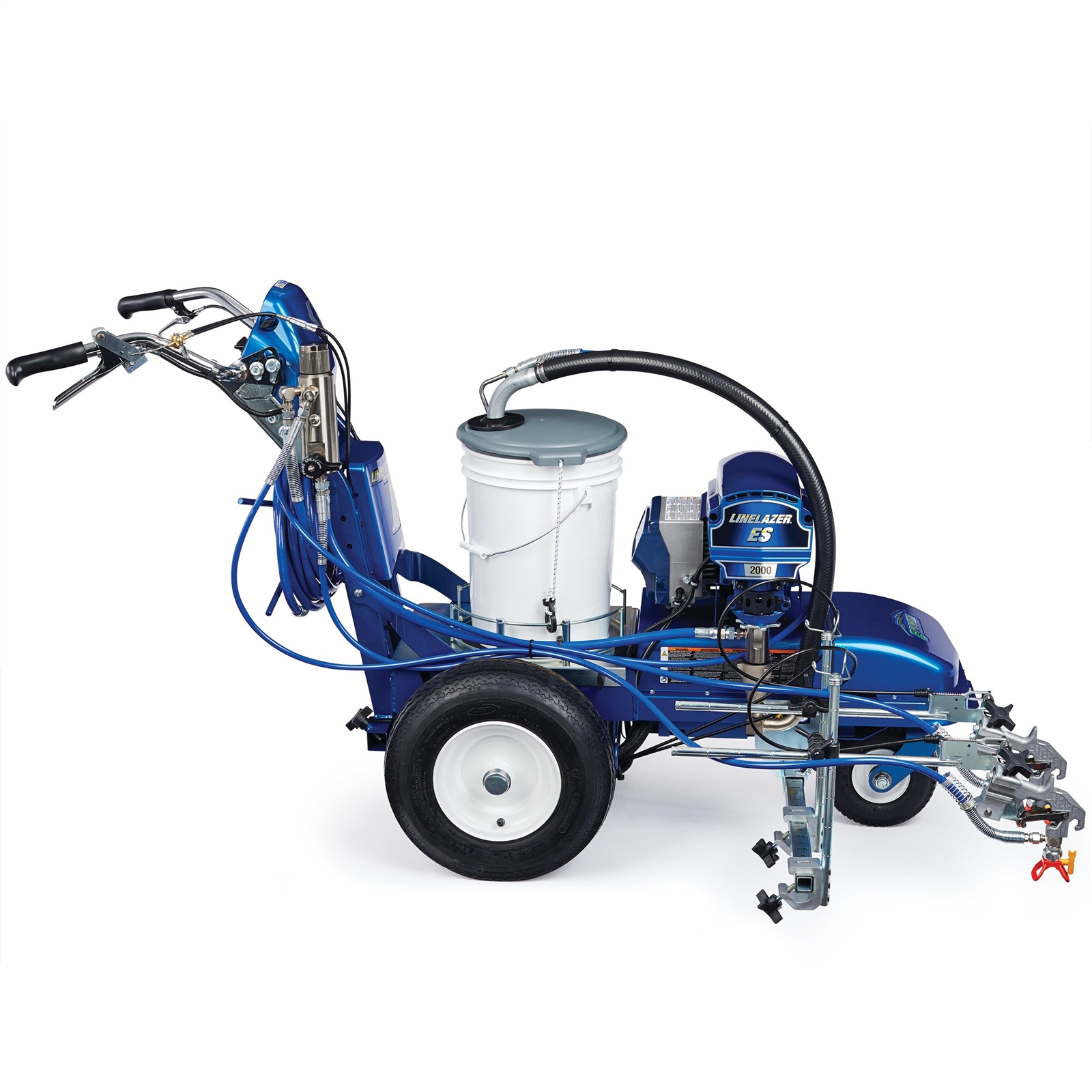

25N550_LineLazer_V_ES_2000_Standard_190604_Alt_1

Specifications

Technical Specifications

Convert to Metric
Bead System Optional
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Features SmartControl
Gun Activation Manual
Includes Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 22 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz
Maximum Flow Rate (GPM) 1.1
Maximum Tip Size (in) 0.033
Maximum Working Pressure (psi) 3300
Model LineLazer V
Number of Guns 2
Number of Pumps 1
Power Source Battery Powered
Pump Type Endurance
Series ES 2000
Type Walk-Behind Line Striper
Weight (lb) 430
Bead System Optional
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Features SmartControl
Gun Activation Manual
Includes Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 22 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz
Maximum Flow Rate (L/min) 4.1
Maximum Tip Size (cm) 0.0838
Maximum Tip Size (mm) 0.838
Maximum Working Pressure (bar) 228
Maximum Working Pressure (kPa) 22800
Model LineLazer V
Number of Guns 2
Number of Pumps 1
Power Source Battery Powered
Pump Type Endurance
Series ES 2000
Type Walk-Behind Line Striper
Weight (kg) 195

What's Included

Part No. Description Qty Unit
248157 Flex Plus Airless Spray Gun, 2 Finger Trigger, RAC 5 LineLazer 2 ea
LL5319 LineLazer RAC 5 SwitchTip, 319 2 ea
LL5421 LineLazer RAC 5 SwitchTip, 421 2 ea
243161 RAC 5 HandTite Tip Guard 2 ea
124884 HOSE, CPLD, 3/8" X 22' 1 ea
245226 HOSE, CPLD, 3/8" X 3' 1 ea
238049 TSL Throat Seal Liquid, 4 oz 1 ea
