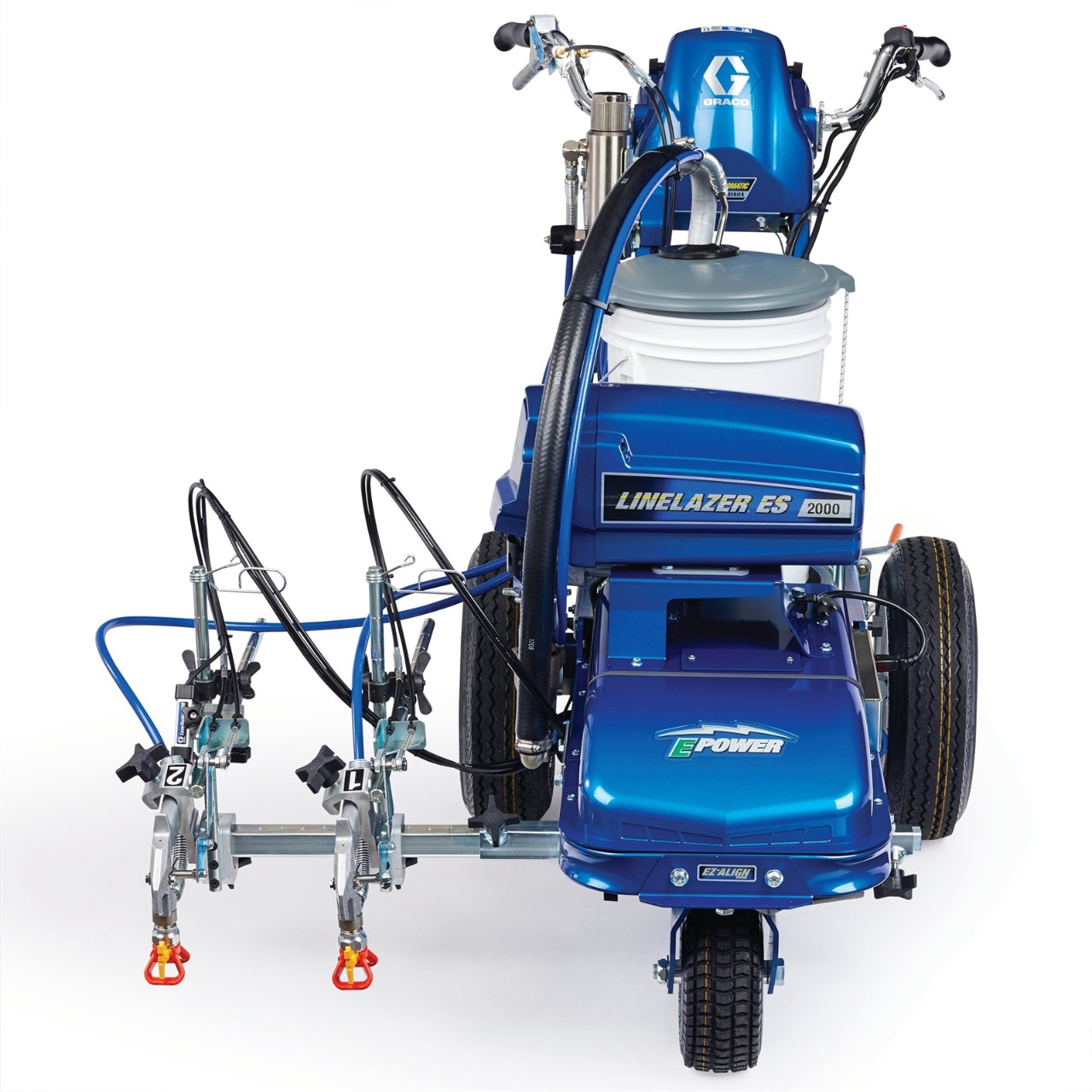

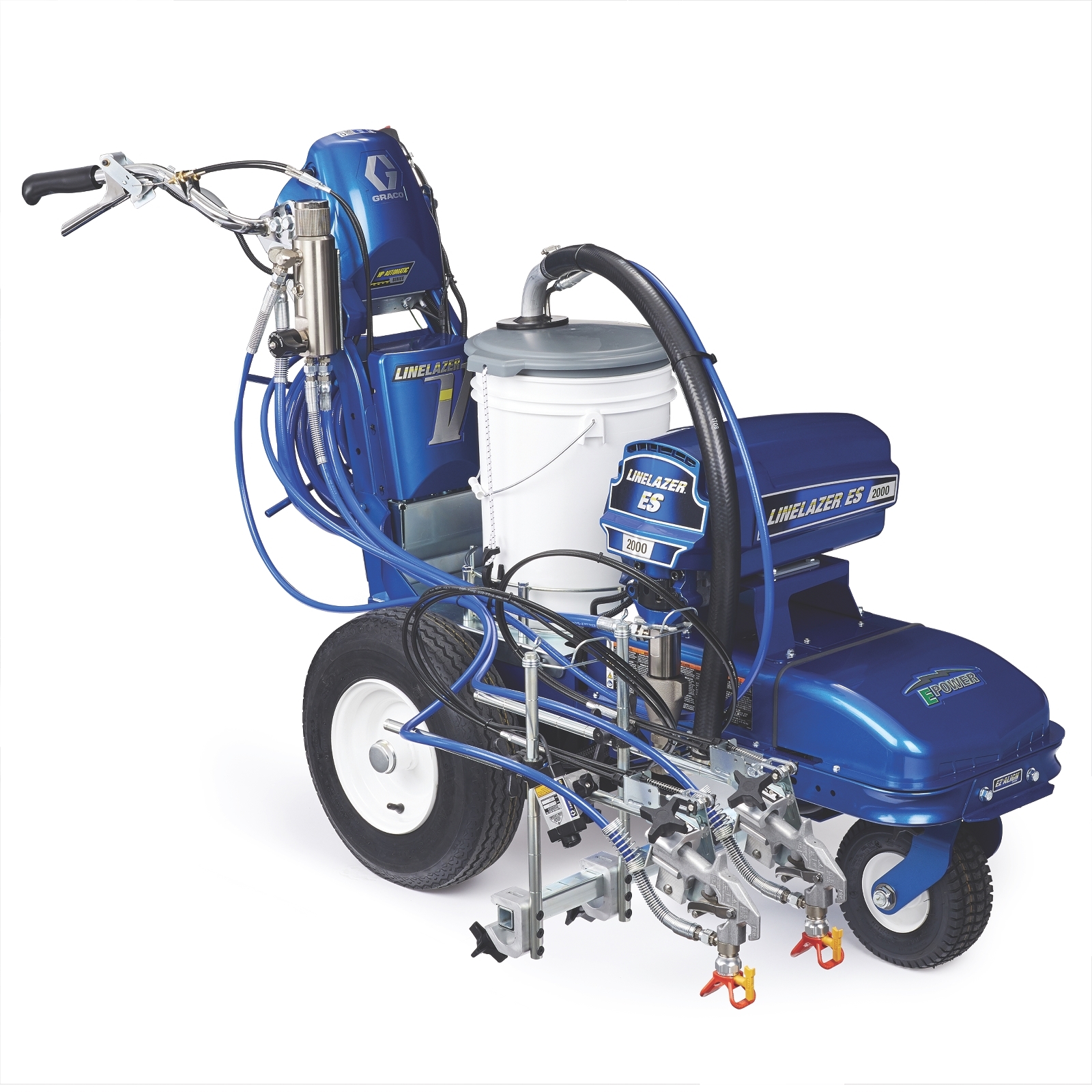

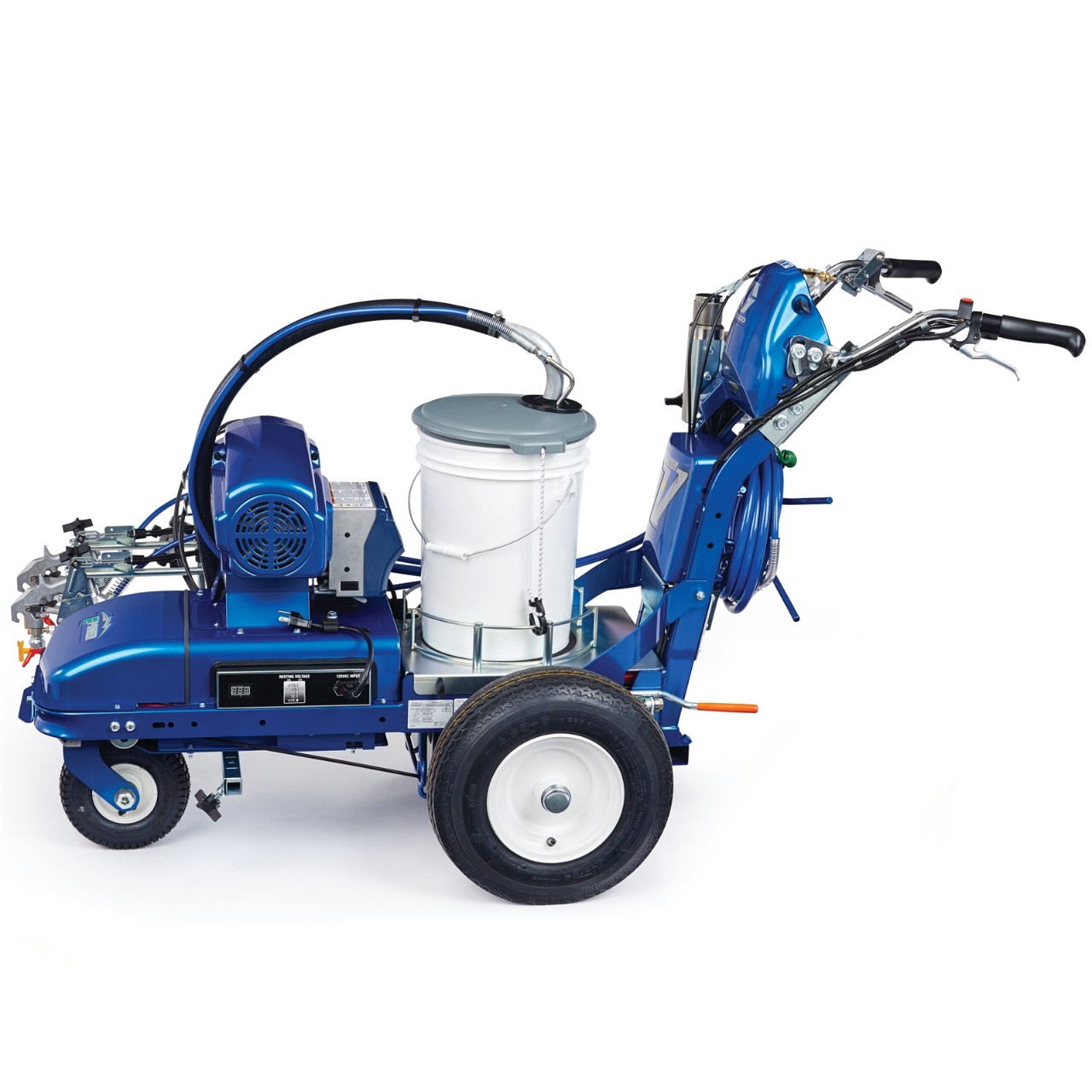

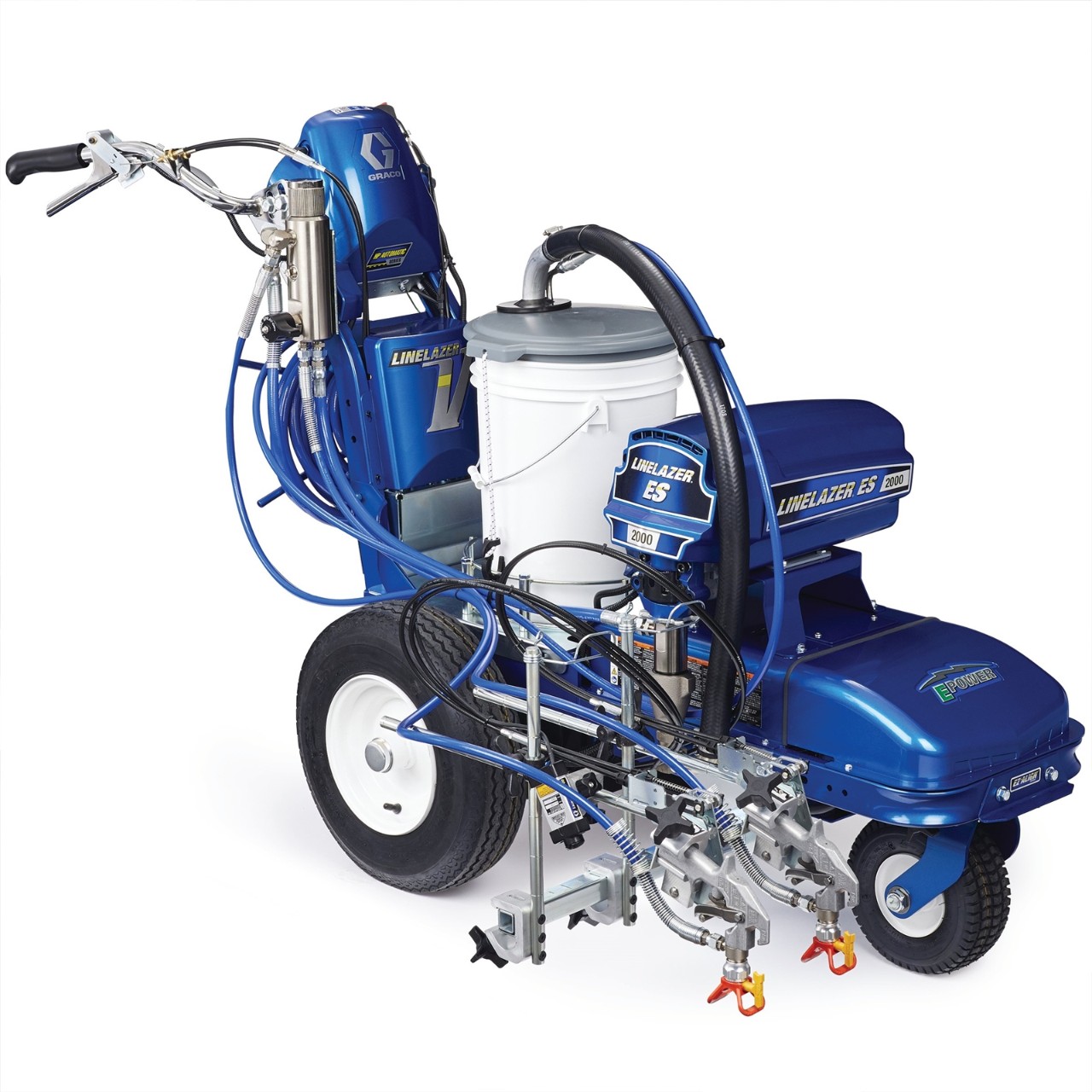

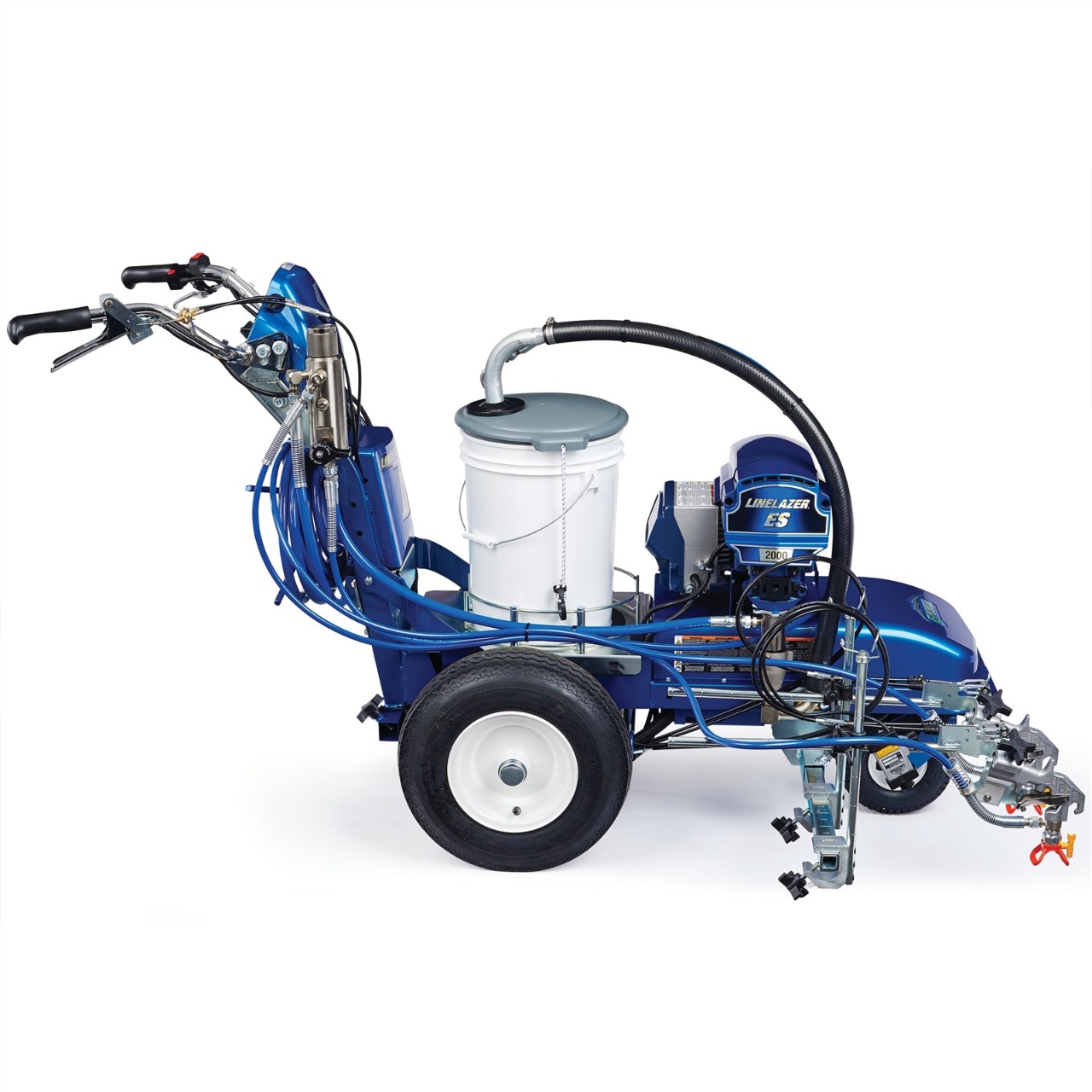

LineLazer V ES 2000

LineLazer V ES 2000 HP Automatic Series Electric Battery-Powered Airless Line Striper, 1 Auto Gun, 1 Manual Gun

25N551

25N551_LineLazer_V_ES_2000_HP_Automatic_190604_Main 25N551_LineLazer_V_ES_2000_HP_Automatic_190604_Alt_1 25N551_LineLazer_V_ES_2000_HP_Automatic_190604_Alt_2 25N551_LineLazer_V_ES_2000_HP_Automatic_190604_Alt_3 25N551_LineLazer_V_ES_2000_HP_Automatic_190604_Alt_5

LineLazer V ES 2000

LineLazer V ES 2000 HP Automatic Series Electric Battery-Powered Airless Line Striper, 1 Auto Gun, 1 Manual Gun

25N551

The LineLazer V ES 2000 HP Automatic Series with 1 Auto Gun and 1 Manual Gun provides automatic, fume-free, noise-free & vibration-free striping performance on any indoor job as well as the power and features to deliver the highest productivity needed to tackle large outdoor applications.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The LineLazer V ES 2000 HP Automatic Series with 1 Auto Gun and 1 Manual Gun provides automatic, fume-free, noise-free & vibration-free striping performance on any indoor job as well as the power and features to deliver the highest productivity needed to tackle large outdoor applications.

The HP Automatic Series adds enhanced features that provide contractors automatic line production capability, including skip-lines, as well as real-time job performance data for proof-of-job requirements.

  • Two Maintenance-Free Batteries
    • Quiet, Reliable Power
    • Sealed Lead-Acid 100AH AGM Batteries
    • Stripe up to 60 gallons per charge
  • Onboard 120V Inverter/Charger
    • Simple, Plug-in Charging
    • 120V wall power for stationary applications
  • Automatic Paint Gun System
    • Automatically Stripe Skip-Lines
    • Reduce operator fatigue — push button line production
    • Quality solenoid driven system
  • Auto-Layout II
    • Simplify Parking Lot Layout
    • SmartControl measures while you walk and puts down pre-marks
    • No need for measuring tape, string lines or aerosol cans
    • Cuts your layout time in half

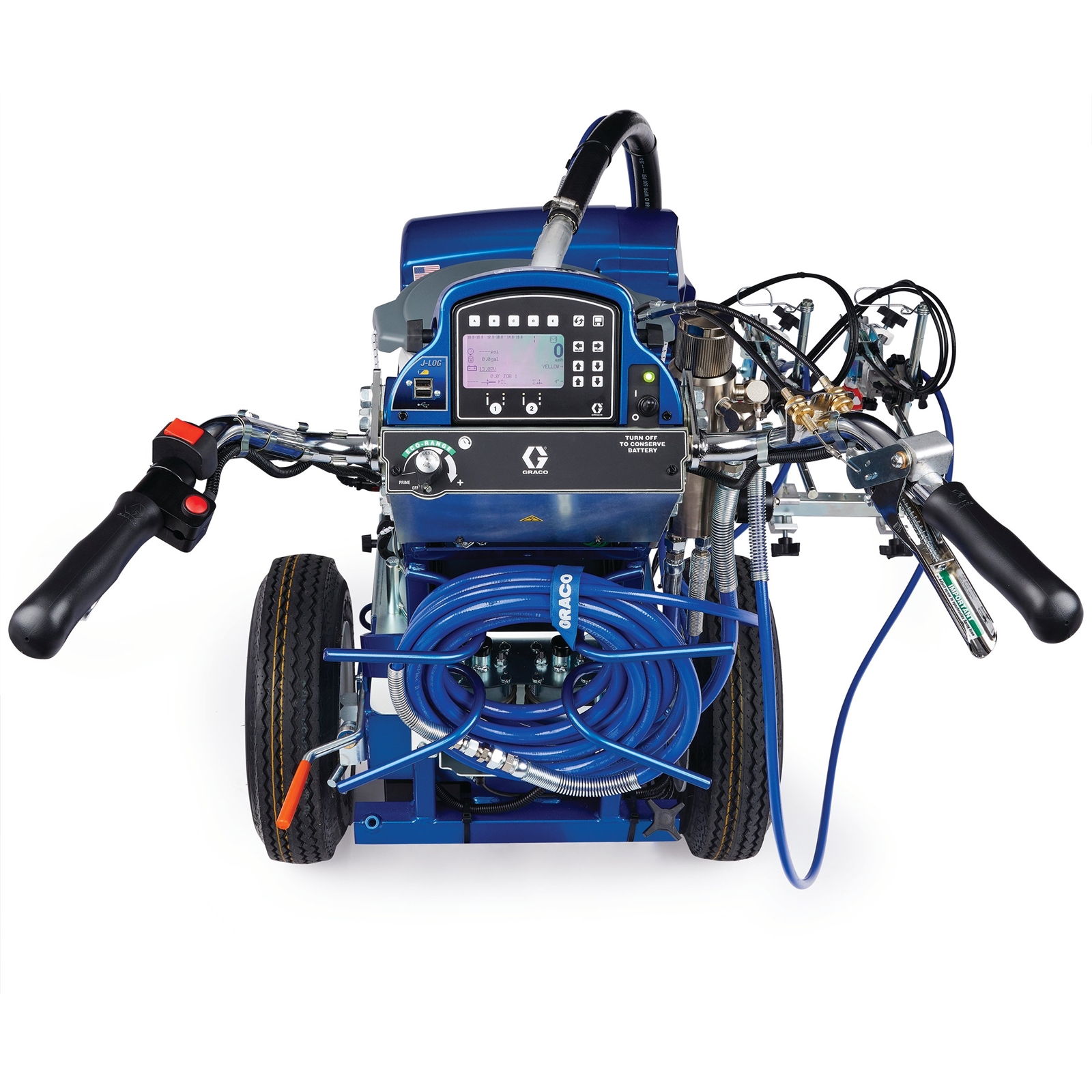

  • LiveLook Display with SmartControl
    • Striping Information At-A-Glance
    • Track, measure and control every aspect of your job
    • Accessible proof-of-job data from the J-Log System with USB Download
    • Consistent spraying pressure for perfect lines
  • J-Log System with USB Download
    • Valuable Job Information
    • Proof of job = More striping opportunities.
    • USB download capability allows you to capture and save all job data

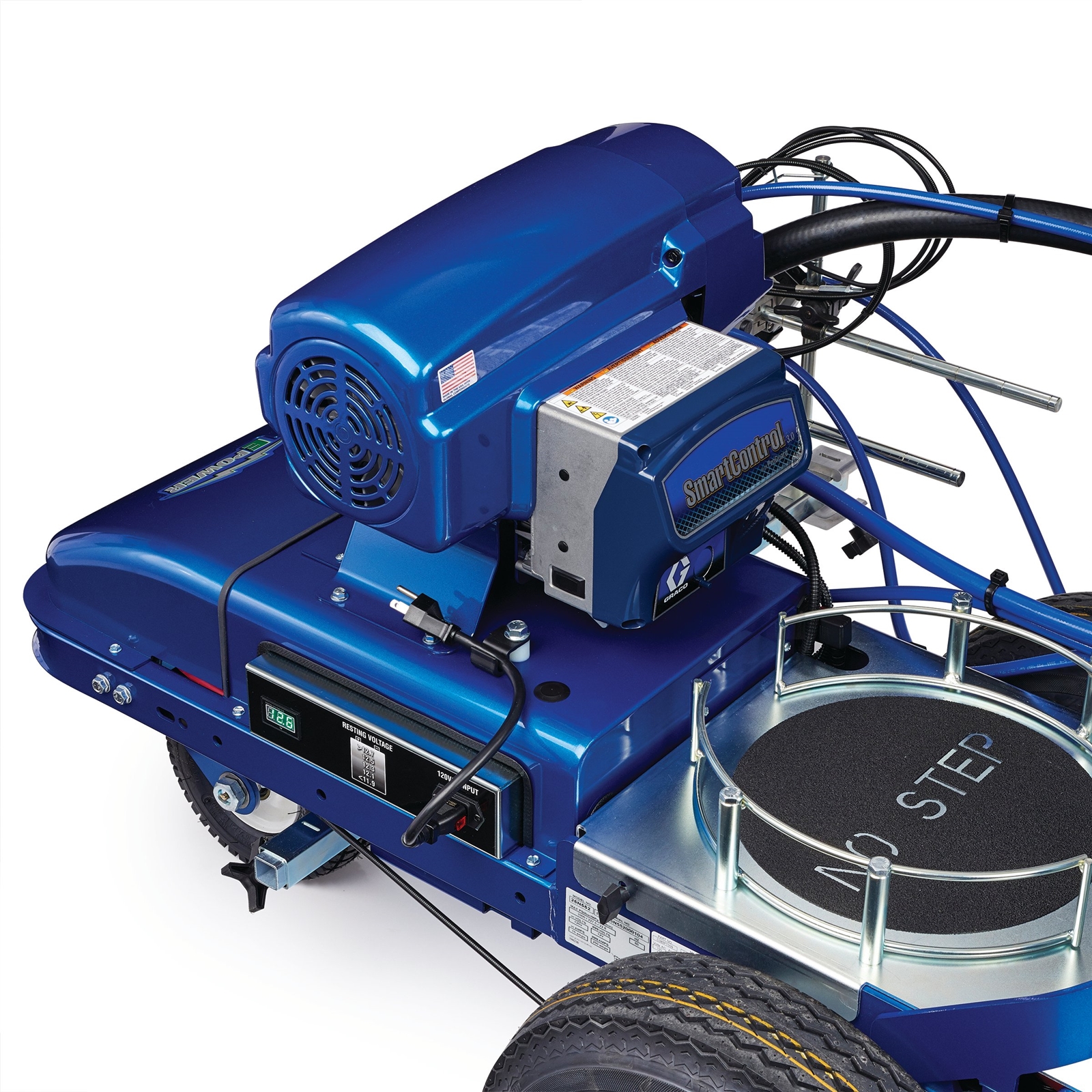

  • MaxPower DC Motor & Advantage Drive
    • Maintenance-Free Power
    • Field proven brushless design
    • The Longest Lasting Drive
    • Improved jobsite conditions with extremely quiet operation
  • EasyMark Gun Adjustment System
    • Easy Gun Adjustments
    • Perfect gun alignment every time with easy-to-use guide mark system
    • 2-gun capability with QuikSelect gun selector
  • EZ Align Wheel System
    • Perfect Striper Tracking
    • Simple front wheel alignment, no special tools needed
  • Additional Features
    • DualComfort Handlebar System
    • Endurance Chromex Pump
    • LazerGuide 1700 Start/Stop Laser
    • QuikSelect Gun Selector
    • Easy Out Pump Filter
25N551_LineLazer_V_ES_2000_HP_Automatic_190604_Alt_2

Specifications

Technical Specifications

Convert to Metric
Bead System Optional
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Features SmartControl
Gun Activation Manual, Automatic
Includes LazerGuide 1700 Start/Stop Laser, Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 22 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz
Maximum Flow Rate (GPM) 1.1
Maximum Tip Size (in) 0.033
Maximum Working Pressure (psi) 3300
Model LineLazer V
Number of Guns 2
Number of Pumps 1
Power Source Battery Powered
Pump Type Endurance
Series ES 2000
Type Walk-Behind Line Striper
Weight (lb) 440
Bead System Optional
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Features SmartControl
Gun Activation Manual, Automatic
Includes LazerGuide 1700 Start/Stop Laser, Flex Plus Gun (2), LineLazer RAC 5 319 Spray Tip (2), LineLazer RAC 5 421 Spray Tip (2), RAC 5 Tip Guard (2), 3/8 in x 22 ft BlueMax II Airless Hose, 3/8 in x 3 ft BlueMax II Airless Whip Hose, TSL, 4 oz
Maximum Flow Rate (L/min) 4.1
Maximum Tip Size (cm) 0.0838
Maximum Tip Size (mm) 0.838
Maximum Working Pressure (bar) 228
Maximum Working Pressure (kPa) 22800
Model LineLazer V
Number of Guns 2
Number of Pumps 1
Power Source Battery Powered
Pump Type Endurance
Series ES 2000
Type Walk-Behind Line Striper
Weight (kg) 200

What's Included

Part No. Description Qty Unit
248157 Flex Plus Airless Spray Gun, 2 Finger Trigger, RAC 5 LineLazer 2 ea
LL5319 LineLazer RAC 5 SwitchTip, 319 2 ea
LL5421 LineLazer RAC 5 SwitchTip, 421 2 ea
243161 RAC 5 HandTite Tip Guard 2 ea
124884 HOSE, CPLD, 3/8" X 22' 1 ea
245226 HOSE, CPLD, 3/8" X 3' 1 ea
238049 TSL Throat Seal Liquid, 4 oz 1 ea
