LineLazer ES 1000

LineLazer ES 1000 Electric Battery-Powered Airless Line Striper, 2 Batteries

25N784

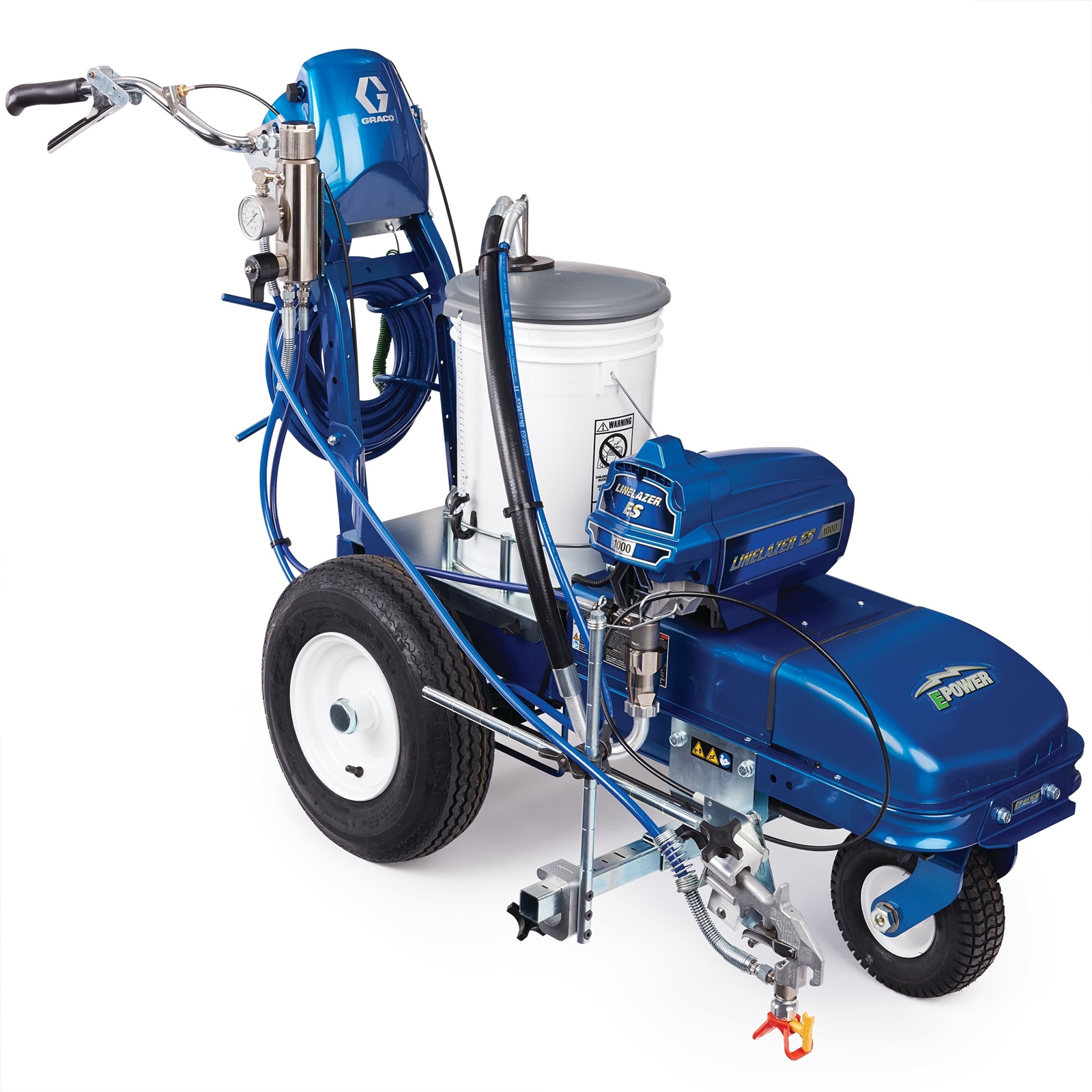

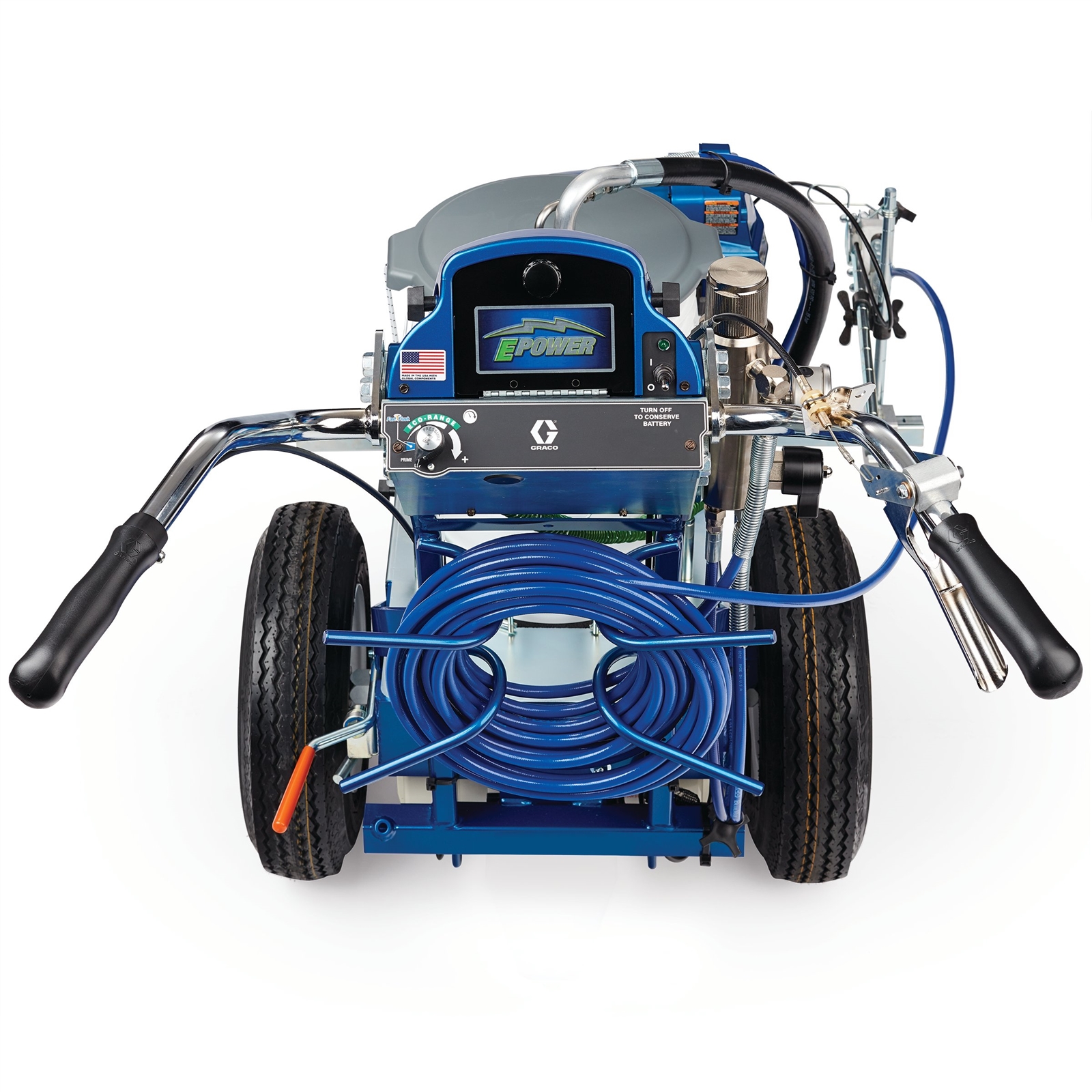

25N784_LineLazer_ES_1000_190604_Main 25N784_LineLazer_ES_1000_190604_Alt_1 25N784_LineLazer_ES_1000_190604_Alt_2

LineLazer ES 1000

LineLazer ES 1000 Electric Battery-Powered Airless Line Striper, 2 Batteries

25N784

The industry's first electric striper, this LineLazer ES 1000 is powered by two 100AH AGM batteries and provides quiet, fume-free striping that is safe to use indoors while having the power and performance for outdoor jobs.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Features

Product Brochure
The industry's first electric striper, this LineLazer ES 1000 is powered by two 100AH AGM batteries and provides quiet, fume-free striping that is safe to use indoors while having the power and performance for outdoor jobs.

The two maintenance-free batteries provide up to 60 gallons of continuous striping on a single charge to help tackle larger jobs faster.

  • 2 Maintenance-Free Batteries
    • Quiet, Reliable Power
    • Sealed Lead-Acid 100AH AGM Batteries
    • Stripe up to 60 gallons per charge
  • Onboard 120V Inverter/Charger
    • Simple, Plug-in Charging
    • 120V wall power for stationary applications
  • SmartControl 2.5
    • Consistent Spray Fan
    • Eliminates pressure fluctuation for unmatched line quality
  • FastFlush System
    • Fast Cleaning Now Even FASTER
    • Faster motor speed
    • Clean the pump 4X faster with only ½ the water
  • MaxPower DC Motor & Advantage Drive
    • Maintenance-Free Power
    • Field proven brushless design
    • The Longest Lasting Drive
    • Improved jobsite conditions with extremely quiet operation
  • EasyMark Gun Adjustment System
    • Easy Gun Adjustments
    • Perfect gun alignment every time with easy-to-use guide mark system
    • 2-gun capability with QuikSelect gun selector
  • EZ Align Wheel System
    • Perfect Striper Tracking
    • Simple front wheel alignment, no special tools needed
  • DualComfort Handlebar System
    • Easy Handlebar Adjustment
  • Endurance Chromex Pump
    • Reliable, Long-Life Pump
    • Industry-best pump performance — field-proven design
    • Handle the most demanding materials with long-life rod treatment
    • 4X harder than ordinary chrome
  • Additional Features

    • Exclusive LineLazer Cart
    • QuikSelect Gun Selector
    • Easy Out Pump Filter

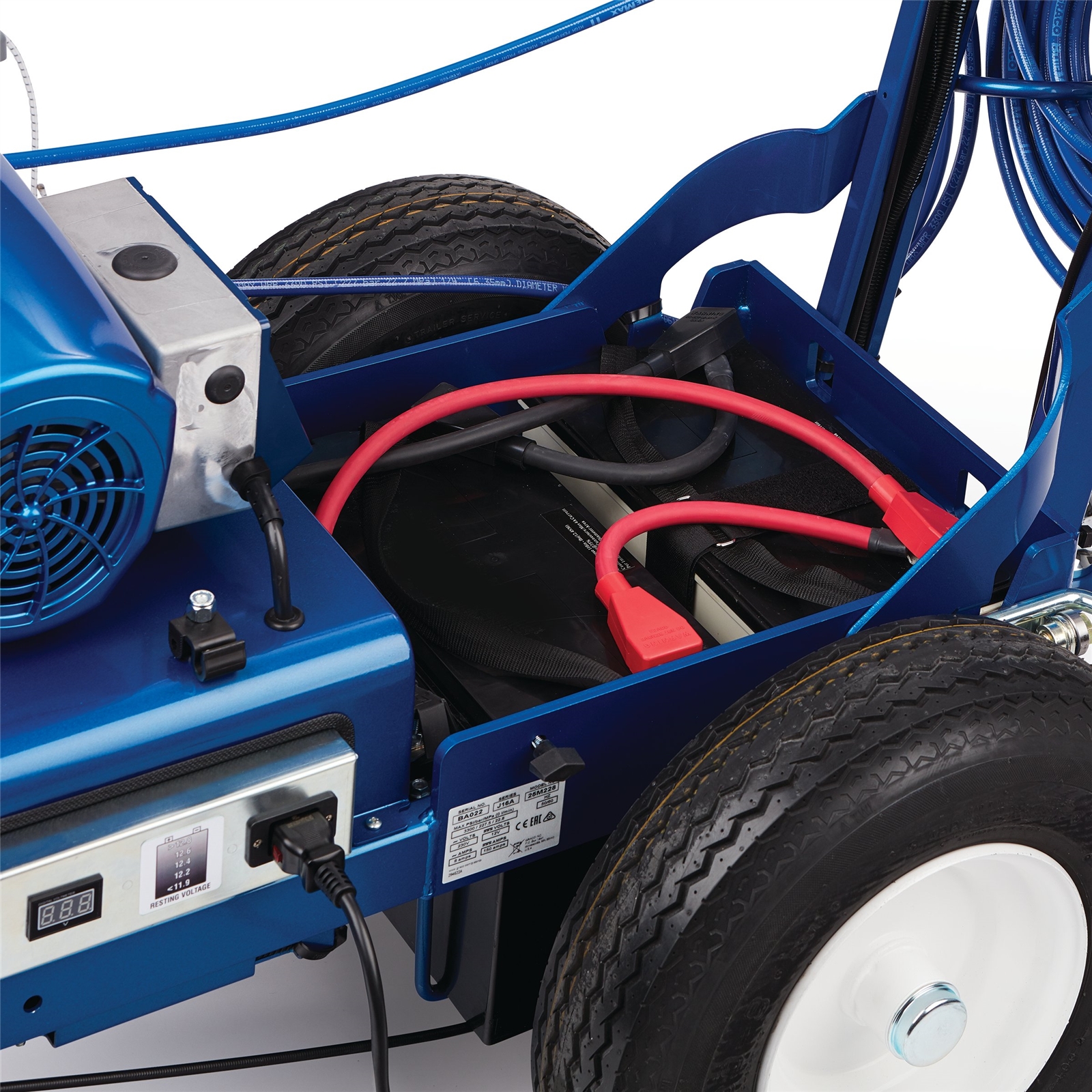

25N784_LineLazer_ES_1000_190604_Alt_2

Specifications

Technical Specifications

Convert to Metric
Bead System Optional
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Gun Activation Manual
Includes Flex Plus Gun, LineLazer RAC 5 319 Spray Tip, LineLazer RAC 5 421 Spray Tip, RAC 5 Tip Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL, 4 oz
Maximum Flow Rate (GPM) 0.60
Maximum Tip Size (in) 0.025
Maximum Working Pressure (psi) 3300
Model LineLazer
Number of Guns 1
Power Rating (AH) 100
Power Source Battery Powered
Pump Type Endurance
Series ES 1000
Type Walk-Behind Line Striper
Weight (lb) 410
Bead System Optional
Compatible Material Road-Marking Paint
Compatible Surfaces Pavement, Turf
Gun Activation Manual
Includes Flex Plus Gun, LineLazer RAC 5 319 Spray Tip, LineLazer RAC 5 421 Spray Tip, RAC 5 Tip Guard, 1/4 in x 50 ft BlueMax II Airless Hose, TSL, 4 oz
Maximum Flow Rate (L/min) 2.27
Maximum Tip Size (cm) 0.0635
Maximum Tip Size (mm) 0.6350
Maximum Working Pressure (bar) 228
Maximum Working Pressure (kPa) 22800
Model LineLazer
Number of Guns 1
Power Rating (AH) 100
Power Source Battery Powered
Pump Type Endurance
Series ES 1000
Type Walk-Behind Line Striper
Weight (kg) 18.6140

What's Included

Part No. Description Qty Unit
248157 Flex Plus Airless Spray Gun, 2 Finger Trigger, RAC 5 LineLazer 1 ea
LL5319 LineLazer RAC 5 SwitchTip, 319 1 ea
LL5421 LineLazer RAC 5 SwitchTip, 421 1 ea
243161 RAC 5 HandTite Tip Guard 1 ea
240794 BlueMax II Airless Hose, 1/4 in x 50 ft 1 ea
238049 TSL Throat Seal Liquid, 4 oz 1 ea
