Z60

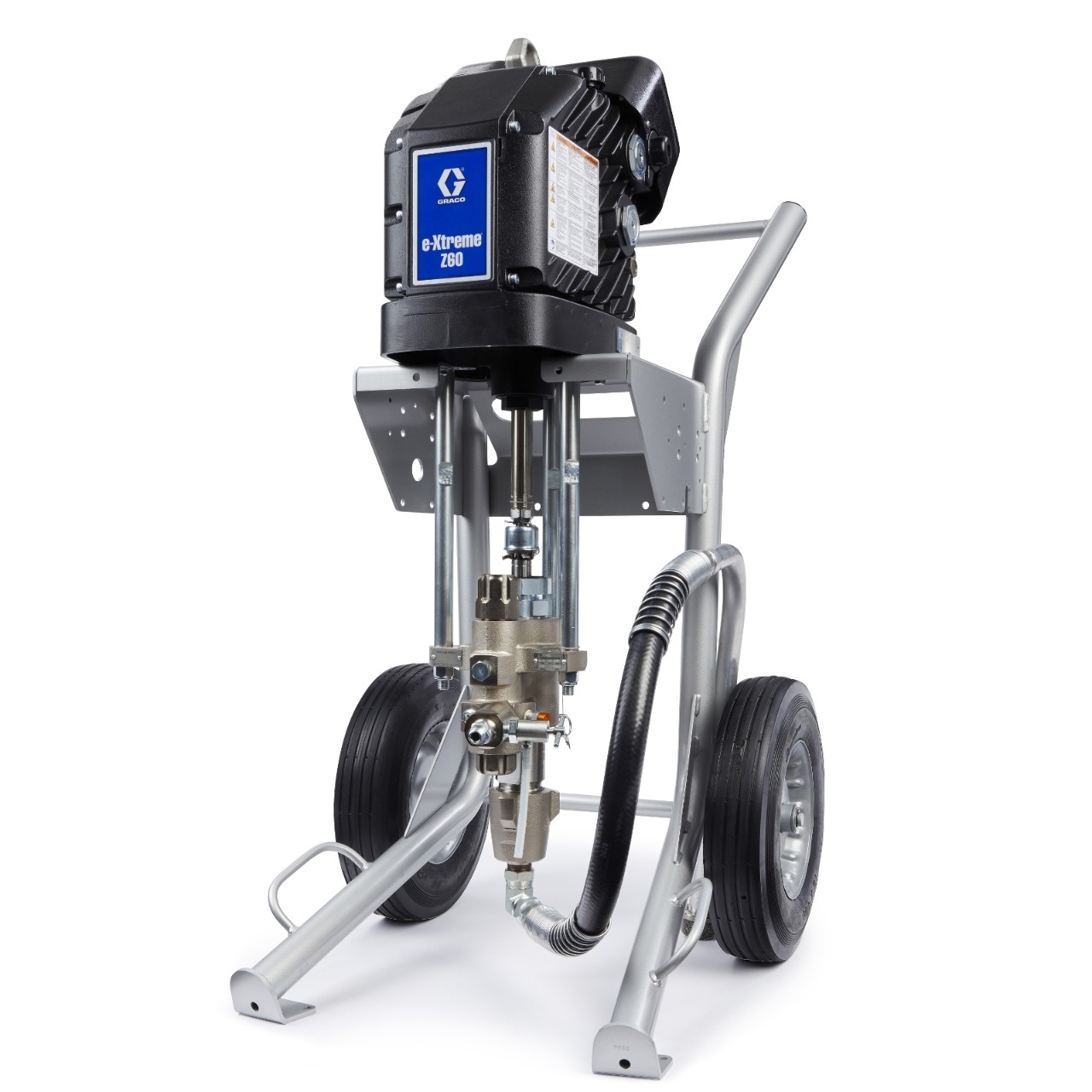

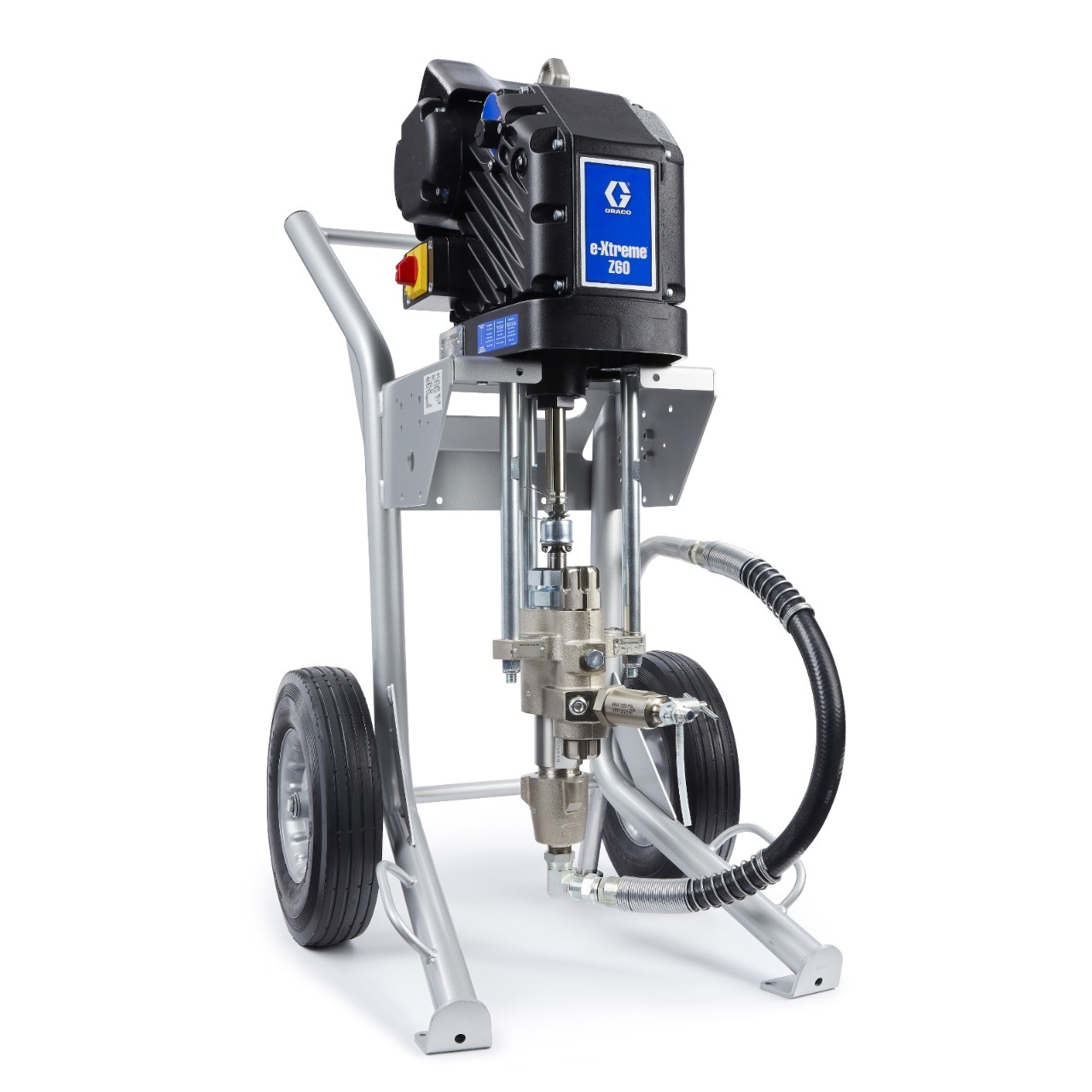

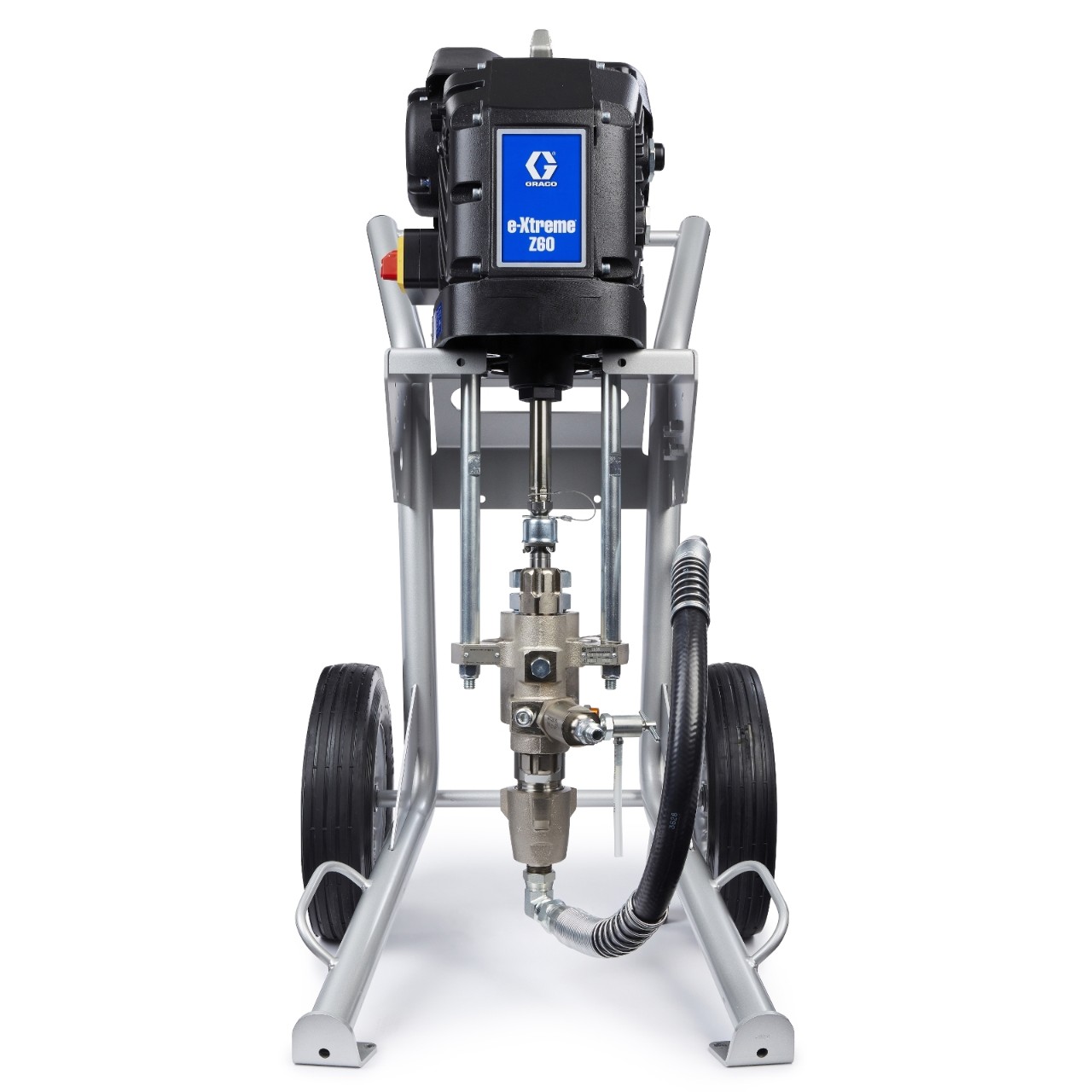

e-Xtreme Z60 Electric High Pressure Airless Sprayer with Heavy-Duty Cart
25P245
Z60
e-Xtreme Z60 Electric High Pressure Airless Sprayer with Heavy-Duty Cart
25P245
The Graco e-Xtreme Z60 sprayer is an electric alternative to air-operated single-leg sprayers and can handle up to 6000 psi of working pressure. The Z60 produces a smooth, consistent, evenly distributed spray pattern – without the need to tow a large compressor.
Features
Product Brochure
The Graco e-Xtreme Z60 sprayer is an electric alternative to air-operated single-leg sprayers and can handle up to 6000 psi of working pressure. The Z60 produces a smooth, consistent, evenly distributed spray pattern – without the need to tow a large compressor.
- Electric - When wired correctly, electric power is safe, reliable and convenient for you and your customers. If your air compressor stops working, you no longer have to stop production.
- No Icing - By eliminating the need for an air motor, it reduces icing problems.
- Reduced Noise - No matter the application, noise exposure can dramatically affect your working conditions.
- Plug-in & Spray - The e-Xtreme Z-series sprayer runs on 240V/20A power. It's also able to handle Graco’s most popular tip sizes and with a smooth pattern thanks to the low rate of pulsation.
Specifications & Documents
Technical Specifications
Convert to Metric| Amperage (A) | 15 |
|---|---|
| Compatible Material | Protective Coating Materials |
| Compatible Tip Size (in) | 0.021 |
| Fluid Inlet Size (in) | 1 |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Size (in) | 1/2 |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | NPT |
| Frame Configuration | Cart Mount |
| Frequency (Hz) | 50/60 |
| Maximum Continuous Cycle Rate (CPM) | 40 |
| Maximum Fluid Temperature (°F) | 160 |
| Maximum Input Voltage (V ac) | 0 |
| Maximum Operating Temperature (°F) | 120 |
| Maximum Sound Pressure Level (dB(A)) | 80 |
| Maximum Working Pressure (MPa) | 41.4 |
| Maximum Working Pressure (psi) | 6000 |
| Minimum Generator Power (kW) | 0 |
| Minimum Hose Inside Diameter (in) | 3/8 |
| Minimum Hose Length (ft) | 0 |
| Minimum Input Voltage (V ac) | 0 |
| Minimum Operating Temperature (°F) | 23 |
| Model | Z60 |
| Phase | 1 |
| Stroke Length (in) | 4.75 |
| Type | Airless Sprayer |
| Weight (lb) | 131 |
| Wetted Material | Carbon Steel, Alloy Steel, Stainless Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE, Leather, Aluminum |
| Amperage (A) | 15 |
| Compatible Material | Protective Coating Materials |
| Fluid Inlet Thread Gender | Male |
| Fluid Inlet Thread Type | NPT |
| Fluid Outlet Thread Gender | Male |
| Fluid Outlet Thread Type | NPT |
| Frame Configuration | Cart Mount |
| Frequency (Hz) | 50/60 |
| Maximum Continuous Cycle Rate (CPM) | 40 |
| Maximum Fluid Temperature (°C) | 71 |
| Maximum Input Voltage (V ac) | 0 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Sound Pressure Level (dB(A)) | 80 |
| Maximum Working Pressure (MPa) | 41.4 |
| Maximum Working Pressure (bar) | 414 |
| Minimum Generator Power (kW) | 0 |
| Minimum Input Voltage (V ac) | 0 |
| Minimum Operating Temperature (°C) | -5 |
| Model | Z60 |
| Phase | 1 |
| Type | Airless Sprayer |
| Weight (kg) | 289 |
| Wetted Material | Carbon Steel, Alloy Steel, Stainless Steel, Zinc Plating, Nickel Plating, Ductile Iron, Tungsten Carbide, PTFE, Leather, Aluminum |
