SaniSpray HP 130

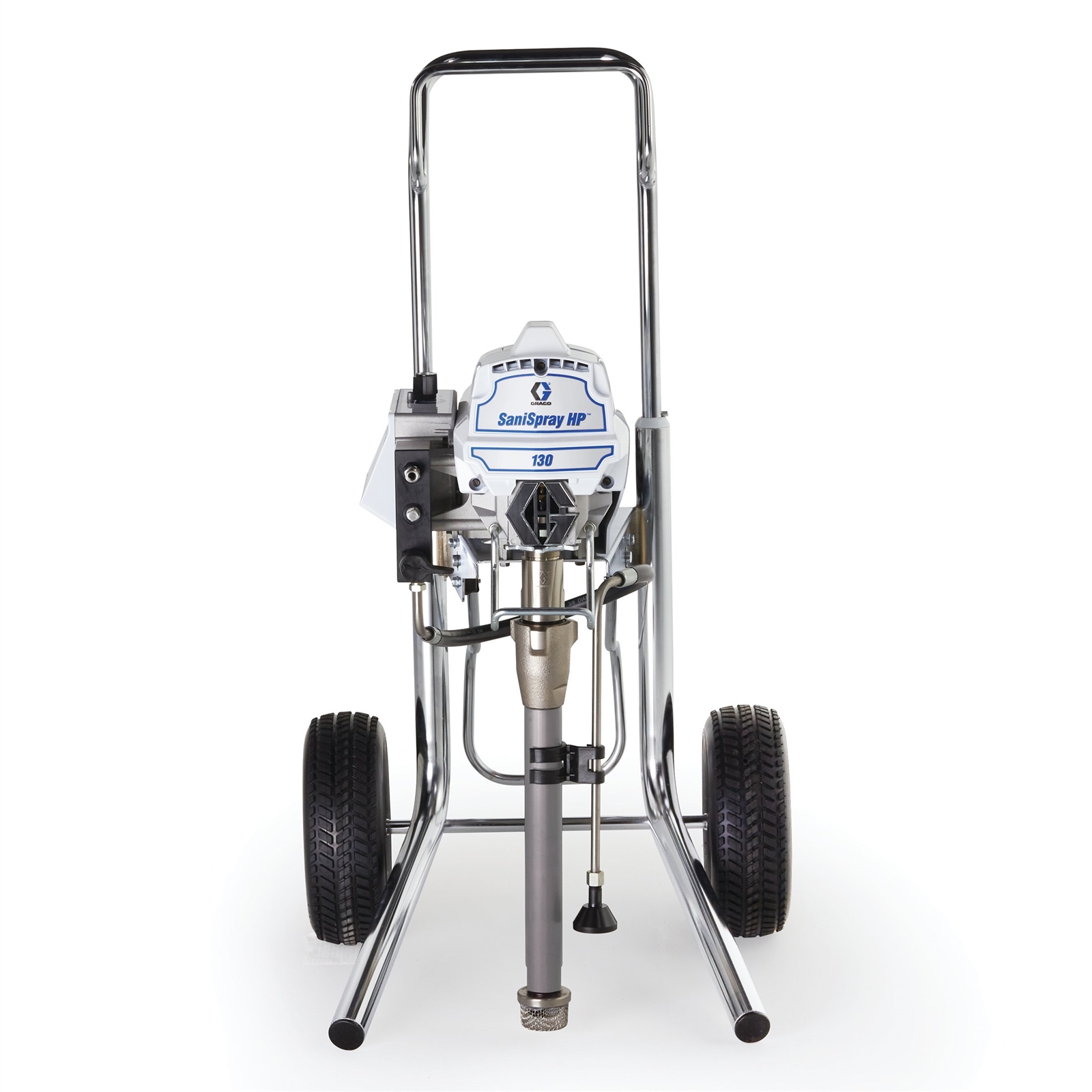

SaniSpray HP 130 Electric Airless Disinfectant Sprayer

25R793

SaniSpray HP 130

SaniSpray HP 130 Electric Airless Disinfectant Sprayer

25R793

The Graco SaniSpray HP 130 is the ideal disinfectant sprayer solution that delivers maximum, 2-gun productivity on large disinfecting jobs. Uniquely built with the highest-grade materials that are compatible with disinfectants, sanitizers and deodorizers.
Questions About this Product?

If you’re not finding the information you need, ask one of our experts.

Ask an Expert

Customer Experiences

Features

Product Brochure
The Graco SaniSpray HP 130 is the ideal disinfectant sprayer solution that delivers maximum, 2-gun productivity on large disinfecting jobs. Uniquely built with the highest-grade materials that are compatible with disinfectants, sanitizers and deodorizers.

Designed to deliver consistent edge-to-edge coverage, without heavy drips and runs, so that you can achieve specified disinfectant dwell times on larger jobs like apartment complexes, warehouses, heavy commercial buildings, hospitals, stadiums and more.

  • Two-Gun Productivity

    • Highest production airless disinfectant sprayer available on market
    • Simultaneous dual gun performance for maximum disinfection rates
  • Spray From Any Container
    • Extended spraying without refills
  • Extended Reach To Spray Anywhere
    • Add up to 300 ft of hose
  • SmartControl Adjustable Pressure Control
    • Full range control delivers even coverage on specific objects or area fine misting
  • Roll & Go Cart Design
    • Easily move sprayer and chemical bucket together
  • Endurance Piston Pump with ProConnect
    • Allows faster application to speed up disinfection process
  • Lightweight SaniSpray HP Guns &Reverse-A-Clean (RAC) X LP Spray Tips
    • Choose from 17 RAC X spray tips to meet your coating's dwell time and atomization requirements
  • 15 inch Spray Extensions
    • Provides additional reach
    • Reduces operator chemical exposure
  • MaxPower Motor & Advantage Drive
    • Dependable motor with spark-free operation provides ability to spray alcohol-based (flammable) chemicals
  • Ready to Spray
    • Comes with everything you need – just add disinfectant and get to work

Specifications & Documents

Technical Specifications

Convert to Metric
Compatible Replacement Pump 25R916
Fluid Outlet Size (in) 1/4
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy

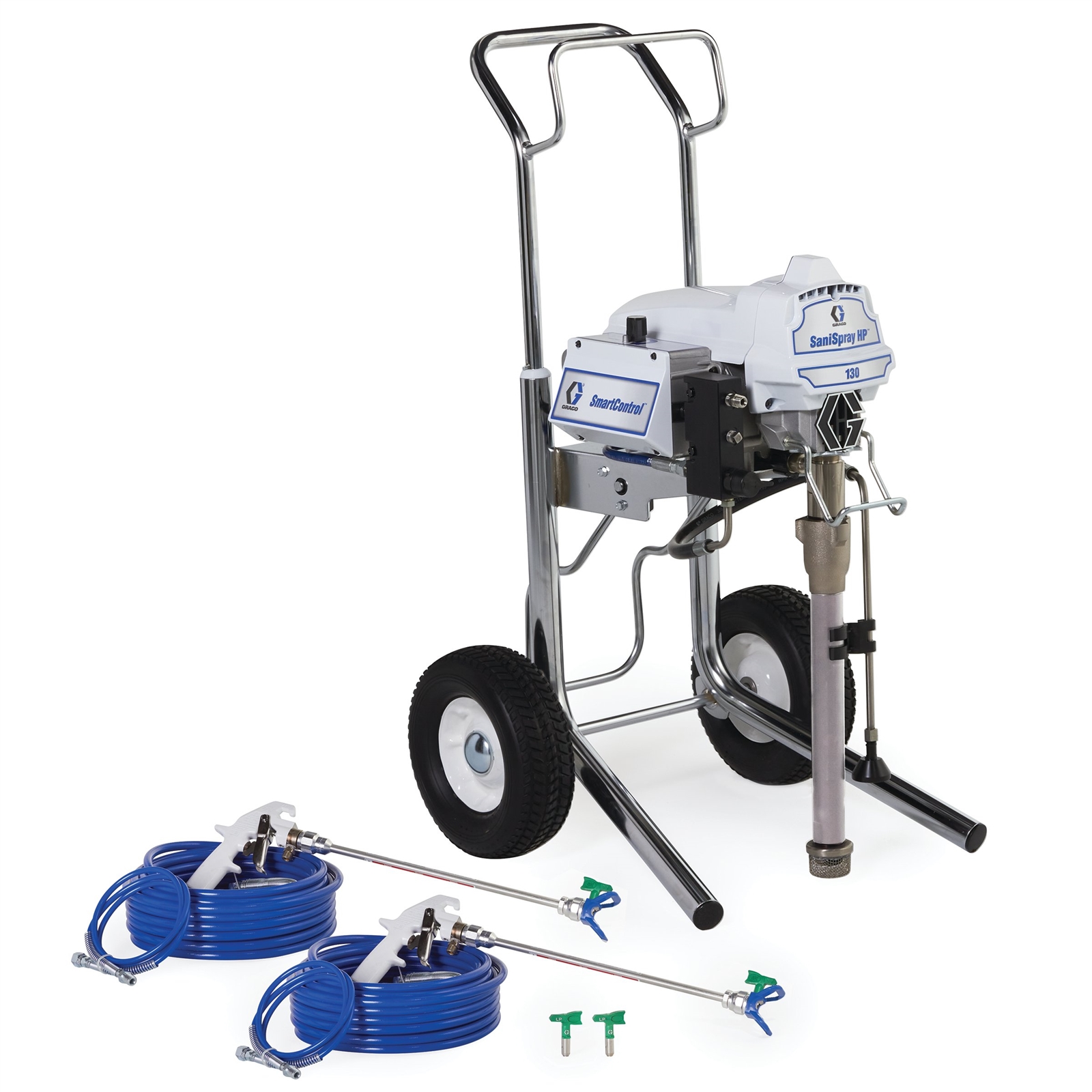

Includes 2 - SaniSpray HP Spray Guns, 2 - RAC X LP 617 Spray Tips, 2 - RAC X LP 619 Spray Tips, 2 - RAC X LP 723 Spray Tips, 2 - 1/4 in x 50 ft BlueMax II Airless Hoses, 2 - 1/8 in x 4.5 ft BlueMax II Airless Whip Hoses, 2 - 15 in Spray Extensions
Maximum Flow Rate (GPM) 1.0
Maximum Hose Length (ft) 300
Maximum Tip Size (in) 0.031
Maximum Tip Size 1 Gun (in) 0.031
Maximum Tip Size 2 Guns (in) 0.023
Maximum Working Pressure (psi) 1000
Minimum Generator Power (W) 4000
Minimum Hose Length (ft) 50
Model SaniSpray HP
Number of Guns 2
Overall Height (in) 38.25
Overall Length (in) 23.25
Overall Width (in) 20.5
Power Source Electric
Pressure Control Type SmartControl
Pump Type Endurance
Series 130
Sound Power Level (dB(A)) 100
Sound Pressure Level (dB(A)) 90
Type Airless Sprayer
Weight (lb) 75
Wetted Material Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Anodized Aluminum, Tungsten Carbide, Polyethylene, Fluoroelastomer, Urethane, Nylon, PE-RT
Compatible Replacement Pump 25R916
Fluid Outlet Thread Type NPSM
Frame Configuration Hi-Boy
Includes 2 - SaniSpray HP Spray Guns, 2 - RAC X LP 617 Spray Tips, 2 - RAC X LP 619 Spray Tips, 2 - RAC X LP 723 Spray Tips, 2 - 1/4 in x 50 ft BlueMax II Airless Hoses, 2 - 1/8 in x 4.5 ft BlueMax II Airless Whip Hoses, 2 - 15 in Spray Extensions
Minimum Generator Power (W) 4000
Model SaniSpray HP
Number of Guns 2
Overall Height (cm) 97.2
Overall Length (cm) 59.1
Overall Width (cm) 52.1
Power Source Electric
Pressure Control Type SmartControl
Pump Type Endurance
Series 130
Sound Power Level (dB(A)) 100
Sound Pressure Level (dB(A)) 90
Type Airless Sprayer
Weight (kg) 34
Wetted Material Stainless Steel, PTFE, Acetal, Leather, UHMWPE, Anodized Aluminum, Tungsten Carbide, Polyethylene, Fluoroelastomer, Urethane, Nylon, PE-RT

What's Included

Part No. Description Qty Unit
240794 BlueMax II Airless Hose, 1/4 in x 50 ft 2 ea
LP617 Low Pressure RAC X LP SwitchTip, 617 2 ea
LP619 Low Pressure RAC X LP SwitchTip, 619 2 ea
LP621 Low Pressure RAC X LP SwitchTip, 621 2 ea
