EcoQuip 2 EQs Elite

EcoQuip 2 EQs Elite High Production Fully Loaded Blast System with Pneumatic Blast Control and ATEX

262974

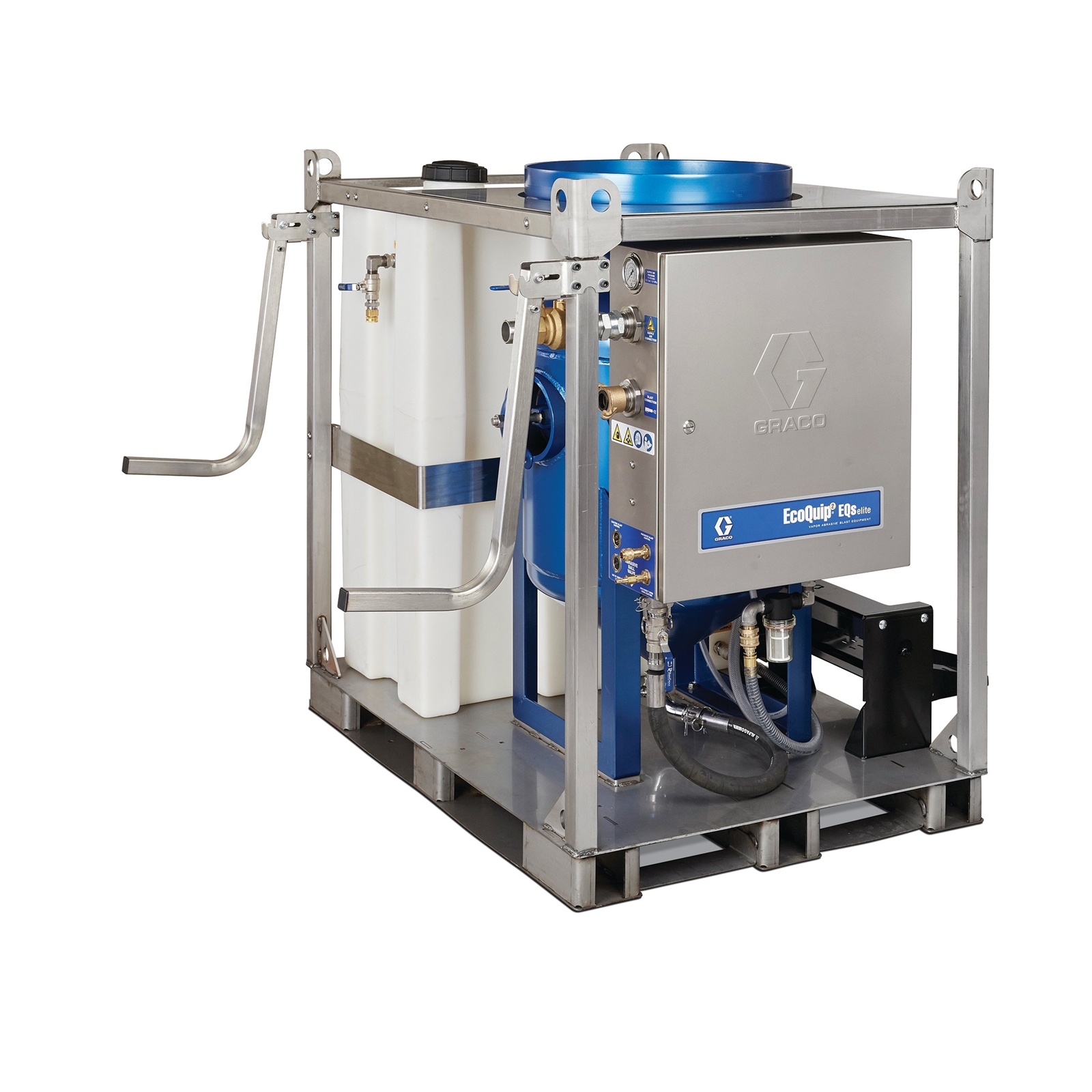

ecoquip-2-eqs-elite ecoquip-2-eqs-elite-hose-arms-down-right

EcoQuip 2 EQs Elite

EcoQuip 2 EQs Elite High Production Fully Loaded Blast System with Pneumatic Blast Control and ATEX

262974

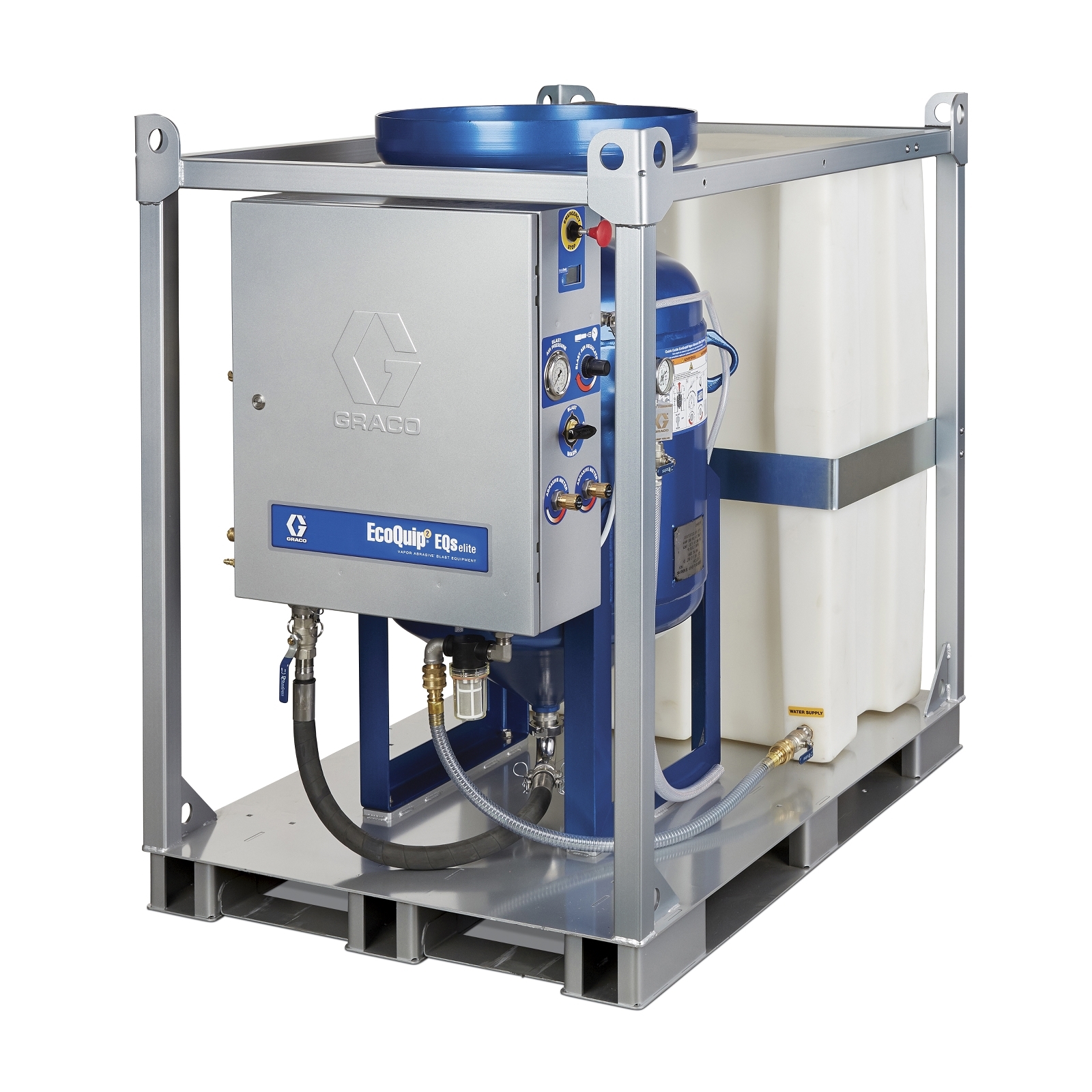

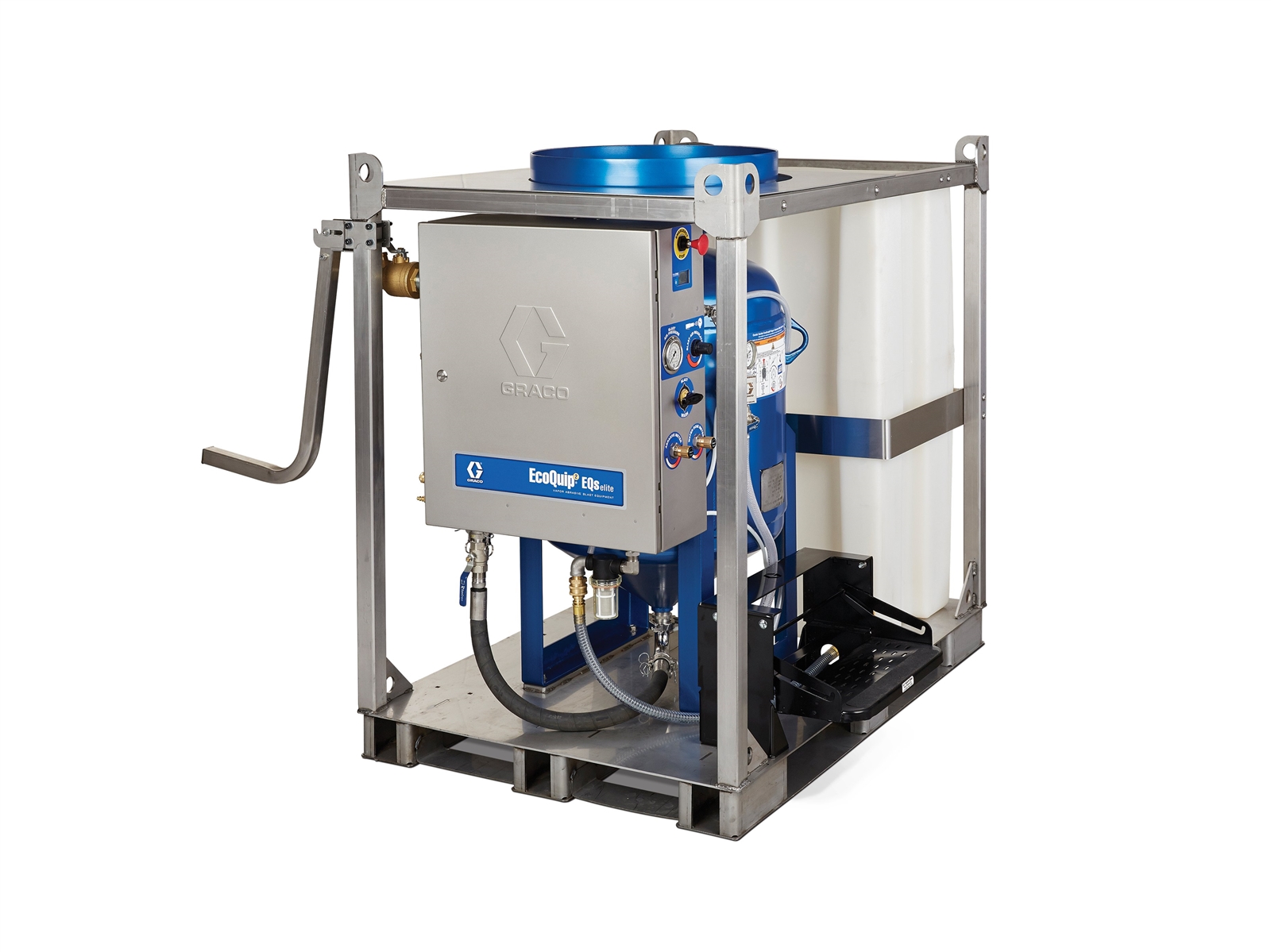

The EcoQuip 2 EQs Elite is built for contractors that want the best. Equipped with a stainless steel crash frame and enclosure, hose rack, step, media strainer, water dose valve and a media shelf, this fully-loaded system makes it easy to get setup faster and start making money.

Features

Product Brochure

The EcoQuip 2 EQs Elite is built for contractors that want the best. Equipped with a stainless steel crash frame and enclosure, hose rack, step, media strainer, water dose valve and a media shelf, this fully-loaded system makes it easy to get setup faster and start making money.

Graco’s blasting equipment serves a wide-range of industries from professional cleaning, construction and heavy equipment maintenance, to marine/shipyard and airports.

  • Vapor Abrasive Blasting: A cleaner, easier path to profitable results

    • Generates less dust - 92% less airborne dust than dry blasting
    • Uses less water than traditional water-based wet blasting
    • Optimizes air, water and media ratio – resulting in a fine mist with a blast that is powerful, but with less dust
    • ATEX approved units available for explosive atmospheres
  • Fits inside a six foot truck bed easy transport
  • Stacks easily to save space
  • Heavy duty water tank with hose connection
  • Step and media shelf for faster media loading
  • Crash frame supports 5x lift rating of machine
  • 6.5 cubic ft. specialty coated pot

Specifications

Technical Specifications

Convert to Metric
Abrasive Capacity (lb) 880
Air Inlet Size (in) 1-1/2
Air Inlet Thread Type NPT
Blast Hose Inside Diameter (in) 1.25
Compatible Abrasives Garnet, Crushed Glass, Coal Slag, Glass Beads, Plastic, Walnut Shells, Baking Soda
Configuration Skid
Control Type Pneumatic
Dry Weight (lb) 1070
Frame Material Stainless Steel
Frame Type Skid/Crash Frame
Maximum Sound Pressure Level (dB(A)) 133
Maximum Working Pressure (psi) 175
Nozzle Type #8 High Performance
Pot Capacity (L) 184
Pot Capacity (gal) 49
Pot Finish/Coating A-Coat/Powder
Recommended Compressor Size (CFM) 185-900
Type Abrasive Blast System
Unit Type Mid-sized Unit
Water Tank Volume (gal) 115
Wet Weight (lb) 3120
Abrasive Capacity (lb) 880
Air Inlet Thread Type NPT
Blast Hose Inside Diameter (cm) 3
Blast Hose Inside Diameter (mm) 32
Compatible Abrasives Garnet, Crushed Glass, Coal Slag, Glass Beads, Plastic, Walnut Shells, Baking Soda
Configuration Skid
Control Type Pneumatic
Dry Weight (lb) 1070
Frame Material Stainless Steel
Frame Type Skid/Crash Frame
Maximum Sound Pressure Level (dB(A)) 133
Maximum Working Pressure (bar) 12
Maximum Working Pressure (kPa) 1206
Nozzle Type #8 High Performance
Pot Capacity (L) 184
Pot Capacity (gal) 49
Pot Finish/Coating A-Coat/Powder
Recommended Compressor Size (CFM) 185-900
Type Abrasive Blast System
Unit Type Mid-sized Unit
Water Tank Volume (gal) 115
Wet Weight (lb) 3120
