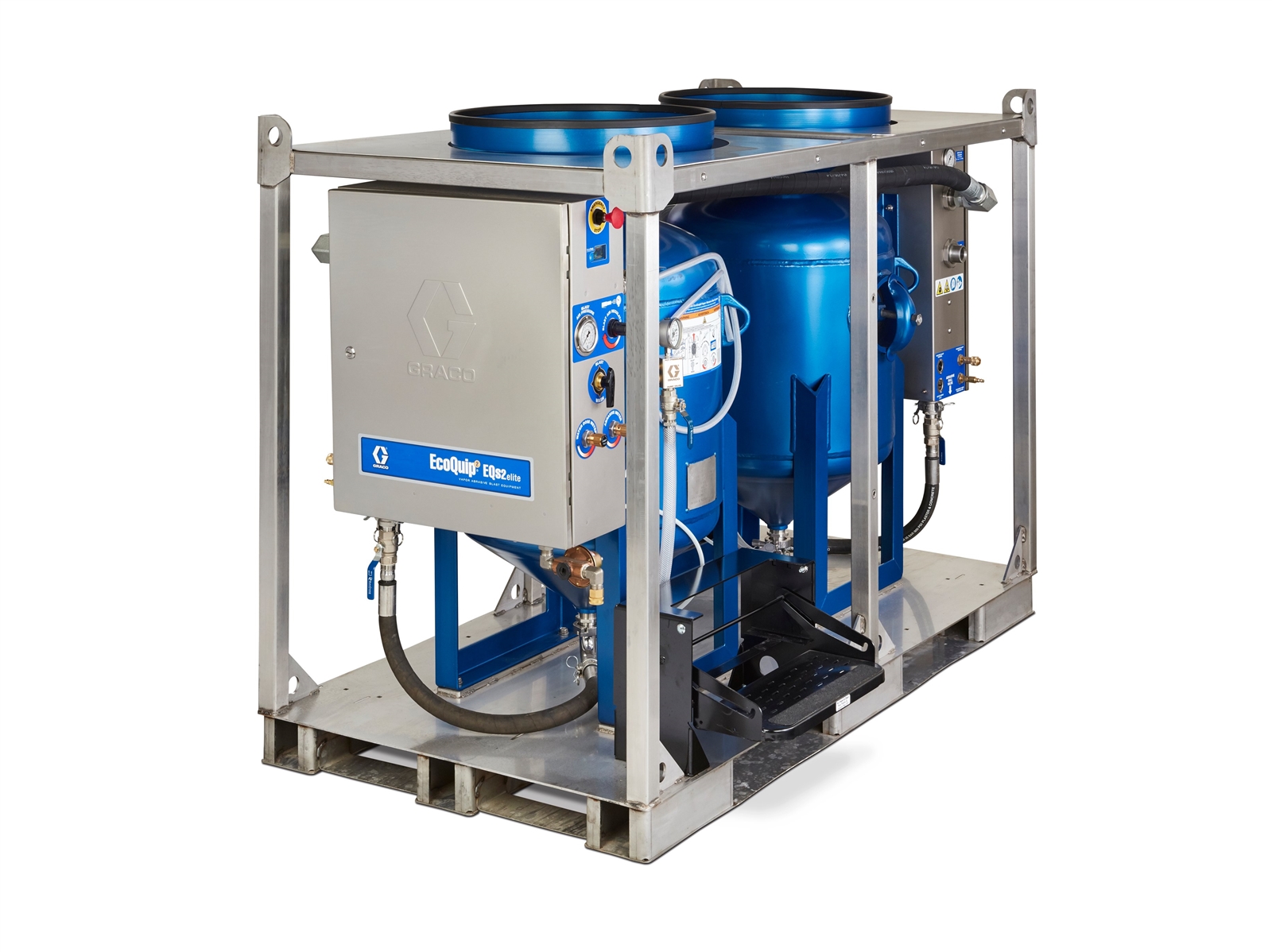

EcoQuip 2 EQs2 Elite

Bare EcoQuip 2 EQs2 Elite Blast Unit with Two Nozzles

262980

ecoquip-2-eqs2-elite

EcoQuip 2 EQs2 Elite

Bare EcoQuip 2 EQs2 Elite Blast Unit with Two Nozzles

262980

EcoQuip EQ2 Twinline operates on a single compressor with two nozzles to double your production rate, which makes the BIG jobs more profitable. You now don't have to worry about bringing two separate skid units to job. With the new Twinline, you can now have two operators working off one machine ...

More Info

Features

Product Brochure

EcoQuip EQ2 Twinline operates on a single compressor with two nozzles to double your production rate, which makes the BIG jobs more profitable. You now don't have to worry about bringing two separate skid units to job. With the new Twinline, you can now have two operators working off one machine without interruption.

Key Applications Shipyards Tank farms Bridge and infrastructure Road construction and repair

  • Vapor Abrasive Blasting: A cleaner, easier path to profitable results

    • Generates less dust - 92% less airborne dust than dry blasting
    • Uses less water than traditional water-based wet blasting
    • Optimizes air, water and media ratio – resulting in a fine mist with a blast that is powerful, but with less dust
    • ATEX approved units available for explosive atmospheres

Specifications

Technical Specifications

Convert to Metric
Abrasive Capacity (lb) 880
Air Inlet Size (in) 1-1/2
Air Inlet Thread Type NPT
Blast Hose Inside Diameter (in) 1-1/4
Compatible Abrasives Garnet, Crushed Glass, Coal Slag, Glass Beads, Plastic, Walnut Shells, Baking Soda
Configuration Skid
Dry Weight (lb) 1070
Frame Material Stainless Steel
Frame Type Skid Frame
Maximum Sound Pressure Level (dB(A)) 133
Maximum Working Pressure (psi) 175
Pot Capacity (gal) 49
Pot Finish/Coating A-Coat/Powder
Recommended Compressor Size (CFM) 185-900
Type Abrasive Blast System
Water Tank Volume (gal) 115
Wet Weight (lb) 3150
Air Inlet Size (cm) 3.81
Air Inlet Size (mm) 38.1
Air Inlet Thread Type NPT
Blast Hose Inside Diameter (cm) 3.175
Blast Hose Inside Diameter (mm) 31.75
Compatible Abrasives Garnet, Crushed Glass, Coal Slag, Glass Beads, Plastic, Walnut Shells, Baking Soda
Configuration Skid
Frame Material Stainless Steel
Frame Type Skid Frame
Maximum Sound Pressure Level (dB(A)) 133
Maximum Working Pressure (bar) 12.07
Maximum Working Pressure (kPa) 1207
Maximum Working Pressure (kg/cm²) 12.3
Pot Capacity (L) 185.5
Pot Finish/Coating A-Coat/Powder
Recommended Compressor Size (CFM) 185-900
Type Abrasive Blast System
