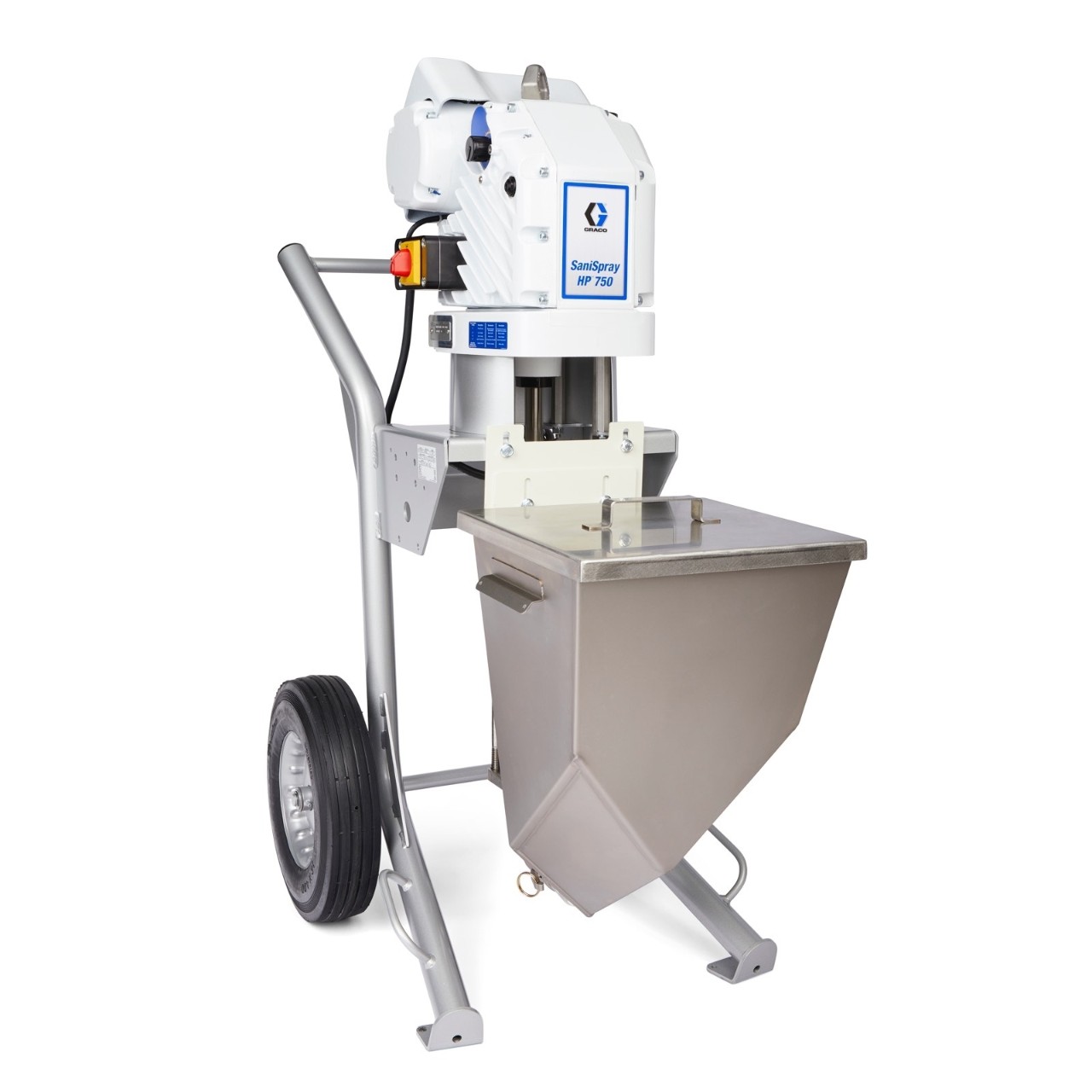

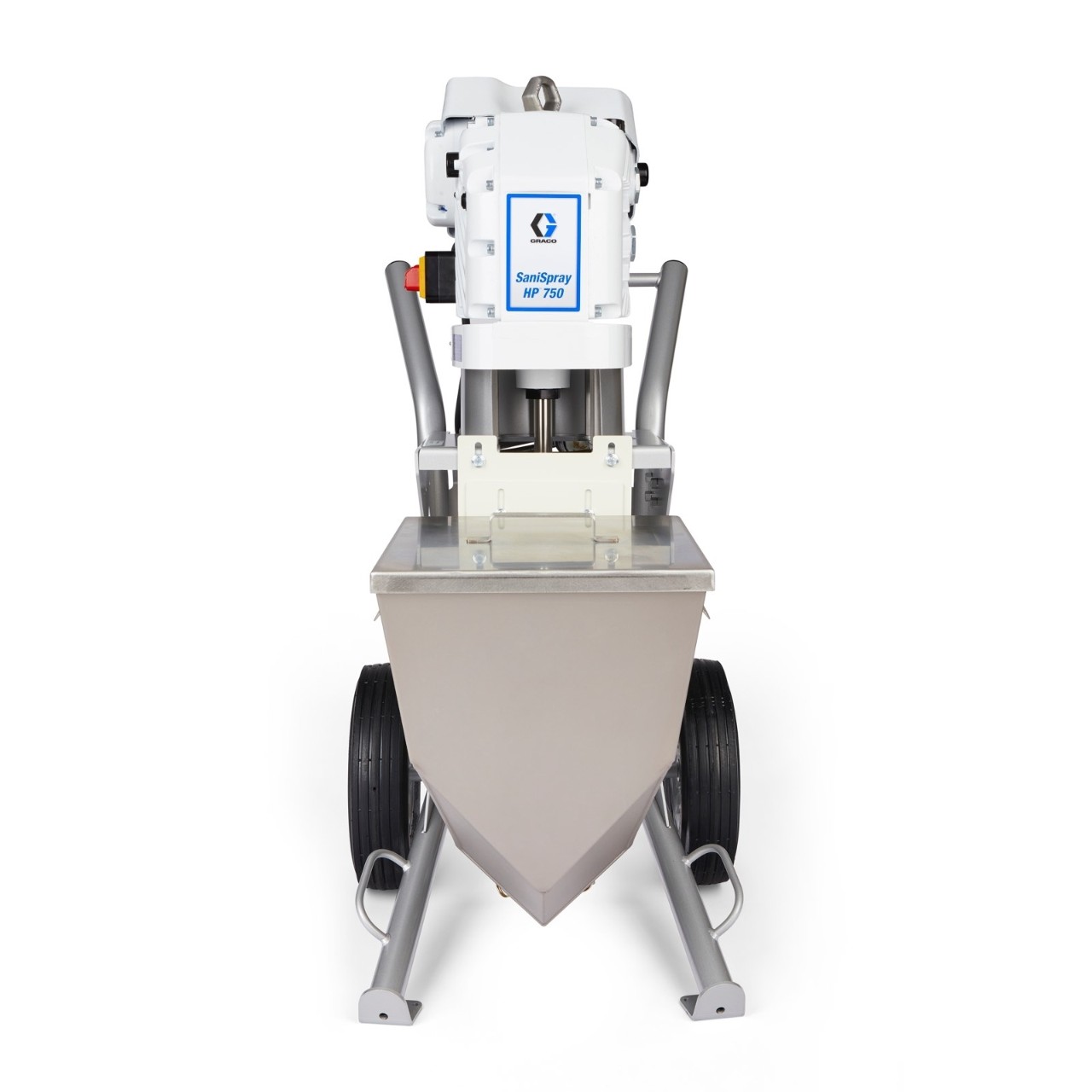

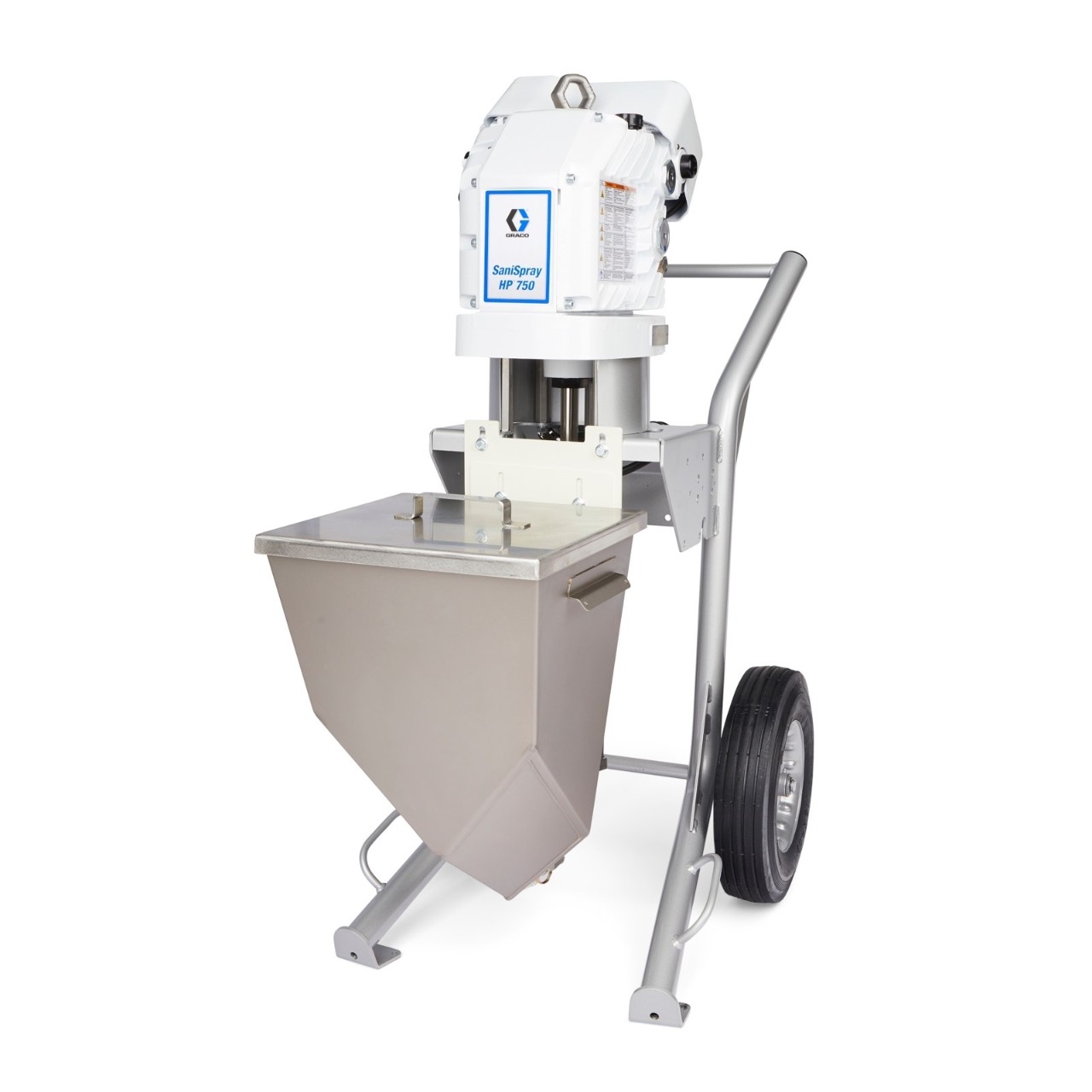

SaniSpray HP 750

SaniSpray HP 750 Electric Airless Disinfectant Sprayer, 240V, 4 Guns

273216

SaniSpray HP 750

SaniSpray HP 750 Electric Airless Disinfectant Sprayer, 240V, 4 Guns

273216

The Graco SaniSpray HP 750 airless sprayer is designed to deliver maximum productivity for large sanitizing and disinfecting jobs, such as stadiums, parks, airports, ships and large industrial areas.

Related Videos

Features

Product Brochure
The Graco SaniSpray HP 750 airless sprayer is designed to deliver maximum productivity for large sanitizing and disinfecting jobs, such as stadiums, parks, airports, ships and large industrial areas.

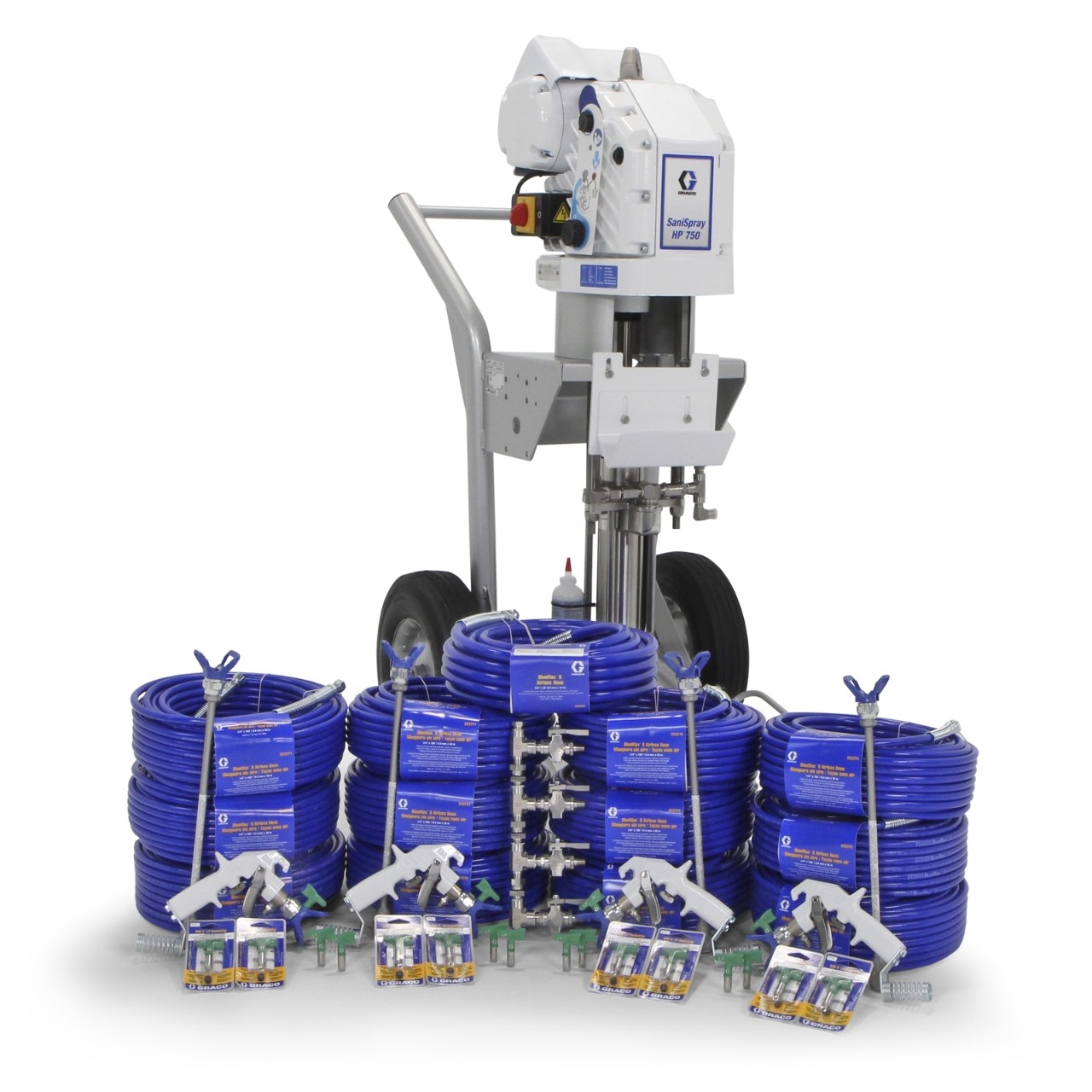

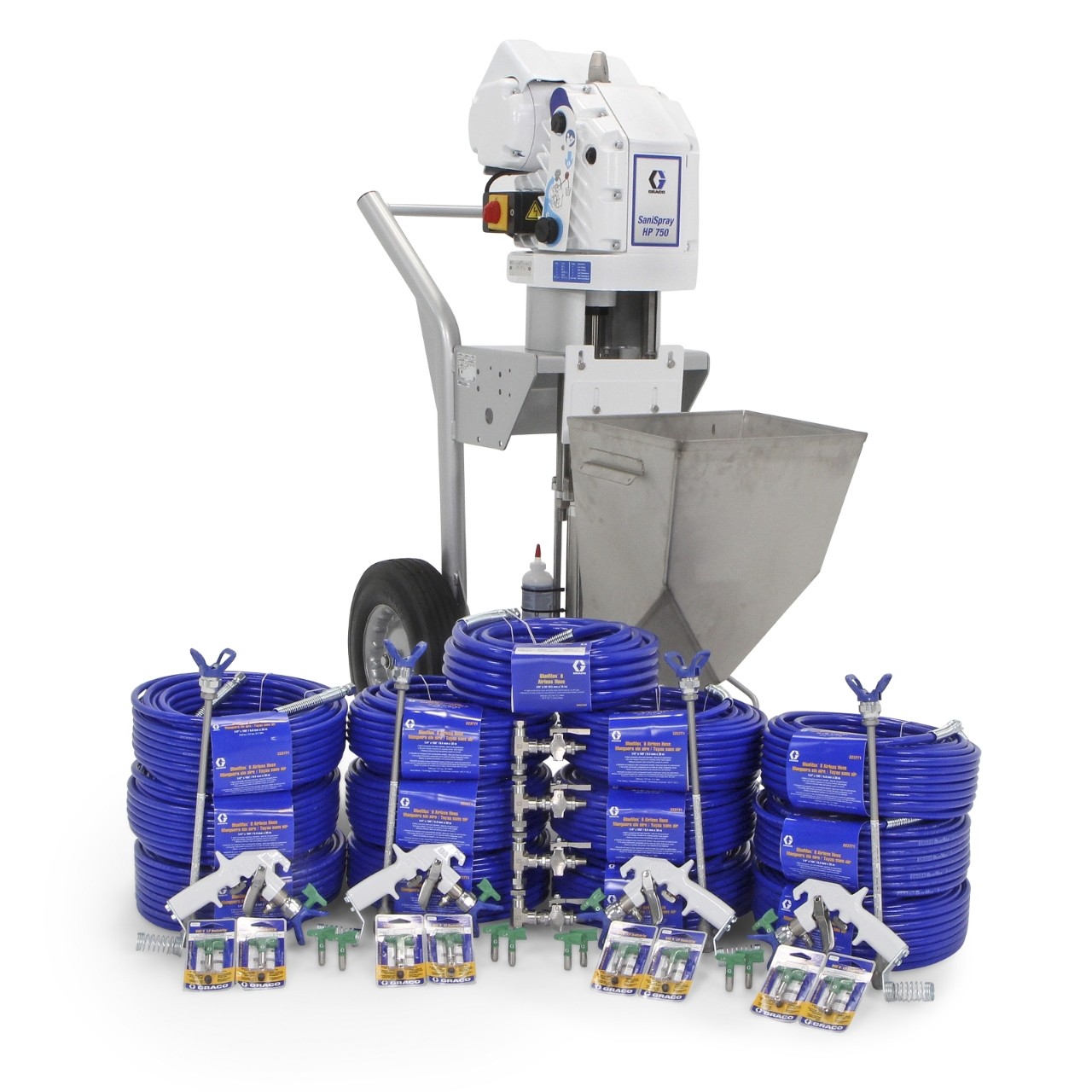

With four applicators spraying up to 400,000 sq ft (37,161 sq m) from a single staging area, you can ensure a consistent application of chemicals for sanitizing, disinfecting and deodorizing.

  • Highest production airless disinfectant sprayer available on the market
  • Siphon feed from a 5/55 gal (20/200 L) container or easily fill the 10 gal (38 L) stainless steel hopper
  • Package includes 300 ft (91.5 m) of hose per airless spray gun, but can connect up to 500 ft (150 m) of hose per gun
  • Compatible with 17 RAC X low pressure tips
  • Quiet electric motor (74 dB)
  • Adjustabe pressure control from 0-1,200 psi (83 bar) for desired atomization

Specifications & Documents

Technical Specifications

Convert to Metric
Hopper Capacity (gal) 10
Maximum Continuous Cycle Rate (CPM) 33
Maximum Fluid Temperature (°F) 120
Maximum Hose Length (ft) 500
Maximum Operating Temperature (°F) 120
Maximum Tip Size (in) 0.031
Maximum Working Pressure (MPa) 7.9
Maximum Working Pressure (psi) 1150
Minimum Generator Power (kW) 5
Minimum Operating Temperature (°F) 23
Model SaniSpray HP
Number of Guns 4
Overall Depth (in) 30
Overall Height (in) 50
Overall Width (in) 26
Phase 1
Power Source Electric
Pump Mount Type Cart Mount
Series 750
Sound Power Level (dB(A)) 78
Sound Pressure Level (dB(A)) 87
Stroke Length (in) 4.75
Type Airless Sprayer
Voltage (V) 240
Weight (lb) 308
Hopper Capacity (L) 38
Maximum Continuous Cycle Rate (CPM) 33
Maximum Fluid Temperature (°C) 50
Maximum Operating Temperature (°C) 50
Maximum Working Pressure (MPa) 7.9
Maximum Working Pressure (bar) 79
Minimum Generator Power (kW) 5
Minimum Operating Temperature (°C) -5
Model SaniSpray HP
Number of Guns 4
Phase 1
Power Source Electric
Pump Mount Type Cart Mount
Series 750
Sound Power Level (dB(A)) 78
Sound Pressure Level (dB(A)) 87
Type Airless Sprayer
Voltage (V) 240
Weight (kg) 140
