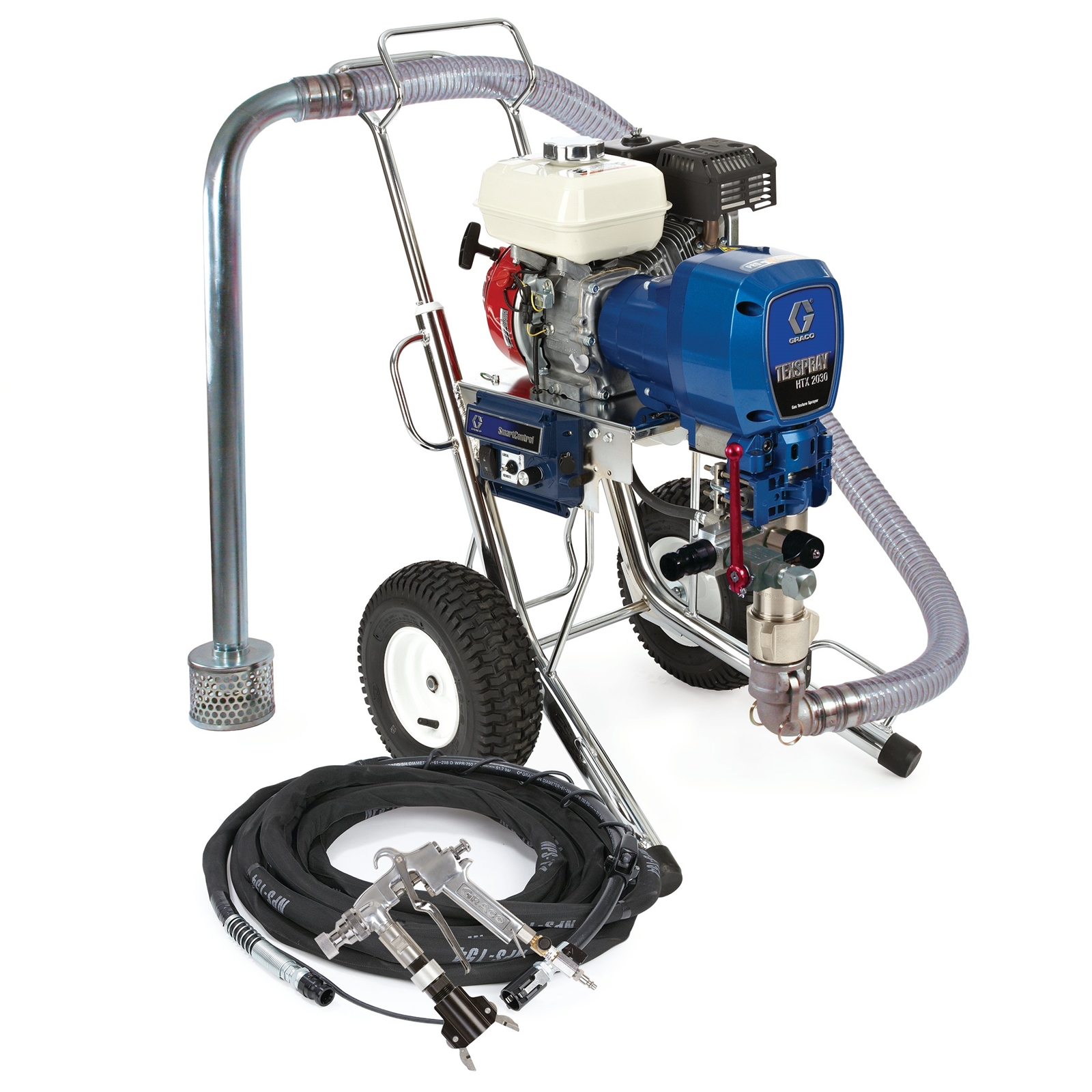

TexSpray HTX 2030

TexSpray HTX 2030 Complete, Trigger Gun

278677

278677_TexSpray_HTX_2030_Complete_190711_Main

TexSpray HTX 2030

TexSpray HTX 2030 Complete, Trigger Gun

278677

The HTX 2030 Gas Mechanical Texture Sprayer is specifically engineered to spray the most demanding materials — from exterior smooth and aggregate coatings, elastomerics, acrylic coatings, drywall mud finishes as well as paints and primers with the optional high-pressure MaxLife Endurance Pump.

Features

Product Brochure
The HTX 2030 Gas Mechanical Texture Sprayer is specifically engineered to spray the most demanding materials — from exterior smooth and aggregate coatings, elastomerics, acrylic coatings, drywall mud finishes as well as paints and primers with the optional high-pressure MaxLife Endurance Pump.

Apply interior and exterior texture finishes with aggregate size up to 2.5 mm.

  • High-Output Texture Pump
    • Time-Saving Production Rates
    • Pump aggregated materials up to 2.5mm with extra large passages
    • More uptime with no-tools hose connections at pump and gun
    • Consistent, optimal performance with innovative foot valve soft seal
  • PowerFlo Control System
    • Full-Range Flow Control (.6 to 3 gpm)
    • Remotely stops and starts material flow right at the pump
    • Smooth, controlled material flow prevents pack-out conditions
    • Soft start eliminates material blast to ensure finish quality
  • StraightThru Fluid Path
    • Reduced Pack-Out Conditions
    • Easily spray more demanding and aggressive aggregate materials
  • Trigger Gun Applicator
    • One-handed trigger shut-off prevents material oozing
    • Ideal for spraying EIFS and synthetic stucco finish coats
    • Consistent material coverage in either a round pattern or wide fan pattern
  • Texture Applications
    • Simulated Acoustic (Popcorn)
    • Orange Peel & Fine Splatter
    • Splatter
    • Knockdown
    • Textured Acrylics & Elastomerics
    • Deck Coatings
    • EIFS & Synthetic Stucco Finish Coats
278677_TexSpray_HTX_2030_Complete_190711_Main

Specifications

Technical Specifications

Convert to Metric
Compatible Material Block Filler, Drywall Mud, Elastomeric Coating
Engine Brand Honda
Engine Size (HP) 6.5
Includes Trigger Gun Applicator, 3/4 in x 50 ft Hose, Fine Finish Kit with 1/8 in, 1/4 in, 5/16 in, 3/8 in Nozzles, 55 gal Suction Set
Material Application Liquid Waterproofing
Maximum Flow Rate (GPM) 3
Maximum Hose Length (ft) 50
Maximum Tip Size (in) 0.071
Maximum Tip Size 1 Gun (in) 0.071
Maximum Working Pressure (MPa) 6.9
Maximum Working Pressure (psi) 1000
Model TexSpray HTX
Power Rating (HP) 6.5
Power Rating (W) 4847.1
Power Rating (kW) 4.85
Power Source Gas
Series 2030
Type Airless Sprayer
Compatible Material Block Filler, Drywall Mud, Elastomeric Coating
Engine Brand Honda
Engine Size (HP) 6.5
Includes Trigger Gun Applicator, 3/4 in x 50 ft Hose, Fine Finish Kit with 1/8 in, 1/4 in, 5/16 in, 3/8 in Nozzles, 55 gal Suction Set
Material Application Liquid Waterproofing
Maximum Flow Rate (L/min) 11.3
Maximum Hose Length (m) 15
Maximum Tip Size (cm) 0.1803
Maximum Tip Size (mm) 1.8034
Maximum Tip Size 1 Gun (cm) 0.1803
Maximum Tip Size 1 Gun (mm) 1.8034
Maximum Working Pressure (MPa) 6.9
Maximum Working Pressure (bar) 69
Maximum Working Pressure (kPa) 6900
Model TexSpray HTX
Power Rating (HP) 6.5
Power Rating (W) 4847.1
Power Rating (kW) 4.85
Power Source Gas
Series 2030
Type Airless Sprayer

What's Included

Part No. Description Qty Unit
24B300 GB HOSE, FLUID, 3/4" X 50' COUPLED 1 ea
224442 KIT, REPAIR, SUCTION, (55 GAL) 1 ea
